Air Hose Connector 1/4 Guide: Fittings and Setup

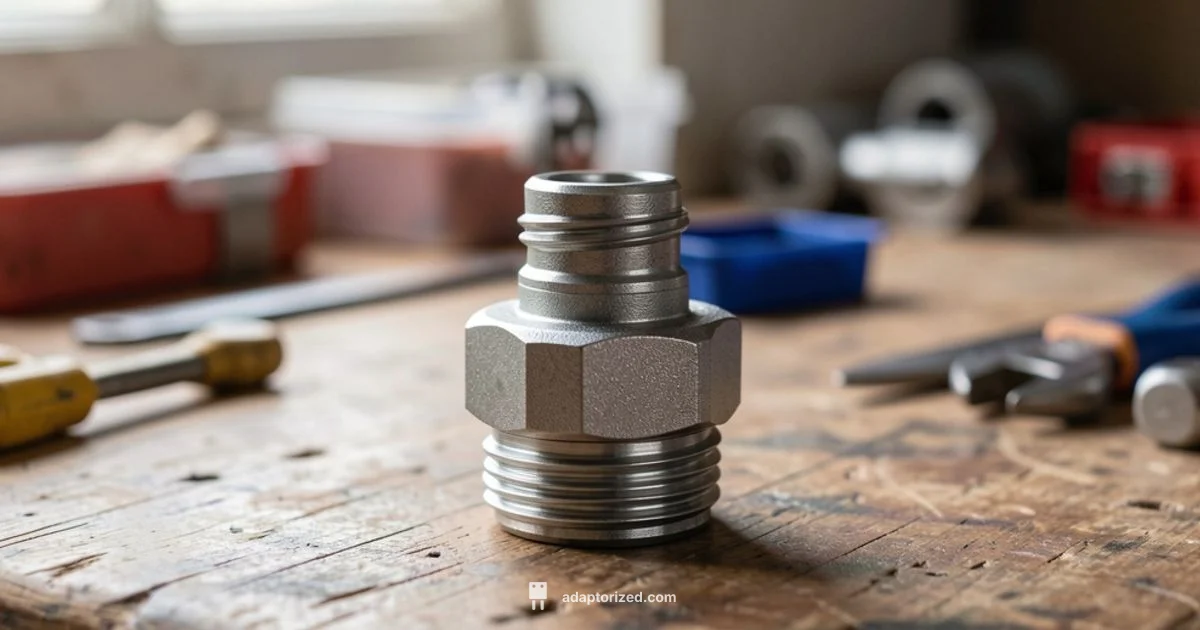

What is a 1/4 Inch Air Hose Connector?

A 1/4 inch air hose connector is a small but essential part of many pneumatic systems. The 1/4 designation refers to the nominal size of the hose and port the connector is designed to fit, which is common in home workshops and hobbyist setups. These fittings enable quick transitions between hoses, tools, and compressors without complicated tools. You’ll typically see two broad categories: couplers that let you connect and disconnect rapidly, and fittings that terminate hoses with barbs or threads for a secure attachment. In practice, the right connector keeps air moving smoothly, minimizes leaks, and helps maintain tool performance. For DIYers, familiarity with this size reduces frustration when expanding a pneumatic toolkit and ensures better compatibility with common workshop equipment.

From basic airbrush setups to spray guns and nail guns, the 1/4 inch connector is part of a broader ecosystem of pneumatic components. It’s worth noting that while the 1/4 inch size is common, there are several thread standards and connection styles in use across brands. Understanding these basics helps you avoid compatibility problems and streamlines future upgrades. In this guide, you’ll find practical guidance tailored to makers who want reliable, repeatable results in everyday projects.

Common 1/4 Inch Connector Styles

There isn’t a single universal design for a 1/4 inch air hose connector. The most familiar styles include quick-connect couplers, push-to-connect fittings, and barbed fittings that are secured with hose clamps. Quick-connect couplers let you snap hoses onto tools and compressors in seconds, making them ideal for frequent tool changes. Push-to-connect fittings simplify assembly by allowing the hose to be inserted and locked without thread sealing compounds. Barbed fittings rely on clamps to hold the hose securely over a tapered barb, which is common for low-pressure or temporary setups. The choice of style often depends on how frequently you swap tools, the operating environment, and the level of vibration you expect. For most DIYers, a combination of a quick-connect pair with a push-to-connect adapter covers a wide range of tasks while minimizing leakage risk.

Additionally, consider whether you need male or female connectors, and how the mating parts will be stored and identified in a busy shop. Labeling and color-coding can reduce misconnection errors when juggling multiple tools and air lines.

Tip: When selecting a style, test the fit with your existing hoses and tools to ensure the seal is snug and the connection feels secure before applying pressure.

Materials and Durability Considerations

Durability matters when choosing a 1/4 inch air hose connector because the part lives in a harsh workshop environment, exposed to dust, oil, and occasional impacts. Brass and aluminum are common materials that offer a good balance of strength, corrosion resistance, and cost. Brass fittings are often preferred for their durability and sealing properties, while aluminum keeps weight low for portable setups. Stainless steel variants exist for heavy-duty or corrosive environments, though they can be pricier.

O-rings and seals are another critical durability factor. Many push-to-connect and quick-connect styles rely on O-rings to maintain a tight seal as the system cycles on and off. When purchasing, inspect the seal material and ensure it’s compatible with the media you’re transporting—air and oil-laden air require different elastomer choices. For hobby projects, a well-made brass or aluminum connector with a robust O-ring generally delivers long service life with minimal maintenance.

Maintenance basics include wiping connections clean after use, avoiding thread damage during tightening, and replacing worn gaskets at the first sign of leaks. Keeping connectors free of debris not only improves seal performance but also reduces the chance of cross-threading or misalignment during assembly.

Thread Standards and Compatibility

Thread compatibility is a frequent source of confusion. The two most common standards in pneumatics are NPT (National Pipe Thread) and BSP (British Standard Pipe). NPT is prevalent in North America, while BSP is common in many other regions. Outside of pipe threads, some 1/4 inch connectors use metric or manufacturer-specific threads. Always verify the thread type on both the hose and the tool or compressor to avoid cross-threading and leaks. If you’re unsure of the thread standard, bring a sample or measure the pitch and diameter with a caliper or thread gauge. In many cases, adapters are available to bridge mismatched standards, but the simplest solution is to match the standard you’re already using in your shop.

In practice, the most reliable approach is to adopt a single thread standard for the majority of your connections and use adapters only when necessary. This reduces inventory complexity and speeds up setup time during projects.

How to Install a 1/4 Inch Connector

Installation starts with a quick check of tool and hose compatibility. If your connector has threads, apply a light layer of PTFE tape or a compatible thread sealant to the male threads to promote a clean seal. Be careful not to over-torque, which can damage threads; several light turns past hand-tight are typically sufficient. For push-to-connect fittings, trim the hose end squarely and ensure the cut is clean so it seats fully. When using barbed fittings, slide the hose over the barb, and secure with a stainless steel hose clamp to prevent leaks.

Test the assembly at low pressure first. If you notice air escaping around the connection, re-seat the hose, tighten slightly, or replace the O-ring if present. Always use eye protection and verify the system is depressurized before disassembly or reconfiguration. With practice, installation becomes quick, reliable, and safe.

Troubleshooting Leaks and Mismatches

Leaks are the most common issue with air hose connectors. A leak typically indicates an imperfect seal, a damaged O-ring, or a cross-threaded connection. Start by inspecting the O-rings and seals for cracks or tears. If you suspect a damaged gasket, replace the connector or the seal only with compatible parts. For threaded connections, re-check the thread type and ensure you are using the correct sealant or tape. If the leak persists after reseating, consider swapping to a higher quality connector or upgrading to a brass unit with a double-seal design.

Mismatches between hose and connector sizes are another frequent problem. Always measure the hose inner diameter and compare it to the connector’s hose barb or port sizing. If a mismatch is suspected, a proper adapter or a different connector style may be necessary to restore a leak-free setup.

Maintenance and Longevity Tips

Keeping your 1/4 inch air hose connectors in good shape extends their life and reduces downtime. Regularly clean fittings to remove dust and oil buildup, inspect O-rings, and replace any worn parts promptly. Store connectors in a dry, organized space to avoid corrosion and damage from accidental impacts. When you change hoses or tools, take a moment to re-check the seals and re-tighten as needed. Periodic inspection, even when the system seems to be working fine, helps prevent unexpected failures during critical tasks.

For makers who frequently reconfigure their air lines, consider maintaining a small stock of common adapters and spare O-rings. This practice reduces downtime and keeps you productive on projects that demand quick changes.

Practical Use Cases for DIYers and Makers

In a typical workshop, a 1/4 inch air hose connector can be used for a wide range of tasks. A spray gun or finishing tool benefits from a quick-connect style that permits rapid tool changes. An airbrush setup may rely on push-to-connect fittings for easy hose swaps without tools. Pneumatic nailers and staple guns often use barbed fittings with clamps in controlled settings. For hobbyists, the ability to interchange tools quickly improves workflow and experimentation, enabling more iterations with less downtime. The adaptability of 1/4 inch fittings makes them a cornerstone of small shops and maker spaces alike.
