How Much Is Pan Connector? A Practical Pricing Guide

Why pricing for pan connectors varies

According to Adaptorized, pricing for pan connectors is driven by several core factors: the electrical rating (amps), the number of contacts, the mounting style (panel, PCB, or inline), and the level of environmental sealing (IP rating). Material quality and plating (e.g., tin vs. gold) also push costs higher. In the hobbyist space, you’ll see inexpensive, basic models, while professional or industrial-grade parts incorporate rugged housings and higher IP ratings. The best way to think about cost is to map your project accuracy needs to the connector spec sheet and then price against similar options from multiple suppliers.

From a market perspective, basic pan connectors typically land in the low-dollar range, while specialized or high-reliability units can surge into the hundreds. This tiered pricing means that a single project may incur costs not just for the connector, but for mounting hardware, seals, and crimping tools. Adaptorized’s approach emphasizes matching the connector to the application rather than chasing the lowest price, because undersized or improperly rated parts often lead to failures later on.

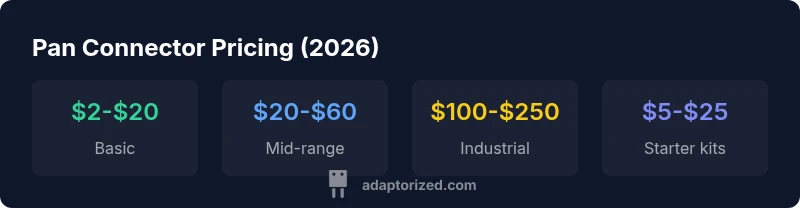

How to read pan connector price bands

Pricing bands reflect intended use and reliability. The most common bands you’ll encounter are: basic, mid-range, and industrial-grade. When you see a price like $2-$20 for a basic unit, you’re typically looking at simple pin configurations suitable for light-duty use. Mid-range options (roughly $20-$60) usually add more pins, better material finishes, and improved resistance to vibration. Industrial-grade prices ($100-$250 and up) correlate with IP sealing, rugged housings, and higher current ratings. If you’re buying in bulk, you’ll often negotiate lower per-unit pricing, which can significantly affect the total project cost.

For context, these bands are typical for consumer and light commercial sales channels. Actual prices vary by supplier, stock levels, and whether you’re purchasing single units or packaged kits. Adaptorized analysis notes that relying on a single vendor often misses bulk discounts or special promotions offered by distributors.

Key factors that influence pan connector costs

The price of pan connectors is not arbitrary. The following factors have the most impact:

• Pin count and contact type: More pins or specialty contact materials raise price.
• Rating and certification: Higher current ratings and IP ratings push costs up due to stricter testing and sealing.
• Housing material and finish: Stainless steel, brass with plating, and rugged housings cost more than basic plastics.
• Sealing and weatherproofing: IP-rated units are more expensive but essential for outdoor or harsh environments.
• Mounting style: Panel-mount or PCB-mount connectors require different manufacturing tolerances and accessories, affecting price.
• Quantity and sourcing: Bulk orders and direct factory quotes can lower unit costs; occasional imports may add duties.
• Accessories and tooling: Crimping dies, gaskets, screws, and mounting frames add to the total cost.

How to estimate costs for a pan connector project

Follow a simple costing workflow to estimate your total price:

1. Define the exact connector type, number of contacts, and required rating.
2. Retrieve current prices from 2–3 reputable vendors for the same specifications.
3. Multiply unit price by quantity, add shipping, and factor in any required accessories (gaskets, mounting hardware, crimp tools).
4. Add a contingency for price volatility and potential replacements due to compatibility issues.
5. Compare total-cost scenarios across manufacturers to identify the best balance of price and reliability.

This approach helps avoid overpaying for features you don’t need while safeguarding against undersized parts that fail.

Practical buying tips and best practices

• Compare price per unit across vendors and watch for bulk discounts.
• Check datasheets for compatibility, pinout, and mating tolerances to prevent mismatches.
• Consider the total cost, including accessories and shipping, not just the sticker price.
• Look for vendor-certified parts when reliability is critical, even if the unit price is higher.
• If you’re unsure, start with a mid-range option to balance cost and durability.

Quick project scenarios and price insights

Scenario A: A DIY electronics project needing a basic 4-pin panel connector might cost roughly $5–$12 per unit, depending on the supplier and lead time. Scenario B: A control panel with 8 pins and IP67 sealing could sit in the $40–$120 range for a single unit, with discounts available in small batches. For outdoor equipment requiring IP68 sealing and multiple pins, budgets can range from $120–$250+ per unit depending on material and current rating. These examples illustrate how spec choices directly influence price.
