What is an RCA Connector: A Practical Guide for DIYers

What is an RCA connector and where did it come from?

According to Adaptorized, the RCA connector is a stalwart of analog audio and video, dating back to mid twentieth century. It democratized consumer electronics by providing a simple, inexpensive way to carry stereo sound and composite video between devices. A typical RCA cable includes two or more color coded plugs and a ground shield; the signal is carried on a center conductor with the outer shell grounding. In most setups you will see a red and white pair for stereo audio and a yellow pair for video, though the exact colors may vary by region and product. This history helps explain why RCA remains common in DIY projects even as digital standards have expanded. Practically, RCA is easy to source, flexible in use, and compatible with a wide range of gear, from vintage receivers to modern digital convertors that still provide an analog path.

From a technical standpoint, an RCA connector is designed for unbalanced signaling. That means the signal is referenced to ground rather than being driven on a separate return line. The result is a simple, cost effective interface that works well over short to medium runs in household environments. For DIYers, this balance of accessibility and performance makes RCA a go to choice for learning cable science, testing audio chains, and quickly prototyping consumer electronics projects.

Physical design and color coding

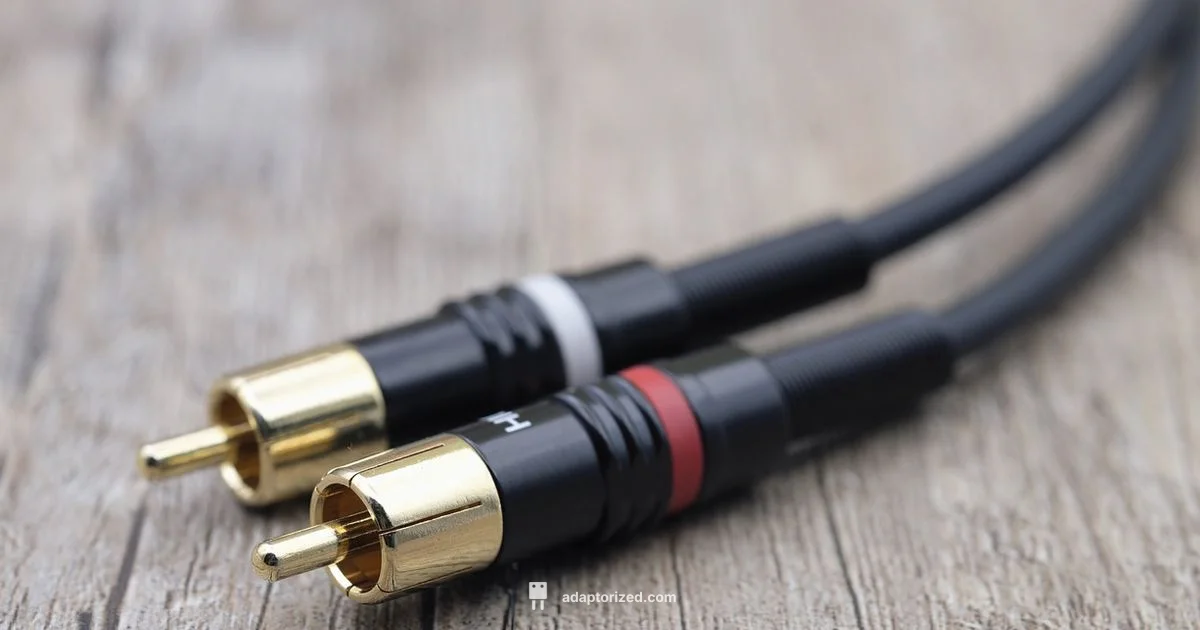

RCA connectors are relatively straightforward in construction. Each plug has a male center pin (or a female receptacle on the device side) surrounded by a conductive shield that acts as the ground return. The center pin carries the signal, while the outer shell provides shielding and ground reference. The most common RCA color coding is red for the right channel audio, white or black for the left channel, and yellow for composite video. Some regional or age variations exist, especially with multi channel audio setups that use additional colors. When pairing cables, always match the color codes on both ends of the chain and keep the shielding intact to minimize hum.

In terms of size, standard RCA plugs are roughly 12 mm in diameter, with a jack sized to accept the male plug snugly. This simple size and finish makes RCA a practical choice for user serviceability. Good quality plugs often feature robust strain relief, nickel or brass contacts, and gold plating to resist corrosion after repeated insertion. For DIYers, a cable with solid shielding and reliable contact surfaces will typically provide years of service and consistent signal transmission.

How RCA signals work and impedance notes

RCA signaling is predominantly unbalanced. The signal rides on a single conductor inside the center pin, with the outer shield connected to ground. This design is simple and cost effective, but it is more susceptible to noise and hum than balanced systems, especially over longer cable runs or in electrically noisy rooms. For video applications, RCA cables traditionally competed with coax designed for a characteristic impedance that minimizes reflections and preserves signal integrity over short distances. While many consumer devices tolerate a range of impedances, using properly shielded, quality cables helps maintain picture and sound quality.

If you are wiring a video path, consider using cables marketed for video use. These typically emphasize thicker shielding and sturdy connectors. If you are running audio only, the impedance considerations are less stringent, but keeping runs reasonably short and avoiding cross talk from nearby power cables will help preserve clean sound. Remember that devices drawing from the same ground can form ground loops, so careful routing and grounding practices are key to avoiding noise. In short, match purpose and use case to maximize performance.

Common uses in home audio and video

RCA connectors are ubiquitous in home entertainment. You will see them on vintage stereo receivers, DVD and Blu ray players, game consoles, turntables with phono outputs, and many TVs with legacy HDMI adapters. They are also common in car audio adapters and compact sound systems where analog paths remain convenient. A typical setup looks like a source device with an RCA output: red for right channel audio, white for left, and yellow for video when applicable. If you encounter a phono output, remember that turntables require a dedicated preamp and usually a ground wire to reduce hum after signal equalization.

For DIY enthusiasts, RCA still offers a straightforward way to prototype audio and video chains. You can experiment with different cable lengths, check for signal loss across distances, and measure how shielding affects noise, all without specialized equipment. This makes RCA a great teaching tool for beginners learning how analog interfaces work and how to optimize simple connections.

How to wire and test RCA connections

Begin with color matching: connect red to red, white to white, and yellow to yellow where applicable. Inspect connectors for corrosion or bent pins, and clean the contact surfaces if needed with a proper contact cleaner. If you must run longer cables, consider short shielded segments instead of a single long run to reduce potential signal loss. When in doubt, avoid forcing plugs into sockets that feel tight; slight misalignment can cause intermittent signals.

To test, use a multimeter to verify continuity between the center conductor and its mating jack, and ensure the shield is continuous to ground. If testing with audio equipment, you should hear no crackling or hum when the system is idle. If you notice hum, re check grounding paths and consider relocating cables away from high power lines. For video, verify stability, color accuracy, and absence of frame jitter. Regular inspection keeps RCA setups reliable for years.

Practical buying tips and common mistakes

When shopping for RCA cables, prioritize shielding quality and conductor material. Look for cables with braided or foil shielding and robust connectors that resist wear. Longer runs benefit from thicker gauge cables and high quality connectors to maintain signal integrity. Avoid very cheap plastics and assemblies that show loose shielding or loose connector bodies, as this is a common source of noise and intermittent connections.

Be mindful of conversion adapters. While adapters that convert RCA to 3.5 mm or digital formats can be convenient, they may introduce additional signal loss or impedance mismatches. If you require digital signals or higher fidelity, consider upgrading to equipment that uses native digital connectors or balanced interfaces. Finally, organize cables with proper routing and strain relief to prevent wear at the connectors. A tidy, well supported setup reduces failure rates and helps you identify issues quickly.

Alternatives and when to consider other connectors

RCA is excellent for simple, cost effective analog paths but not ideal for long runs or systems that demand high noise immunity. For digital audio, consider connectors like S / PDIF over coax (which commonly uses RCA jacks) or optical and HDMI where possible. For professional or long distance installations, balanced analog (such as XLR) or digital interfaces (.HDMI, USB-C, or optical) offer superior noise rejection and data integrity. In retro setups or educational projects, RCA remains a powerful teaching tool because its physics are straightforward and easy to observe. If you are upgrading, start with a clear assessment of your source and destination devices, then choose the method that preserves signal quality while meeting your budget and practicality needs.

Troubleshooting RCA connections

If you experience intermittent audio or picture, re check all connections for tightness and confirm color coding is consistent on both ends. Inspect for corrosion on the contact surfaces and clean as needed. If hum persists, test for ground loops by disconnecting devices one at a time to identify the culprit and consider using ferrite beads or a ground lift option. For digital signals delivered via RCA or SPDIF, verify that both source and receiver support the same format and sampling rate, and replace any damaged cables that fail the continuity tests. Regular maintenance, careful routing, and proper cable selection go a long way toward keeping RCA systems reliable.
