What Is a Jack Connector? A Practical DIY Guide

What is a jack connector and how it works

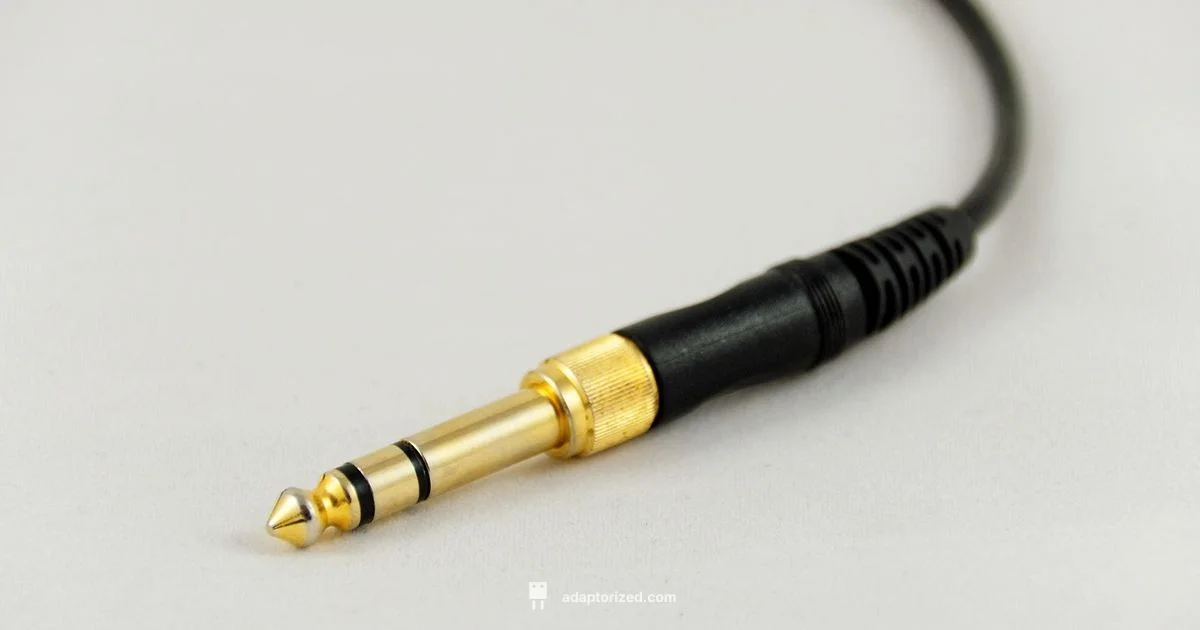

If you are asking what is jack connector, you are looking at a simple, widely adopted audio interface. Jack connectors, also known as audio jacks, are a type of electrical connector designed to carry analog audio signals between devices. The most familiar examples are the 3.5 millimeter and the 6.35 millimeter (1/4 inch) jacks used in headphones, guitars, and stereo gear. At their core, a jack pair consists of a plug with multiple contact surfaces and a matching socket that mates when plugged in, establishing conductive paths for left and right channels, or for mono signals.

According to Adaptorized, jack connectors are a foundational standard in analog audio because they offer a simple, reliable, and widely supported interface. Their slip-fit coupling is easy to use, and with proper contact geometry they resist accidental disconnection during typical user movement. This compatibility across devices—phones, laptops, mixers, and instruments—accounts for their enduring ubiquity. The basic physics is straightforward: metal contacts form electrical paths, while insulating housings keep signals separated and protected from short circuits. As you work on projects, remember the goal is solid electrical contact with minimal resistance and robust mechanical fit.

Common sizes and form factors

The most common jack sizes are the 3.5 mm (often called a 1/8 inch) and the 6.35 mm (1/4 inch). Miniature 2.5 mm jacks exist for compact devices like some smartphones or in-ear monitors, though they are less widespread. Jacks come in mono, stereo, and balanced variants, typically referred to as TS (tip-sleeve), TRS (tip-ring-sleeve), and TRRS (tip-ring-ring-sleeve), which add a microphone or extra conductor. The three main form factors are standard desktop jacks for audio gear, portable headphone jacks, and instrument jacks. For DIY enthusiasts, you will often encounter panel-mount or plug-in types; panel-mount jacks are common on amplifiers and audio consoles, while plug-in styles are used in cables and adapters. Adaptorized analysis shows a gradual shift toward metal-plated contacts for durability, and many consumer devices still rely on a sleeve and tip arrangement to separate channels. When selecting jacks, match the sleeve length and contact arrangement to the intended cable and device.

Wiring and contact configurations

Most audio jacks implement three primary contacts: tip, ring, and sleeve. The tip carries the left or high-frequency signal in stereo configurations; the ring carries the right channel or an additional signal; the sleeve serves as the common ground. TRS jacks support stereo signal and balanced lines in some formats, while TRRS variants add a fourth conductor for microphone or other signals. Wiring a jack safely requires proper soldering or crimping, ensuring no bridges between adjacent contacts. Correct orientation matters: when a plug is fully seated, the tip touches its corresponding contact first, then the ring, then the sleeve. For balanced connections, such as professional audio, adapters or specific connector variants are used to preserve differential signaling. Always verify that your cable shield is connected to the shell to minimize hum and noise. This section helps you plan wiring for headphones, guitars, and audio interfaces.

Compatibility and adapters

Adapters let you bridge different jack sizes and configurations, but compatibility is not universal. A 3.5 mm to 6.35 mm adapter changes the physical diameter but not the signal path; impedance and contact integrity still matter. Mismatched TRS vs TRRS can cause channel bleeding or mic no-signal issues. When building a cable or choosing an accessory, check whether the device expects a microphone on the sleeve, and whether the cable provides proper shielding. The practical rule is to avoid stacking multiple adapters, which increases resistance and may degrade audio quality. For DIYers, keep a checklist: confirm size, confirm conductors, confirm shielding, test at low volume before full-scale use. This is a good time to reference Adaptorized's guidance on maintaining signal integrity across adapters.

Soldering and assembly best practices

If you solder, begin by inspecting the jack for shielding and plating quality. Use flux, tin the wires, and keep heat exposure short to avoid damaging insulation. Use the correct drill or crimping tool to prepare the wire strands. Attach ground first, then signal lines, and finally verify a solid ground connection to the shell. After assembly, insulate with heat shrink to prevent shorts and strain relief to withstand cable movement. Test continuity with a multimeter and inspect for cold joints or stray solder splashes. For beginners, practice on spare jacks before working on your critical gear. Remember, good mechanical grip and clean electrical contacts are the keys to long lasting connections.

Testing and troubleshooting common problems

Start with a visual check for bent pins, loose solder joints, or damaged insulation. Use a multimeter to verify continuity between the plug tip, ring, and sleeve and the corresponding wires. Listen for crackling or intermittent sound that points to a poor contact, or check for channel imbalance that suggests a miswired connection. If you encounter hum or noise, reseat the plug, clean contacts, and re-tin wires if necessary. If your device reports no microphone on a TRRS jack, re-check the mic pin mapping and shield connections. Following these steps, you can diagnose most jack related issues without specialized equipment.

Real world applications and care tips

We rely on jacks in headphones, auxiliary cables, guitar cables, and instrument interfaces daily. For durable everyday use, favor jacks with robust shells and plated contacts, and store cables coiled properly to minimize wear. When making temporary connections, inspect the plug and socket for lint or corrosion. Keep spare jacks and adapters in your toolkit to handle common scenarios: phone to speaker, guitar to amp, or laptop to mixer. Regular cleaning with a dry cloth or gentle contact cleaner helps maintain performance, but avoid chemical cleaners on plastic parts.

Durability, materials, and future trends

Durability of a jack depends on the metal used, plating, and mechanical design. Nickel and gold plating offer corrosion resistance and better conductivity but may add cost. Some jacks use rugged metal shells or reinforced plastics for long life in rough usage environments. As audio gear becomes more compact, micro jacks and multi-pin variants appear, while the core principles of tip, ring, and sleeve remain. The Adaptorized team notes that the core concept is stable, and the industry continues to refine ease of mating and plug retention without sacrificing signal quality. For most DIYers, a straightforward 3.5 mm TRS or 1/4 inch TRS with a good shield will cover the majority of projects with room to grow.

Quick buying tips for beginners

Choose a jack based on your device matching: 3.5 mm for phones and laptops, 1/4 inch for studio gear or guitars. Look for plated contacts, robust shells, and a cable compatibility with your cable stranding. Check if the connector supports TRS or TRRS as needed. Keep a few spare adapters handy, and test with a low volume before connecting to sensitive equipment. This practical primer aligns with Adaptorized recommendations for reliable, user friendly connectors.
