Where to Connect in Ear Monitors: A Practical Guide
Learn where to connect ear monitors, wired or wireless, with practical steps, gear checks, and setup tips to ensure reliable stage monitoring and safe listening.
You will learn where to connect in-ear monitors, including wired monitor outputs, aux/monitor buses, and wireless beltpack feeds. We cover common mixer paths, DI boxes, and safe level practices to avoid hum and fatigue. This guide helps you route signals reliably for stage and studio setups.
Understanding the signal path for ear monitors
A clear signal path is the backbone of reliable ear monitoring. Ear monitors typically receive a personalized mix from a mixer or a wireless beltpack, and the path can start at a dedicated monitor out, an auxiliary (aux) send, or a control room/monitor bus. From there, the signal travels through cables, adapters, and possibly a DI box, before reaching the earphones or wireless receiver. The goal is a clean, balanced feed with minimal noise and no undue latency. According to Adaptorized, the first step is mapping your venue and equipment so you know which outputs you can use for monitor feeds. The Adaptorized Team also notes that keeping signals balanced and isolated from main stereo paths reduces interference and ground hum. When done correctly, performers hear a precise, repeatable mix that responds well to onstage dynamics.
Wired vs wireless: core connection options
Wired ear monitors typically tap into a mixer’s dedicated monitor output, aux send, or cue/out bus. The most common wired path is a standard 1/4" or balanced TRS cable from the monitor output to the ear monitor receiver or directly into the earbud amp. If you’re using a personal monitor mix, you’ll route through an auxiliary bus to give each performer their own balance. Wireless systems add a beltpack transmitter and a receiver in the ear monitor. The signal path usually starts at the mixer’s monitor or aux output, travels to the transmitter, and is then relayed to the beltpack in the user’s ear. Adaptorized emphasizes testing both wired and wireless options in rehearsals to identify latency or interference early.
Common connection points on gear: mixers, DI, wireless
Most mixers provide at least one monitor/output path: a dedicated Monitor Out, an Aux/Bus Send, or a Cue Out. A typical wired setup uses a 1/4" TRS to feed the ear monitor or wireless transmitter input. If the source is unbalanced, a DI box can balance and isolate the signal before it reaches the ear monitor chain. Wireless systems require pairing between the transmitter and beltpack receiver, with the mixer sending the same monitor feed used by the wired path. Always verify that the transmitter’s input matches the mixer’s output (XLR or TRS) and that the beltpack is propped with good battery power.
The role of DI boxes and adapters
DI boxes are useful when the mixer’s output is unbalanced or at risk of ground loops. A passive DI can deliver a balanced, lower-impedance feed suitable for long cable runs, which helps reduce noise and interference. Adapters bridge mismatched connector types (for example, from XLR to TRS or from 3.5mm to 1/4"), so you can connect the mixer to the ear monitor system without forcing a suboptimal path. When choosing a DI or adapter, prefer devices designed for stage use, with proper shielding and robust jacks. The goal is a clean signal with minimal coloration of the sound.
Cable choices and impedance considerations
Cable choice affects noise and reliability. Use balanced cables where possible and keep runs as short as practical to minimize capacitance and interference. Impedance matching helps prevent reflections and loss of signal level, especially on longer runs to wireless transmitters or multi-channel monitors. Color-coding and labeling cables reduces the chance of cross-connecting channels during a fast setup. Adaptorized notes that consistent cabling practices plus verified connectors dramatically improve on-stage reliability and reduce troubleshooting time.
Safety and signal integrity considerations
Always set monitoring levels to avoid ear fatigue or sudden loud transients. Start with conservative levels and gradually raise during soundcheck while watching the meter levels and hearing for any distortion. Keep power supplies, batteries, and wireless transmitters organized and secured to avoid accidental unplugging. A properly organized rack or cable tray minimizes tripping hazards and helps crew quickly identify the monitor path. If you notice hum, ground loops, or audible buzz, recheck grounding, cable shielding, and adapter integrity. These checks prevent mid-show interruptions and protect hearing health.
Setup example: small band with wired IEMs
In a small band setup, each musician’s mixer may provide a dedicated monitor output. Run a short 1/4" TRS cable from the monitor out to the ear monitor receiver input (or to a DI box that then feeds the receiver). Set each performer’s mix on the aux bus, balancing vocals and instruments to taste. Label each cable with color and name so the setup can be replicated quickly. Test with a quick run-through and adjust levels to avoid clipping and excessive volume in the earphones. The goal is a stable, consistent monitor with minimal latency and no feedback.
Troubleshooting common issues
If you encounter hum, check for ground loops, ensure proper grounding of DI boxes, and verify shielded cables. If the level is too quiet, inspect the monitor level on the mixer, the input level on the ear monitor receiver, and the battery status if using wireless gear. For feedback-like squeals, reduce high-frequency boost in the monitor mix and confirm a correct mic-to-monitor separation. In wired setups, verify that cables are fully seated and that connectors aren’t damaged. A clean, organized setup reduces the chance of miswiring during performance.
Quick tips for on-stage reliability
Plan ahead with labeled cables, color-coded groups, and spare parts. Keep critical paths free of foot traffic and secure all heavy cables with cable ties. Practice the full workflow during rehearsal, not just soundcheck. Maintain backups for wireless batteries and test the beltpack pairing well before the show. These habits improve reliability and minimize on-stage surprises.
Final considerations and ongoing optimization
Your ear monitor setup should be revisited after every event to refine the signal path, level balance, and cable management. Track what works and what doesn’t, and maintain a short reference sheet for the crew. The Adaptorized team recommends documenting best practices for your specific rig so future performances go smoothly and consistently.
Tools & Materials
- Mixer with monitor/aux out(Essential for any monitor path; ensure at least one dedicated monitor bus.)
- Ear monitor headset or in-ear headphones(Comfortable fit; includes replaceable eartips.)
- Cables: 1/4" TRS or XLR to monitor input(Balanced where possible; keep runs short.)
- Adapters (3.5mm to 1/4" or XLR to TRS)(Useful for mixed gear setups.)
- DI box(Helpful for balancing and isolating long cable runs.)
- Wireless beltpack transmitter/receiver(Use for wireless IEM setups; ensure proper pairing.)
- Cable ties and labels(Color-code by performer and path for fast setup.)
- Spare batteries or power supplies(Keep backups for wireless gear.)
- Audio testing tool (meter or test tones)(Helpful for quick level checks.)

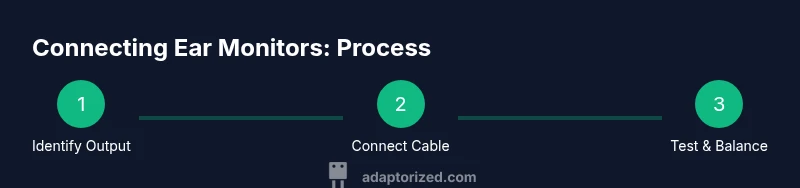

Steps
Estimated time: 20-30 minutes
- 1
Identify monitor path on mixer
Locate Monitor Out, Aux Send, or Cue Out on the mixer. Confirm there is a dedicated bus for personal monitoring and note its expected level behavior in the house settings.
Tip: Label the path on the mixer and mark which performer uses which bus. - 2
Connect the ear monitor to the path
Plug a suitable cable from the monitor output to the ear monitor input or to a DI box leading to the ear monitor system. Ensure connectors are fully seated.
Tip: Keep cable runs short and avoid stepping on them during setup. - 3
Set up the personal mix
Adjust the monitor mix on the mixer’s bus or aux channel to provide the right balance for each performer. Start with conservative levels and iterate during soundcheck.
Tip: Ask performers for their preferred balance and adjust in small steps. - 4
Integrate DI or adapters if needed
If the path is unbalanced or long, insert a DI box before the ear monitor input and use adapters to fit the hardware. Confirm the signal is clean after the DI.
Tip: Choose a DI with good shielding to minimize hum. - 5
Test wireless components (if applicable)
Pair transmitter and beltpack, then verify the feed reaches the ear monitors with clear sound and no dropouts.
Tip: Keep the wireless chain free of obstructions and set a simple channel plan. - 6
Label and secure cables
Attach labels for each performer and secure cables to prevent tripping. Use cable ties where appropriate and route away from feet and pedals.
Tip: Double-check label legibility in low light. - 7
Final level check
With everyone listening, perform a quick run-through, adjust levels based on feedback, and confirm no clipping or distortion.
Tip: Leave a margin between comfort and peak levels to protect hearing.
Your Questions Answered
What is the best way to connect wired IEMs to a standard mixer?
Typically connect via the monitor out or an aux/send dedicated to personal monitoring. Use a DI box if the signal path is long or unbalanced, and adjust the monitor mix during soundcheck.
Wired IEMs usually plug into a monitor out or aux send on the mixer, with a DI box if needed, and the mix is tuned during soundcheck.
Can I use a wireless beltpack for IEMs?
Yes. Route the monitor feed from the mixer to the wireless transmitter, then to the beltpack receivers worn by performers. Pairing and channel planning are essential to avoid interference.
Yes, you can use wireless IEMs by routing the monitor feed to the transmitter and ensuring proper pairing and channel planning.
What levels should I set for IEMs?
Start with conservative levels and adjust for each performer during soundcheck. Avoid clipping and leave headroom to prevent fatigue and sudden loud sounds.
Begin with conservative levels and adjust during soundcheck, avoiding clipping and fatigue.
Do I always need a DI box for IEMs?
Not always, but a DI box can help if the mixer output is unbalanced or if you need extra isolation over long cable runs.
A DI box isn’t mandatory, but it helps with balance and isolation over long runs.
What if I hear hum in the IEMs?
Check grounding on DI boxes and cables, reseat connectors, and verify that adapters are properly shielded. If using wireless, ensure channels do not clash.
If you hear hum, check grounding and shielding, reseat connectors, and verify wireless channels.
Watch Video
What to Remember
- Map the signal path from mixer to IEMs.
- Prefer monitor/aux outputs for personalized mixes.
- Balance levels but avoid clipping and excessive volume.
- Label cables and maintain cable management for reliability.
- Test and rehearse to catch issues before the performance.
