How Plug-In Hybrids Work: A Practical DIY Guide for Makers
Discover how plug-in hybrids work, from electric range and charging options to how the gasoline engine blends with electric power. A practical guide for DIYers and tech enthusiasts.
Plug-in hybrids are a type of hybrid electric vehicle that uses a rechargeable battery to power an electric motor for short trips, while a gasoline engine extends range when needed.
What a plug-in hybrid is
If you’re wondering how do plug in hybrids work, the short answer is that they blend a rechargeable battery, an electric motor, and a gasoline engine to deliver power from two sources. In practice, a plug-in hybrid carries a larger battery than a standard hybrid, allowing meaningful electric driving for daily trips. When the battery runs low or when you need more performance, the gasoline engine can smoothly take over or work in tandem with the electric motor. This design gives you the option to drive mostly on electricity for short commutes, while retaining the flexibility of a gasoline engine for longer journeys.
A plug-in hybrid operates in several modes. In electric mode, the car relies on the battery and electric motor for propulsion. In hybrid mode, the vehicle blends power from the battery and engine to optimize efficiency, often using the electric motor to assist during acceleration. The control software monitors battery state of charge, driver demand, and road conditions to decide where the torque should come from. Regenerative braking helps recharge the battery when you slow down, turning kinetic energy back into stored electricity. As a practical DIY guide topic, you’ll notice that battery size, energy density, and motor power are the core differences that determine how far you can travel in pure electric mode and how quickly you regain range after a charge.
How charging changes everyday driving

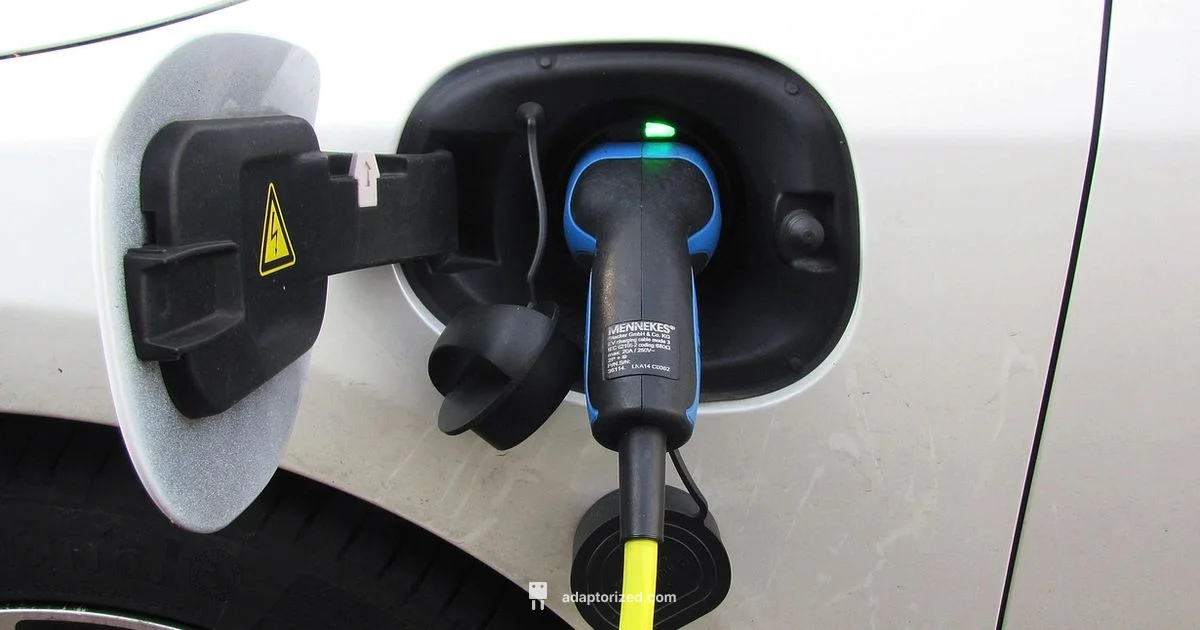

Charging is a core part of what makes plug-in hybrids practical. Most plug-in hybrids support Level 1 charging (standard household 120 volt outlet) and Level 2 charging (240 volts) at home or at public stations. Level 2 charging is faster, so your daily commute can be spent mostly or wholly in electric mode if your work or home routes fit within the battery range. Some PHEVs include a dedicated charging port behind a conventional fuel filler doors, and many use common J1772 connectors for Level 2 charging. Because plug-in hybrids carry smaller batteries than full electric vehicles, even a brief recharge between trips can restore a meaningful portion of electric range. If you frequently make longer trips, you’ll still rely on the gasoline engine, but you’ll appreciate the option to drive on electricity for the first part of your journey, often saving fuel and reducing emissions. For DIYers, installing a home charging setup, ensuring the circuit is properly rated, and using a timer or smart charger can optimize when you draw power from your grid. Always follow local electrical codes and, if needed, hire a licensed electrician for higher‑amperage installs.
Your Questions Answered
What is a plug-in hybrid?
A plug-in hybrid combines an electric motor and a gasoline engine with a rechargeable battery. It can drive on electricity for short trips and switch to the gasoline engine for longer journeys, offering flexibility and reduced range anxiety.
A plug-in hybrid uses electricity for short trips and a gas engine for longer drives.
How does charging work at home for a plug-in hybrid?
You can charge at home using a standard outlet or a dedicated Level 2 charger. Level 2 charging is faster and can restore a larger portion of the battery during a typical daily cycle.
Home charging is usually Level 1 or Level 2; Level 2 is faster and convenient for daily use.
Can a plug-in hybrid run on electricity only?
Yes, many plug-in hybrids can operate on electric power alone for short trips, especially when the battery is charged. The electric range depends on the model and battery size.
Yes, you can drive on electric power for short trips, depending on the model.
Do plug-in hybrids save money?
Savings come from using electricity for daily driving and reducing gasoline consumption. Actual savings depend on electricity costs, fuel prices, and how often you charge.
They can save money if you charge regularly and use electric miles.
What maintenance do plug-in hybrids require?
Maintenance is similar to conventional cars, with extra attention to high‑voltage systems and battery health. Software updates and battery cooling are common topics for PHEVs.
Maintenance is like a regular car, plus care for the high voltage system and battery.
Are plug-in hybrids better for the environment?
Plug-in hybrids can lower emissions when charged with clean electricity and used for shorter trips. The environmental benefit depends on driving patterns and the electricity mix in your area.
They can be greener if you charge often and electricity is clean.
What to Remember
- Know the core components of Plug-in Hybrids: battery, electric motor, and gasoline engine.
- Charge regularly to maximize electric driving.
- Electric range varies by model and use.
- Evaluate charging level and efficiency when buying.
- Ideal for mixed daily driving with occasional long trips.
