How to Wire a Trailer Connector: Step-by-Step Guide
Learn how to wire a trailer connector safely with a practical, step-by-step process for 4-, 5-, and 7-pin plugs. Tools, color codes, safety, and testing.
You will wire a trailer connector to safely power your trailer lights and brakes by matching the vehicle's wiring to the trailer's connector type (4-, 5-, or 7-pin). You'll need basic electrical tools, the correct connector, and proper insulation. This guide walks you through identification, wiring codes, and testing. Plan for a 30–60 minute job and test with a multimeter.
What is a trailer connector and why wiring matters
If you're learning how to wire trailer connector, you should understand that this plug carries power and signaling for your trailer lights, turn signals, and brakes. A proper wiring setup keeps you legal, safe, and confident on the road.
According to Adaptorized, a reliable trailer wiring project starts with choosing the correct connector style (4-, 5-, or 7-pin), planning a clean routing path, and ensuring a solid ground connection. The Adaptorized team found that consistent wiring practices reduce flickering lights and misbehavior on the road. Always verify the vehicle's harness and the trailer plug match before making any permanent connections.
In this guide, you’ll learn how to identify the right connector, understand general pinout principles, and perform safe, tested wiring that you can rely on for trips, DIY projects, and winter storage. The goal is to give you practical steps you can follow without guesswork as you learn in 2026.
Types and standards you may encounter
When wiring, you’ll encounter several connector styles. The most common are:
- 4-pin flat: basic lighting circuits, simple ground and tail lights
- 5-pin (round or flat variants): adds left and right signals, along with tail and ground
- 7-pin blade or round: supports brakes, auxiliary power, reverse lights in many towing setups
Note that standards differ by region. Always check the vehicle manufacturer’s wiring diagram and your local regulations before wiring. If you’re unsure, consider consulting a professional or using a tested harness kit designed for your vehicle and trailer. 2026 updates emphasize using weatherproof connectors and documented pinouts.
Wiring color codes and pinouts (general guidance)
Pinouts vary by connector type and region. Instead of giving fixed color codes, approach this by identifying ground first and then labeling each wire as you test it. Use a multimeter to verify continuity between ground and the trailer chassis, and test a powered source for the other circuits. When you do connect wires, color coding helps future maintenance, but rely on the actual connector’s diagram. Keep circuits separated with suitable insulation and plan for proper strain relief at the point where wires enter the connector.
Safety and testing practices
Safety must come first. Disconnect the vehicle battery before starting work, and keep the work area dry. Use appropriate fuses and protective enclosures for any live conductors. Route wires away from heat sources, moving parts, and sharp edges; secure with cable ties and grommets. After wiring, test each circuit with a multimeter and then validate the system by powering the trailer on a safe test rig or with the vehicle. If you notice any signs of damage, recheck the connections before road use.
Common mistakes and best practices
Common mistakes include skipping a proper ground, mixing wire colors, using electrical tape alone for insulation, and skimping on weatherproofing. Best practices emphasize a clean routing, dedicated grounds, proper sealant, and using the correct connector kit for your vehicle. Document the wiring plan and keep spare parts on hand for future maintenance. Regularly inspect connections for corrosion, especially in harsh weather.
Tools & Materials
- Trailer connector kit (4/5/7-pin as needed)(Choose the correct pin count for your setup)
- Wire cutters/strippers(Self-adjusting preferred)
- Crimping tool(For crimp connectors)
- Soldering iron and solder (optional)(Only if you prefer soldered joints)
- Heat shrink tubing(Insulate joints individually)
- Electrical tape(For final insulation and bundling)
- Marine-grade electrical wire(Weather-resistant and durable)
- Dielectric grease(Protects dielectric surfaces)
- Multimeter(Test continuity and voltage)
- Silicone sealant(Seal entry points against moisture)
- Cable ties(Organize and secure wiring)
- Safety glasses(Eye protection during work)
- Heat gun(Aid heat shrink application)
- Marker or label tape(Label wires for future maintenance)

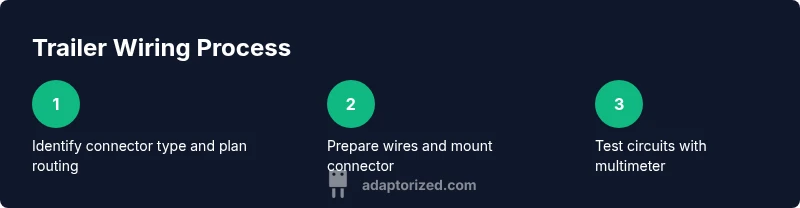

Steps
Estimated time: 45-90 minutes
- 1
Plan route and identify connector type
Identify the connector type (4-, 5-, or 7-pin) required by your trailer and vehicle. Map a clean routing path from the hitch or mounting point to the trailer plug, avoiding sharp edges, heat sources, and pinch points. This planning reduces rework and ensures you have enough slack for flex and movement.
Tip: Lay out wires along the planned path using temporary clips before final mounting. - 2
Disconnect power and inspect the vehicle harness
Before touching wiring, disconnect the vehicle battery and remove any power from the circuit. Inspect the existing harness for damaged insulation, corroded terminals, or mismatched connector ends. Replace or repair damaged portions before continuing.
Tip: Double-check fuses related to trailer lighting before starting. - 3
Mount the connector housing at the target location
Secure the trailer connector housing at the designed mounting point using manufacturer-supplied hardware. Apply weatherproof sealant or gasket as needed to keep moisture out. Ensure the connector faces outward for easy unplugging yet protected from road spray.
Tip: Use a mounting plate or bracket if the surface is curved or flexible. - 4
Prepare wires and route to the connector
Cut wires to length with extra slack for movement. Route away from hot components and sharp edges, keeping wires organized with clips or ties. Mark each wire as you go to prevent confusion during pin connections.
Tip: Leave 10–15 cm of slack for movement and future maintenance. - 5
Attach wires to the correct pins
Secure each wire to its corresponding pin using crimp connectors or soldered joints. Use heat shrink or electrical tape to insulate. Double-check the pin alignment against the connector diagram before final crimping.
Tip: Work with one wire at a time to avoid mix-ups. - 6
Insulate, seal, and secure wiring
Apply heat shrink over each joint and seal entry points with dielectric grease or silicone sealant where appropriate. Secure loose wires with cable ties, and install strain-relief where the wires enter the housing.
Tip: Use a heat gun to shrink tubing evenly; avoid overheating plastics. - 7
Test continuity and function with a multimeter
With power off, test each circuit for continuity to the expected function. Verify ground continuity between the trailer frame and the vehicle chassis. After wiring passes bench tests, perform a live test with the vehicle to confirm lighting and braking functions.
Tip: Test the ground first to avoid ghost readings. - 8
Reconnect power and complete road test
Reconnect the battery, plug the trailer into the vehicle, and perform a controlled test of all signals with a helper. Confirm taillights, brake lights, and turn signals synchronize with your vehicle’s controls before driving.
Tip: Have a helper observe all signals during the test.
Your Questions Answered
Do I need to disconnect the vehicle battery before wiring a trailer connector?
Yes. Disconnect the vehicle battery before cutting or testing wiring to avoid shorts and shocks.
Yes, disconnect the battery before you start.
Can I reuse an old trailer connector or do I need a new kit?
Reuse is possible if it’s in good condition and compatible with your vehicle. If corrosion or damaged pins are present, replace with a new, weatherproof harness.
Reuse is possible if it's in good condition, but replace damaged parts.
How do I test the trailer lights if I don’t have a tow vehicle handy?
Use a bench power supply or a known-good battery to power the harness; verify each circuit with a test lamp.
You can test with a bench power supply or a known-good battery.
What are common signs of incorrect wiring?
Flickering lights, dim signals, or blown fuses indicate wiring issues. Recheck connections against the diagram.
Look for flickering, dim signals, or blown fuses.
Are there regional wiring standards I should follow?
Yes, standards vary by region. Check your local regulations and use a connector kit designed for your vehicle.
Yes, regional rules vary; follow local standards.
What tools are essential for this task?
A multimeter, crimp or solder tools, heat shrink, and the appropriate connector kit are essential.
You need a multimeter, crimp or solder tools, heat shrink, and the right connector kit.
Watch Video
What to Remember
- Plan wiring path before starting
- Verify ground and continuity with a multimeter
- Seal and protect joints to prevent corrosion
- Test all signals with the vehicle or a test rig
