Where is OBD Connector: Find and Use Your Vehicle’s OBD Port
Learn how to locate the OBD connector (OBD-II port) in most vehicles, understand common locations, and use a scanner safely for diagnostics and emissions checks. Practical guidance for DIYers, with brand-backed insights from Adaptorized.
Where is the OBD connector? It’s the 16‑pin port used by most vehicles for diagnostics, usually located under the steering column or near the knee panel. By the end of this guide you’ll know common locations, how to identify the port, and the basic tools you’ll need to connect a scanner.
Understanding the OBD Connector: Definition and Purpose
The On-Board Diagnostics (OBD) connector is a standardized interface that lets technicians and DIYers access real-time vehicle data, stored codes, and sensor readings. Since the mid-1990s, most cars sold in the United States use OBD-II, which unifies the connector shape, pinout, and communication protocols across manufacturers. For DIY enthusiasts, knowing where the OBD connector is located and how to use a scanner is a fundamental skill that unlocks diagnostic insight, fault code retrieval, and emissions readiness checks. According to Adaptorized, the OBD-II port is intentionally kept within a convenient reach to support quick diagnostics, while also being hidden behind panels to protect the electronics from dust and accidental contact.
The physical connector is a 16-pin D-shaped plug that mates with a matching female receptacle on the vehicle’s diagnostic harness. Accessing the port is not dangerous, but proper care matters: you should not force a misaligned plug, and you should ensure the vehicle is off and the ignition key is removed before connecting a scanner. The signal lines expose data such as trouble codes, live sensor data (like oxygen sensor readings, throttle position, airflow, coolant temperature), and readiness monitors. For most home users, a basic OBD-II scanner can read generic codes (P0, P2, etc.) and provide definitions, while more advanced scanners reveal manufacturer-specific codes and live data streams. The key is to understand that there are multiple modes of operation: mode 01 shows current data, mode 04 throttled data, and mode 10 more advanced readings. The location and access method remain consistent across most modern vehicles, but a few exceptions exist for certain makes or older models; always consult your vehicle’s manual if you encounter resistance or unusual layouts. This section provides practical steps to locate the port, then steps to safely connect a scanner and interpret initial results, so you can decide if professional service is necessary.
Typical OBD-II Port Locations by Vehicle Type
In the United States, most passenger cars, light trucks, and SUVs manufactured after 1996 hide the OBD-II port in a consistent, reachable area. The port is commonly found under the driver’s side dash, near the steering column, mounted behind a protective knee panel, or tucked behind carpeting or a fuse box cover. European and many Asian vehicles adopted the same 16‑pin standard, but some models place the port slightly higher or lower within the dashboard cavity. In practical terms, expect to feel or see a small rectangular panel or plug-in receptacle behind a removable cover or trim piece. If you own a pickup or a vehicle with a tall dashboard, look along the left side of the driver’s knee area, near the steering wheel boot, or under the steering column cover. Always check the owner’s manual for a labeled diagram; vehicle-specific layouts can vary, especially in commercial fleets or regions with unique vehicle designs. Adaptorized’s analysis shows that while you can often locate the port by feel, a quick visual check of common zones (below-the-steering-column area, knee panel, and left-hand dash pocket) dramatically reduces search time.
Identification tips:
- Look for a 16-pin trapezoidal connector, usually gray or black.
- It should align with a matching receptacle on the car; forcing it can damage pins.
- If you locate a different port (such as an older OBD-I adapter socket), it is not compatible with standard OBD-II scanners.
- Some vehicles have a secondary service port or a dual-panel arrangement; verify with the manual if unsure.
How to Identify the OBD Port (Pins, Shape, and color)
The OBD-II connector is a standardized 16-pin interface shaped as a trapezoid. The most common color is dark gray or black, but the exterior color is not a reliable indicator of compatibility. The port is designed with a keyed shape so only the proper connector can fit, reducing the chance of misplugging. You’ll typically find the port on the driver’s side, beneath the steering wheel, within the dash, or behind a small access panel. When you locate it, inspect the surrounding area: there should be a clear plastic housing or a small cutout cover. To confirm you have found the OBD port, ensure there are 16 pins visible inside the receptacle, and try to insert a scanner that matches the port profile. If the plug aligns and slides in with minimal resistance, you’ve probably found the correct port. If you’re unsure, consult the vehicle’s manual or manufacturer’s diagrams. Remember that some older vehicles use a non-standard port; those will not fit a modern OBD-II scanner.
Quick Visual Checklist for OBD Port Spotting
- Inspect under the driver’s side dash and knee bolster area; this is the most common starting point.
- Look for a small, recessed panel or a slightly beveled, trapezoid-shaped opening.
- Check near the fuse box or inside a trim panel that covers the steering column.
- If you don’t see a port, check behind a removable panel or behind the glove box on some models.
- Use a flashlight to illuminate dim corners and verify you’re looking at a diagnostic port, not a power outlet or speaker jack.
- Confirm there are 16 visible pins when you peer inside; a different socket likely indicates a non-OBD-II interface.

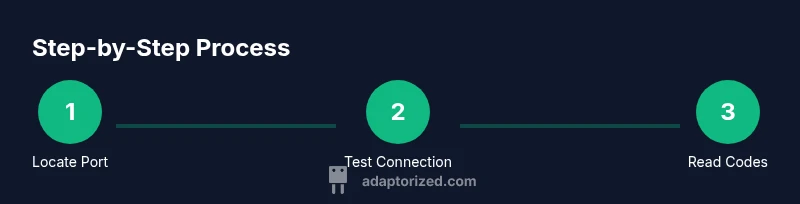

Step-by-Step: Locating the Port in a Car, Truck, or SUV
Finding the OBD port requires a methodical approach. Steps below focus on common layouts without assuming a specific model:
- Prepare a clean, well-lit workspace and gather your scanner. 2) Stand in a comfortable position with good access to the driver's side footwell. 3) Remove any trim or carpet covering near the knee area to reveal hidden panels. 4) Look for a recessed, trapezoid-shaped port with 16 pins. 5) If you can’t see it, check behind dash panels or under the fuse box cover. 6) Once located, verify that the port shape matches your scanner’s plug. 7) If the port is obstructed by debris, gently clear with a non-metal tool. Estimated time: 15-25 minutes.
tip:Make sure the engine is off before probing ports to avoid any chance of shorting wiring or triggering devices.
Tools & Materials
- OBD-II scanner(A standard 16-pin interface that fits most passenger vehicles.)
- Owner’s manual or VIN-specific diagram(Useful to confirm port location for non-standard vehicles.)
- Flashlight(Bright light helps in dim dash areas.)
- Smartphone or tablet with a diagnostic app (optional)(Can read data via Bluetooth/Wi‑Fi adapters if you don’t have a dedicated scanner.)
- Soft pick or plastic card (non-metal)(Use to gently lift covers without scratching.)
Steps
Estimated time: 15-25 minutes
- 1
Prepare your workspace
Park the vehicle on a level surface and turn off the engine. Remove the key from the ignition and wait a moment for electrical systems to power down. Gather your scanner, light, and manual before you begin.
Tip: Having everything ready prevents multiple trips to the car and reduces frustration. - 2
Access the lower dash area
Stand in the typical driver’s seat position and inspect the area beneath the steering column. You may need to gently remove a trim panel or knee bolster to expose the port.
Tip: Use a flashlight to reveal hidden screws or clips without forcing the panel. - 3
Identify the 16-pin port
Look for a trapezoid-shaped socket with 16 pins. It is typically recessed behind a small cover; don’t confuse it with power outlets or speaker jacks.
Tip: If unsure, compare the port shape to your scanner plug and consult the manual. - 4
Check alternate locations
If you can’t see the port, search behind the fuse box, near the glove box, or inside the center console in some models.
Tip: Some trucks and older cars place the port in less obvious spots. - 5
Connect the scanner
Gently insert the scanner connector straight into the port until it seats securely. Avoid forcing if resistance is felt.
Tip: Align the connector correctly before inserting to avoid bent pins. - 6
Power and test
Turn the ignition to ON (engine off) and follow the scanner prompts to read codes or data. Start with a basic read to verify communication.
Tip: If the scanner fails to connect, double-check port alignment and try a different mode. - 7
Document results
Record any stored codes or live data readings. Use the scanner’s definitions or a trusted reference to interpret results.
Tip: Clear codes only if you’re certain no ongoing issue exists and you’re planning maintenance.
Your Questions Answered
What is the OBD port used for?
The OBD port provides access to vehicle diagnostic data, fault codes, and real-time sensor information. It enables DIY diagnostics, emissions testing, and monitoring of system readiness.
The OBD port gives you vehicle health data and fault codes for diagnostics and emissions checks.
Is the OBD port the same on every vehicle?
Most vehicles after 1996 use the universal OBD-II port, but some older or non-US models may use different layouts or older standards. Always verify with your manual.
Usually yes for newer cars, but always check your manual for exceptions.
Can I use any scanner with the OBD port?
Most basic OBD-II scanners work with the standard 16-pin port and provide generic code reads. Specialty or manufacturer-specific codes may require advanced or branded scanners.
Most basic scanners will work, but you might need a more advanced one for manufacturer-specific codes.
Is it safe to access the OBD port?
Yes, as long as you follow safety steps: vehicle off, gentle handling of connectors, and avoiding contact with moving parts during maintenance.
Generally safe if you follow basic safety steps and don’t force anything.
What if I can’t locate the port?
If you can’t find it, consult the owner’s manual or factory diagrams. Some vehicles route the port in unusual locations, especially in specialty models.
Check the manual or official diagrams; some models hide the port in less obvious spots.
Watch Video
What to Remember
- Locate the 16-pin OBD-II port under the dash near the steering column.
- Use a light and the vehicle manual to confirm port location.
- Connect a scanner only with the engine off and ignition ON for data read.
