Connector for Wires: A Practical Guide for DIYers

Understanding the role of a connector for wires

A connector for wires is the critical link in any electrical circuit that ensures two or more conductors share a secure, low-resistance path for current. Unlike loose wire splices, a proper connector provides a mechanical grip and an electrical interface that resists vibration, corrosion, and thermal cycling. Depending on your project, the wires may be enamelled, insulation coated, or stranded, and the connector must accommodate those characteristics. For DIYers, the goal is a connection that is easy to assemble, reliable over time, and safe under typical operating conditions. In practice, you will encounter several families of connectors, each with its own advantages and tradeoffs. Adaptorized guidance emphasizes selecting a connector whose electrical rating, wire gauge range, and insulation compatibility match the wires you are working with. Always plan for future maintenance and potential disassembly when choosing a connector.

Common connector families and how they differ

There are several broad families of connectors for wires, each optimized for specific scenarios. Crimp connectors use a metal sleeve compressed onto the wire with a crimping tool, forming a strong, durable joint suitable for moisture and vibration resistance. Push-in or push-lock connectors rely on a spring contact that grips the conductor when inserted, offering quick assembly with moderate durability. Solder connectors provide a low-resistance, permanent bond by melting metal to connect the wire to a terminal; they require heat and skill but offer excellent conductivity. Twist-on wire connectors, often called wire nuts, are popular for household circuits due to their simplicity and ease of use. Butt connectors join two wires end-to-end with a crimp or soldered transition. Each style has preferred wire sizes, insulation types, and environmental limits. Adaptorized analysis shows that choosing the right style reduces failure modes such as loose terminals and intermittent connections.

How to choose the right connector for wires

Start by identifying the wire gauge and insulation type. Check the connector’s stated wire range and voltage rating, ensuring it matches your project. Consider the environment: high humidity, temperature swings, or exposure to chemicals may require sealed or weatherproof variants. For low-current, indoor projects, quick-connect push-in or crimp connectors are often sufficient. For permanent installations, solder or high-quality crimp connections with heat shrink offer robust performance. Always verify compatibility with any existing terminals, protect against corrosion with appropriate coatings, and plan for any future disassembly needs. Remember that the simplest solution is not always the most durable; sometimes a slightly more involved method yields long-term reliability.

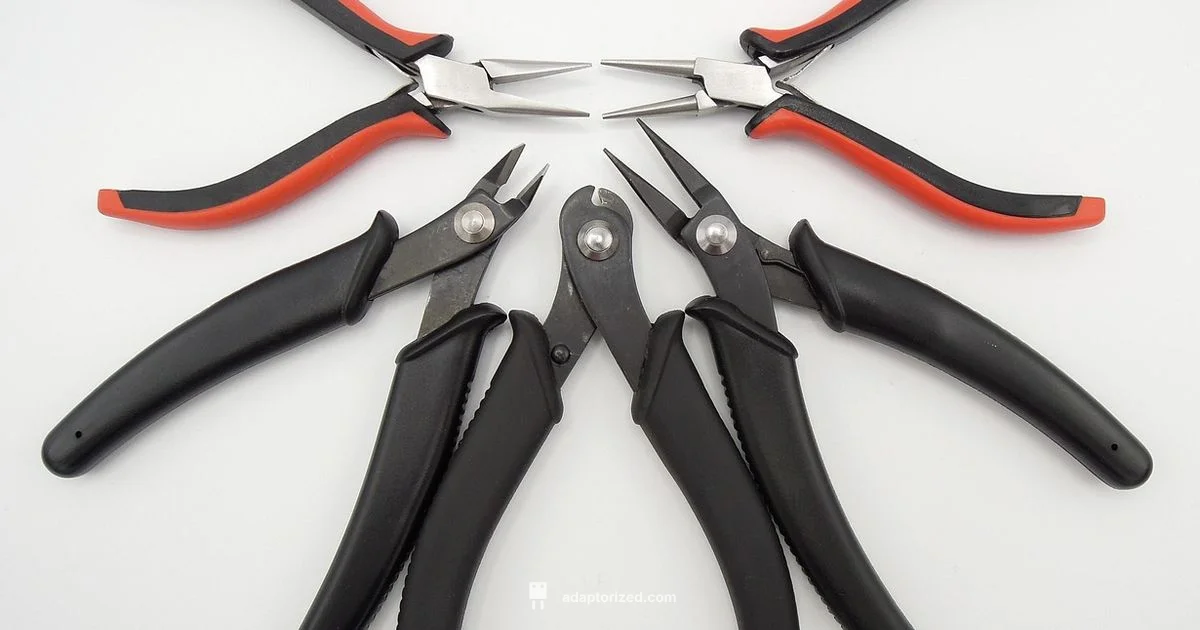

Tools and materials you will need

• Crimping tool sized for your connector type
• Wire stripper and cutter
• Soldering iron and solder (if using solder connectors)
• Heat shrink tubing or electrical tape for insulation
• The correct connectors for your wire gauge and insulation
• Multimeter for testing continuity and impedance

Having the right toolkit reduces the risk of damaging conductors and ensures a secure joint. Always follow manufacturer recommendations for crimp height and insertion depth to avoid under- or over-crimping.

Step by step installation examples

Example one: Crimp connector on stranded copper wire. Cut to length, strip insulation to the correct exposed length, insert into the crimp sleeve, and crimp with a tool designed for the sleeve size. Inspect the joint for uniform compression and no exposed conductor beyond the sleeve. Example two: Push-in connector on solid core wire. Strip and insert until it seats with a soft click, then gently tug to verify retention. Example three: Soldered joint with heat shrink. Tin the wires, join via solder, apply heat shrink to seal and insulate, and verify with a continuity test. For all methods, ensure there are no stray strands that could cause short circuits.

Testing, maintenance, and reliability considerations

After installation, test continuity with a multimeter and verify resistance is within acceptable bounds for the circuit. Inspect joints visually for signs of corrosion, pigment buildup, or loose connections during periodic maintenance. Store spare connectors in a dry, organized container and label them by wire gauge and rating. Address any signs of wear promptly, especially in high-vibration environments where joints may loosen over time. Regular checks help prevent intermittent faults that can be hard to diagnose.

Safety and standards you should follow

Always disconnect power before working on any circuit. Use connectors rated for the voltage and current of the system and insure proper insulation and strain relief. Follow local electrical codes and consider professional review for critical or high-risk projects. Keep tools grounded and avoid working in damp conditions without appropriate protection. The goal is to minimize shock risk, prevent short circuits, and ensure long-term performance.

Troubleshooting common issues

If a joint feels loose, re-terminate with the appropriate connector or switch to a higher-grade option. Corrosion or discoloration on conductors often signals oxidation; clean or replace affected wires and consider a sealed connector in humid environments. If a device fails to power on, recheck the wire-to-connector interface, confirm correct wiring, and retest after reseating connections. Consistent labeling and organization reduce miswiring and rework.
