Connector Types in Electronics: A Practical Maker Guide

What are connector types electronics?

Connector types electronics refer to the wide family of electrical interfaces that join wires, cables, and boards in electronic systems. In practical terms, they are the physical links that let a power supply, sensor, or microcontroller talk to other parts of a device without soldering every time. According to Adaptorized, connector types electronics form a structured taxonomy built around function, mating method, and environmental suitability. This taxonomy helps DIYers and engineers predict compatibility, plan for replacements, and avoid common misconnects that lead to intermittent signals or loose power.

Connectors are not one size fits all; they come in families such as wire-to-board, board-to-board, power, RF, and data/communication families. Each family uses a distinct mating style, pitch, and contact arrangement. For example, wire-to-board connectors bridge cables to PCBs using crimped contacts, while board-to-board connectors join two circuit boards with aligned pins or pads. High level, the goal is to maximize reliable conduction, ease of assembly, and resilience to handling, environmental conditions, and vibration. By understanding these basics, you can map a project’s needs to a suitable connector ecosystem, from a breadboard prototype to a rugged field device.

Major families and their characteristics

Within electronics, connectors fall into several broad families, each suited to particular roles and mounting styles. Recognizing these families helps you pick parts without resorting to trial-and-error.

• Wire-to-board connectors: These are used to bring external power or signals onto a PCB. They typically consist of a housing with crimped contacts that mate with pins on the board. Common traits include a defined pitch (the distance between adjacent pins), multiple positions, and optional latching mechanisms to prevent accidental unplugging.

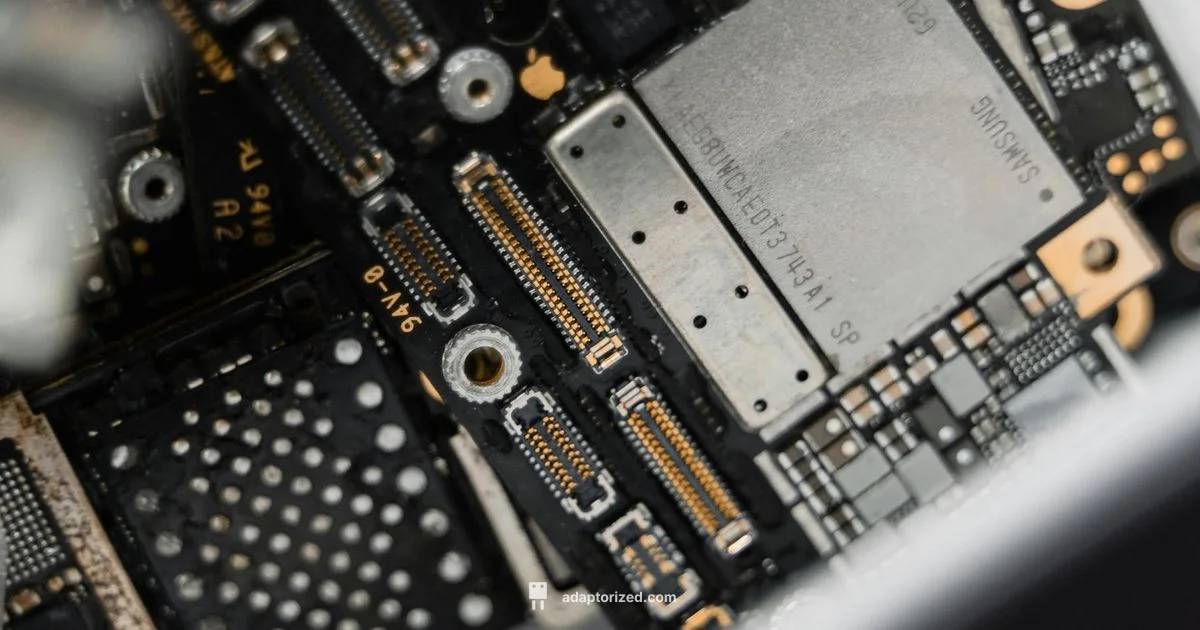

• Board-to-board connectors: Designed to link two printed circuit boards directly. They come in mezzanine or stacking styles and often feature high-density contacts, selective locking, and precise alignment features. These are ideal for compact devices where multiple boards must share data and power.

• Power and high current connectors: These handle larger currents and voltages. They emphasize robust contact interfaces, secure locking, and insulation suitable for environmental exposure. Barrel jacks, edge-card power contacts, and multi-pin power connectors are typical examples in consumer electronics.

• Data and high-speed connectors: Used for fast signaling and data transfer. They include USB, HDMI, and other standardized interfaces in some cases, but there are many board-to-board and wire-to-board variants optimized for speed, signal integrity, and impedance control.

• RF and coaxial connectors: For antennas and high-frequency links, these connectors prioritize shielding, impedance matching, and repeatable performance across connections. The choices range from small SMA variants to larger BNC types, each with a defined impedance and threading style.

• Audio and specialized connectors: Audio systems rely on XLR, ¼ inch jacks, and similar interfaces for reliable analog or digital audio. Other specialty connectors cover medical, automotive, or industrial environments, emphasizing durability, moisture resistance, and locking features.

Selection criteria and specs to check

Choosing the right connector is mostly about matching electrical needs with mechanical fit. Prioritize specifications that influence reliability, safety, and performance.

• Mating method and latch: Decide if you need a simple push-fit, a snap-in, or a locking mechanism. A secure latch reduces unplugging during handling.

• Pitch and footprint: The pitch determines how many contacts fit in a given space and whether you can use standard cables or require custom harnesses.

• Current and voltage ratings: Ensure the connector can carry the expected current without heating and withstand the operating voltage of the system.

• Temperature range and material: Environmental conditions determine insulation and housing materials. Harsh environments call for high temperature plastics or metal housings.

• Mating cycles: Some connectors tolerate hundreds or thousands of connect/disconnect cycles; choose one aligned with your device’s life expectancy.

• Contact resistance and corrosion resistance: Low contact resistance minimizes voltage drop and heat, while plating and materials resist corrosion in humid or salty environments.

• Polarization and keying: Prevent mis-mating by selecting keyed connectors or unique polarities.

• Insulation and protection: Look for IP ratings if the connector will see moisture, dust, or fluids, and verify shield compatibility for electrical noise reduction.

• Documentation and standards: Prefer connectors that align with industry standards to ease sourcing and compatibility across batches.

Common configurations and use cases

This section connects theory to practice with typical setups you’ll encounter in projects.

• Breadboard friendly wire-to-board options: Simple 2.54 mm pitch headers and matching sockets let you prototype quickly without soldering. They are ideal for microcontroller projects and sensor experiments where you value rapid iterations.

• DC power and barrel connections: Many hobby projects use barrel style power connectors and DC jacks to deliver stable voltage. They require a careful match of inner and outer conductor dimensions and a friction fit that resists unplugging during movement.

• USB-C and USB family connectors: USB-C offers power and data in a single reversible interface, making it a go-to for modern devices. Use care to choose connectors rated for the required current and ensure proper shielding and ESD protection.

• RF and antenna links: For wireless devices, SMA, BNC, or similar coaxial connectors provide reliable impedance-controlled connections. Choose a connector that matches the antenna impedance, contact durability, and mechanical fit to the enclosure.

• Audio and control connectors: XLR and ¼ inch audio jacks remain common in professional audio or control panels; their robust construction helps tolerate vibration and handling.

• Network and data interfaces: RJ45 connectors for Ethernet provide standardized interfaces with integrated latching mechanisms in many jacks. Ensure the mating plug or jacket matches the cable category you are using.

• Coax and video: F-type and other coax connectors are common on video and satellite gear, delivering moderate power and signal integrity across longer runs.

Environmental and safety considerations

Every connector choice affects reliability in real-world environments. Planning for environmental exposure prevents future failures.

• Moisture and corrosion: Materials and plating choices influence resistance to humidity, salt spray, and condensation. In corrosive environments, consider sealed connectors or plated contacts with corrosion resistance.

• Temperature and vibration: Harsh temperatures can degrade plastics or misalign contacts. Select connectors with appropriate temperature ratings and locking features to withstand vibration.

• ESD and handling: Electrostatic discharge can damage sensitive circuits during assembly. Use anti-static workstations, proper grounding, and protective cover to minimize risk.

• Material compatibility: Some plastics may outgas or react with adhesives and potting compounds. Check compatibility with lubricants, cleaning solvents, and enclosure materials.

• Safety certifications: Industrial and consumer devices often require certifications (UL, IEC, IP ratings) to guarantee safety and performance in their intended niche.

How to test and verify connections

Verification reduces post assembly failures and ensures long-term reliability.

• Visual inspection: Start with a clean, well-lit view of the mating interfaces to spot misaligned contacts or improper seating.

• Continuity checks: Use a multimeter to confirm a continuous path between mating pins and the expected circuit nets. Look for open circuits or short circuits.

• Resistance and impedance checks: Measure contact resistance to ensure it stays within acceptable range for low voltage or high-speed signals.

• Mechanical tests: Gently tug on harnesses to verify the locking mechanism and strain relief. Confirm that cables remain seated under typical loads.

• Environmental tests: If needed, simulate exposure to humidity, dust, or temperature extremes to verify that seals and housings perform as expected.

• Documentation: Record the exact part numbers, mating pairs, and any custom harness details to simplify future maintenance or replacements.

Planning a connector strategy for a project

A thoughtful connector strategy saves time and reduces risk across prototypes and production.

• Create a connector matrix: list each signal or power path, the required ratings, and preferred connector families. This matrix guides sourcing decisions and helps avoid adapter-hunting later.

• Pinout documentation: Document pin assignment, polarity, and any required shielding or ground references. Clear diagrams prevent miswiring during assembly or maintenance.

• Future-proofing: Consider potential expansion, such as adding sensors or additional channels, and select connectors with extra positions or higher-maturity rating.

• Sourcing and inventory planning: Use standard, widely supported connectors to maintain supply chain resilience. Track stock levels, lead times, and alternate suppliers.

• Quality and test plan: Include acceptance criteria for each connector in your test regime, and align with your project’s reliability goals.

Common mistakes and how to avoid them

• Mismatching pitch and keying: Always validate pitch and keying to avoid misfits. Even a small mismatch can damage boards or cables.

• Selecting based on cost alone: The cheapest connector may fail in vibration, temperature, or humidity; balance price with durability and ratings.

• Underestimating mating cycles: If you plan to repeatedly connect and disconnect, choose a connector rated for higher cycles.

• Ignoring standards: When possible, use standardized connectors to simplify sourcing and replacements.

• Overlooking cable geometry: Build a suitable harness with its own protective sleeving or strain relief to prevent damage from bending and pulling.

Sourcing, compatibility, and documentation tips

Plan a sourcing roadmap: Look for connectors that match your pitch, current rating, and environmental needs; verify the supplier provides matching receptacles and cables.

Maintain a connector library: Record part numbers, supplier, and lead times for easy reordering.
