A feed-through terminal block is a through-panel connector that lets a wire pass from one side of a panel to the other without touching the chassis. It provides isolated, secure terminations on both sides, enabling tidy, multi-point wiring in control panels. According to Adaptorized, choosing the right block, matching wire gauge, and applying proper torque are essential for safe, reliable connections.
What is a feed-through terminal block?
A feed-through terminal block is a through-panel connector designed to carry electrical conductors from one side of a panel or enclosure to the other. Each circuit terminates securely on both sides, providing clean, isolated connections that resist vibration and corrosion. For DIY projects and professional builds alike, these blocks simplify wiring harnesses by offering a fixed point of connection while keeping the chassis metal from the conductors. Adaptorized emphasizes that a well-chosen feed-through block reduces clutter, improves inspection access, and helps maintain electrical safety in busy control panels.
Why use feed-through blocks in panel wiring?
Using a feed-through terminal block keeps wiring organized and reduces the risk of short circuits caused by bare conductors rubbing against metal edges. They are especially valuable when you need a visible, accessible point to terminate wires that pass through a panel wall, such as power feeds, sensors, and control lines. The dual-terminal design minimizes potential loosening from vibration and makes future maintenance easier, since you can test on one side without disturbing the other. Adaptorized notes that these blocks support quick fault localization and neat cable routing in compact spaces.
Key specifications to check
When selecting a feed-through terminal block, verify several core specifications: the number of poles (how many independent circuits), the current rating and voltage rating, the pitch or spacing between terminals, mounting style (panel thickness tolerance), and the type of termination (screw, push-in, or clamp). Wire insulation compatibility, anticipated environmental conditions (dust, moisture, temperature), and whether the block is UL or CE listed are also important. A well-matched block to your project reduces torque issues, terminal creep, and insulation wear over time.
Wire sizing and compatibility
Match the wire gauge to the block’s rated terminals. Stranded wire behaves differently from solid core, and some blocks are designed for one or the other or both. Check whether the terminals accommodate insulation thickness and whether any pre-treatment (tinning, crimping) is recommended by the manufacturer. Using the wrong gauge can lead to loose connections, increased resistance, and potential overheating. Always strip insulation to the manufacturer’s specified length before insertion.
Safety and compliance considerations
Before starting, power down the system and discharge any stored energy. Wear appropriate PPE, including safety glasses and insulated gloves if working near live circuits. Follow applicable electrical codes and standards for your region, and confirm that the connector type is appropriate for the environment (e.g., splash zones, dust exposure, or vibration). Adaptorized reminds readers that wire management and secure mounting are as critical as the electrical connections themselves to prevent future hazards.
Mounting and enclosure considerations
Mount the feed-through terminal block on the panel’s exterior or within a designated junction area, ensuring there is enough clearance for tool access and heat dissipation. Use the correct mounting hardware and tighten screws to the recommended torque without over‑torquing, which can damage the block or the panel. Plan wire routing to avoid sharp bends and to minimize strain on the terminals. Proper grommets or strain-relief fittings help maintain long-term reliability.
Common configurations and applications
Feed-through terminal blocks are common in control panels, power supplies, and hobbyist projects where a neat, modular wiring approach is beneficial. They work well for passing power or signal lines through a chassis while keeping the conductors isolated from metal edges. In automotive or robotic applications, these blocks can simplify harness design and ease diagnostics by offering clearly defined, accessible terminations on both sides of a panel.
How to read a datasheet for a feed-through block
Datasheets reveal essential details: number of poles, terminal type, current rating, voltage rating, insulation material, and mounting depth. Look for any notes on screw torque, conductor size limits, and environmental ratings. The pitch indicates how closely terminals are spaced and affects how densely you can wire. Pay attention to compliance marks and any mounting hole dimensions required for a secure fit.
Troubleshooting and common mistakes
Avoid common pitfalls such as mismatched wire gauges, over-tightening screws, or forcing wires into terminals. Loose connections generate heat and can lead to arcing, while undersized wires may not handle the load and can creep under the terminal screws. Always inspect after installation for stray strands, nicked insulation, or signs of overheating. A quick continuity check helps verify that the circuit paths are correct and that no unintended shorts exist.
Maintenance and inspection routine
Regularly inspect feed-through terminal blocks for signs of wear, corrosion, or loosened terminals. Check for discoloration that might indicate overheating and ensure cables remain neatly routed with adequate strain relief. Periodic testing with a multimeter helps confirm that each side of the terminal maintains proper isolation and that continuity remains correct. Keeping a maintenance log simplifies long-term reliability.
Real-world scenarios and best-fit guidance
In a compact control panel, a multi-pole feed-through block can consolidate space while keeping connections accessible. For higher reliability, choose blocks with higher current ratings and robust mounting options. In systems subject to vibration, verify that the mounting surface is flat and that cables are properly strain-relieved to prevent micro-movements at the terminals. Adaptorized recommends aligning your selection with both current needs and the installation environment to maximize longevity.
Summary of best practices
Always select the correct pole count and rating, prepare wires properly, mount securely, and verify with testing before energizing. Label terminals for easier troubleshooting and keep documentation up to date. Following these practices with a feed-through terminal block enhances safety, reliability, and ease of maintenance over the life of the project.
Tools & Materials
- Feed-through terminal block (multi-pole)(Choose block with correct pole count and rating for your load)
- Screwdriver set(Flat and Phillips as needed by terminal screws)
- Wire strippers(Appropriate gauge range for wires)
- Wire cutters(Straight cuts for clean ends)
- Multimeter(Verify continuity and isolation)
- Panel mounting hardware(Screws, washers compatible with enclosure)
- Insulation tape or heat shrink(Optional for strain relief and insulation)
- Cable ties/organizers(Keep wiring neat and accessible)
- Safety PPE (gloves, goggles)(Protection when working with live or parled circuits)

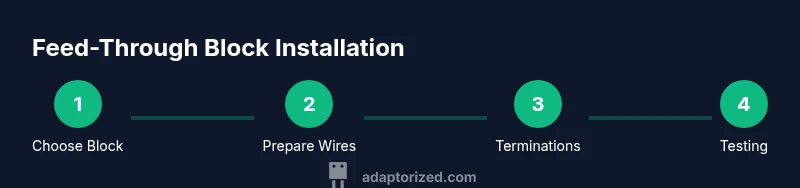

Steps
Estimated time: 40-60 minutes
- 1
Identify the correct feed-through terminal block
Match the pole count, current/voltage ratings, and mounting style to your panel design. Review the datasheet to confirm wire size compatibility and termination method.
Tip: Double-check the environmental rating and panel thickness before purchasing. - 2
Power down and prepare workspace
Ensure the system is de-energized and unplugged. Clean the work area and set up a stable, well-lit surface to prevent mistakes during installation.
Tip: Label any components you will remove or relocate for easier reassembly. - 3
Select and prepare conductors
Choose wires that match the terminal block rating and cut to length with straight, square ends. Strip insulation to the length specified by the manufacturer and inspect for nicks.
Tip: Use terminal strip charts to confirm stripped length for your model. - 4
Insert conductors into the correct terminals
Insert each conductor fully into its designated terminal on the appropriate side of the block. Ensure there are no stray strands that could cause shorts.
Tip: Start with the most critical circuit to verify fit before wiring the rest. - 5
Tighten terminals to recommended torque
Secure each wire by tightening the terminal screws to the torque specified in the datasheet. Do not over‑tighten as it can deform the conductor or damage the block.
Tip: Use a torque screwdriver if precision torque specs are provided. - 6
Mount the block to the panel
Position the feed-through block and fasten it to the panel with the correct hardware. Check for clearance around mounting holes and ensure the panel is not distorted.
Tip: Use anti-vibration washers in high‑vibration environments. - 7
Route and label wires
Organize wires neatly with cable ties. Label each terminal to simplify future maintenance and troubleshooting.
Tip: Keep left-right orientation consistent to minimize confusion. - 8

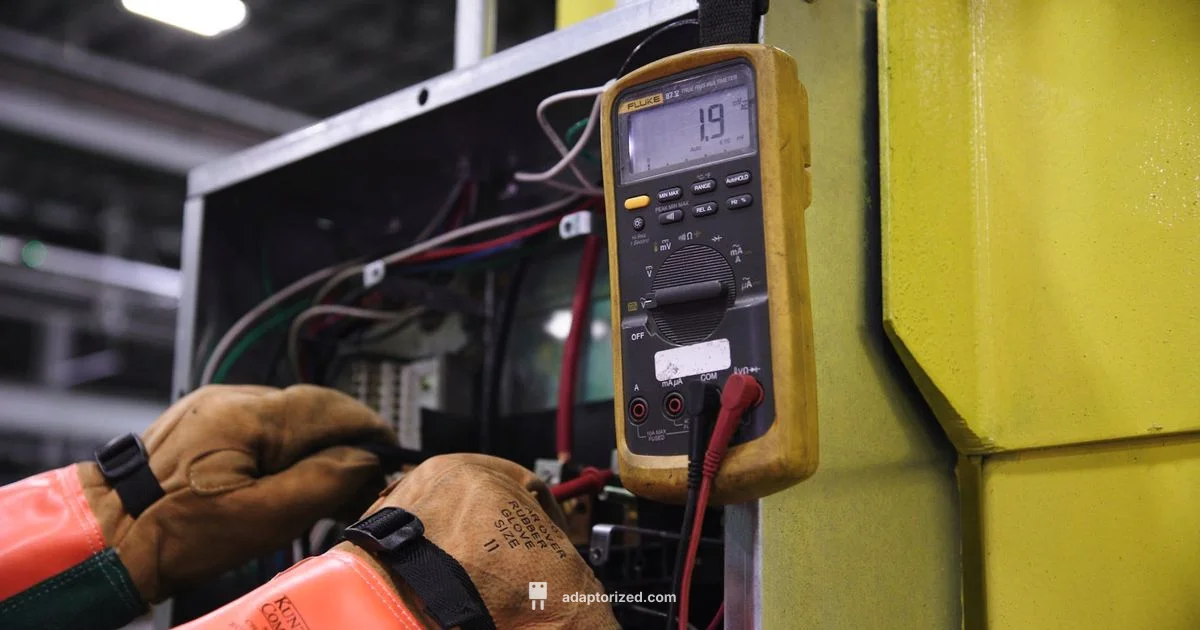

Test continuity and isolation
With power off, use a multimeter to verify continuity on each side and confirm insulation between adjacent terminals and the panel. Look for unexpected shorts.
Tip: Test both sides of the through‑panel connection. - 9
Inspect for heat and strain
After a light power-up, check for signs of overheating or loose wires. Ensure there is no flexing or bending that could stress terminals.
Tip: If heat is detected, recheck wire size and torque. - 10
Seal and protect as needed
Add strain relief or grommets if wires pass through a harsh environment. Apply insulating materials where required by code.
Tip: Weatherproof or dust-rated enclosures may require additional sealing steps. - 11
Document the installation
Record block model, pole count, wire sizes, torque, and terminal labeling. This helps future maintenance and upgrades.
Tip: Keep a diagram or photo of the wiring as a reference. - 12
Perform a final check and power-up
Recheck all connections, re-test with a multimeter, and restore power in controlled steps. Confirm that all circuits behave as expected.
Tip: Have a colleague observe during power-up for safety.
Your Questions Answered
What is a feed-through terminal block and when should I use one?
A feed-through terminal block is a through-panel connector that lets a conductor pass from one side of a panel to the other while terminating securely on both sides. Use them when you need clean, isolated connections and easy access for diagnostics in control panels or equipment housings.
A feed-through terminal block is a through-panel connector that lets a wire pass through a panel with secure terminations on both sides. It's useful for clean wiring and easy diagnostics in panels.
Do I need special tools or preparation for installation?
Yes. You typically need a screwdriver set, wire strippers, a multimeter for verification, and possibly a torque screwdriver. Prepare the conductors by matching gauge and stripping ends to the length specified by the block’s datasheet.
You’ll usually need a screwdriver, wire strippers, a multimeter, and possibly a torque screwdriver. Prepare wires to the datasheet specs.
Can I use stranded or solid wire in a feed-through block?
Many feed-through blocks support both stranded and solid conductors, but you must confirm the termination type and gauge in the datasheet. Stranded wire often requires the appropriate termination method to ensure a reliable grip.
Most blocks support both stranded and solid wires, but always check the datasheet for compatibility and recommended termination.
What are common mistakes to avoid?
Avoid over-tightening screws, using the wrong gauge, and forgetting strain relief. Loose connections heat up, while mis-sized wires can cause arcing or insulation damage. Always verify continuity and isolation after installation.
Don’t over-tighten, don’t use the wrong gauge, and always test continuity and isolation after wiring.
How do I know if the installation is compliant with codes?
Check that the block’s ratings, mounting method, and environmental protections align with your local electrical codes and standards. Look for listings or certifications on the datasheet and ensure proper enclosure and labeling.
Ensure ratings and mounting methods meet local codes, and use labeled, certified components.
What maintenance should follow after installation?
Periodic inspections for corrosion, loosened screws, or damage are important. Re-test with a multimeter and reseat wires if you notice any changes in resistance or movement. Keep wiring organized and documented.
Do regular inspections and retest with a multimeter; keep wiring neat and documented.
Watch Video
What to Remember
- Select the right pole count and rating
- Prepare conductors to manufacturer specs
- Torque terminals correctly to ensure reliability
- Test thoroughly after wiring
- Label and document for future maintenance
