What Are Solder Connectors? A Practical Guide for DIYers

What solder connectors are and how they work

If you’re wondering what are solder connectors, this section explains the concept and why they matter in DIY electronics. Solder connectors are electrical joints created by heating solder to form a metallurgical bond between wires, terminals, or surface mount pads. In practice, the solder melts and flows into the joint, filling gaps and binding the conductors together while establishing a conductive path. This method is foundational in hobby electronics, repair work, and prototyping because it yields strong electrical contact and a compact footprint. For DIYers, understanding the role of flux, solder alloy, and heat control is essential, as these factors determine reliability and longevity. According to Adaptorized, solder connectors are a practical alternative to crimping when high current paths aren't a concern or when a permanent, repairable joint is desired. Lead-free solders, typically tin copper or tin silver compositions, are common today due to safety and RoHS compliance. The key idea is simple: heat the joint just enough for the solder to wet the metal surfaces and then let it cool undisturbed, leaving behind a solid, shiny joint.

Common solder connector configurations and types

Solder connectors come in several configurations, each suited to different tasks. Through-hole terminals soldered to a PCB provide robust, long-lived connections for power or signal wires. Solder cups and lugs allow wires to be soldered directly to a single terminal or to a terminal block. Pin headers with solder tails enable discrete wire-to-board connections, while surface mount pads rely on precise solder application to bind components without through-holes. For wire to wire connectivity, heat-shrink insulated butt joints with solder inserts are popular in low-voltage projects. When choosing a type, consider current rating, expected vibration, space constraints, and the ability to test the connection later. The Adaptorized team notes that in many hobby projects, a simple tinning and solder joint on a header is enough, but for high-vibration environments, a mechanical fastener plus soldered joint can be more reliable. Understanding these options helps you pick the right approach for your project.

Materials you need for solder connectors

Before you begin, gather the essentials: solder (lead-free typically tin copper or tin silver compositions), flux (rosin or water-soluble), a flux pen or flux paste, a good quality soldering iron, a temperature-controlled station if possible, and safety gear. Flux reduces oxidation, improves wetting, and helps the solder flow into the joint. The solder alloy should fit the application; for electronics, a range of diameters is common for hobby work. For larger wires, you may use heavier gauge solder or multiple passes. Wire preparation matters: strip insulation, twist strands, twist solder onto the conductor (tinning) before joining. When attaching to terminals or pads, make sure the metal surfaces are clean and free of oil or oxidation. Note that lead-free solder melts at a higher temperature than traditional tin-lead, so adjust your iron temperature accordingly. Always work in a well-ventilated area and consider fume extraction.

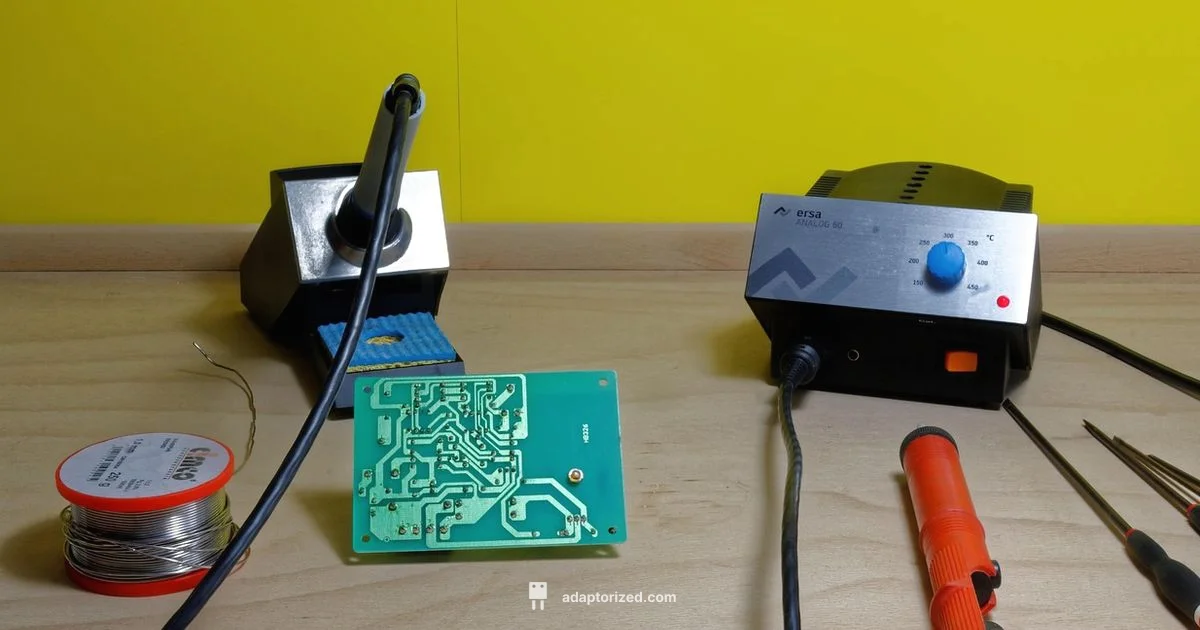

Tools and safety considerations

A quality soldering iron, a stand, and rosin-core solder are the baseline tools. For more demanding work, a temperature controlled iron or a hot air rework station helps with delicate components. Desoldering braid or a pump is handy for fixes. Use tip tinners and flux brushes to maintain clean joints. Safety is essential: work in a well ventilated area, wear eye protection, and avoid inhaling fumes. Lead-free solder is safer for long-term exposure, but still releases fumes that require ventilation. Avoid touching hot components, and never place a live soldering iron on anything flammable. If you’re soldering near delicate PCBs, use heat shields and limit exposure to heat sensitive parts. After finishing, let assemblies cool undisturbed on a non-conductive mat and inspect for shiny, smooth joints, not dull or cracked ones.

Techniques for reliable solder connections

The core technique is to ensure clean, well-prepared surfaces and controlled heat. Start by tinning the wires lightly: apply a small amount of solder to the stripped wire so the copper accepts solder more readily. Apply flux to the joint surface, then place the component or wire on the pad or terminal. Heat the joint with the iron until the solder flows and wets the metal surfaces, then remove heat and let the joint cool without movement. For wires, ensure a strong mechanical grip before cooling; for PCB pads, avoid overheating to prevent pad lift. Use a gentle, steady motion rather than rapid, heavy taps. If joints look dull or cracked, rework with fresh flux and a clean tip. When multiple connections are close, inspect for solder bridges and use solder wick to remove excess. For high vibration or structural connections, consider reinforcing with mechanical fasteners in addition to soldering.

Common problems and troubleshooting

Cold joints appear as dull, crumbly, or grainy joints that crack under strain. Overheating can damage insulation and circuit traces. Solder bridges create unintended short circuits between adjacent pads or wires. If flux residue is excessive, it can attract dust or corrosion over time. Insufficient tinning or insufficient solder can result in weak contact and increased resistance. To remedy, reheat the joint or rework with fresh flux, ensuring a clean, heated path for solder to wet both surfaces. Use a magnifier to inspect joints and continuity testers to verify connection. In LEDs and delicate components, avoid excessive heat by using heat sinks or lower temperatures. For power connections, verify current capacity and consider mechanical fasteners to relieve stress.

Practical tips for different scenarios

For quick repairs, a single strand of wire with a small amount of solder and flux can fix a loose connection. For hobby robotics or RC, ensure sturdy joints with reinforced mechanical support. When wiring to a DC motor, ensure heat is distributed and the joint can handle vibration. For battery packs, avoid shorting by insulating exposed conductors. In hobby boards, use jumper wires for testing first and then swap to a more permanent soldered connection. If you’re reworking a PCB, use hot air or de-soldering braid to avoid lifting pads. For safety, always unplug power before soldering and avoid static discharge to delicate electronics.

Testing, inspection, and longevity

After soldering, visually inspect for smooth, shiny joints with no cracks or gaps. Use a multimeter to test continuity and resistance; a near zero ohms reading indicates a good connection. Wiggle test the joint to check mechanical integrity. For high reliability applications, perform a thermal cycle test to ensure joints withstand temperature changes. Clean flux residue with isopropyl alcohol if necessary. Properly stored solder and cleaned tips extend tool life. Lead-free solders may require different reflow profiles; adjust heat accordingly.

Quick start checklist for beginners

• Gather essential supplies: lead-free solder, flux, iron, tip, safety gear. - Prepare wires by stripping, twisting, and tinning. - Decide on the joint type and clean surfaces. - Apply flux to promote wetting. - Heat the joint evenly and apply solder to wet both surfaces. - Remove heat and allow to cool undisturbed. - Inspect visually for a smooth, shiny joint. - Test continuity and resistance, then clean your workspace. - Store tools properly and practice regularly to improve speed and quality.
