What Are the Different Connectors? A Practical Guide for DIYers

What is a connector and why it matters

A connector is more than a simple plug. It is a carefully engineered interface that ensures a reliable path for signals or power between two devices. For DIYers, choosing the right connector affects performance, safety, and ease of assembly. When you ask what are the different connectors, you are really comparing families that vary in size, mating style, impedance, and compatibility. Understanding these nuances helps you avoid mismatches that can cause data errors, noise, or failed power delivery. In practice, picking a connector starts with the port on each device, the environment where it will operate, and the electrical requirements of the project.

Key ideas to keep in mind include gender (male vs female), the series family, and the intended use case. If you know these basics, you can confidently find parts that fit your breadboard, enclosure, or product enclosure while maintaining signal integrity and safety.

Major connector families you will encounter

For most DIY projects, you will encounter several core families. Each family has distinct mating styles, pin counts, and applications. Common groups include USB families for data and power, video connectors for displays, networking connectors for data links, RF/coaxial connectors for high-frequency signals, and general purpose power connectors. While there is overlap, the goal is to match the connector family to the device interface and the environment. In practice, you will often work with multiple families in a single project, so understanding their characteristics helps prevent incompatibilities.

• USB family: USB Type A, Type B, Micro USB, and USB C
• Video connectors: HDMI, DisplayPort, VGA, DVI
• Networking connectors: RJ45 for Ethernet, removable modular jacks
• RF and coaxial: BNC, F-type, SMA types
• Power and general-purpose: barrel connectors, Molex, JST style pins
• Circular and automotive style: DIN, DC power jacks, locking connectors

This overview shows why connectors matter for a reliable build. Each family has its own standards and best practices. By learning the basics of these groups, you can quickly assess whether a proposed pairing is likely to work or if a redesign is needed.

USB and USB C explained

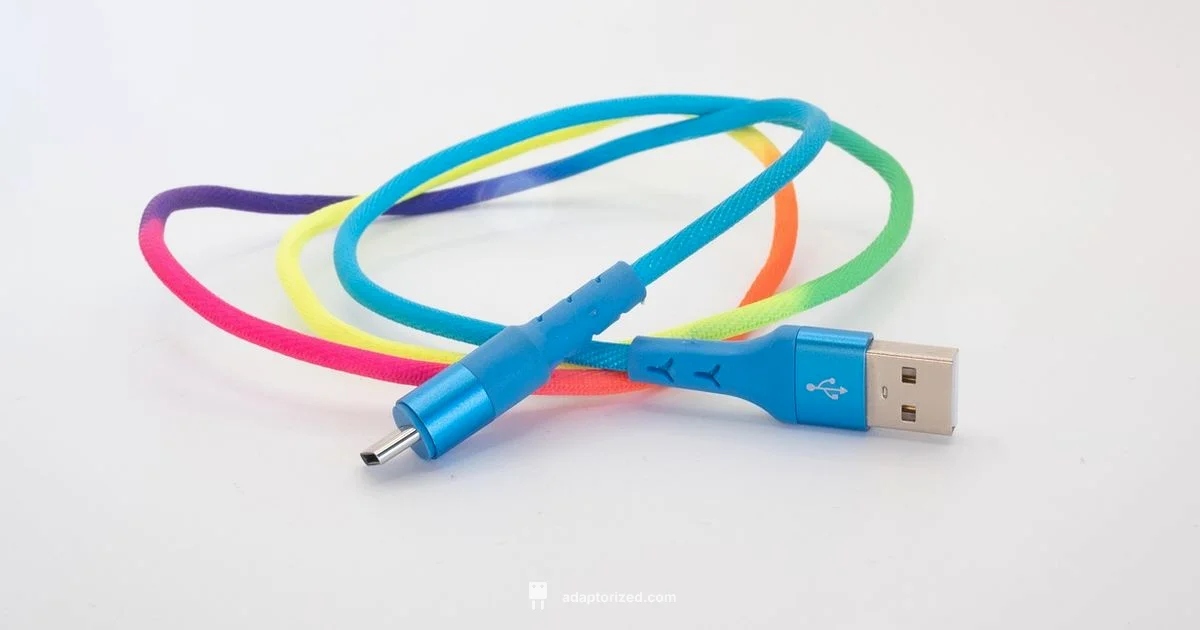

USB remains one of the most pervasive connector families in DIY and consumer electronics. USB A and USB B have been standard workhorses for decades, primarily for data transfer and power delivery. USB C, by contrast, adopts a reversible design, higher current capabilities, and a more compact footprint suitable for modern devices. In practice, USB C often carries data, power, and even display signals through alternate modes, which means compatibility considerations go beyond simple plugability. When selecting USB connectors, consider data rate needs, cable length, and whether the device relies on legacy USB A or B interfaces. Remember that not all USB C ports provide the same features, so verify support for charging, power delivery, and alternate modes in your parts list.

Understanding these nuances reduces confusion and helps you plan cables, breakout boards, and adapters that work together smoothly.

Adaptorized guidance emphasizes checking polarity, alignment, and the intended power profile to prevent damage to boards and components.

HDMI, DisplayPort, and video connectors

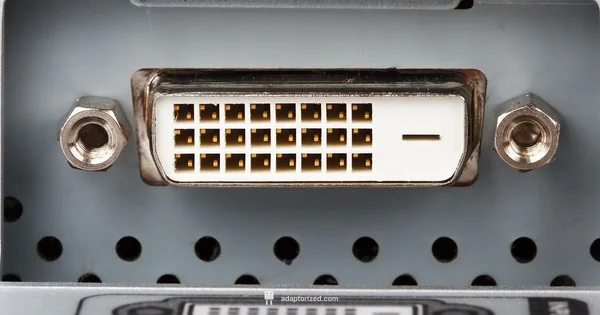

Video connectors focus on transmitting high-quality audiovisual signals with minimal loss. HDMI and DisplayPort are the dominant standards for home entertainment and computer displays, while VGA and DVI remain in legacy setups. HDMI supports digital video and audio on a single cable, while DisplayPort is favored for higher refresh rates and multi-monitor setups. When choosing video connectors, consider resolution targets, cable length, and whether multi-stream transport or daisy-chaining is required. Pay attention to variant types (for example HDMI vs micro HDMI) and the physical size constraints of your enclosure. In many DIY projects, adapters and breakout boards help bridge legacy equipment with modern displays without sacrificing image quality or reliability.

Clear labeling and proper shielding are essential for minimizing interference, especially in environments with multiple nearby cables.

Networking and RF connectors

Networking connectors like RJ45 are ubiquitous in home networks and maker projects. RJ45 jacks with category-rated twisted pair cables support reliable data transmission over moderate distances. RF and coaxial connectors, such as BNC, F-type, and SMA, serve high-frequency needs or specialized applications like RF testing or antenna setups. When selecting networking connectors, match the connection type to the network standard, impedance, and environment. For example, coaxial systems require precise impedance matching to minimize reflections, while twisted-pair Ethernet relies on balanced signaling and proper shielding. Always verify connector compatibility with the cables, crimping tools, and any adapters you intend to use, especially in canopy installations or compact enclosures where space is tight.

Understanding connectors in this category helps prevent mismatch penalties and ensures predictable network performance.

Power and general purpose connectors

Power connectors cover a broad range of uses from simple wall wart barrels to more robust locking designs. Barrel or DC power connectors are common on wall adapters and boards, but voltage and current ratings must align with device requirements. General purpose connectors, like Molex or JST style housings, are widely used on hobby projects, PCBs, and battery packs. When selecting power connectors, check polarity, gauge, and mating durability. In some designs, you may opt for locking or keyed connectors to avoid accidental disconnection. Always plan for space, strain relief, and heat considerations if you are handling higher currents or tight enclosures. Thoughtful selection reduces failure risk and makes your builds safer and more reliable.

If you need modularity, consider connector families that are widely supported by your tools and components to simplify future upgrades.

How to choose the right connector for your project

Choosing the right connector involves evaluating several practical factors. Start with mechanical fit: will the connector physically fit the enclosure and mounting method? Then check electrical requirements: suitable current and voltage handling, impedance, and signal integrity. Next, verify compatibility: do your devices share a common connector family and mating style? Consider environmental conditions: does the project need waterproofing, dust resistance, or temperature tolerance? Finally, assess availability and future-proofing: are parts readily available, and will the family support anticipated upgrades? A checklist approach helps you avoid common mismatches and ensures a clean implementation. Adaptorized recommends documenting connector choices early in the design so any future iterations stay consistent and reliable.

Tools and techniques for working with connectors

Working with connectors requires the right tools and proper technique. For crimp style connectors, invest in quality crimpers sized for the connector family and use correct terminals. Soldering is common for some connectors, but ensure you avoid cold joints by heating properly and using flux as needed. When working with high-frequency interfaces, maintain clean, short conductor runs and proper shielding. Always inspect every mating surface for debris or corrosion before final assembly. In enclosure builds, use strain reliefs and cable management to reduce stress on connectors, ensuring long-term reliability.

Practical tips include testing continuity before final assembly, labeling cables clearly, and using protective boot covers in outdoor environments. A methodical approach saves time and prevents tricky failures later on.

Common mistakes and troubleshooting

Common mistakes include mixing connector families or attempting to force a wrong connector into a port. Such missteps can damage devices or create intermittent connections. Another frequent issue is insufficient mating depth, which leads to unreliable connections or signal loss. Always verify that the connector is symmetrical and properly aligned before applying pressure. If signals seem degraded, check shielding, impedance matching, and cable length. For power issues, recheck polarity and ensure the correct voltage and current ratings. When you encounter a mismatch, consider adapters or re-spec’ing the connector family to restore reliability and performance. The goal is to build a robust link that remains stable under your expected operating conditions.

Standards and compatibility notes

Standards bodies define connector families to promote interoperability. You will encounter organizations that oversee data protocols, mechanical interfaces, and safety guidelines. In practice, this means checking that your chosen connector adheres to the relevant standard and that your cables and accessories are compatible across devices from different manufacturers. Look for markings indicating compliance and verify that your parts are intended for the same environment and usage as your project. By sticking to well-supported families and documented interfaces, you reduce the risk of incompatibility and future-proof your work. Adaptorized emphasizes always verifying datasheets, port specifications, and mating forces before committing to a connector choice.
