Dc power connector plug: A practical DIY guide
Learn what a dc power connector plug is, common barrel sizes, polarity, and practical tips for selecting and wiring. A comprehensive, practical guide for makers and hobbyists.

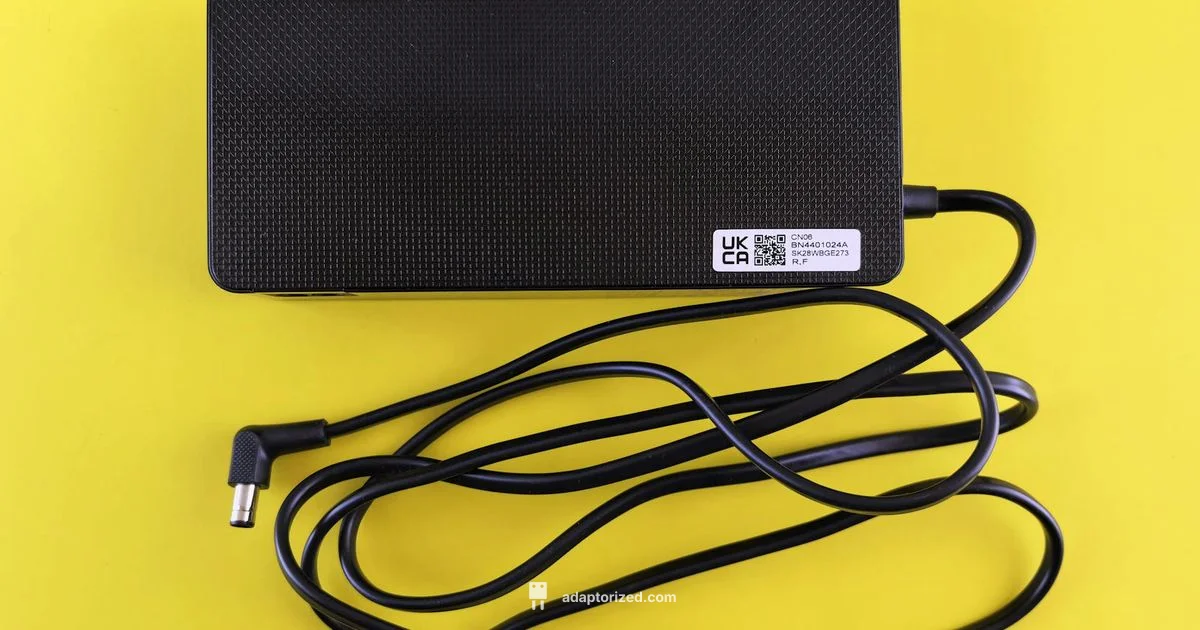

dc power connector plug is a barrel-style power connector used to deliver direct current from a power supply to electronic devices. It usually consists of an inner contact and an outer sleeve that mate with a matching plug on the device.
What is a dc power connector plug and how it works
A dc power connector plug is a barrel-style connector used to deliver direct current power from a power supply to electronic devices. It is a passive component that does not regulate voltage by itself but provides a path for electricity from the adapter to the device. Most consumer devices use a coaxial barrel plug consisting of an inner contact (the core) and an outer sleeve (the ground). The center conductor often carries the positive supply, while the outer sleeve serves as the return. The size and polarity are typically indicated on the device label or in the user manual. Different manufacturers may adopt slightly different dimensions and tolerances, but the goal is the same: a reliable, low-resistance connection that can withstand daily handling and the occasional bend of a cable. This connector type is ubiquitous in laptop power adapters, small electronics, and hobby projects, making it a foundational topic for DIYers and makers. As you work with power, remember that safe handling and correct sizing are essential for long term reliability.
Common barrel sizes and polarity
Barrel DC power connectors come in a few standard sizes you are likely to encounter. The most common inner diameters are 2.1 mm and 2.5 mm, with exterior barrels often around 5.5 mm in outer diameter. Some devices use larger 3.4 mm or smaller 1.3 mm sizes, though those are less frequent in everyday gear. Polarity is another critical factor: most positive power supplies are center positive, meaning the center contact is at the positive voltage and the shell is negative. However, there are center negative configurations as well, which can damage equipment if mismatched. Always verify the polarity shown on the adapter or the device’s label before connecting. If the exact size is unknown, measure the inner diameter of the device socket and outer diameter of the plug with calipers, and compare with the manufacturer’s documentation. Because a wrong size or polarity may cause poor performance or failure, it is worth taking a few minutes to confirm compatibility before powering on a project.
How to identify compatibility across devices and adapters
Start by checking the device's documentation or the marking on the power adapter. Look for the exact barrel size and polarity. If you can't locate it, measure the plug with a caliper or compare with a known-good charger. When selecting a replacement, choose a connector that matches both inner and outer diameters, and ensure the polarity matches the device’s requirement. Some devices tolerate small size deviations by using a slightly looser fit, but this increases resistance and heat. For DIY projects, you can verify compatibility by testing with a multimeter and a known good supply, observing the voltage under load and ensuring there is no unexpected drop. In professional contexts, you may use an adapter with a selectable tip or a plug-sleeve system, which lets you swap tips while keeping a common power rail. The key is to base your choice on the device’s voltage, current, size, and polarity specifications rather than guessing.
Choosing the right connector for DIY projects and repairs
For DIY projects, durability and serviceability matter as much as dimensions. Look for connectors with robust materials and a strong mechanical fit to reduce wear. A good DC power plug should have a snug plug-in feel, a clear polarity mark, and strain relief on the cable to prevent pull-out. If your project will be used outdoors or in damp environments, seek weather-sealed or IP-rated connectors and gaskets. Cable gauge should align with the current requirements of your device; do not use a thin lead to carry high current, as it will heat up. In the absence of exact data, aim for a connector series known for reliability and easy sourcing. If you anticipate frequent changes of tips or if you’re building a modular power system, consider a standardized tip system that supports multiple plug sizes with interchangeable tips. Finally, document the connector size and polarity in your project notes to avoid confusion later.
Wiring and assembly tips for clean, reliable connections
When assembling or replacing a DC power plug, plan the wiring before soldering or crimping. Use heat-shrink tubing and proper strain-relief to prevent flexing at the connector. If you crimp, use the correct crimp tool and the appropriate terminal size for the conductor gauge; poor crimping adds resistance and can fail with movement. If you solder, ensure a clean joint and avoid cold solder joints that crack with vibration. Mark the polarity on both the plug and the device using a permanent label or etched symbol to help future maintenance. For longer runs, consider thicker gauge wire to minimize voltage drop, and add a fuse near the power source if the device is high current or if your wiring length is substantial. Finally, test the completed assembly with a multimeter to verify continuity and measure any voltage drop under load before connecting to the actual device.
Safety and best practices when working with DC power connectors
Always disconnect power before handling plugs and never work on powered circuits. Use insulated tools and work in a dry, static-free workspace. Be mindful of polarity to avoid damaging circuits or components. Keep spare plugs organized to prevent cross-connecting incompatible tip sizes. If you’re unsure about the size or rating, consult the device manufacturer’s documentation or seek advice from experienced hobbyists. Avoid makeshift adapters that bypass specifications, as these can create heat, arcing, or fires. When in doubt, choose a safer, higher rated connector than you think you need and upgrade later if the project demands it. Practicing good cable management also reduces strain on the connector and helps longevity.
Common mistakes and quick troubleshooting tips
Assuming one size fits all is a frequent error; never force a plug into a socket that doesn’t fit. Wrong polarity or wrong size leads to voltage drop, overheating, or device damage. If a connection feels loose, rework strain relief or replace the plug with a tighter tolerance version. If you notice intermittent power, check for broken conductor strands or broken internal contacts. For DIY power pads or benches, verify the supply voltage with a meter before connecting devices. Keep spare tips and connectors organized so you can quickly swap to the correct one. Finally, when troubleshooting, document your tests and outcomes to avoid repeating mistakes.
How Adaptorized guides help DIYers with DC power connectors
Adaptorized provides practical, step-by-step guidance on connectors and connectivity challenges, including DC power connector plug selection, compatibility checks, and safe wiring practices. Drawing on Adaptorized Analysis, 2026, we explain common sizes, polarity considerations, and practical tips you can apply to real projects. Whether you're repairing a broken charger or building a custom power bank, the right plug makes all the difference in reliability and safety. This guide is designed for DIYers, makers, and tech enthusiasts who want dependable, repeatable results.
Your Questions Answered
What is a dc power connector plug and why is polarity important?
A dc power connector plug is a barrel shaped connector that delivers direct current from a power source to a device. Polarity determines which part carries the positive voltage, so using the wrong polarity can damage the device or charger. Always verify polarity before connecting.
A dc power connector plug is a barrel shaped connector for direct current. Check which side is positive before you connect to avoid damage.
What are the most common barrel sizes I will encounter?
Most DC barrel plugs use inner diameters of 2.1 mm or 2.5 mm with an outer diameter around 5.5 mm. Some devices use 3.4 mm or 1.3 mm sizes, but those are less common. Always measure or check manufacturer documentation to confirm.
The common sizes are 2.1 or 2.5 millimeters inside, with about 5.5 millimeters outside. Verify with documentation before you connect.
How do I measure a DC barrel plug accurately?
Use calipers to measure the inner diameter of the device socket and the outer diameter of the plug. Compare these measurements to the adapter's labeling or the device's manual to ensure a proper fit.
Measure the inner and outer diameters with calipers and compare to the device's labeling to ensure a proper fit.
How can I tell if a plug is center positive or center negative?
Check the labeling on the adapter or device. A symbol on the plug or a specification in the manual will indicate polarity. If in doubt, test with a multimeter or replace with a plug whose polarity is clearly documented.
Look for a polarity symbol on the adapter or manual, or test with a multimeter to confirm.
Are DC barrel plugs interchangeable between devices?
Not always. Compatibility depends on size, polarity, and voltage. Using an incompatible plug can cause poor connections or device damage. Always match size and polarity and verify voltage and current ratings.
Not always. Match the size and polarity, and verify voltage and current ratings before swapping plugs.
What safety steps should I follow when replacing a DC power plug?
Always disconnect power before handling connectors. Use appropriate tools, ensure proper insulation, and avoid makeshift adapters. If unsure, consult the device manual or a more experienced maker.
Disconnect power first, use proper tools, and avoid makeshift adapters. If unsure, seek guidance.
What to Remember
- Identify the correct barrel size before connecting devices
- Always verify polarity to prevent damage
- Choose durable connectors with proper strain relief
- Use proper tools for crimping or soldering
- Document size and polarity for future maintenance
