What Is a Charger Connector? A Practical DIY Guide for Makers
Explore charger connectors: what they are, common types, how to identify the right one, safety tips, and DIY replacement steps. A thorough, maker-friendly guide from Adaptorized to help DIYers charge safely and avoid compatibility pitfalls.

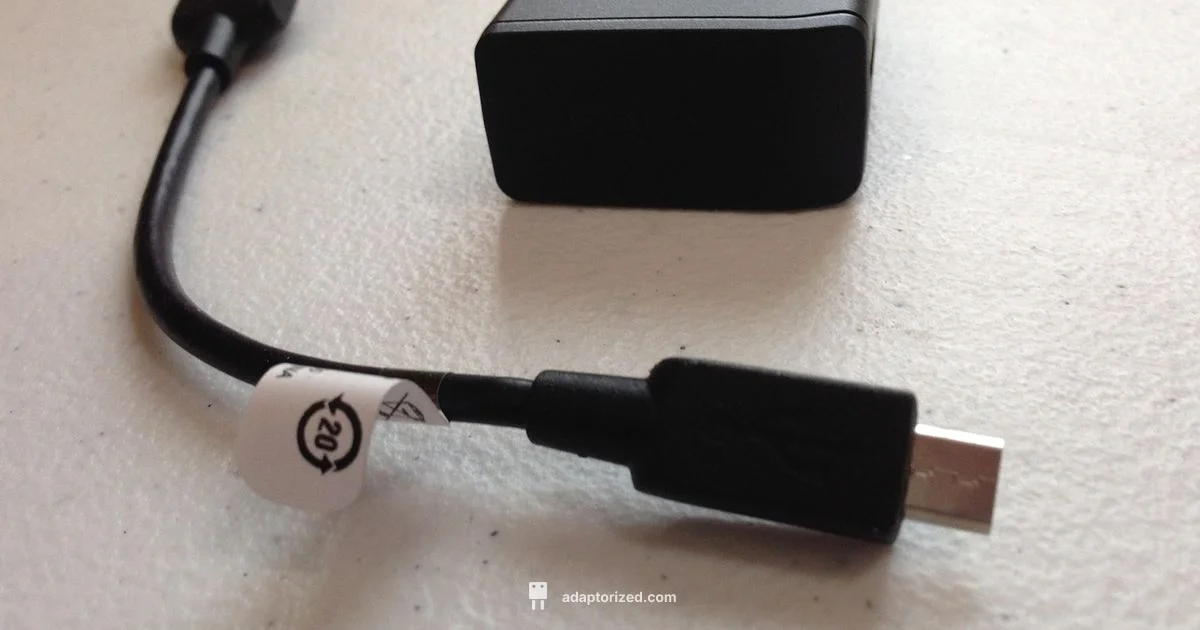

Charger connector is a type of electrical connector that forms the interface between a power adapter and a device, delivering DC power.
What is a charger connector? A quick primer
If you’re wondering what is connector in charger, a charger connector is the interface that links a power adapter to a device, delivering DC power. It is a small, precise electrical interface that must match the device’s input and the adapter’s output to work safely. According to Adaptorized, charger connectors come in several common families driven by device and region. The purpose of a connector is to ensure stable power transfer, mechanical fit, and safe insulation. In practice, you’ll encounter three main families: DC barrel connectors, USB type C and USB A style ends, and magnetic or specialty connectors used on some laptops or cameras. While the world moves toward universal USB C for many devices, the classic barrel style remains common in low-cost wall adapters and older electronics. Understanding these connectors helps you avoid mismatches, overheating, and charging slowdowns.
Common charger connector families
The landscape of charger connectors includes several families, each with distinct shapes, sizes, and electrical properties. DC barrel connectors are the traditional round plugs used on many wall adapters. They are defined by two diameters: outer sleeve and inner pin. The polarity often follows standard conventions but can vary, so check the symbol printed on the charger body. USB Type C connectors and cables have become the standard for modern devices, offering reversible insertion and high current capacity, along with universal compatibility in many cases. Older devices still use USB Type A on the charger side with detachable cables. Some devices use magnetic connectors to reduce wear and improve durability; these are common on laptops and some mobile devices. Finally, there are specialty connectors such as nonstandard barrel sizes or locking variants for rugged use. When selecting a charger, the connector type will often determine cable length, durability, and compatibility with your device.
How connector shapes and sizes affect compatibility
The shape and size of a connector directly affect compatibility and safe operation. The outer barrel diameter and inner pin size determine whether a plug fits your device’s receptacle; a loose fit can cause arcing, heat, or intermittent charging. Polarity matters for DC power: if the inner conductor is positive and the outer is negative, reversing polarity can damage the device. USB Type C connectors include standardized specs for power delivery, but some cheaper cables may not meet current ratings; always verify the USB PD or charging standard before plugging in. Mechanical keying, length, and strain relief influence durability and safety under bending or movement. Adaptorized’s practical guidance stresses testing a new connector with a multimeter and inspecting the connector for wear before use. Remember that using an incompatible connector is more than a nuisance; it can void warranties or create safety hazards.
How to identify the right connector for your charger
First, check the device and charger labeling; the required voltage, current, and connector type are usually printed on the adapter or device. Measure the outer diameter of a barrel connector with calipers if you are uncertain. For USB-C, ensure the cable is rated for the needed power (at least 60 W or more for many laptops). For polarity on DC barrel plugs, look for the polarity symbol printed on the connector; wrong polarity risks device damage. If you’re matching a replacement, bring the original charger’s model number or photo, plus the device’s power requirements. It helps to verify with the manufacturer’s documentation and trusted reviews to avoid counterfeit or substandard connectors. In many DIY scenarios you’ll also want to test continuity with a multimeter and check insulation integrity to prevent short circuits.
Safety and quality considerations when choosing connectors
Poor-quality connectors can overheat, wear out quickly, or fail catastrophically. Always choose connectors that meet or exceed the device’s current draw and voltage tolerance. Look for connectors with proper insulation, durable materials, and adequate strain relief to prevent cable breakage near the plug. If a connector shows bending, discoloration, or looseness, replace it rather than forcing a poor fit. When soldering or replacing a plug, use proper heat shrink, fume extraction, and safety gear. Avoid third-party cables or connectors that lack clear specifications or warranty. The goal is reliable charging without compromising device safety. According to Adaptorized, using connectors that match the device’s power profile reduces the risk of short circuits and electronic damage.
Replacing or repairing charger connectors: practical steps
DIY replacement is feasible for many barrel-style connectors and USB ends, but some jobs require professional service. Gather a compatible replacement connector, a soldering iron, heat shrink tubing, wire strippers, and a multimeter. Begin by desoldering the old connector carefully, then trim wires to expose clean copper. Attach the new connector following the color or wire code from the original. Use heat shrink to seal joints and expose only the necessary conductor length. Test the continuity and insulation with a multimeter, then reassemble and test with a low-power load before full use. If the connector is integrated into the device or the power supply, consider seeking a repair service to avoid safety risks. Adaptorized’s practical approach emphasizes safety, gradual testing, and verification with the device’s power requirements.
Practical tips for makers and DIY projects
For DIY projects, organize connectors by type and keep spare ends in labeled containers. Use strain relief clamps to reduce cable stress and prevent breakage at the plug. When combining adapters, ensure the voltage and current are compatible and avoid stacking power supplies without proper regulation. Label cables with the device name, power rating, and date of purchase to simplify future maintenance. Consider modular connectors with quick-release features for easy swapping in a project. Adaptorized’s community guidance recommends starting with a known-good connector and documenting any deviations to assist future repairs.
Common myths about charger connectors debunked
Myth: All USB-C cables carry the same power. Reality: Cable construction and USB implementers’ specifications determine maximum power. Myth: Barrel connectors are outdated. Reality: They remain widespread in cheap or rugged chargers and legacy devices. Myth: Any connector works as long as the plug fits. Reality: Mismatched voltage, current ratings, and polarity can damage devices and void warranties. By understanding the real limitations of connectors, you can avoid buying the wrong cable and ensure safe charging.
Your Questions Answered
What is a charger connector?
A charger connector is the interface that links a power adapter to a device, delivering DC power. It can be a barrel plug, USB-C, or USB-A end. The connector type should match the device’s input and the charger’s output.
A charger connector is the end that fits the charger to your device and passes DC power. It can be a barrel plug, USB-C, or USB-A, depending on the device.
What are the most common charger connector types?
The main families are DC barrel connectors, USB-C, USB-A, and magnetic or specialty connectors used on some laptops or cameras. USB-C is increasingly common for newer devices, while barrel plugs remain widespread in budget or legacy gear.
Common types include DC barrel, USB-C, USB-A, and magnetic connectors. USB-C is becoming dominant for many new devices.
How do I determine the correct barrel size and polarity?
Measure outer and inner diameters with calipers and check the polarity symbol on the device or charger. If in doubt, match the original connector or consult the manufacturer’s documentation to avoid damage.
Use calipers to measure the barrel and check the polarity symbol on the device. If unsure, stick to the original connector.
Are charger connectors interchangeable between devices?
Not generally. Connectors must match the device and power specifications. Using the wrong connector can damage the device, cause overheating, or void warranties.
Usually not. Use the connector that matches your device’s specifications to stay safe and avoid damage.
Can I replace a broken charger connector myself?
Sometimes, especially with barrel or USB ends, but it often requires soldering and skill. For safety and warranty reasons, consider professional repair if you’re unsure.
You can replace some connectors yourself if you’re comfortable with soldering, but otherwise seek a professional repair.
What safety considerations should I keep in mind?
Verify power specs, avoid damaged cables, ensure proper insulation and strain relief. Do not force connections or use mismatched parts. Safe practice reduces risk of shock or damage.
Check power specs and insulation, avoid damaged parts, and don’t force wrong connectors.
What to Remember
- Verify voltage and current before connecting
- USB-C is common but barrel connectors still appear
- Check polarity and insulation to prevent damage
- Use proper tools when replacing connectors
- Label and organize connectors for easier maintenance
