SMA Adapter: A Practical How-To Guide for RF Connectors
Learn how to select, install, and test SMA adapters for reliable RF connections. Practical tips, common pitfalls, and step-by-step guidance for DIYers and makers.
With SMA adapters, you can quickly swap RF links in compact test setups. This quick answer explains how to choose the right SMA adapter by impedance, gender, and thread type, plus the basic steps to attach it correctly and avoid common pitfalls. It also highlights when an SMA adapter is unnecessary and suggests quick checks you can perform before your next measurement to maintain signal integrity.
What is a SMA adapter and when do you need one?
SMA adapters are small, threaded RF transition devices that let you connect different SMA configurations without replacing your entire coaxial cable. They are commonly used in bench tests, antenna measurements, and RF experiments where you need to quickly swap partners or change mating orientations. The key benefits of SMA adapters are compact size, solid impedance control, and repeatable connections, which helps keep your measurements consistent. When your system demands flexible connectivity—such as testing multiple antennas or swapping instruments—you’ll reach for a SMA adapter. In practical terms, a SMA adapter is a bridge between two SMA interfaces, usually rated for 50 ohms, and designed to maintain a stable impedance through the junction. According to Adaptorized, these adapters are essential for compact RF setups that require frequent reconfiguration while maintaining signal quality. Remember, the right SMA adapter is not universal; you must match impedance, gender, and the thread type to your hardware for best results.
Key specifications to check before buying
Choosing a SMA adapter starts with three core specifications: impedance, gender, and thread type. Most SMA components in hobbyist and professional RF work presume 50-ohm impedance, which matches common test equipment and antennas. The gender describes which side is male or female, and the thread type defines how the connector mates with other hardware (e.g., SMA male-to-female, straight vs. right-angle). Beyond these basics, check plating (nickel, gold), mechanical durability (how many connect-disconnect cycles you need), and any special features like bulkhead mounting or weather sealing for outdoor use. Contamination-free contacts and clean plating are critical to minimize loss and ensure repeatability. Adaptorized analysis suggests maintaining clean mating surfaces and avoiding mismatched impedance, as these are common sources of insertion loss and reflection that degrade accuracy over repeated use.
Common SMA adapter types and when to use them
SMA adapters come in several configurations to suit different tasks. A straight SMA male-to-female adapter is common for bench setups, while a 90-degree variant helps when space is tight or when routing cables around equipment. Bulkhead SMA adapters enable panel mounting for test fixtures, and right-angle options reduce cable strain in restricted enclosures. For field work, weather-resistant or heat-shrink-protected variants may be preferred. It’s important to pair the correct gender with the mating connector on your coax or instrument. When in doubt, start with a straight, 50-ohm SMA adapter and verify fit before investing in specialized variants. In all cases, ensure the adapter’s impedance matches the system and that the thread lock is secure to prevent micro-movements during measurements.
How to correctly mate SMA adapters with coax cables
Begin by inspecting both the adapter and the cable ends for dust or corrosion before connection. Align the male and female interfaces carefully; the center pins should seat without forcing. If your adapter uses a crimp or solder method, follow the manufacturer’s recommended procedure for best results. For crimp-based assemblies, use the correct ferrule size and a calibrated crimping tool to ensure a solid mechanical and electrical connection. If soldering is required, apply minimal heat and use flux to improve wetting, then let the joint cool undisturbed to avoid micro-cracking. After assembly, lightly torque the connector’s nut or nut-like coupling to ensure a snug fit without stressing the contacts. Post-assembly, inspect for any signs of bent pins or loose ferrules that could introduce intermittent loss.
Practical usage scenarios: lab bench, field, and enclosure
On a lab bench, SMA adapters enable rapid iteration when testing multiple antennas or RF chains; keep a small assortment of genders and right-angle variants on hand. In field scenarios, choose adapters with protective housings and minimal exposed conductors to reduce damage from handling or weather. In enclosures, plan for strain relief and secure routing so that the coax does not flex near the connector. For all environments, keep a clean workspace, use protective caps when not in use, and label each adapter with its impedance and purpose to avoid cross-use mistakes that lead to measurement errors.
Common pitfalls and how to avoid them
The biggest pitfalls are impedance mismatch, improper mating, and dirty contacts. Mismatches cause reflections and data errors; always verify 50-ohm impedance compatibility. Dirty contacts reduce shielding effectiveness and increase loss; clean surfaces with isopropyl alcohol and lint-free wipes before each connection. Overtightening can damage threads and degrade performance; use the manufacturer-recommended modest tightness and avoid using excessive torque. If you’re reusing old adapters, inspect threads and ferrules for wear and replace parts that show visible damage. Finally, avoid leaving cables under tension; plan runs with slack to prevent micro-movements during operation.
How to test SMA connections
Testing starts with a visual check: ensure the connector seats fully and the ferrule looks intact. A simple continuity test with a low-frequency source and a high-frequency compatible meter can reveal gross issues, while a spectrum analyzer or network analyzer is ideal for spotting reflections and return loss. When testing, document the insertion loss and any frequency-dependent behavior to establish a baseline for future tests. If a problem is detected, disassemble, clean, and reseat the connection, verifying you’ve used the correct adapter for the application. Regularly test after any mechanical impact or jig adjustments to catch intermittent faults early.
Advanced tips for high-frequency work
For high-frequency RF work, the quality of every interface matters more than ever. Use only certified 50-ohm components and consider using SMA connectors with weatherproofing for outdoor measurements. Minimize the number of adapters in a chain to reduce cumulative insertion loss. Store adapters in anti-static, dust-free containers and inspect periodically for plating wear and corrosion. Finally, document the exact adapter combination used for each test to ensure repeatability and ease troubleshooting across different sessions.
Tools & Materials
- SMA adapter (male-to-female, 50-ohm)(Choose gender and impedance to match system.)
- RF coaxial cables with SMA ends(Maintain impedance match; minimize length where possible.)
- Coaxial crimping tool(Use the correct die set for SMA ferrules.)
- Ferrule set/die kit for SMA(Ensure ferrules match your cable type.)
- Soldering iron (optional)(Only if your SMA variant requires soldering.)
- Heat shrink tubing(Provides strain relief and moisture protection.)
- Isopropyl alcohol (IPA) and lint-free wipes(For cleaning contacts before assembly.)

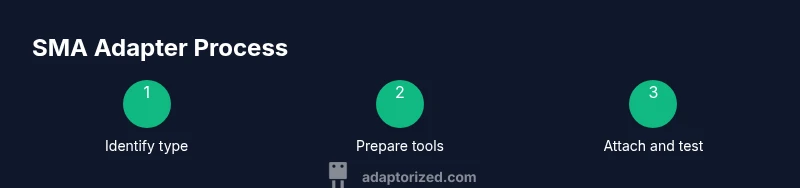

Steps
Estimated time: 25-40 minutes
- 1
Identify the SMA adapter type
Examine the impedance rating, gender, and thread type of the SMA adapter to ensure it matches your system. Consult equipment manuals if unsure, and double-check the compatible mating connectors before assembly.
Tip: Matching impedance (50-ohm) is the single most important factor for preserving signal integrity. - 2
Prepare tools and cables
Lay out the adapter, coax cables, and crimping tools on a clean work surface. Inspect cables for nicks or damaged insulation and remove any protective caps that may interfere with the connector.
Tip: Organize parts by type and length to prevent mix-ups during assembly. - 3
Align and clean contact surfaces
Wipe mating surfaces with IPA and a lint-free cloth until dry. Align the adapter on the cable so that mating surfaces meet straight-on without twisting.
Tip: Clean contacts reduces insertion loss and improves repeatability. - 4
Attach the SMA connector using the correct method
If using crimp-type, position ferrules and crimp with the precise tool and die set. If soldering is required, apply flux and heat only until the joint wets; allow to cool undisturbed.
Tip: Follow manufacturer torque guidance and avoid excessive heat to prevent joint damage. - 5
Seat and verify the connection
Thread the adapter securely, ensuring there is no play or cross-threading. Visually inspect for straight alignment and perform a basic continuity test.
Tip: A cross-threaded connection can mimic signal loss; reseat if you feel any binding. - 6
Test in the actual setup
Connect the assembled pair to your RF system and run a quick check with a spectrum analyzer or network analyzer to verify return loss and insertion loss at target frequencies.
Tip: Document the results for future reference and baseline comparison.
Your Questions Answered
What is an SMA adapter and what is it used for?
An SMA adapter is a small, threaded RF connector used to connect SMA interfaces with compatible impedances. It enables quick configuration changes in RF test setups and helps maintain signal integrity when different mating configurations are required.
An SMA adapter is a small RF connector used to connect SMA interfaces, allowing quick configuration changes without losing signal quality.
How do I choose the right SMA adapter?
Start with impedance (commonly 50 ohms), then match the gender and thread type to the mating hardware. Consider physical space constraints and whether you need a straight, right-angle, or bulkhead variant.
Choose by impedance, gender, and thread type, then consider space and mounting needs.
Are SMA adapters suitable for high-frequency work?
Yes, but ensure every connection is clean, correctly mated, and within the adapter's specified frequency range. Use minimal adapters in a chain to reduce reflections and loss.
They can be, provided each connection is clean, correctly matched, and kept short in number.
Can I reuse old SMA adapters from other devices?
Reusing adapters is possible if they show no wear, corrosion, or loose ferrules. Inspect threads and contacts, and test for reliable mating before critical measurements.
You can reuse if they’re still in good condition; always inspect first.
What are common signs of a failing SMA connection?
Frequent signal loss, increased noise, or unexpected reflections during tests indicate a possible issue with the adapter or its mating surfaces. Inspect visually and test with appropriate RF tools.
Look for unexpected noise, loss, or reflections and inspect the connector.
Do SMA adapters need weatherproofing?
For outdoor or field use, choose weather-resistant variants or use protective housings and sealing when not connected. Indoor setups typically don’t require weatherproofing.
Yes for outdoor use; otherwise, not necessary.
Watch Video
What to Remember
- Choose 50-ohm SMA adapters to match common RF gear.
- Verify gender and thread type before mating.
- Keep contacts clean and connections snug but not overtightened.
- Test connections with appropriate RF measurement tools.
