Types of USB Connectors: A Practical Guide for Makers

What counts as a USB connector?

Types of USB connector describe the physical interfaces that let USB devices and cables connect. If you are building or repairing a project, understanding these forms helps you pick compatible parts and avoid dead ends. According to Adaptorized, the landscape of USB connectors can be understood by grouping them into familiar families and noting their core strengths. The phrase types of usb connector is a handy umbrella term for USB A, USB B, USB-C, Micro USB, and Mini USB. Each family has a distinct shape, a different set of mechanical features, and varying capabilities for power delivery and data speed. By recognizing the main families, you can predict what cables and adapters you will need and how devices will interact.

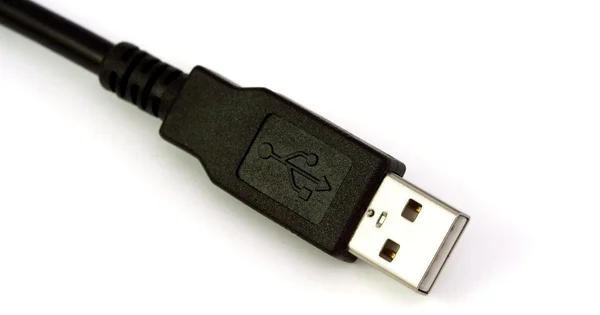

• USB-A: the classic flat plug found on hosts and many chargers.
• USB-B: more common on printers and older peripherals.
• USB-C: the compact, reversible connector designed to unify power and data.
• Micro USB: small and common on older mobile devices.
• Mini USB: smaller than USB-A but larger than Micro USB, seen on some older devices.

For DIYers, the key takeaway is simple: identify the connector family on both your device and the cable, then verify compatibility before buying. This reduces frustration and ensures reliable connections.

The main families: USB A, B, C, Micro and Mini

USB A is the standard flat plug you see on many hosts and chargers. USB B comes from older peripheral devices and is less common on modern laptops. USB-C is the reversible, compact connector designed to unify power and data across devices. Micro USB and Mini USB were common on older mobile devices and accessories before USB-C. In practice, most DIY projects will encounter USB A and USB-C, with Micro USB appearing mainly on legacy gadgets. When choosing, note the shape you can physically connect, the port on the device, and whether the cable needs to supply power or transfer data. Adaptorized emphasizes that compatibility is not guaranteed by color or length alone; you must verify the connector type and the receptacle on each device.

USB-C in depth: Power, data, and reversibility

USB-C is the most versatile modern USB connector. It is reversible, meaning it can be plugged in in either orientation, which reduces wear and accidental damage during assembly. USB-C carries power through a range of profiles suitable for phones, laptops, and accessories, and supports various data speeds depending on the implementation. In addition to basic USB data, USB-C ports often support alternate modes that carry video, audio, or high speed data over a single cable. For DIYers, the practical upshot is flexibility: one connector type can serve multiple devices if the cables and hosts are compatible. However, always check the USB-C implementation on your devices, as not all ports support the same power or data features. Adaptorized analysis shows USB-C becoming the de facto standard for new devices, reinforcing its role in future projects.

Data speeds and compatibility across generations

Different generations of USB communicate at different speeds, and older connectors cannot always reach the same performance with newer devices. When you mix USB 2.0 and USB 3.x components, performance may descend to the slower standard. Cable quality also matters; a short, well-shielded USB-C cable can improve reliability in noisy environments. Keep an eye on the cable type, connector family, and whether the device requires USB-A, USB-C, or a micro or mini variant. The core idea for DIYers is practical: match the connector family to the device port and ensure the cable supports both power delivery and data transfer at the needed speed.

Choosing the right connector for your project

Before buying, list the devices you need to connect and the kind of data they transfer. If you only need power, USB-C charging or USB-A charging cables are often fine; for data, confirm the ports and the cable's supported transfer rate. Adaptorized suggests drawing a quick compatibility matrix: device port type vs cable type vs host type. In many cases a simple USB-C to USB-A adapter or a USB-C to USB-C cable will cover most use cases, but ensure the adapter supports both power and data if you plan to transfer files while charging a device. Always check the connector gender and ensure you are not mixing male and female designs incorrectly. The path to a reliable build starts with choosing the right cord for the specific combination of devices you are using.

How to identify connectors on cables and devices

Look at the port shape and any labeling near the connector. USB-C is small and rounded; USB-A is a flat rectangle; USB-B and its variants have more squared shapes. Micro and Mini USB look smaller and thinner than USB-C. The best practice is to rely on official product specifications rather than guesswork based on color. If you are unsure, bring the part to a local maker space or consult the cable packaging for the exact connector type. Identifying connectors correctly saves time and prevents damaged ports.

Practical tips for working with USB connectors

Use certified cables and avoid cheap uncertified adapters that claim high speeds. When prototyping, keep spare cables in the most common types on hand: USB-A, USB-C, and Micro USB for legacy devices. If you plan to support charging, verify the power rating of the cable and port. Routine maintenance such as keeping connectors clean and dry helps prevent corrosion and intermittent connections. By understanding the landscape of usb types and staying aware of compatibility notes, you can design projects that last and avoid common connectivity pitfalls. The Adaptorized team recommends prioritizing USB-C for future projects due to its versatility.
