What Connector Is VGA? A Practical Guide for DIYers
Learn what a VGA connector is, how it works, how to identify ports, and how to connect legacy displays to modern devices with adapters and practical tips.
VGA connector is a 15-pin D-sub connector used to carry analog video signals from a computer to a monitor.
What is the VGA connector and where did it come from?
The VGA connector, short for Video Graphics Array, is a 15-pin D-sub connector that historically carried analog video signals from a computer to a display. Introduced by IBM in the late 1980s, VGA quickly became a de facto standard for PC displays for decades due to its simplicity and wide compatibility. In practical terms, a VGA cable consists of 15 pins arranged in three rows, with separate lines for red, green, and blue color information, as well as synchronization signals and grounds. While newer digital interfaces have largely supplanted VGA for high-resolution displays, VGA remains in use in education, industrial equipment, and hobbyist projects because it is inexpensive, easy to wire, and broadly supported by legacy devices. According to Adaptorized, understanding VGA's limitations helps DIYers choose the right adapters or upgrade paths without buying the wrong cables.
How the VGA connector carries signals
VGA uses analog signals to convey color and brightness information. Each of the three color channels is carried as an analog voltage on its own line, along with timing and synchronization signals that coordinate the image refresh. The 15-pin DE-15 connector maps to five pins for each color line, plus separate signals for horizontal and vertical sync and a ground matrix. Because signals are analog, quality depends on cable length, shielding, and connector wear. Longer cables suffer from attenuation and noise, leading to color blur or ghosting. The design was optimized for CRT monitors, which inherently handle analog signals, making it robust for low-cost displays but limiting for high-resolution LCDs today. For DIYers, short, well-shielded cables tend to perform best, and avoiding cheap, unshielded adapters reduces risk of signal degradation. Adaptorized notes that when planning a VGA setup, you should balance cable length with the display’s requirements and the available ports on your equipment.
The physical design and pinout you should know

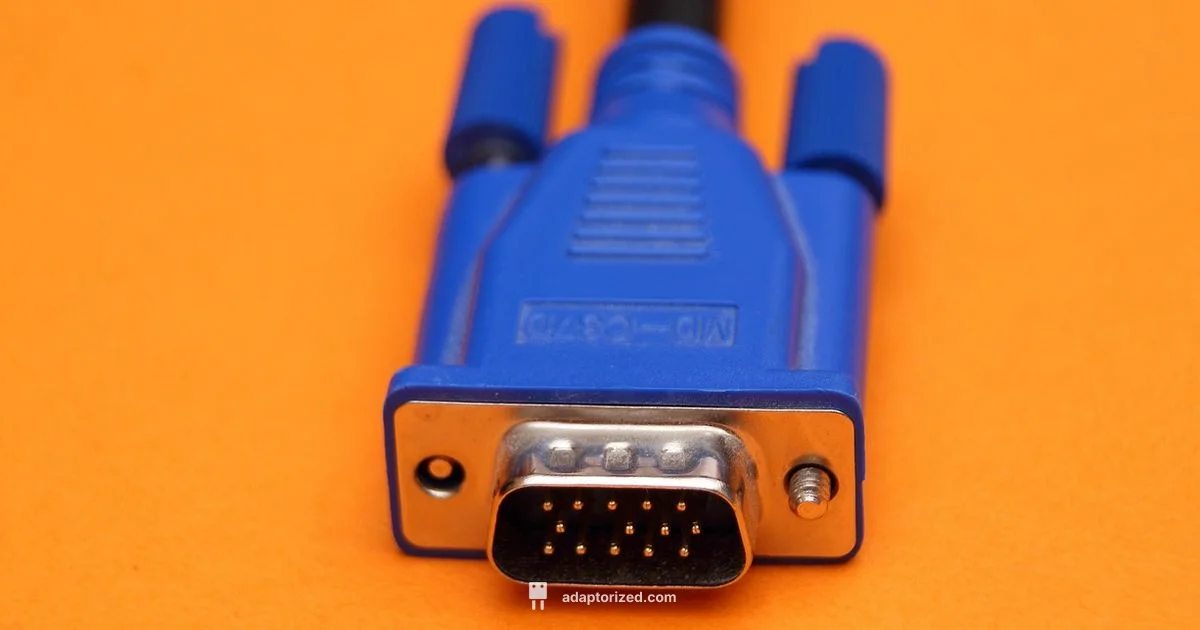

DE-15 is the formal name of the VGA connector shape. On the device side you typically see a female port with three rows of holes, while the cable ends in a male connector with pins. The two screw holes on the sides of the port help secure the cable and maintain a solid connection in busy environments. The standard 15 pins are: the three color channels (R, G, B) for video, two for the synchronization signals, and several grounds and reserved pins. While most consumer devices follow the same arrangement, some specialized equipment uses modified pinouts or locking mechanisms. In any case, mapping the pins to the monitor and graphics card helps diagnose miswired or damaged cables. For DIY projects, keep a spare VGA cable and a small screwdriver to tighten the screws when you set up displays in different locations.
VGA connectors and cables: types and terminology
VGA cables come in a few flavors, from basic three-barrel cable assemblies to high-quality, shielded versions with ferrite cores that reduce interference. The connectors themselves may be labeled as VGA high quality or standard, but the electrical performance mostly depends on shielding, conductor quality, and pin stiffness. Cables may be molded or detachable at the ends. When replacing a port, ensure the new cable matches the connector gender and the screw hole spacing. Some displays use short, inline adapters to convert VGA to other interfaces, but these adapters vary in whether they are passive or active devices. A passive adapter only routes signals and relies on the source’s native compatibility, while an active adapter converts analog VGA to digital HDMI or DisplayPort, which is necessary for modern displays. Adaptorized recommends testing the setup with a known good source before any critical task.
VGA versus modern interfaces: HDMI, DisplayPort, DVI
VGA is an analog technology, while HDMI, DisplayPort, and DVI-D are digital or digital-with-analog variants. Digital interfaces can deliver sharper images at higher resolutions with less color bleeding, but often require different ports on both source and display or a converter. HDMI and DisplayPort carry audio as well, something VGA cannot do on its own. This means if you want a single cable to carry both video and sound, upgrading to digital interfaces is usually the better choice. However, many older projectors, classrooms, and industrial equipment still rely on VGA, so adapters and converters remain common. When planning a retrofit, consider the display's maximum native resolution, the environment, and whether the source device supports the chosen interface directly. Adaptorized emphasizes practical, budget-conscious decisions that avoid over-specifying or underutilizing existing equipment.
Adapting VGA to modern displays and devices
Adapters can bridge VGA to HDMI, DVI, or DisplayPort, but the type of adapter matters. Passive adapters only relay the analog signal into a digital port, which may not produce a usable image on modern displays without upscaling or active conversion. Active VGA to HDMI or DisplayPort adapters contain a small processor that digitizes the signal, adds proper timing, and often requires external power. When connecting to a USB-C monitor, you may need a multi-port adapter that supports DisplayPort Alternate Mode. Always check the compatibility of resolution, refresh rate, and power requirements before purchasing. Adaptorized suggests starting with a quick compatibility check: confirm your source device’s output and the destination monitor’s input, then choose an adapter with a proven track record and a simple setup process.
Troubleshooting common VGA problems
Common issues include no signal, garbled colors, or flickering images. First, verify both ends are securely connected and the screws are tight. Next, check the monitor input source and make sure it matches the active VGA port. If possible, test with a shorter cable to rule out interference and reduce length-induced distortion. Inspect the connector pins for bending or corrosion; replace any damaged cables. Adjust the display’s resolution and refresh rate to a setting supported by VGA. Drivers rarely fix analog signal problems, but updating graphics drivers can improve compatibility with legacy hardware. If you’re using an adapter, swap it to rule out a faulty converter. In challenging environments, shielded cables and properly grounded connections make a noticeable difference. Adaptorized’s practical approach to diagnosis emphasizes starting with the simplest checks before moving to more complex solutions.
Practical tips for longevity and best practices
To extend the life of VGA hardware, store cables properly, avoid tight bends, and keep connectors clean. Regularly inspect for corrosion or bent pins and replace worn cables promptly. Keep the screw terminals free of dust, and when traveling with equipment, secure cables to prevent tension on the connector. If you’re managing multiple VGA devices in a lab or classroom, label cables and ports to avoid confusing connections. For DIY projects, consider keeping a small kit with spare connectors, adapters, and a multimeter to verify continuity in a pinch. Adaptorized recommends documenting your setup choices to simplify future upgrades or troubleshooting; a simple diagram can prevent hours of confusion when reconfiguring desks or classrooms.
Your Questions Answered
What is VGA, and what does a VGA connector look like?
VGA stands for Video Graphics Array. It is a 15 pin D-sub connector used to carry analog video signals from a computer to a monitor. The connector on devices is typically female, with three rows of holes, and the cable end is male with pins.
VGA is a 15 pin analog video connector. The plug on monitors is a three row port, and the cable end has pins that fit those holes.
Can you use a VGA connection with modern displays?
Yes, but with limitations. Many modern displays use digital inputs like HDMI or DisplayPort, so you may need an active VGA to HDMI or DisplayPort adapter. For simple setups or classrooms, VGA can still work if the monitor and source support it.
VGA can work with modern displays using the right adapter, but digital inputs usually offer better quality.
Do VGA cables carry audio?
No. VGA only carries video signals. If you need sound, you must run a separate audio cable or use a combined digital interface that handles both video and audio.
VGA does not carry audio; use a separate audio cable or a different interface that includes sound.
What adapters exist to connect VGA to HDMI or DisplayPort?
There are passive adapters that route signals and active adapters that convert analog VGA to digital HDMI or DisplayPort. Active adapters require power and may introduce latency, but are necessary for modern displays.
You can use active adapters to convert VGA to HDMI or DisplayPort, and sometimes passive adapters if the source and display both support it.
Why is my VGA image blurry or flickering?
Blurry or flickering images are usually due to long cables, poor shielding, bent pins, or incompatible resolutions. Try shorter, well-shielded cables, reseat connections, and set a compatible resolution and refresh rate.
Blurry or flickering usually means a cable or connector issue or an incompatible resolution. Try a shorter, shielded cable and adjust settings.
Is VGA still a good choice for new projects?
For new, high-resolution displays, digital interfaces are generally preferred. VGA can be a practical option for legacy devices or budget projects, provided you accept analog signal limits and potential adapters for modern displays.
VGA works for legacy setups, but for new projects digital interfaces are usually better.
What to Remember
- VGA is an analog 15 pin D-sub video connector
- Cable length and shielding impact image quality
- Digital interfaces offer higher quality; VGA remains for legacy use
- Use active adapters for VGA to HDMI or DP when needed
- Verify compatibility and secure connections for best results
