Connector to USB: DIY Guide for Adapters and Cables
Learn how to convert a non-USB connector into a USB interface with a practical, safe, step-by-step approach. This guide covers signal mapping, USB standards, testing, and common mistakes for DIYers and makers.
Learn how to connect a non-USB connector to USB safely. You’ll identify connector types, map signals (Vbus, GND, D+, D-), choose a compatible USB standard, and assemble a protected, shielded adapter. This includes practical tips, common mistakes, and safety practices to avoid damage.
What a "connector to usb" project means in practical terms
A "connector to usb" project describes creating a bridge between a non-USB connector (for example, a custom sensor or a development board header) and a USB port. The goal is to carry power and, when feasible, data signals in a way that respects USB electrical rules and signal integrity. For DIYers, this often means mapping the power (Vbus) and ground pins, identifying data lines (D+ and D- for USB 2.0 or the high-speed pairs for USB 3.x), and ensuring the shield and enclosure protect the connections from shorts and EMI. According to Adaptorized, success hinges on clear signal mapping, proper shielding, and safe current handling to avoid damaging devices. This guidance emphasizes safety, standardization, and testable results, rather than improvisation. Adaptorized analysis shows that predictable pin mapping and documented test results dramatically reduce troubleshooting time in connector-to-USB projects.
Key USB concepts you should know before wiring
Before you start, understand the basics of USB connectors and standards. USB-A and USB-B are legacy, while USB-C supports reversible plugging and higher speeds. Micro-USB (now largely replaced by USB-C) remains common on older devices. Key terms include power (VBUS, 5V), ground (GND), and data lines (D+, D- for USB 2.0; SuperSpeed pairs for USB 3.x). Impedance, shielding, and cable twist pairs affect performance, especially for longer runs. When wiring, use color codes and a documented pinout from a reliable source. Always assume a proper USB host and device will negotiate power and data, so your adapter should not force higher voltages or unsanctioned signaling. As you design, reference standard USB tables and maintain a conservative power budget to protect both sides of the connection.
Safety and compliance considerations
Safety is non-negotiable in any DIY electronics task. Work on an earthed bench, use an anti-static wrist strap, and avoid touching live conductors. High-speed USB data requires careful impedance matching; improper wiring can cause data errors or device damage. Do not power devices beyond USB's specified current limits without a dedicated regulator. Use heat-shrink insulation, proper strain relief, and a snug enclosure to prevent shorts. If you’re unsure about the USB standard you’re interfacing with, err on the side of simplicity and opt for USB 2.0-compatible wiring to begin with. The Adaptorized team emphasizes documenting every pin and testing progressively to minimize risk and improve reliability.
Approaches to create a USB connection: direct wiring vs using adapters
There are several paths to a working connector-to-USB adapter, depending on your project goals and skill level:
- Use a ready-made USB breakout or adapter board designed for USB-C or USB-A and map your non-USB signal to the board’s header pins.
- Build a direct-wired adapter with a custom cable, but only if you can maintain impedance and shielding for the intended USB speed.
- Employ a USB-to-serial bridge or HID converter if your device only needs logical signaling rather than full USB data transfer.
- Consider a standard USB-C to micro-B or USB-C to USB-A harness with a proper CC resistor configuration when interacting with USB-C hosts or devices.
For beginners, the safest path is to use a purpose-built breakout board or an off-the-shelf USB-to-signal converter kit, which reduces debugging time and protects both devices. Adaptorized recommends starting with a USB 2.0-compatible breakout to learn wiring, then advancing to USB 3.x once you have reliable soldering, shielding, and testing procedures.
How to test a DIY USB connector
Testing is where many DIY projects succeed or fail. Start with a multimeter to verify continuity for VBUS, GND, D+, and D-. Check that there are no shorts between power and ground or between data lines. Use a USB power meter or a USB tester dongle to observe real-time voltage and current draw when connected to a known-good host. Test both idle and active states: insert the plug, verify host recognition, and observe enumeration by the operating system. If data transfer is part of the goal, perform a simple data transfer test with a known device (e.g., a USB flash drive) to confirm reliable signaling. Keep a log of measurements and pinouts to refine your wiring diagram for future projects.
Troubleshooting common issues
Common problems include: no device recognition, random disconnects, or data corruption. Start by rechecking pinouts and ensuring data lines are twisted pair with correct shielding. Verify that the ground path is clean and that the shield is connected properly at both ends. Ensure that the power line is protected from shorts and that there is no leakage into neighboring conductors. If the host fails to enumerate, check for missing pull-up/pull-down resistors on the USB-C or USB-A side, or ensure correct CC resistor configuration for USB-C. Re-inspect solder joints for cold joints, and test continuity with a multimeter after each change. Document changes and re-test, then escalate to using a dedicated USB development board if issues persist.
Practical project example: making a USB-C breakout cable for a microcontroller
This hands-on example illustrates a safe, beginner-friendly project: connecting a microcontroller to a USB-C host via a breakout board. Start with a USB-C breakout board, a short USB-C to USB-A cable, and a few inches of data/power wire. Map VBUS to 5V, GND to ground, and route D+ and D- through the breakout’s data pins. Add a ferrite bead for EMI suppression and shield the assembly. Use heat shrink and strain relief to protect solder joints and prevent cable failure when plugged or unplugged. Test with a USB power meter and a host computer, then verify device enumeration and basic file transfer if applicable. This practical exercise reinforces safe practices, correct pin mapping, and the importance of shielding and impedance in DIY USB projects.
Tools & Materials
- Soldering iron with temperature control(Ceramic or fine-tine tip; 20-60W range recommended)
- Lead-free solder(Sn99.3 Cu0.7 or equivalent; 0.6-0.8 mm diameter)
- Wire strippers and cutters(Small-diameter precision pliers help for 28-32 AWG data lines)
- Multimeter(Continuity test, voltage checks, resistance measurement)
- Heat-shrink tubing(Various diameters to fit wires and connectors)
- Flux pen and desolder braid(For clean, reliable joints)
- ESD wrist strap(Anti-static protection during assembly)
- Ferrite bead or shielded enclosure(Optional EMI suppression and shielding)
- USB breakout board or breakout cables(Safer starting point for beginners)
- Cable tester or USB power meter(Useful for post-assembly testing)
Steps
Estimated time: 2-3 hours

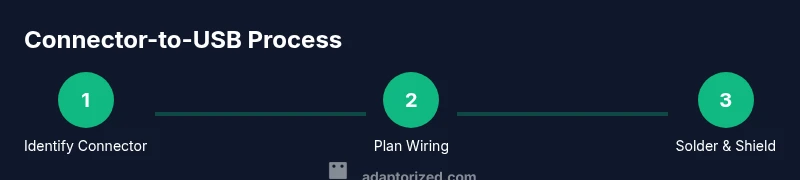

- 1
Identify connector types and USB target
Examine your non-USB connector to determine available pins and the signals they carry. Decide which USB standard (2.0 vs 3.x) your final design will support based on the intended host and device. Document the pinout with a sketch or photo; this becomes your wiring guide.
Tip: Take a clear photo of the connector’s pin arrangement before detaching anything. - 2
Plan the wiring and create a wiring map
Create a mapping table that pairs each non-USB pin with the corresponding USB signal (VBUS, GND, D+, D-). Decide on wire gauge: power lines can be thicker (20-22 AWG) while data lines use finer 28-32 AWG. Note potential impedance constraints for longer runs.
Tip: Label wires on the connector and the USB side to avoid mix-ups. - 3
Prepare wires and shielding
Strip wires cleanly, trim to appropriate length, and twist data lines into a shielded pair. Apply flux to solder joints and slide on heat-shrink tubing close to the connector for insulation. Ensure there is a binding point to resist tension.
Tip: Keep data lines as short as possible to minimize impedance and signal loss. - 4
Solder the connections
Solder each mapped connection with a steady hand. Inspect joints for cold solder or bridging. Attach shield and ground to the enclosure if available. Maintain proper polarity to avoid damage to devices.
Tip: Use a fine tip and practice good soldering technique to prevent overheating small pins. - 5
Insulate, reinforce, and enclose
Slide heat-shrink to cover all exposed metal, crimp strain relief, and confirm the shield is connected to ground at both ends. Place the assembly in a protective enclosure to prevent short circuits and mechanical stress.
Tip: Ensure the final assembly can withstand plugging/unplugging without stressing wires. - 6
Test the assembly with a USB tester
Connect to a known-good host and observe VBUS voltage, current draw, and basic data transmission if applicable. Run a simple file transfer test or device enumeration test to validate functionality.
Tip: If readings look off, recheck continuity and shielding before re-testing.
Your Questions Answered
What is the simplest safe approach to start a connector-to-USB adapter project?
Begin with a USB breakout board designed for USB-C or USB-A and practice with simple pin mapping. This reduces risk and builds confidence before attempting direct wiring.
Start with a breakout board to learn the basics before any direct wiring.
Can I power a device directly from a non-USB connector without a regulator?
No. USB devices expect a regulated 5V supply within USB current limits. Without regulation, you could damage the host, the device, or both.
Don’t power devices directly from improvised sources; use proper regulation.
Do I need to use USB-C CC resistors when connecting to a USB-C host?
Yes, for USB-C you often need specific CC pull-up/pull-down resistors to advertise power and data capabilities. Without them, the host may fail to recognize the connection.
USB-C connections usually require CC resistors to negotiate power correctly.
Is USB 3.x wire impedance important in DIY projects?
Yes, higher-speed USB (3.x) demands tighter impedance control. For beginners, stick to USB 2.0 wiring to simplify the build.
Impedance matters more at higher speeds; start with USB 2.0 for ease.
What tools are essential for safely building a connector-to-USB adapter?
A good soldering iron, multimeter, shielded wire, heat shrink, and a proper enclosure are core tools for a safe build.
You’ll need basic soldering and testing gear to build this safely.
Watch Video
What to Remember
- Map signals carefully before soldering
- Use shielded wiring for data integrity
- Test early, test often to catch mistakes
- Protect the final cable with enclosure and strain relief
- Maintain a conservative power approach to avoid damage
