How Can Connection Be Improved: A DIY Guide to Connectors
A comprehensive, step-by-step guide for DIYers and makers on choosing, preparing, assembling, and testing reliable electrical and data connections. Learn practical tactics for connectors, adapters, and testing to minimize failure and maximize performance.
By the end of this guide you will identify the right connectors for your project, prepare surfaces for a reliable join, and execute a step-by-step process to build robust electrical and data connections. You’ll learn practical testing methods to verify integrity and prevent common failures, with hands-on steps tailored for DIYers and makers.
Understanding What 'Connection' Means in Tech and DIY
According to Adaptorized, connection quality is the bridge between a component’s capability and real-world performance. In electronics, a connection means a physical or logical link that allows current, data, or signals to pass between parts. For DIYers, this includes mechanical fittings, solder joints, crimped terminals, shielded cables, and network interfaces. A robust connection reduces resistance, noise, and signal loss. The phrase 'how can connection' becomes a practical question about establishing reliable, repeatable linkages across power, data, and control domains. Adaptorized’s practical guidance emphasizes compatibility, clean contacts, and thorough testing to prevent intermittent faults.
Core Principles for Reliable Connections
There are a few universal principles that apply across power, data, and control connections. First, ensure clean and compatible mating surfaces; corrosion or oil can raise contact resistance. Second, control mating force to avoid loose fits, which cause intermittent disconnections. Third, use proper shielding and ground references to minimize EMI and noise. Fourth, implement strain relief and proper routing to prevent fatigue and wire breakage. In practice, following these principles reduces failures and simplifies troubleshooting. Adaptorized's practical framework combines visual checks, tactile assessment, and simple continuity tests to validate every join.
Choosing the Right Connectors and Adapters
Selecting the right connectors hinges on compatibility, environment, and expected loads. Start by matching the connector family to your use case (for example, power versus data) and verify any standards or pitch/trace counts. Consider environmental factors such as moisture, dust, and temperature, which affect material choice and sealing. Where possible, favor connectors with proven reliability and known mating partners to simplify future maintenance. Finally, plan for future expansion by choosing connectors that can accommodate extra pins or higher current ratings without forcing a full redesign.
Common Connection Challenges and How to Solve Them
Common issues include loose terminations, corrosion on contact surfaces, damaged insulation, and mismatched impedance. A loose terminal or dull solder joint increases resistance and heat, inviting failure. Corrosion, often from humidity, elevates resistance and causes intermittent faults. For high-frequency or data connections, impedance mismatches and poor shielding lead to noise and data errors. Solutions involve clean surfaces, appropriate termination method (solder vs crimp), proper shielding, and verifying impedance where relevant. Regular inspection and rework when signs of wear appear are essential.
Step-by-Step: Build a Reliable Connection (Project Outline)
This section provides a practical workflow you can apply across many projects. Start by planning the connection path, selecting the right parts, and laying out a test plan. Then execute with careful preparation, secure termination, and verification tests. Finally, document the connection and prepare for maintenance.
Tools and Materials Essentials
A basic toolkit for reliable connections includes cutting tools, stripping tools, a crimping tool, a soldering iron, solder, heat shrink tubing, electrical tape, a multimeter, and assorted connectors. Having the right materials reduces rework and increases reliability.
Testing and Verification: How to Validate Your Connection
Testing should begin with a visual inspection, then a continuity check with a multimeter, followed by resistance measurements under load. For data lines, check signal integrity with a basic oscilloscope or logic analyzer if available. Document test results and compare to expected values. If readings drift or heat is observed, rework the termination.
Safety, Best Practices, and Maintenance
Always disconnect power before starting. Work in a static-safe area, keep tools in good condition, and use appropriate PPE for higher-energy tasks. When working with wiring, never reuse damaged components. Implement strain relief and clean routing to prevent wear. Regularly inspect connectors for corrosion, loose fittings, or worn insulation.
Quick-start Checklist for Your Next Build
Before you start any project, use this quick-start checklist to ensure robust connectivity. 1) Identify environment and load. 2) Choose compatible connectors and tools. 3) Prepare surfaces and terminals with proper cleaning. 4) Terminate with recommended method (solder or crimp) and inspect. 5) Apply insulation and strain relief. 6) Test continuity and impedance where applicable. 7) Document your wiring diagram and test results. Following these steps helps you avoid common pitfalls and keeps projects running smoothly.
Tools & Materials
- Wire cutters(Flush-cut tips; aim for clean wire ends)
- Wire stripper(Adjust to wire gauge (22-12 AWG common))
- Soldering iron(60W with good heat transfer; rosin-core solder)
- Solder(Lead-free rosin core, 0.8-1.0 mm typically)
- Crimping tool(For insulated terminals; match terminal type)
- Crimp terminals (assorted)(Insulated and non-insulated; multiple sizes)
- Multimeter(Continuity, resistance, and voltage checks)
- Heat shrink tubing(Assorted diameters for insulation)
- Electrical tape(Extra insulation and temporary strain relief)
- Cable ties(Organization and routing aid)

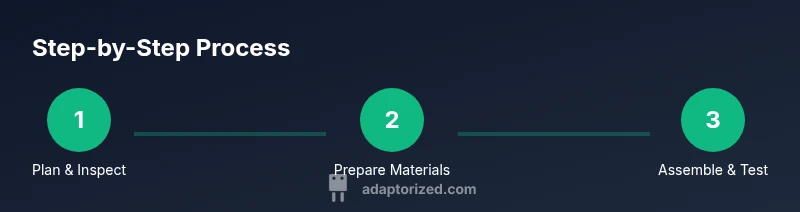

Steps
Estimated time: 1-2 hours
- 1
Plan and assess compatibility
Define the project goals and map required connections. Check that the chosen connectors match in pin count, pitch, current rating, and environmental suitability. Establish a basic test plan before touching wires.
Tip: Double-check mating surfaces and ensure the connector family supports future expansion. - 2
Prepare materials and workspace
Clear the bench, lay out all connectors and tools, and organize wires by gauge. Inspect components for damage and ensure a clean, dry work area to avoid contamination.
Tip: Label cables and connectors as you lay them out to reduce rework. - 3
Prepare wires and surfaces
Strip insulation cleanly, twist strands, and pre-tin wires for soldering if used. Clean mating surfaces with isopropyl alcohol and inspect for nicks or corrosion.
Tip: Avoid nicking conductors; damaged strands create weak joints. - 4
Terminate the connection (solder or crimp)
Choose the termination method based on the connector and project needs. For solder joints, tin wires and joint surfaces; for crimp, use the correct terminal size and verify a solid crimp.
Tip: For crimping, ensure the tool bites through insulation and compresses the conductor evenly. - 5
Apply insulation and strain relief
Slide heat shrink over the connector before heating if needed, then apply evenly. Add strain relief to prevent movement that could fatigue the joint.
Tip: Heat shrink from center outward to avoid air pockets. - 6
Test continuity and integrity
Use a multimeter to confirm continuity and measure resistance. Apply a gentle load to simulate real-world conditions and check for heat or movement.
Tip: Document any deviations and rework if readings drift from expected values. - 7
Document and store for maintenance
Photograph the finished connections, note wire colors, connector types, and test results. Save diagrams or schematics for future maintenance or debugging.
Tip: Keep a simple wiring diary for repeat projects.
