How Connectors Work: A Practical Guide for DIYers

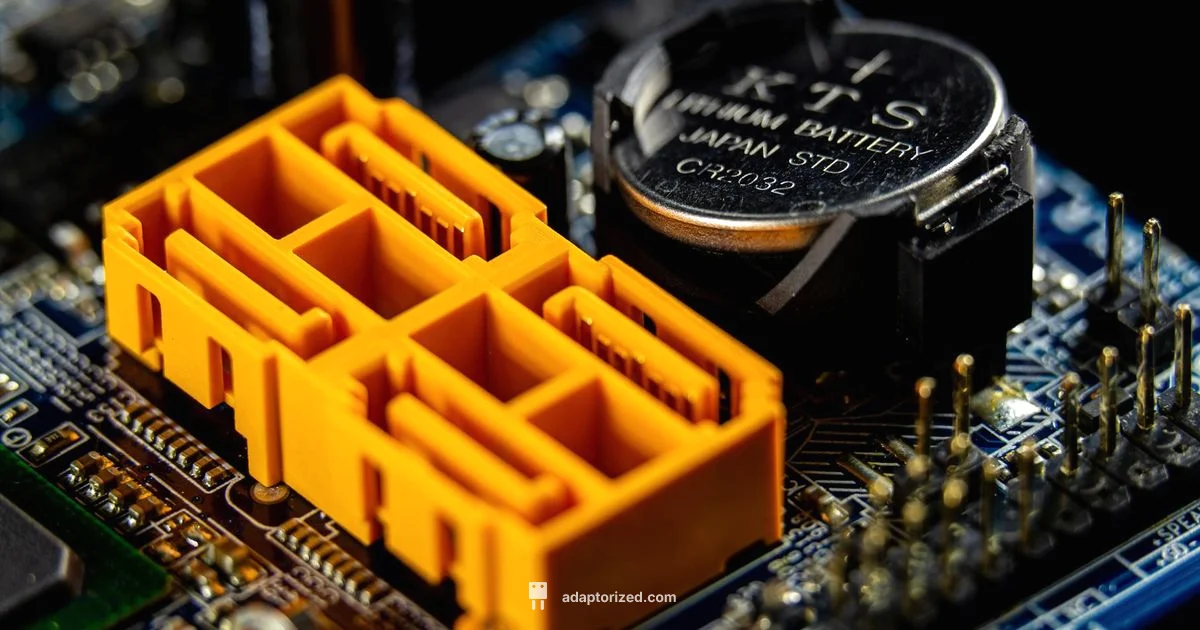

Why Connectors Matter in Modern Electronics

According to Adaptorized, connectors are essential to any system that must be assembled, upgraded, or serviced. They enable modular design by letting components snap together and separate without soldering, a capability crucial for prototyping, field repairs, and consumer devices that require plug and play power and data paths. A connector defines where current or signals enter and exit a device, how reliably those paths stay connected under vibration or temperature changes, and how safely they can be disconnected and reconnected. Beyond simple mating, the choice of housing, shared standards, and contact materials affects durability, ease of use, and EMI resilience. Whether you are building robotics, audio setups, or networking gear, a well chosen connector helps you achieve reliability, maintainability, and scalability without forcing a single rigid design.

How Connectors Work: The Core Principles

At its most basic, a connector is a mechanical and electrical interface that brings two conductors into intimate contact. When you mate two halves, metal contacts create a continuous path for current or signals, while the housing provides insulation and alignment. The performance depends on contact resistance, mating force, and the physical geometry of pins and sockets. Good connectors minimize contact resistance, avoid corrosion, and maintain alignment across cycles of connection and disconnection. In high speed data applications, impedance and shielding become critical to preserve waveform integrity. The idea is to balance mechanical robustness with electrical performance, so a connector can survive everyday handling without failing or degrading signals.

Key Components of a Connector

• Contacts: the conductive paths that carry current or signals; they come as pins or sockets and are made from materials chosen for conductivity and wear resistance.
• Housing: the dielectric body that keeps contacts in place, isolates each path, and sets the mating pitch.
• Shell or shield: metal layers that reduce EMI and protect against mechanical damage.
• Latching or locking mechanism: features that secure mating and prevent accidental unplugging.
• Termination method: how the cable wires are attached, typically crimped, soldered, or solderless.
• Polarization and keying: design features that ensure the correct orientation during mating and prevent incorrect connections.

These elements determine how easy the connector is to assemble, how often it can mate, and how long it will last in its intended environment.

Impedance, Shielding, and Signal Integrity

For high speed or sensitive signals, impedance matching across the connector is essential to control reflections. Coaxial and differential interfaces are designed to preserve characteristic impedance, while shielding—foil, braid, or a combined approach—limits external interference. A well shielded connector also reduces crosstalk between adjacent conductors and helps maintain EMI/EMC compliance. Material choices for contacts, plating (for example, gold or tin), and dielectric spacing influence both contact resistance and thermal performance. In practice, you will see a range of impedance values tied to the application, with designers selecting connectors that balance size, cost, and electrical goals. The goal is reliable, repeatable performance across the device’s entire operating frequency range.

Common Connector Families and Where They Shine

• USB family (A, B, C, micro, etc.): versatile for power and data in consumer devices; USB-C supports high speed and reversible mating.
• RJ45: the backbone of wired networking, typically used for Ethernet, with good vibration tolerance and straightforward crimping.
• HDMI: carries both video and audio with high bandwidth and locking features.
• Coaxial connectors (F type, BNC): simple land-based RF and cable TV connections with robust shielding.
• DC power barrels: ubiquitous for low voltage power delivery in laptops and peripherals.
• SATA and legacy D-sub: used in internal data transfer and older equipment.
• Specialty high reliability interfaces: MIL-DTL, circular connectors for aerospace and industrial uses.

Choosing depends on data rate, environment, and mechanical constraints.

How to Choose a Connector: Criteria and Tradeoffs

Selecting the right connector involves balancing electrical, mechanical, and environmental requirements. Start with current and voltage ratings to handle the expected load, then consider data rate for signaling, especially at high speeds. Assess the mating cycle life you need, the space available, and whether you require ruggedization (IP rating, temperature range, vibration resistance). Environmental factors like moisture, dust, and chemicals influence housing materials and sealing. Interoperability matters too; sticking to standardized families simplifies replacements and upgrades. Finally, cost and ease of assembly play a big role in DIY projects where you might duplicate or prototype quickly. A pragmatic approach is to map your project requirements to a few candidate connector families and compare based on the most critical criteria rather than chasing every feature.

Assembly, Housing, and Mating Considerations

Mating reliability hinges on proper termination and good mechanical fit. Crimp contacts require the right tool to achieve a consistent press and secure grip on conductors, while soldering provides a solid bond but risks heat damage to insulation. Ensure correct polarity and keying to prevent misalignment during mating. The housing should provide sufficient clearance for movement, strain relief for cables, and protection against environmental ingress. Shielded connectors demand careful grounding to avoid ground loops. When assembling, follow manufacturer torque specs for locking mechanisms and verify the mating force with a simple pull test. Finally, plan for maintenance; keep connectors clean, inspect for corrosion, and replace worn parts before they fail in the field.

Safety, Standards, and Compliance

Electrical connectors must meet voltage and current ratings appropriate for their application, and many regions require compliance with standards such as RoHS, REACH, and CE for electrical safety. Shielding effectiveness, IP ratings for ingress protection, and EMC compliance influence design choices. Use connectors from reputable manufacturers and verify documentation for pinout diagrams, mating cycles, and environmental ratings. For critical systems, document every connector, including lot numbers and tool calibration records, to facilitate traceability. In all cases, avoid using damaged or deformed connectors, and replace them before failure could cause safety hazards or damage to equipment.

Troubleshooting and Longevity Tips

Common longevity issues include corrosion at contacts, wear from repeated mating, or insulation damage from bending. Regular inspection—look for discoloration, pitting, or looseness—helps catch problems early. Clean contacts with appropriate solvents and re-terminate if the plating shows excessive wear. If signals degrade, test impedance and verify shielding continuity; check for loose grounds. Use compatible mating parts and avoid forcing connectors into misaligned sockets. For DIY projects, choose connectors with generous mating cycles and robust housings, and store spare elements in a clean, dry place to extend lifespan.

The Future of Connectors: Trends and Standards

The connector landscape continues to evolve with higher data rates, smaller form factors, and modularity. USB4 and USB-C standards push faster charging and bidirectional power while maintaining compatibility. Optical and hybrid connectors promise lower losses in high speed links, especially in compact devices. Designers are increasingly favoring field replaceable modules and standardized footprints to simplify upgrades and repair. Expect improvements in materials, plating, and contact geometry to extend life under harsh environments, plus smarter connectors with integrated sensing to monitor health and predict failures before they occur.

Real World DIY Scenarios: Projects and Best Practices

If you are prototyping a robotics project, start with a modular connector family that offers easy disconnection and a proven mating cycle, such as a sealed circular or a robust rectangular plug. For home electronics, USB-C and HDMI families provide broad compatibility and straightforward wiring, but ensure your power edge and data lane requirements are within the connector’s specifications. When building a small network appliance, pair RJ45 with shielded Ethernet cables to minimize interference, and use standardized color-coding to prevent miswiring. Finally, always test assemblies under real conditions—vibration, temperature cycles, and humidity—to uncover issues early and plan for maintenance.
