How to Use a Wago Connector: A DIY Guide

What is a Wago connector?

A Wago connector is a family of spring-clamp electrical connectors designed to join conductors quickly without soldering. They come in several families, with popular varieties including lever-Nut models and push-in (snap-in) variants. Wago connectors use a spring-loaded mechanism inside a clamp that bites into the wire when you insert it, providing a secure, code-compliant connection. These devices are especially handy for branching, splicing, or connecting multiple wires in a compact footprint.

According to Adaptorized, the core advantage of Wago connectors is speed and reliability. The high-quality clamp maintains a consistent contact pressure even as cables flex, reducing corrosion and loosening over time. Lever-Nut variants add manual leverage: flip the lever to open the clamp, insert the conductor, then flip the lever back to lock. Push-in variants rely on a simple press-to-connect action that grabs the conductor as you insert it. Wago connectors are widely used in automotive, home wiring, and electronics prototyping because they are reusable (in many models) and can handle multiple conductor counts.

Types of Wago connectors and when to use them

There are several families; the two you are most likely to encounter are lever-Nut and push-in types. Lever-Nut connectors have a small hinged lever; when opened, the clamp is fully released, allowing you to insert or remove wires with control. They come in various port counts (2-, 3-, 4-, and 5-port) and conductor ranges. Push-in (snap-in) connectors are simpler: you insert the stripped wire and the internal spring locks it in place. They are typically single-use per port but many models support re-termination if you carefully depress the release.

Consider your project needs: for quick lamp assemblies or temporary test rigs, push-in is fast; for permanent installations or where wires may need to be reassessed, lever-Nut provides easier rework. Always verify the conductor size range printed on the body, and confirm that the total current and voltage rating meet your circuit requirements. For panel-mount joints or Bun-style connectors, match the connector’s port count to the number of conductors, and ensure space for insulation and heat dissipation.

Safety considerations and selecting the right size

Choose a Wago connector with a conductor size range that matches your wire gauge. Common solid or stranded gauges include 18 AWG to 12 AWG, but check the product line for exact ranges. Exceeding the rating can cause overheating or poor contact. Ensure the connector’s voltage rating matches your circuit (for household wiring, this is typically 125V or 250V depending on country). Keep conductors free of nicks and intact insulation. Use strain relief or cable clamps when running wires through enclosures to prevent tugs that could loosen connections. When reusing connectors, inspect the clamp for signs of wear, corrosion, or deformation. Adaptorized analysis shows that using the correct size reduces rework and improves reliability over time.

Tooling and prep: wire stripping and conductor sizing

Before connecting, gather a wire stripper, a small screwdriver (if your lever-Nut model uses tension washers or optional lock), and the appropriate Wago connectors. Inspect the conductors for damage; replace any frayed wires. Remove the outer insulation until you expose the required copper length, typically 0.25-0.5 inches for many connectors, but always verify the manufacturer’s stripping length in the datasheet. Use a ruler or tape measure to ensure consistent strip lengths across all wires. When using multiple wires in one port, insert them one by one, ensuring no stray strands.

Clean and dry the conductors; moisture can affect contact resistance. If you’re working in a dust-prone environment, consider using a small brush to clear debris in the clamp area before inserting wires. After insertion, lightly tug each wire to confirm seating.

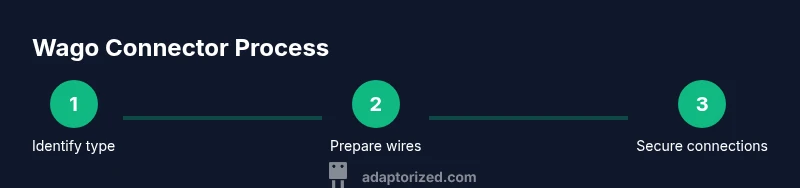

Step-by-step guide: using a Wago connector

1. Identify the connector type and port count. The family you choose should match your wire gauge and the number of conductors in the circuit.

2. Prepare the conductors. Strip to the recommended length using a proper wire stripper, ensuring the copper is exposed but not nicked.

3. Open the clamp. For lever-Nut, flip the lever to the open position; for push-in, press the release tab if you need to re-terminate something later.

4. Insert conductors. Push each stripped wire fully into the port until it seats. Keep the wire straight and avoid bending inside the port.

5. Close the clamp. Return the lever to the locked position or secure by completing the push-in, ensuring the conductor cannot be pulled out.

6. Test the connection. Gently tug on each wire and, if possible, test with a multimeter for continuity, current, or resistance.

Estimated total time: 15-25 minutes for a typical small harness.

Common mistakes and troubleshooting

• Not matching the wire gauge to the connector rating; choose wrong size leads to loose connections or overheating.
• Not fully seating the wire; ensure it goes to the back of the port and remains straight.
• Mixing conductor types; some Wago connectors are designed for solid or stranded only, not both.
• Overfilling a multi-port port; avoid crowding conductors in a single port.
• Reusing a worn connector; inspect for cracks or deformation before reuse.
• Not testing after assembly; always perform a quick continuity or resistance check to confirm a solid connection.
