How to Use Terminal Connectors for Reliable DIY Wiring

Understanding Terminal Connectors: What They Are and Why They Matter

Terminal connectors, also known as terminal blocks or screw terminals, are devices that secure and join two or more conductors. They provide a reliable electrical path while offering a simple, reusable termination that can be detached if needed. In practical DIY projects, terminal connectors simplify prototyping and field repairs because you can swap wires without soldering. According to Adaptorized, terminal connectors play a crucial role in safe, organized wiring, especially when dealing with low voltages and battery-powered circuits.

When you learn how to use terminal connectors, you begin with recognizing the common families: screw-terminal blocks that clamp conductors with a slotted screw; push-in or spring-clamp types that lock wires with a lever or press; and barrier strips used for multi-wire terminations in panels. Each family has tradeoffs for conductor size, durability, and the ease of making or undoing connections. For a beginner, start with screw-terminal blocks for their tactile feedback and wide availability. As you gain experience, you can mix connector types within a project to balance density and reliability. This guide keeps the focus on practical, repeatable practices so you can wire quickly, test reliably, and maintain clean, safe terminations.

Types of Terminal Connectors Used in DIY Projects

Terminal connectors come in several flavors, each designed for different use cases. Screw terminal blocks clamp wires by tightening a small screw, offering strong retention for stranded or solid conductors. Push-in connectors, sometimes called lever or spring terminals, provide faster terminations but can be more sensitive to wire diameter. Barrier strips are a row of individual terminals ideal for breadboard-like panels, while PCB-mounted terminals attach directly to printed circuit boards. Ferrule-equipped terminals provide a crimp-on ferrule that improves reliability for stranded wires—a must for high-vibration environments. Panel-mount terminals allow you to bring wires through enclosures neatly. Finally, there are modular terminal blocks that stack to adapt to various densities. For low-voltage, DC hobby work, a basic screw terminal block with ferrule-compatible crimps is often the simplest, most forgiving option. Always check the conductor size (AWG), insulation, and voltage rating before committing to a specific connector family. The goal is to ensure a solid mechanical grip and a clean electrical path that withstands bending, movement, and occasional unplugging.

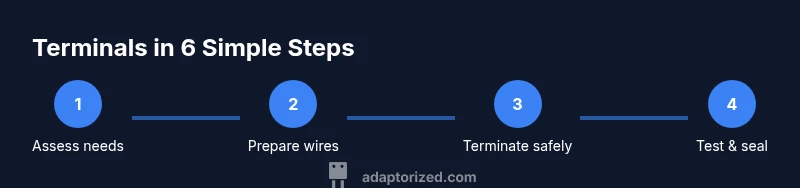

How to Select the Right Terminal Connector for Your Project

Choosing the right terminal connector starts with clarifying your constraints. You need to know conductor size (AWG), stranded vs solid wire, voltage and current requirements, environment (humidity, temperature), and available space. Compare terminal ratings for voltage (V), current (A), and minimum insulation spacing. Consider the termination method: screw clamps are forgiving and reusable; push-in types speed up assembly but can be less rugged over time. Ferrules improve reliability for stranded wires and reduce frayed strands. If you anticipate vibration, look for locking screws or feed-through designs that resist looseness. For panel or enclosure work, choose barrier strips or panel-mount variants with IP-rated covers. Finally, confirm compatibility with your toolset: a crimping tool sized for ferrule crimping and a precision screwdriver set. In short, map your wires, expected stress, and service life, then choose the connector family that aligns with those needs.

Tools and Materials You’ll Need (Contextual Overview)

Previewing the essentials helps you prepare efficiently. A quality wire stripper with adjustable length helps prepare conductors cleanly. A compatible crimping tool is crucial if you plan to use ferrules or insulated terminals. A small screwdriver or driver for clamping screws, and a multimeter for verifying connectivity and isolation, are invaluable. Keep heat shrink tubing and electrical tape on hand for strain relief and insulation. For more robust builds, consider ferrules, wire grommets, and a light-duty, non-metallic enclosure to protect terminations from dust and moisture. Always test each termination individually before integrating into a larger circuit. This upfront check catches loose screws, nicked insulation, or misrouted wires that could cause intermittent faults later.

Preparation: Wire Sizing, End Finishing, and Safety

Begin by confirming wire gauge and insulation thickness. Mismatch between conductor size and terminal clamp can lead to loose connections or overheating. Strip insulation to an appropriate length, leaving just enough exposed copper for a solid bite without leaving bare wire protruding. If using stranded wire, consider tinning or crimping with ferrules to keep strands together. Insert wires into the correct terminal port—never into an adjacent, unlabeled slot—to avoid cross-talk or shorting. When using screw terminals, snug the screws firmly, but avoid overtightening that could damage the conductor or the plastic housing. For environments with vibration, add a locking mechanism or thread-locking compound on screws if appropriate. Safety first: disconnect power, wear safety glasses, and verify zero voltage before touching wires. Adaptorized recommends testing procedures before you proceed to assembly.

Crimping and Tightening Techniques

Crimping is a skill that rewards precision. Use a crimp tool sized for ferrules or insulated terminals; mis-sized crimps can slip or cut insulation. Slide the ferrule or terminal onto the conductor, position in the crimping tool, and apply a consistent, firm bite. Avoid over-crimping, which can squash the wire or deform the ferrule. If you use screw terminals, tighten sequentially in a cross pattern to distribute pressure and avoid skewing the wire. When terminating in a panel, route wires neatly with cable ties and strain relief to prevent stress at the clamp. After termination, gently tug on each wire to confirm a positive hold. If you notice any looseness, re-crimp or re-seat the terminal. Regularly maintain your tools for clean, repeatable results.

Quality Assurance: Testing and Troubleshooting

Good testing practice starts with a visual inspection: look for nicked insulation, stray strands, or misrouted wires. Use a multimeter to check continuity from the source to the load; a brief beep or a low resistance value indicates a solid connection. Check for shorts by measuring resistance between conductors that should be isolated. If a termination feels loose, re-seat or re-crimp with the appropriate tool. In high-current scenarios, verify that conductor cross-section and terminal rating align; overheating is a common failure. Document each termination: note the connector type, wire gauge, and amperage in your project log. This habit helps you troubleshoot quickly if something changes during testing or future modifications.

Real-World Projects: Examples and Best Practices

Consider a small LED strip project powered by a 12 V supply. Use screw-terminal blocks to join supply wires to the strip with ferrules for reliability, then route wires through a compact enclosure. For a hobby speaker, use barrier strips to manage multiple speaker leads and ground connections, ensuring all terminals are color-coded and labeled. In automotive or battery-powered projects, always choose connectors with higher current ratings and include strain relief to handle vibrational stress. A clean layout reduces crosstalk and simplifies debugging. The key is consistency: document wiring diagrams, label every terminal, and reuse standard colors for positive and negative lines.

Maintenance, Safety, and Longevity

Terminal connections benefit from periodic checks, especially in environments with temperature changes or humidity. Inspect for corrosion, loose screws, or frayed insulation, and replace any damaged components promptly. Keep a small parts bin with spare ferrules, screws, and terminal blocks for quick repairs. Create a labeling scheme so you can trace wires at a glance, and maintain a simple inventory so you know when to refresh parts. Finally, store your tools and components in a dry, organized space to minimize corrosion and loss. Following these practices makes terminal connections safer and more durable over time.
