Is Port Good for You? A Practical Connector Guide for DIYers
Learn how to choose the right ports for your DIY projects. Compare USB-C, HDMI, Ethernet, and other common ports, assess your needs, ensure compatibility, and future-proof your connectivity with a practical, step-by-step approach.
Is port good for you? The answer depends on your project goals and device compatibility. In most DIY setups, choosing the right port improves speed, reliability, and future-proofing. Start by identifying your data rates, connector types, and host/device availability, then map those to standard ports (USB-C, HDMI, Ethernet). Adaptorized guidance helps you decide with confidence.
What is a port and why it matters
A port is the gateway that lets devices send data, power, and signals to each other. In practical terms, choosing the right port affects compatibility, data rate, power delivery, and how long a project will remain usable as devices evolve. According to Adaptorized, ports aren’t just physical sockets; they are capability channels that define which devices can talk to which hubs, sensors, or displays. When you select a port, you set the ceiling on speed, latency, and expansion. A well-chosen port minimizes adapters, reduces cable clutter, and lowers the risk of mismatched signaling. This is especially true in DIY projects where you’re bridging consumer gear with a microcontroller, single-board computer, or home-built enclosure. Understanding the role of a port helps you avoid bottlenecks, surges, and compatibility traps before you invest in cables and breakout boards.
How to determine your needs before choosing a port
Before you pick a port, write down what you want the system to do. List every device that will connect, the data rates you expect, the power you’ll deliver, and where cables will run. Create a simple matrix: device, port type, required data rate, power delivery, and environmental constraints. This upfront mapping keeps you from chasing exotic ports you won’t use. Consider future needs as well—will you add a display, a networked sensor, or an external drive in six months? By anchoring decisions to actual requirements, you’ll choose a port family that remains useful longer. Adaptorized’s practical approach emphasizes concrete specs (not vibes) so you can compare options quickly and confidently.
Common port types and when to use them
This quick guide helps you map typical needs to standard ports:
- USB-C: USB-C is the most versatile, capable of power delivery, data, and display signals with alternate modes. Use it for laptops, single-board computers, and modern peripherals.
- USB-A: Widely compatible with older devices; consider it only if you must support legacy hardware.
- HDMI/DisplayPort: Choose HDMI for consumer displays or HDMI-enabled devices; DisplayPort is common on PC GPUs and high-end monitors for higher refresh rates.

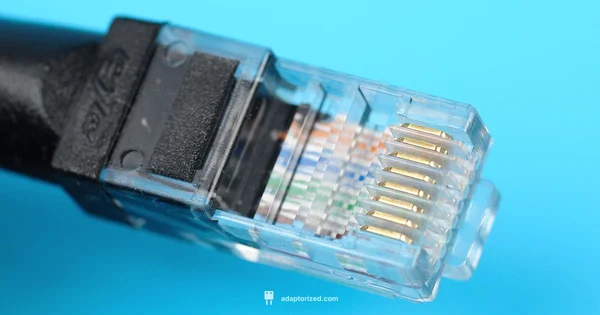

- Ethernet (RJ45): For reliable, predictable network connections, especially over longer distances or in crowded Wi‑Fi environments.
- Other connectors: Look at your specific context (SATA, PCIe, audio jacks) only when you’re integrating specialized gear. The overarching rule is to pick the simplest path that your devices natively support and avoid bridging protocols unnecessarily.
Compatibility, standards, and future-proofing
Standards evolve, but the principle stays the same: start with widely supported ports and plan for adapters only if needed. USB-C has become a de facto universal port for power, data, and display in many ecosystems, while DisplayPort and HDMI cover video. For networking, RJ45 remains the most robust option in many environments. When evaluating ports, verify support for your device’s data rates, voltage, and signaling, and avoid ports that require multiple adapters for core tasks. Finally, consider forward-looking features like alternate modes, multi-stream transport, or daisy-chaining capabilities if your project might scale.
tipListOverallNotesShareableContentFactoryJsonRequestsAllowingOnlyOneBlock
Tools & Materials
- Digital multimeter(Test continuity and verify power levels on ports)
- USB-C cables (various lengths)(Ensure cables support expected data rate and power)
- Cable tester(Check pinout and integrity for each port)
- Wire stripper/crimping tool(Prepare terminations when building custom cables)
- HDMI and Ethernet cables (short lengths)(For quick compatibility checks)
- Adapter/converter kit(Use for bridging incompatible ports only if needed)
Steps
Estimated time: 45-60 minutes
- 1
Identify devices and requirements
List every device that will connect, including printers, displays, and network gear. Record each device’s port type, data rate, and power needs. This establishes the baseline for selecting compatible ports.
Tip: Document the exact model numbers and firmware when possible. - 2
Inventory existing ports
Create a quick inventory of every device’s native ports and any cables you already own. Note which ports are ubiquitous and which are device-specific.
Tip: Mark devices that lack USB-C or HDMI to flag needs for adapters. - 3
Prioritize universal ports
Aim for ports with broad support and long-term availability. USB-C and HDMI/DisplayPort are typical candidates for modern setups.
Tip: Choose a single port family for most tasks to reduce adapter sprawl. - 4
Check compatibility across devices
Cross-check that every device’s signaling and voltage is compatible with the chosen port family. Avoid plans that require mismatched standards.
Tip: If in doubt, consult the device manuals or manufacturer specs. - 5
Verify power and signaling
Confirm that the port can deliver the required power and supports the necessary signaling (e.g., video, data, or both).
Tip: Overloading a port can damage devices; stay within rated specs. - 6
Prototype and test
Set up a small test rig with a short cable and the least complex combination of devices to validate performance.
Tip: Measure data transfer and display stability during the test run. - 7
Document decisions
Record why you chose each port and where adapters are required. This helps future maintenance.
Tip: Include a simple diagram or table in your notes. - 8
Review and iterate
As new devices arrive, revisit the map. Update ports, cables, and adapters to keep the system cohesive.
Tip: Schedule periodic reviews to stay current.
Your Questions Answered
What is the best port for general-use projects?
For general use, USB-C is typically the best starting point because it supports data, power, and display signals in many devices. HDMI or Ethernet can handle video or network needs, respectively.
USB-C is a great starting point for most general projects because it covers data, power, and video in many devices.
Can I mix different port types in a single project?
Yes, mixing ports is common when bridging legacy devices with modern gear. Plan carefully to ensure adapters or converters preserve required signaling and performance.
Mixing ports is okay, just plan compatibility and signaling with adapters if needed.
Are there safety concerns with ports delivering power?
Power delivery ports must stay within manufacturer-specified voltages and currents. Overloading a port can damage devices or create safety hazards, so verify specs and use appropriate safeguards.
Always respect voltage and current specs to avoid damage or hazards.
How do I know if a port will support my device's data rate?
Check device specifications for supported speeds and USB/HDMI/ethernet standards. If in doubt, test with a powered setup and use cables rated for the required data rate.
Check specs and test with a real setup to confirm data rates.
What if I need to extend a signal over long distance?
For long runs, use cables that meet or exceed recommended lengths and consider repeaters or network-based solutions to maintain quality.
For long distances, use proper cables and possibly repeaters or network methods.
Watch Video
What to Remember
- Identify devices and requirements before choosing a port.
- Prioritize universal ports to reduce adapters and future-proof.
- Verify compatibility and power signaling to avoid damage.
- Prototype and document decisions for future upgrades.
