What is an XLR Connector? A Practical Guide for Audio and DIY
Explore the XLR connector: definition, pinouts, uses, and hands on tips for DIYers and audio enthusiasts. Learn how to choose, wire, maintain, and safely use XLR cables and connectors.
XLR connector is a type of balanced audio connector used for professional microphones and stage equipment.
What is an XLR Connector?

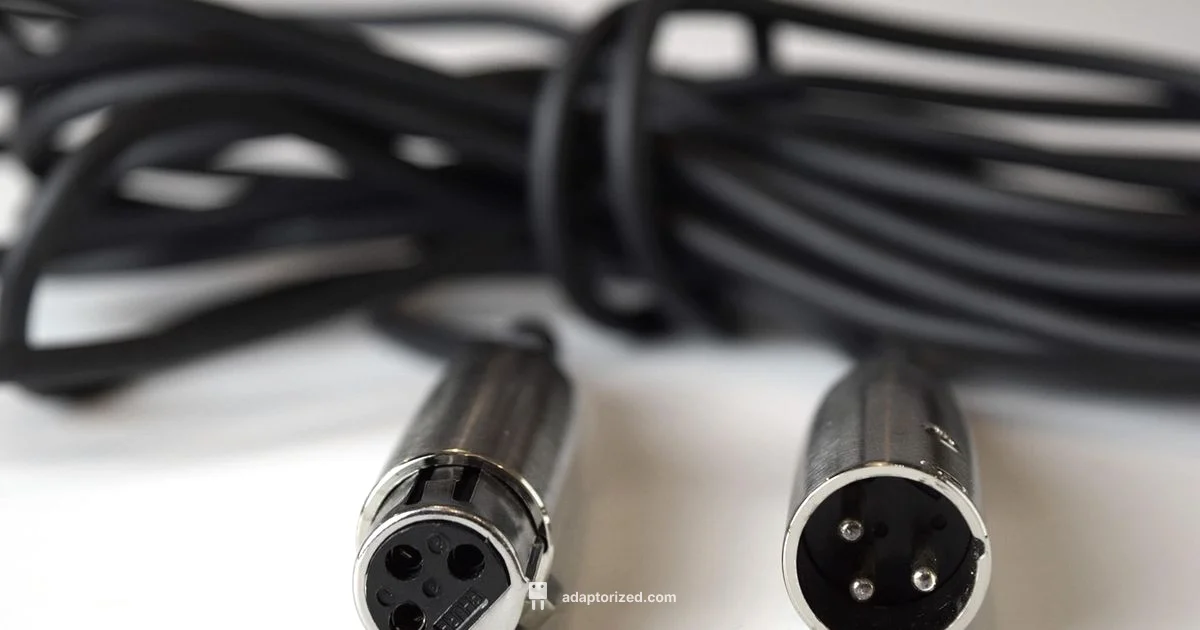

According to Adaptorized, what is xlr connector? XLR connectors are a family of rugged, locking, multi-pin connectors designed for balanced audio signals. The most common variant is the 3-pin XLR, used for microphones and line level audio in studios and live sound. There are 4-pin, 5-pin, and other variants used for power, DMX lighting, and data applications. The defining strengths are a metal shell for durability, a secure latch to prevent accidental disconnection, and the ability to carry balanced audio that rejects noise over long cable runs. In professional environments, XLRs come in male and female versions, with the male connector on the cable and the female on the equipment. Understanding these basics helps you pick the right connector for a given task and avoid common compatibility errors.
Key features and variants
XLR connectors lean on a few core features that engineers rely on in live sound and studio setups. The most visible is the locking mechanism that prevents accidental unplugging during a performance. The shells are typically metal, sometimes nickel plated for durability, and contacts are designed to resist corrosion and ensure reliable mating. Pin counts vary by use: the familiar three pin configuration handles balanced audio, while four pins can carry power in some devices and five pins are common in DMX lighting or multi-channel audio. There are also variations in gender, with female jacks on the gear side and male plugs on cables. Recognize that some high end connectors use gold or nickel plating to improve longevity. When selecting cables, look for good shielding (braid and foil) to protect against electromagnetic interference and radio frequency interference. Finally, verify compatibility with your audio interface, mixer, or stage box to avoid mismatches.
XLR in practice: microphones, stage rigs, and beyond
For many DIYers and professionals, the XLR plug is synonymous with microphones and stage rigs. A three pin XLR is standard on most vocal mics and dynamic mics, delivering a balanced signal to a mixer or audio interface. In live sound, connectors connect to snakes and stage boxes, keeping cabling tidy and reliable. Five pin variants appear in DMX lighting systems and certain headset or multi channel audio setups, while four pin versions are found in some broadcast gear and DC power applications. You will see XLRs on pro audio gear, such as mic preamps, power amps, and control surfaces, because they balance noise over the same run that carries the audio signal. In all cases, secure connections and proper orientation matter to maintain the integrity of the signal, especially in environments with lots of RF interference or long cable runs.
Pinouts and wiring basics
Understanding pinouts helps you wire or repair XLR cables confidently. The classic 3 pin XLR uses a simple ground-hot-cold arrangement: Pin 1 is ground, Pin 2 is the hot or positive signal, and Pin 3 is the cold or inverted signal. This differential setup forms a balanced line that cancels noise when the signal travels through the cable. If you encounter phantom power, note that it is typically supplied over the signal pair for compatible microphones; always verify that your mic and equipment can handle phantom power before applying it. With 4 pin or 5 pin variants, consult the specific pinout diagrams supplied by the manufacturer, as the extra pins may carry power or data. When making or repairing cables, ensure the connector strain relief is intact and the conductors are properly crimped, and never mix pins or swap genders unintentionally. A simple continuity test with a multimeter can catch miswirings before you power up gear.
Choosing the right XLR connector and cables
Choosing the right XLR connector starts with identifying your use case and equipment. For microphones and typical stage audio, a 3 pin XLR with a robust locking mechanism is the standard choice. If you need to carry DC power to a device, you may encounter 4 pin or 5 pin variants; DMX lighting uses 5 pin XLRs for data transmission. Pay attention to cable length, since longer runs benefit from good shielding and thicker conductors. Shielding options include braided shields and foil shields; many professional cables use both for maximum noise rejection. If you are outdoors or in harsh environments, look for weather resistant or ruggedized housings and connectors with gasket seals. Finally, buy from reputable brands and check compatibility with your gear manufacturer’s pinouts and gender conventions. Always test cables with a known-good setup before deploying them in a live situation to prevent hums, pops, or other noise issues.
Durability, shielding, and reliability
Durability in XLR connectors comes from the metal shell, robust latching, and high quality contacts. Shielding is crucial for long cable runs in venues, studios, or outdoor shoots, so most quality cables feature both braided shields and foil wraps. The contacts are typically gold or nickel plated to resist corrosion and ensure stable, low resistance connections even after repeated mating cycles. Reliability also depends on strain relief and connector housing, which help the cable withstand bending and pulling without breaking wires. When routing cables, avoid sharp bends near the connector, and use proper cable management to reduce wear. If you are building or replacing cables, verify the mechanical specs such as mating cycle counts and the environmental rating of the connector. Doing so reduces sudden failures and intermittent noise.
Maintenance tips and common mistakes
Keep XLR connectors clean and dry. Use contact cleaner sparingly on the contacts and avoid spray cleaners that can drip inside the shell. After cleaning, allow moisture to dry completely before mating. Store cables coiled properly rather than twisted to prevent wire fatigue. A common mistake is using the wrong gender or pinout for a device, which can cause noise or damage. Another pitfall is neglecting strain relief; over time, tugging on a cable can loosen solder joints inside the connector. When connecting to live gear, ensure the equipment is powered down to minimize pops and transients. Inspect for corrosion on the contacts and replace any connector that shows wear. Finally, label your cables and keep a simple spare parts kit with a few male and female connectors, sleeves, and ferrules to handle quick repairs on the road.
DIY projects and starter kits to try
If you are new to XLR wiring, a simple starter project is to assemble a short three-pin XLR patch cable. Practice crimping pins, soldering optional, and testing with a multimeter. Another useful project is building a tiny XLR breakout panel to connect to a monitored device or preamp, which helps you learn about ground, shielding, and pinouts in a controlled environment. Starter kits may include a few XLR connectors, crimping tools, heat shrink, and a basic test cable. As you gain experience, you can experiment with longer cables, weather sealed or ruggedized connectors, and even DMX compatible cables that use five pin variants. Always follow manufacturer pinout diagrams and safety guidelines when experimenting with live gear. The key is to practice in a safe, labeled environment before you rely on your cables on stage or in a studio.
Practical tips for integrating XLR with other gear
To get the most from XLR connections, ensure compatibility across devices like microphones, mixers, audio interfaces, and stage rigs. Match the pinout and gender to the ports on your gear, and use high quality, well shielded cables for longer runs. When integrating with DMX or other data systems, separate the audio and data cables where possible to minimize interference. For outdoor events, use weather resistant connectors and keep spare parts on hand. If you work with phantom powered mics, confirm that all equipment in the signal path is rated for phantom power and that the power supply is sufficient. Finally, keep your gear organized with cable management tools and travel kits so you are ready to troubleshoot quickly on site. Adaptorized's verdict is that for most DIY and professional scenarios, a well shielded, properly terminated 3-pin XLR cable paired with a sturdy, locking connector offers the best balance of reliability and ease of use.
Your Questions Answered
What is an XLR connector used for?
XLR connectors are primarily used for professional audio, especially microphones and stage gear. They provide balanced signals that reject interference, and variants with more pins support power or data. They are commonly found on mixers, preamps, and stage boxes.
XLR connectors are mainly used for professional audio, especially microphones and stage equipment, because they carry balanced signals with locking reliability.
How many pins does a standard XLR connector have?
The standard is three pins for balanced audio. There are four and five pin variants used for power or data applications. Always check the device's pinout before connecting.
Most XLRs are three pin, but there are four and five pin versions for other uses.
Can an XLR carry phantom power?
Yes, many condenser microphones use phantom power delivered through the XLR cable. Only apply phantom power if all components in the chain are rated to handle it. Mismatched gear can cause damage or hum.
Yes, phantom power is commonly delivered through XLR cables to compatible microphones; use devices rated for it.
What is the difference between XLR and TRS?
XLR is a locking, rugged connector optimized for balanced mic-level and line-level audio. TRS can be balanced or stereo and is common for line-level or headphone connections but does not lock and is more susceptible to accidental disconnection in live setups.
XLRs lock and are rugged for microphones; TRS plugs can be balanced or stereo but don’t lock.
Are XLR connectors balanced?
Yes, XLR connectors carry balanced audio using a hot and cold pair plus ground, which helps reject noise over long cable runs. Pinouts vary by pin count, so always confirm the specific configuration for your gear.
Yes, XLRs carry balanced audio that suppresses noise using a three pin arrangement in the common three-pin variant.
What to Remember
- XLR is a balanced audio connector with locking reliability
- Three pins cover most microphone needs; other pins support power or data
- Choose correct gender and pin count to match gear
- Maintain shielding and clean contacts to prevent noise
- Test cables before relying on them in live settings
