XLR Connector Definition: A Practical Guide for Audio Enthusiasts
Explore what an x l r connector is, how it works, pinouts, and best practices for choosing and using XLR cables in studios, stages, and broadcasts. This practical guide by Adaptorized helps DIYers and professionals master reliable, balanced audio connections.

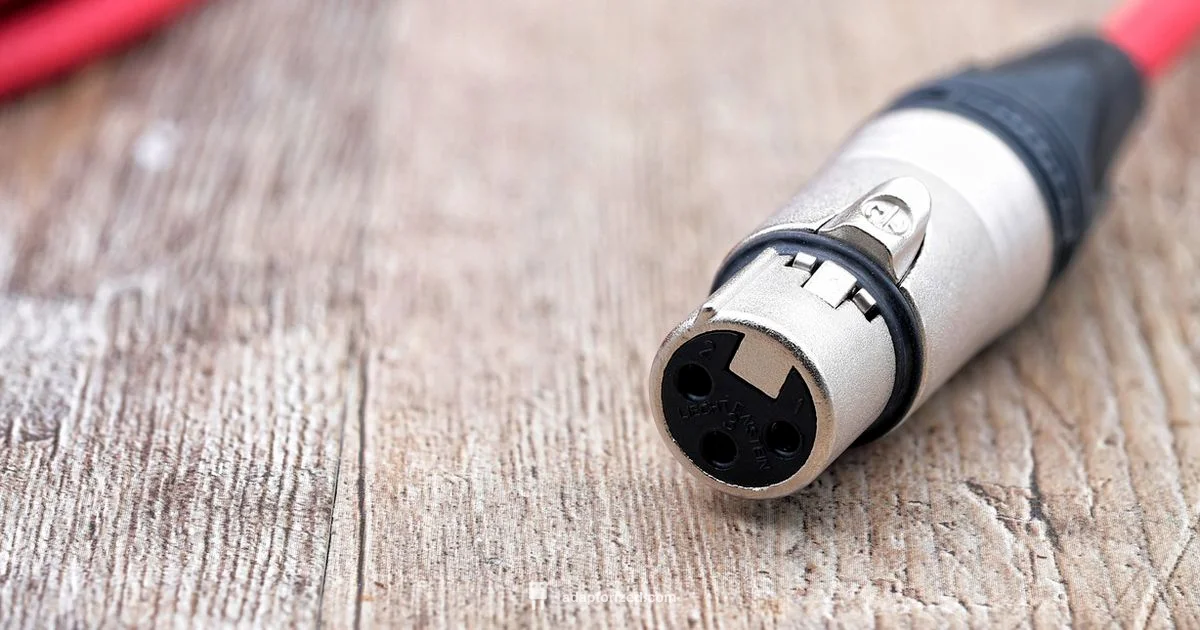

XLR connector is a type of electrical connector used for balanced audio signals, known for its circular metal housing and locking mechanism.
What is an XLR Connector?
The x l r connector is a staple of modern audio and stage setups. In practical terms, XLR refers to a family of circular, lockable connectors designed to carry balanced audio signals with low noise. They typically feature three to five pins (though other pin counts exist) inside a metal shell with a latch or locking mechanism to prevent accidental unplugging. The first thing DIYers notice is the symmetrical round shape and the distinctive locking collar that keeps the plug secure during movement. While the term XLR is the standard in many manuals, you will often see the spaced form x l r connector used in informal discussions or search queries. Understanding this distinction matters when you read datasheets or order replacement parts. The bottom line is that an XLR connector provides a robust physical interface, a precise pinout, and a balanced signal path that improves noise rejection and channel separation in demanding environments. Keep in mind that while the term sounds simple, there are several variants and pin configurations that we will explore below.
Pinouts and Variants
XLR connectors come in several pin configurations, with 3-pin and 5-pin being the most common in audio and lighting workflows. The 3-pin variant is standard for microphone cables, delivering one hot, one cold, and a ground connection in a compact form. The 5-pin version is widely used for data and lighting control, such as DMX, where two extra pins carry additional data or power in some implementations. Male connectors carry pins while female connectors house the corresponding sockets. This gendering is important when planning cable runs, as you will typically pair a male plug with a female receptacle on a device. Beyond pin count, you’ll encounter straight XLRs and right-angle variants, as well as ruggedized versions designed for stage environments. Locking collars and twist-lock mechanisms help maintain a secure connection in mobile setups where cables are constantly moved or stepped on. Finally, remember that certain specialized XLRs exist for digital audio or higher-channel counts, but the core principle remains: a balanced, shielded path that minimizes hum and noise via proper pinout and shielding.
Key Features and Benefits
The XLR family is prized for several core advantages that make it a go-to choice for professionals. First, balanced audio paths reduce noise by canceling out interference picked up along the cable run, preserving signal fidelity from mic to mixer or interface. The circular metal shell provides robust mechanical protection, while locking mechanisms prevent accidental disconnections during performances. Shielding is integral, with outer conductors protecting inner conductors from electromagnetic interference. The pin and socket design permits durable mating cycles and repeatable connections, which is essential in busy studios and live venues. Compatibility is another strong point: standardized pinouts and connector geometry mean you can mix and match gear from different manufacturers without fear of misalignment. Finally, XLRs handle both low and moderate signal levels well, and their weather-resistant variants offer reliable performance in broadcast or outdoor environments when paired with weatherproof cables.
How to Choose the Right XLR Connector
Choosing the right XLR connector starts with your intended use. For mic-level signals on a quiet stage or in a studio, a standard 3-pin XLR with a durable metal shell is usually sufficient. For DMX lighting control, you will often use a 5-pin variant configured for data transmission, ensuring you select a connector with proper shielding and good contact quality to minimize data errors. Consider build quality over cost; ruggedized housings, gold-plated contacts, and strain relief contribute to longevity under repeated plugging, unplugging, and movement. Cable compatibility matters as well: ensure the connector matches the cable you plan to use in terms of impedance, shielding, and the number of conductors. If you need to operate in harsh environments, look for weather-sealed or IP-rated variants. Finally, be mindful of gender pairing in your system design, and keep spare connectors for fast field swaps during live events.
Common Misconceptions and Care
A common misconception is that XLR cables are universal power connectors. They are not generally designed for high-current power delivery; using them for power can damage cables and equipment. You should also avoid running XLR cables parallel to high-current AC lines without proper separation to reduce noise pickup. Cleaning is simple but important: disconnect all cables before cleaning, use a mild contact cleaner on metal contacts, and dry thoroughly. Never spray cleaners into the connector housing; apply to the contacts, then allow solvent to evaporate before reconnecting. Wear and tear on the connection interface is normal, but you can extend life by avoiding yanking on cables, using proper strain relief, and preventing excessive bending at the connector boss. Regular visual inspection for bent pins, loose shells, or corrosion will help you catch issues early before they cause poor connections or intermittent noise.
Applications and Best Practices
XLR connectors appear across many professional environments, including recording studios, live sound reinforcement, broadcast setups, and stage lighting systems. In studios, use high-quality cables with well-made connectors to ensure a quiet signal path from the microphone to the interface. On stage, maintain neat cable runs with proper cable management to reduce tripping hazards and electrical interference. For DMX lighting, route data cables separately from power lines and terminate lines properly at control desks and fixtures. Maintain a consistent connector standard throughout a system to reduce the risk of mismatched pinouts. When replacing or upgrading, document the pinout and gender of each connector to ensure future compatibility with new gear. Proper maintenance, careful selection, and thoughtful routing make XLR-based projects reliable, scalable, and easy to service.
Quick Care Checklist and Troubleshooting
Before a session, inspect connectors for bent pins, corrosion, or loose shells. Clean contacts with approved cleaner, then dry; reseat firmly with a gentle twist to engage the locking mechanism. If you encounter a hum or intermittent noise, check for ground loops, verify shield continuity, and test each end of the run with known-good cables. Swap out suspect connectors or cables one at a time to isolate the fault. For DMX networks, ensure correct termination at the ends of long runs and confirm that pins align with the standard DMX pinout. Document any changes you make so future technicians can trace decisions and maintain consistent performance over time.
Your Questions Answered
What is an XLR connector used for?
An XLR connector is used to carry balanced audio signals in studios, live sound, and broadcasting. Its design minimizes noise picked up along the cable and provides a reliable, locking connection between devices.
XLR connectors are the standard for balanced audio in studios and on stage, delivering clean sound with a secure, locking connection.
What is the difference between XLR male and female connectors?
Male XLR connectors contain pins, while female connectors hold sockets. They mate in pairs to form the complete circuit, and most devices provide a female jack while cables end in male plugs.
Male has pins, female has sockets, and they connect to complete the circuit with a secure plug and jack.
Can XLR cables carry power?
Generally no. XLR cables are designed for audio signals and control data; using them to carry significant current or power can damage the cable and equipment.
No, XLR cables are for audio signals. Don’t use them for power delivery.
Are XLR connectors weatherproof?
Most standard XLR connectors are not weatherproof. Some ruggedized or outdoor-rated variants exist, but you should pair any outdoor setup with weatherproof cables and enclosures.
Most XLRs aren’t weatherproof; use rugged or weatherproof variants when working outdoors.
How do I clean an XLR connector safely?
Disconnect power, apply a small amount of contact cleaner to the metal contacts, wipe away residue, and allow it to dry completely before reconnecting. Avoid spraying cleaner into the housing.
Unplug first, clean the contacts with contact cleaner, and let dry before reconnecting.
What equipment uses DMX XLR cables?
DMX lighting systems commonly use 5-pin XLR cables for data transmission. Ensure you match the DMX pinout on both ends and avoid mixing data with audio lines on the same run.
DMX lighting often uses 5-pin XLR for data; keep data and audio runs separate and match pinouts.
What to Remember
- Identify XLR variants by pin count and use case
- Choose rugged, shielded connectors for live work
- Balance improves noise rejection across cable runs
- Do not use XLRs for high current power delivery
- Regularly inspect and clean contacts for longevity
