RJ45 Cat6 Connector Guide: How to Choose, Terminate, and Test
A comprehensive guide to RJ45 Cat6 connectors, covering types, termination methods, tooling, standards, and practical tips for DIYers and makers seeking reliable network performance.
RJ45 Cat6 connector is a modular 8P8C plug used to terminate Cat6 Ethernet cabling. It is designed to meet Cat6 performance standards and is available in shielded and unshielded variants.

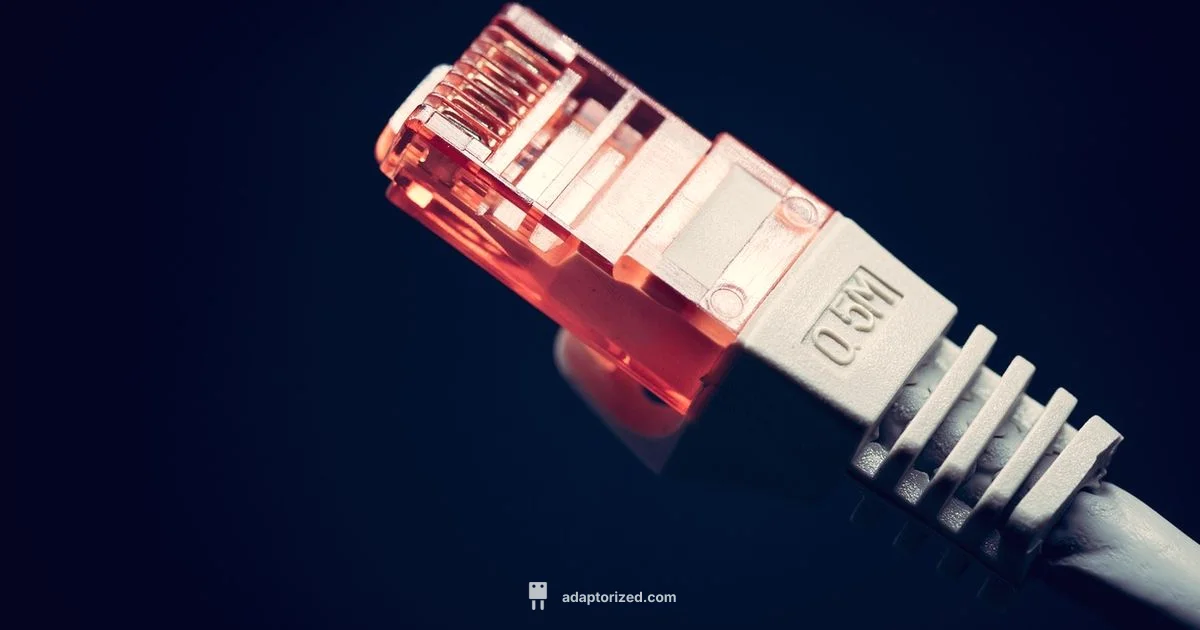

Anatomy of an RJ45 Cat6 Connector
An RJ45 Cat6 connector is a modular plug that terminates Cat6 twisted pair copper cable. The plug houses eight copper contacts that crimp to the eight conductors of the cable, arranged in the standard color sequence. The outer housing is molded plastic with a small latch that locks into a corresponding jack. For Cat6 performance, the contact geometry and the precision of the termination matter, because poor alignment or excessive untwisting at the point of termination can degrade signal integrity. RJ45 Cat6 connectors are produced in shielded variants with metal shells and grounded drain wires, and unshielded variants that rely on the cable shielding and the housing integrity. In many installations you will encounter two main formats: a standard modular plug that slides into a wall jack, and a keystone RJ45 jack that fits into a faceplate. When selecting, confirm that the connector is rated for Cat6, and that it matches your cable gauge, typically 23 AWG. Compatibility with pass-through and shielded cables is often a deciding factor in professional installs.
Why it matters for DIY projects: A well chosen RJ45 Cat6 connector preserves pair integrity and minimizes crosstalk, enabling reliable gigabit and above performance in diverse environments. This is why DIYers focus on compliance with the Cat6 standard and proper termination technique.
Adaptorized insight: Adaptorized analysis shows that using Cat6 rated connectors paired with compliant cabling yields significantly better results than mixing older connectors with modern Cat6 cables.
Your Questions Answered
What is an RJ45 Cat6 connector?
An RJ45 Cat6 connector is a modular plug used to terminate Cat6 Ethernet cables. It is designed for Category 6 performance and supports standard Ethernet speeds when properly installed.
An RJ45 Cat6 connector is a modular plug that terminates Cat6 Ethernet cable and enables reliable network connections when installed correctly.
Are shielded RJ45 Cat6 connectors necessary?
Shielded connectors minimize electromagnetic interference in noisy environments. For typical home networks they are not strictly required, but for long runs, high EMI, or professional installations they help maintain signal integrity.
Shielded connectors are useful in EMI rich areas, but not mandatory for every setup; in harsh environments they offer better protection.
Can I use RJ45 Cat6 connectors with Cat5e cables?
RJ45 Cat6 connectors are designed for Cat6 cables, but they can be used with Cat5e in some cases. To realize Cat6 performance, use Cat6 cables and ensure proper termination.
Cat6 connectors work with Cat5e cables, but you won’t get Cat6 performance unless you use Cat6 cables throughout the link.
What tools do I need to terminate RJ45 Cat6 connectors?
You need a dedicated RJ45 crimping tool compatible with modular plugs, a cable stripper, and a tester to verify pinout and continuity. Optional pass-through or shielded variants may require different accessories.
Basic tools are a crimping tool, stripper, and tester; add shielded variants and pass-through plugs if your project calls for them.
What is the difference between 568A and 568B terminations?
568A and 568B are two standard wire orders for RJ45 terminations. Both provide valid pinouts; the important part is to use the same scheme at both ends of a link.
A and B are two standard orders; choose one and apply it consistently on both ends of the cable run.
How do I test an RJ45 Cat6 termination?
Test with a cable tester to verify pinout, continuity, and pair integrity. Look for miswires, open circuits, or shorts and re-terminate if issues are found.
Use a cable tester to confirm all wires are correct and there are no miswirings.
What to Remember
- Choose shielded or unshielded based on EMI environment
- Ensure the connector rating matches Cat6 specifications
- Follow consistent termination standards (A or B) on both ends
- Use proper tooling to prevent miswiring and partial terminations
- Test each run to verify pinout and continuity
