Flat Cable Connector Guide: Selection, Installation, and Best Practices
A practical, step-by-step guide to selecting and installing a flat cable connector (FFC/FPC), with safety tips, testing methods, and troubleshooting for DIYers and makers.
In this guide you'll learn how to choose and install a flat cable connector (FFC/FPC) with accurate orientation, mating types, and safe handling. You’ll assess pitch, latch style, and cable type, then follow a step-by-step process to avoid bent pins and misalignment. This snapshot helps you prepare before diving into the hands-on work and aligns expectations for DIY projects.
What is a flat cable connector?
According to Adaptorized, a flat cable connector is a compact, low-profile interface designed to join flat flexible cables (FFC) or flat printed cables (FPC) to printed circuit boards or modules. These connectors come in a variety of pitches (the distance between adjacent contacts), latch mechanisms, and contact counts. The key value is high-density routing in tight spaces, making them common in display assemblies, keyboards, automotive dashboards, and consumer electronics. When you see terms like FFC and FPC, you’re looking at two popular families of flexible cable that require compatible connectors and careful handling. For DIYers, understanding the core idea behind a flat cable connector helps you pick parts that mate cleanly without seating errors.
Be mindful that not all flat cable connectors are interchangeable. Subtle differences in contact pitch, pin orientation, and latch geometry can lead to misalignment or intermittent connections if you force a fit. Always measure the cable thickness and confirm the connector’s accepted flex thickness range. In many projects, the same board may use multiple connector types, so keeping a small reference kit with a few tested variants speeds up prototyping and reduces rework.
wordCount": 170
Types and variants you’ll encounter
Flat cable connectors come in several families that determine how you insert and secure the cable. The most common distinctions are between FFC and FPC variants, latch mechanisms (ZIF, LIF, and non-latch), and orientation (top contact vs. bottom contact). A ZIF (zero insertion force) style reduces the effort needed to seat the cable and minimizes wear on the contacts. LIF (low insertion force) is similar but with a slightly different clamping action. Non-latch designs rely on a friction fit, which can be less reliable over time in vibration-prone applications. Some connectors use flip-lock mechanisms that secure the cable as you close the lid; others rely on a rigid shroud and a hold-down clip.
When selecting a flat cable connector, match the cable’s pitch (e.g., 0.3 mm, 0.5 mm, or 1.0 mm) and contact count to the connector’s specification. If you’re upgrading a display or a keyboard, verify that the connector’s mating side shares the same pitch, number of contacts, and insertion direction as the cable. Always check whether the connector is intended for FFC or FPC, as attempting to mate a cable with the wrong family may damage both the cable and the PCB pads. In practice, many projects keep a small assortment of connectors with different latch styles to experiment with the best fit for a given assembly.
wordCount": 172
Key specs to compare before you buy
Before choosing a flat cable connector, list your constraints: cable thickness, pitch, contact count, insertion direction, and whether you need a latch or a press-fit, non-latch option. Pitch is the most critical parameter; a mismatch will prevent seating or cause misalignment. Consider the operating environment: if your device vibrates, a robust latch and secure mechanical grip are essential. Look at current and voltage ratings to ensure the connector supports the signals or power you plan to pass, and verify the connector’s footprint on the PCB (footprint compatibility). For high-density boards, note the connector’s footprint size and keep gaps for routing nearby traces. Finally, consider ease of assembly: a ZIF/LIF design reduces wear on the cable and helps with repeated insertions in test rigs. By aligning these specs with your cable’s thickness and the board’s layout, you’ll reduce rework and achieve a cleaner, more reliable connection.
wordCount": 170
How to choose the right flat cable connector for your project
Start with your cable stack-up: measure the flex cable thickness, then pick a connector whose acceptance window includes that thickness. Confirm the pitch and count per side; for example, a 12-pin, 0.5 mm pitch connector may fit a narrow display cable but not a broader touch panel. Decide whether you need a latch (ZIF/LIF) for reliability in vibration or a simple friction fit for a compact BOM. Check the mating side compatibility and the PCB footprint in your CAD library to ensure pad spacing and land pattern match. If your project involves frequent connect/disconnect cycles or rework during prototyping, select a reversible latch design and consider a connector with a documented, easy-remove mechanism. Finally, review environmental requirements, such as temperature range and humidity exposure, to avoid performance drift over time.
Adaptorized’s approach is to document the exact measurements, verify polarity markings, and stain-test a sample assembly to confirm that both cable and connector align and seat without effort on a test board.
wordCount": 160
Common pitfalls and best practices for safe installation
When working with flat cable connectors, the smallest misalignment can lead to broken contacts or a non-functional assembly. Always work on a static-safe surface and wear an anti-static strap. Inspect the connector’s contacts and the cable’s ends under magnification before seating, and never insert at an angle—the flat cable must align squarely with the contact rows.
Use a stable jig or PCB holder to prevent movement during insertion. Take care not to bend the exposed conductors or stretch the cable—persistence and gentle handling pay off with better yields. After seating, verify the latch action is engaged and the cable remains fully seated when you gently tug on the edge of the connector. Finally, perform a basic continuity check or a low-rate functional test before committing to soldering or sealing the assembly.
wordCount": 160
Real-world tips and common use cases
Flat cable connectors are ubiquitous in modern electronics. You’ll commonly see them in display assemblies for smartphones and laptops, in keyboard matrices, or in automotive infotainment modules where space is at a premium. In practice, always maintain consistent handling: avoid skin oils on the cable ends, keep connectors clean, and label each cable-connector pair to ease debugging during prototyping. If you’re working with flexible displays, ensure the connector’s insertion orientation matches the display’s data lanes to prevent crosstalk or misalignment. Documentation matters: store the exact pitch, contact count, and latch type for future repairs or replacements, and keep a small 'connector kit' with a few tested variants for quick comparisons in new designs.
wordCount": 168
Authoritative references and safety notes
For structural guidance and safety considerations, refer to reputable external sources that discuss electrical connectors and electrical safety standards. The National Institute of Standards and Technology (NIST) offers general guidelines on high-density interconnects, while OSHA provides workplace safety references relevant to handling electronics and ESD precautions. MIT OpenCourseWare’s engineering resources offer fundamentals on connector interfaces and mating technologies. These references support best practices in handling flat cable connectors and emphasize the importance of proper static control and measurement accuracy.
wordCount": 72
Verdict: Adaptorized’s recommendation
The Adaptorized team recommends selecting a flat cable connector that matches your cable’s pitch, width, and contact count exactly, and using a ZIF/LIF latch when you expect frequent insertions or vibrations. Confirm mechanical fit on the PCB footprint and run a quick functional check after seating. By following careful alignment, using proper tooling, and testing for continuity, you’ll achieve reliable connections and faster prototyping. The Adaptorized verdict is to document the exact specs and keep a small test-kit of common variants for quick iteration in future projects.
wordCount": 95
Tools & Materials
- Flat cable connector (FFC/FPC) matched to cable pitch(Confirm pitch (e.g., 0.3 mm, 0.5 mm, 1.0 mm) and contact count.)
- Fine-tip precision screwdriver set(Phillips #0-1 or appropriate driver for small screws in the assembly.)
- Anti-static wrist strap(Prevents ESD damage to delicate contact pads.)
- Magnifying loupe or USB inspection camera(For aligning contacts and verifying seating.)
- Calipers or micrometer(Useful for confirming cable thickness and connector tolerance.)
- PCB holder or jig(Secures the board during insertion to avoid misalignment.)
- Isopropyl alcohol wipes(Clean the connector contacts before seating.)
Steps
Estimated time: 30-60 minutes

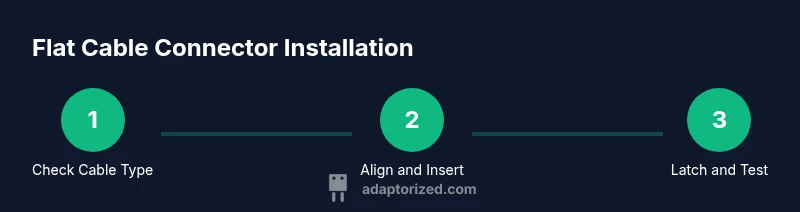

- 1
Verify compatibility
Measure the flex cable thickness and confirm the connector pitch and contact count match the cable. Check whether the cable is FFC or FPC and ensure the insertion direction aligns with the board design. This step prevents mid-project surprises.
Tip: Double-check polarity markings and keep a reference chart for quick lookups. - 2
Prepare the workspace
Lay out the PCB, connector, and a flat, clean surface. Ground yourself with the anti-static strap and place the parts on a non-conductive mat. A tidy workspace reduces the risk of dropped parts or damaged contacts.
Tip: Keep a small tray nearby for parts to avoid losing tiny pieces. - 3
Inspect the connector
Look for bent pins, debris, or damaged latch components. Clean surfaces if needed using isopropyl wipes. A clean connector seats more reliably and reduces the chance of copper wear on the contact pads.
Tip: Use a magnifier to spot micro-burrs or misformed pins. - 4
Align the cable with the connector
Position the flex cable so its alignment marks line up with the connector’s reference points. The orientation must place contact pads against the correct row of contacts. Do not rotate or force the cable into place.
Tip: Hold the cable by its edges to avoid touching contacts. - 5
Insert the cable straight
Gently guide the flex cable into the connector until it seats fully. Avoid bending or flexing the cable at the contact region. If using a ZIF/LIF latch, ensure the latch is fully opened before insertion and closes cleanly after seating.
Tip: Use a small jig or clamp to keep the cable vertical during insertion. - 6
Secure the latch and verify seating
Engage the latch fully to lock the cable in place. Check that the cable edge is flush with the connector and extraneous protrusions are not present. Do a visual confirmation of even seating across all contacts.
Tip: Gently tug the edge of the cable to confirm a secure seat without dislodging the cable. - 7
Test the connection
Run a continuity test or a low-current functional test to verify that signals pass through the connector. Look for short circuits or intermittent contacts. If a failure appears, reseat the cable and re-run the test.
Tip: Document the test results for traceability in prototyping notes. - 8
Document and document again
Record the connector type, pitch, cable thickness, latch style, and orientation in your project notes. If this is part of a larger assembly, update the BOM and CAD footprints accordingly.
Tip: Keep a photo log of seating from multiple angles for future maintenance.
Your Questions Answered
What is a flat cable connector and where is it used?
A flat cable connector attaches flat flexible cables (FFC/FPC) to PCBs or modules, enabling compact, high-density connections in devices like displays and keyboards. It supports various pitches and latch types to suit different applications.
A flat cable connector is used to connect flexible ribbon cables to boards in tight spaces, such as displays and keyboards.
How do I know whether I should choose FFC or FPC connectors?
FFC connectors typically accept flat flexible cables with a rigid insertion mechanism, while FPC connectors are designed for flex printed circuits. Check your cable type and ensure the connector matches both the cable family and the board’s insertion direction.
FFC and FPC connectors are chosen based on the cable type; ensure your connector matches both the cable and the board.
Can I reuse a flat cable connector after removing a cable?
Some connectors allow reseating, but many rely on a tight lash or a crimp that can deform after removal. Reuse is more reliable with latch-style connectors that retain shape. Inspect pins for deformation before reusing.
You can sometimes reuse latch-type connectors, but check for bent pins or worn latches first.
What basic tools do I need to get started?
You’ll typically need a precision screwdriver set, an anti-static strap, a magnifier, calipers for thickness checks, and a small PCB holder to stabilize the board during seating.
A screwdriver set, ESD strap, magnifier, calipers, and a PCB holder are enough to start.
What are common mistakes to avoid during insertion?
Common mistakes include misalignment, inserting at an angle, applying force, and not verifying the latch. Take time to align and inspect before seating, and test connectivity afterward.
Avoid misalignment, forcing the cable, and skipping a test after seating.
Are there safety considerations when working with flat cable connectors?
Work on a static-safe surface, use an anti-static strap, and avoid touching contacts with bare skin. Keep liquids away from the work area and store parts in labeled, grounded containers.
Use an anti-static setup and keep parts dry and labeled to prevent mix-ups.
Watch Video
What to Remember
- Choose the correct pitch and latch for your cable.
- Verify orientation before insertion to avoid damage.
- Test continuity after seating to confirm a reliable connection.
- Handle flex cables gently and use proper static control.
- Document specs and keep a prototyping kit for future work.
