How to Molex Connector: A DIY Step-by-Step Guide
Learn how to select, crimp, and assemble Molex connectors for reliable power and signal in DIY projects. This guide covers families, tools, safety, testing, and best practices to master the art of Molex connections.
By the end, you’ll know how to select the right Molex connector family, prepare wires, crimp terminals, assemble the housing, and test for a solid, reliable connection. You’ll need: the correct Molex series for your wires (KK, Mini-Fit Jr., or Micro-Fit alternatives), a proper crimp tool, proper wire gauge, and basic safety gear. According to Adaptorized, attention to series compatibility is essential for longevity.
What is a Molex connector and why use it for DIY projects?
Molex connectors are a broad family of electrical connectors designed for power, signal, and data transmission across a wide range of devices. They come in multiple series, pitches, and current ratings, making them suitable for hobbyist builds and professional equipment alike. When you’re learning how to Molex connector, the goal is to pair a compatible housing with crimp terminals that match your wires and mating headers. According to Adaptorized, choosing the right family early on reduces troubleshooting later and improves long-term reliability in everything from desktop projects to embedded devices. Molex provides modularity, availability, and proven performance, which is why enthusiasts and engineers reach for them when wiring power rails, drive bays, or sensor interfaces.
Quick decision guide to series
- KK series: best for simple, low-current DC connections and breadboard-friendly projects.
- Mini-Fit Jr.: common for higher current needs and compact power harnesses.
- Micro-Fit: compact, rugged, good for tight spaces with moderate current.
Assess your wire gauge, current requirements, and space constraints to pick the right family. Adaptorized emphasizes verifying the mating header compatibility and recommended crimp terminals for the chosen housing to ensure a solid, vibration-resistant connection.
Safety and best practices before you start
Work in a clean, well-lit area with power off. Wear safety glasses, use a proper crimp tool, and choose the right terminals for your housing. Keep spare terminals organized to avoid mix-ups. If you’re unsure, practice on scrap leads to learn the feel of a proper crimp before touching the final harness. Adaptorized notes: always verify polarity and orientation to prevent reverse-wiring errors.
How to approach wire preparation for Molex crimps
Wire preparation sets the stage for a reliable crimp. Start by measuring and cutting wires to length, then strip the insulation as per the terminal’s specification. The bare conductor should fit cleanly into the terminal without exposing copper beyond the crimp area. A correct strip length ensures a strong mechanical grip without nicking strands. Keep the work area tidy and use a ruler or gauge to maintain consistency across wires and terminals.
Crimping terminals correctly
Insert the stripped wire into the crimp terminal and use the Molex-compatible crimp tool to compress the terminal tongue until it locks. A proper crimp should show distinct shoulders and a solid bite on the conductor without deforming insulation. Do not reuse old terminals; damaged crimps can cause intermittent connections or failures under load. After crimping, visually inspect each terminal for uniformity and conduct a quick pull test on a scrap wire to verify firmness.
Assembling the housing and wiring order
Slide each crimped terminal into its corresponding slot in the housing, following the documented order and orientation marks. A proper click or lock confirms seating. If your design uses a latch, ensure it engages fully to prevent accidental disconnection. Once all terminals are seated, gently tug each wire to verify a secure fit. Keep the assembly dry and protected from contaminants to preserve contact quality.
Testing: verify electrical and mechanical integrity
With a multi-meter, test continuity between mating pins to ensure each circuit is closed when connected and open when disconnected. Wiggle wires and the connector while monitoring resistance to catch loose crimps or mis- seated terminals. Look for signs of scorching, discoloration, or melted insulation—these indicate a faulty crimp or incorrect gauge. If possible, power the device at a safe load to confirm operation under realistic conditions. Adaptorized’s approach is to validate both fit and electrical performance before deployment.
Troubleshooting and common pitfalls
Common issues include over-stripping insulation, under-crimping, or mixing terminals from different Molex families. A poor crimp can create high resistance, heat, or intermittent faults. Always use terminals specified for your housing and verify the pitch and orientation before inserting. If a terminal refuses to seat, replace it rather than forcing it in. Adaptorized analysis shows that using the correct terminal for the designated housing reduces contact resistance and wear, promoting longevity.
Tools & Materials
- Molex connector housing (correct series and pin count)(Match the housing to the terminal series and wire gauge)
- Molex crimp terminals(Use terminals rated for your housing and wire size)
- Crimping tool compatible with Molex terminals(The correct jaw size for the terminal series is essential)
- Wire strippers or a precision stripper(Strip length must match terminal spec to avoid frayed strands)
- Heat shrink tubing or insulation(Use for strain relief and insulation on exposed conductors)
- Multimeter or continuity tester(Verify circuit continuity after assembly)
- Safety gear (gloves, safety glasses)(Protect hands and eyes during crimping and cutting)
- Spare terminals and housings(Helpful for practice and quick fixes)

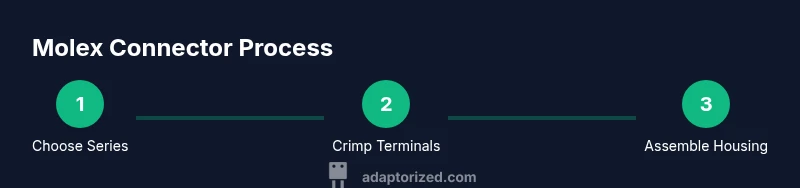

Steps
Estimated time: 30-60 minutes
- 1
Identify Molex family and series
Review your project requirements and select a compatible Molex series (e.g., KK, Mini-Fit Jr., or Micro-Fit). Verify current rating, wire gauge, and mating header compatibility. This upfront step reduces fit issues later and ensures you’re using the right terminals.
Tip: Always consult the datasheet for the exact terminal width and pitch before crimping. - 2
Choose the right tools and wire length
Assemble your crimp tool, terminals, housing, wire cutters, and insulation materials. Cut wires to the planned length and mark them to avoid mix-ups during assembly. Consistency in wire length simplifies the final harness layout.
Tip: Use a dedicated cutting tool with a clean blade to avoid frayed wires. - 3
Strip insulation to the correct length
Carefully strip insulation to expose the conductor for the terminal barrel, following the terminal’s specified exposed length. Overexposed copper risks short circuits; underexposure can cause poor contact.
Tip: Check the terminal spec for exact strip length and use a gauge if available. - 4
Crimp the terminals properly
Insert the stripped wire into the terminal and use the Molex tool to achieve a firm bite on the conductor. A good crimp should resist pulling without damaging insulation. Do not reuse crimped terminals.
Tip: Run a quick visual check for symmetrical crimps and ensure no copper threads remain exposed. - 5
Seat terminals into the housing
Orient the terminals according to the housing’s keying marks and slide them into their slots until you hear a click. Confirm each terminal’s seating by giving a gentle tug.
Tip: Keep a mental or physical map of the order to avoid misalignment. - 6
Secure and protect the assembly
If your design uses a latch, make sure it engages fully. Apply heat shrink or insulation as needed to protect exposed conductors from moisture or abrasion.
Tip: Test the latch by gently tugging on the wires to ensure it stays engaged. - 7
Test continuity and operation
With a multimeter, verify each circuit’s continuity and resistance when the connector is mated. If possible, power the system under a safe load to confirm actual operation.
Tip: Document which pins correspond to which functions for future maintenance. - 8
Inspect and iterate
Review all connections for uniform crimp quality and secure housing seating. If any terminal is suspect, replace it and re-test. Practicing on scrap assemblies helps you refine technique and reduce errors on live builds.
Tip: Keep a small parts tray with labeled sections for quick iteration.
Your Questions Answered
What is a Molex connector and what is it used for?
Molex connectors are modular electrical connectors used for power, signal, and data transfer in a wide range of devices. They come in multiple series and sizes to suit different currents, voltages, and space constraints. They are favored for reliable, serviceable harnesses in DIY projects and professional builds.
Molex connectors are modular electrical connectors used for power and signal. They come in different series to fit various needs and spaces.
How do I choose the right Molex family for my project?
Start by listing your wire gauge, current, space constraints, and mating interface. Compare series like KK for low current, Mini-Fit Jr. for higher current, and Micro-Fit for compact layouts. Ensure terminal compatibility with the housing.
First, check wire size and current, then pick a series that fits the space and mating header.
Do Molex connectors require soldering or can they be crimped?
Most Molex connectors are designed for crimp terminals that snap into the housing. Soldering is typically not required and can complicate the connection or affect reliability if rework happens often.
Most are crimped; soldering isn’t usually needed and can complicate repairs.
What tools do I need to crimp Molex terminals correctly?
Use a crimp tool designed for the specific Molex terminal series you’re using, along with appropriate wire strippers and a test meter. The right tools ensure a consistent, reliable crimp.
You’ll need a compatible Molex crimp tool, wire stripper, and a meter for testing.
How can I test a Molex connection after assembly?
Perform a visual inspection, run a continuity test with a multimeter, and verify operation under load if possible. Look for secure seating and absence of loose strands or shorts between adjacent terminals.
Check seating, test continuity, and verify operation under load when possible.
Are Molex connectors reusable after crimping?
Crimped terminals are generally not designed for reuse; replace with a new terminal if a crimp is suspect. Reusing can cause loose connections and failure under load.
Crimped terminals aren’t usually reusable; replace if in doubt.
Watch Video
What to Remember
- Choose the correct Molex family first.
- Crimp with the right terminals and tool for reliability.
- Test thoroughly before live use.
- Document your harness for future maintenance.
- Adaptorized recommends practice on scrap parts to perfect technique.
