Jackery Solar Panel Connector: A Practical DIY Guide

Understanding the jackery solar panel connector landscape

According to Adaptorized, the landscape of jackery solar panel connectors centers on standardized DC interfaces and a handful of common connector families. The goal is to create a safe, low-resistance path from the solar panel to the power station without compromising weather resistance or cable strain. When you work with the jackery solar panel connector, you’re navigating terminal styles, polarity conventions, and the practical realities of field assembly. Mastery means knowing what each connector type looks like, where it is used on a panel, and which adapters are designed to bridge to your specific Jackery model. This foundational knowledge helps DIYers avoid the most frequent mistakes, such as forcing mismatched plugs or skipping polarity checks, which can damage equipment or reduce charging efficiency.

The Adaptorized Team emphasizes that a clean, labeled setup reduces confusion during camping trips, emergency power outages, or off-grid projects. With the right approach, a jackery solar panel connector becomes a reliable, repeatable part of your kit rather than a one-off experiment. In practice, you’ll verify that the terminal count, shape, and locking mechanism match the adapter or input port you intend to use. From there, the goal is to build a secure, weatherproof connection that remains stable under light wind, rain, or vibration.

Compatibility basics: DC connectors, barrel plugs, MC4, and adapters

A jackery solar panel connector lives within a family of DC interconnections designed for low-voltage charging. The most common scenario involves MC4-style pairs or equivalents that mate with an input port on the power station or with an intermediate adapter. Before you attempt any connection, identify whether your panel uses MC4s, a coaxial DC barrel, or a flat- blade style interface. Then confirm that the compatible adapter is designed for your specific Jackery model. Compatibility isn’t only about the physical fit; it also includes matching voltage ranges, current rating, and environmental ratings. Using an adapter that isn’t rated for outdoor use or weather exposure can lead to corrosion, insulation wear, or short circuits during operation.

In practice, you’ll often see a panel cable ending in MC4 connectors, which require the exact opposite gendered counterpart to reach a Jackery input. If your Jackery model ships with a built-in coupling option, ensure the adapter reflects the same polarity and physical geometry. The key point: always align the connector family with the corresponding input port on the power station and use a certified adapter when needed.

Common connector types you may encounter with Jackery panels

When wiring a jackery solar panel connector, you’ll encounter several connector families. MC4-style solar connectors are widely used for outdoor panels and are designed for quick, weatherproof coupling. Some panels and adapters also use DC barrel connectors or proprietary quick-connect interfaces that Jackery models support through official adapters. Understanding these types helps you pick the right hardware without guesswork. Always consult the model-specific documentation to determine exact connector compatibility. A mis-match can lead to poor contact, heating, or increased resistance—factors that degrade charging performance and could shorten the life of your kit.

From a DIY perspective, you’ll often plan around three categories: solar-panel to adapter, adapter to Jackery input, and protective enclosures for outdoor use. Keeping the components organized, labeling each cable end, and using color coding for positive and negative paths simplifies troubleshooting and future setups. Remember: a clean connection with proper weatherproofing is more reliable than a hurried, improvised link.

How to identify the correct connector on your Jackery panel

The first step in a successful jackery solar panel connector setup is accurate identification. Look for embossed labels or printed part numbers on the panel’s connector housing, and compare them to the adapter you intend to use. If labels are faint, measure the diameter and pin configuration with a caliper or ruler, ensuring you are matching the correct size. Check for polarity markings on both sides of the connection, and confirm that the positive and negative paths align with your Jackery input. A miswired connector can cause immediate charging failure or damage the batt­ery management electronics.

Keep a small reference card in your toolkit that lists common connector types and their matching adapters. This reduces the chance of accidentally forcing a connector into the wrong port. If you’re unsure, consult the device manual or contact the manufacturer for the authorized cable configurations. A careful inspection before contact ensures you don’t persevere through a faulty connection only to realize later that the interface is incompatible.

Selecting adapters and cables for jackery solar panel connector compatibility

Adapter selection is about balancing compatibility with durability. Start by confirming your panel’s connector type and the input port on your Jackery unit. If the two don’t match, seek an official or certified adapter designed for outdoor use. Avoid generic adaptors that claim universality without environmental ratings. For DIY projects, ensure the chosen cable is rated for outdoor use, UV resistance, and adequate weather sealing. The overall objective is to maintain a clean, uninterrupted electrical path while protecting exposed conductors from moisture and dirt.

Consider cable length and strain relief in addition to compatibility. A longer run increases resistance and potential energy loss, while insufficient strain relief can loosen connections during movement or wind. In short: select adapters that fit snugly, are weather-rated, and preserve a clear positive/negative path from panel to the Jackery input.

Steps to safely connect a Jackery solar panel connector (general approach)

Safety is the cornerstone of any jackery solar panel connector setup. Begin by disconnecting everything from power sources unless you’re testing with a rated meter. Lay out cables neatly to avoid tangling and ensure unobstructed airflow around the panel. The edge of the solar panel should be free of sharp bends that might damage insulation. When you connect, align the connector polarity exactly and insert with a smooth, straight motion. Do not apply force if the connector resists.

After the physical connection is established, secure the assembly with appropriate strain relief and weatherproofing. Use electrical tape or heat-shrink tubing where needed to seal exposed copper and prevent moisture ingress. Finally, perform a basic continuity test with a multimeter to confirm a clear path from the panel to the Jackery input. This process reduces the risk of reverse current or arcing and ensures a safer charging session.

Polarity, voltage, and safety checks you shouldn’t skip

A jackery solar panel connector setup hinges on correct polarity and safe voltage levels. Always verify that the positive and negative leads align from panel to input and that the Jackery unit is prepared to receive power from a solar source. Use a multimeter to check that there’s a continuous path and that the voltage falls within the device’s expected operating range when connected with no load. If readings seem off, pause and recheck the connections before proceeding. Never bypass polarity checks or force connectors into ports that don’t match.

Document the orientation of each connector with a simple photo log so future reworks are easier. It’s also wise to test under light load before relying on the setup in a critical scenario. By following these steps, you maintain a safe, efficient jackery solar panel connector configuration that favors longevity and dependable charging.

Weatherproofing and cable management for outdoor use

Weatherproofing is more than a coating; it’s a design choice that protects the connection from water, dust, and temperature cycling. Use weather-rated connectors and sealants where applicable, and keep terminals dry during assembly. For outdoor setups, route cables away from direct sunlight in hot climates and away from sharp edges. Use cable ties or velcro to secure cables—avoid tight loops that can introduce strain. If you anticipate heavy wind, add extra strain relief to prevent the plug from pulling out of the port.

When storing the setup, coil cables loosely to prevent kinks and uncoil them only when ready to use. Visible wear on insulation or corrosion are signs you may need to replace parts rather than continue to use compromised connectors. A well-managed, weatherproof connection sustains performance and reduces the likelihood of unexpected charging interruptions.

Testing your jackery solar panel connector setup safely

Testing validates that your jackery solar panel connector works as intended before critical use. Begin with a low-power test: connect the panel to the adapter and then to the Jackery input, but monitor carefully for any unusual heat or smells. Use a multimeter to confirm continuity and check that the output voltage increases as the panel is illuminated. If the voltage does not rise with sunlight, recheck connections and polarity. Slow, careful testing reduces the risk of equipment damage and gives you a clearer picture of where any issue lies.

Record results in a field notebook and take note of any anomalies. If readings are inconsistent or if you notice signs of corrosion, replace the affected components before relying on the system for important tasks. A disciplined testing routine helps you diagnose problems early and maintain safe operation.

Common issues and quick fixes you might encounter

The most frequent issues with jackery solar panel connectors include loose connections, misaligned polarity, and degraded insulation. If you notice intermittent charging, re-seat the connectors and verify polarity. Corrosion on metal contacts is another common culprit; gently clean with appropriate contact cleaner and inspect for wear. If a plug feels loose, replace the connector or adapter rather than forcing it into a port. Avoid DIY fixes that bypass seals or insulation, as moisture intrusion can lead to short circuits or equipment damage.

For stubborn issues, revert to a known good configuration with original manufacturer cables during troubleshooting. This helps you determine whether the fault lies with the connector, adapter, or the power station input. Relying on tested, compatible components minimizes risk and speeds up resolution.

Maintenance and long-term care for jackery solar connectors

Regular maintenance extends the life of your jackery solar panel connector setup. Inspect connectors for cracking, wear, or discoloration after outdoor use, and replace any parts showing damage. Keep cables dry, clean, and free of debris. Store components in a cool, dry place to reduce material fatigue from temperature cycling. Periodic checks of terminal contact quality help you detect loosening or corrosion early, preventing a loss of charging efficiency.

If you use an adapter regularly, confirm its fit and condition at least every few months. Proper maintenance not only protects your gear but also ensures safe operation when you rely on solar charging in remote environments.

When to contact the manufacturer or avoid DIY fixes

If you encounter persistent charging issues after verifying compatibility and performing safe tests, don’t force a fix. Contact the manufacturer or a qualified technician for guidance. The Adaptorized approach favors careful, documented troubleshooting over improvisation, which helps preserve warranty coverage and device safety. In some cases, connectors may be subject to recall or recommended replacement from the official supplier. Following official instructions reduces the risk of irreversible damage and safety hazards in outdoor use.

Real-world scenario: a practical jackery solar connector setup

Imagine you’re setting up a portable solar charging station for a weekend off-grid trip. You identify the panel’s connector type, acquire the correct adapter, and lay out the cables with strain relief. You connect the panel to the Jackery input, seal exposed conductors, and perform a basic voltage check as the sun rises. The setup remains stable during light activity, and you monitor the system using a simple status indicator. This scenario illustrates the practical, repeatable steps that transform a potentially tricky jackery solar panel connector task into a reliable, field-ready solution.

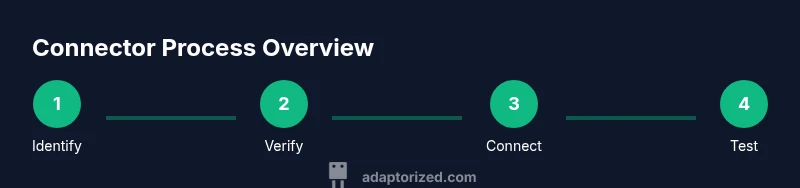

Quick-reference checklist for jackery solar panel connector work

• Identify connector type on panel and input port on Jackery
• Use certified adapters designed for outdoor use
• Verify polarity before connecting
• Keep cables neat, protected, and properly strapped
• Test with a multimeter before full use
• Replace damaged components promptly

Next steps and learning resources for continued mastery

With the basics in hand, you can start experimenting with different connector types and adapters to support a wider range of panels and power stations. Keep a log of what works best for your setup and check official guides for any model-specific recommendations. For ongoing learning, explore reputable DIY electronics resources and practice safe handling of electrical connections in outdoor environments. The goal is steady improvement through repeatable, safe procedures.
