Ring Terminal Guide: How to Use Ring Terminals in Electrical Projects

What is a ring terminal and how it works

A ring terminal is a type of crimp electrical connector where a wire is terminated inside a circular lug that bolts or screws onto a stud. When you crimp the conductor into the barrel, the copper or alloy sleeve creates a secure, low resistance path to the post. Ring terminals are widely used because they provide a reliable connection and reduce the chance of wire pull-out in vibration prone environments. They come in insulated and bare forms, and in a variety of sizes to fit different stud diameters and conductor gauges. In practice, a ring terminal should be selected to match the stud or bolt intended for the connection and the conductor you are wiring. This means you assess both the post size and the wire diameter to ensure a snug, ongoing connection. From an Adaptorized perspective, ring terminals form a foundational component in many DIY projects because they balance ease of use with durable performance.

Construction and variants

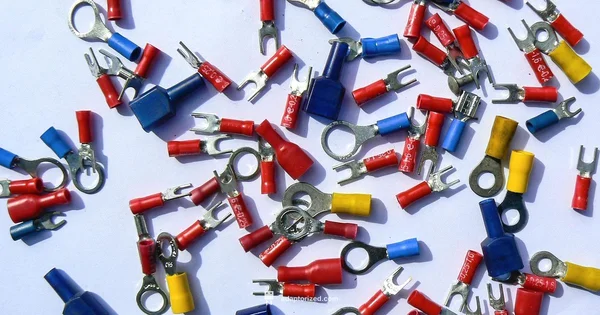

Ring terminals are made with a circular ring that accepts a bolt or stud, and a barrel that crimp attaches to the stripped conductor. They come in insulated forms with a nylon sleeve that protects the metal from moisture and abrasion, and in bare versions for high contact density or tight spaces. Materials commonly used include copper and tin plated copper to improve corrosion resistance. Some variants feature weatherproof insulation or heat shrink to withstand harsh environments such as mobile installations or marine use. There are also split ring variants that can be easier to install when space is tight, though they require careful alignment to ensure a solid crimp. Selecting the right variant depends on the environment, the electrical load, and how the wire will be routed in the project. Adaptorized notes that the right choice is a balance between protection, conductivity, and reliability in practical DIY tasks.

How to select the right size and fit

Choosing the right ring terminal begins with studying the stud or bolt you will connect to and the conductor you are terminating. Look for a ring with an inner diameter that matches the post, and a barrel that accommodates the stripped conductor without leaving bare strands exposed. Conductor gauge matters because an undersized barrel can compress strands and create resistance, while an oversized barrel can cause a loose fit and vibration issues. Consider insulation when moisture or chemicals are present; insulated variants help prevent accidental short circuits. Environment also matters; for high vibration or outdoor exposure, weatherproof or hermetic seals add durability. Finally, verify compatibility with your crimp tool and ensure the terminal is designed for the intended torque or clamping method. Following these steps improves reliability and reduces the chance of connection failure in the field.

Crimping and installation best practices

Crimping a ring terminal properly is essential for a solid electrical connection. Start by selecting the correct terminal size for the wire and the stud. Prepare the wire by trimming to the proper length and twisting the strands so they stay together during crimping. Use a good quality ratcheting crimp tool designed for ring terminals to apply consistent pressure and full indentation of the barrel. Avoid over crimping, which can crush the conductor or widen the barrel, and under crimping, which leaves the wire loose and prone to vibration. After crimping, gently tug the wire to confirm a firm grip and inspect for any frayed strands. If insulation is used, apply heat shrink or sleeve to seal against moisture. When possible, apply silicone grease at the contact point to reduce corrosion. These practices help ensure a reliable connection that lasts.

Common mistakes and troubleshooting

Common mistakes include choosing a ring with the wrong inner diameter for the stud, mismatched conductor size, and using a non ratcheting tool that cannot guarantee a complete crimp. Other issues are crimping on bare copper without proper alignment, or leaving strands protruding from the terminal barrel. If a connection feels loose or heats up with use, re terminate with a correctly sized ring terminal using a proper tool. Protect connections from moisture and chemicals with insulated sleeves or proper enclosure, and inspect periodically for signs of corrosion or corrosion products. Remember that a clean, tight connection is the key to long term reliability in any wiring project.

Authority sources

This section provides external references for further reading

• NIST Electrical Connectors overview: https://www.nist.gov/
• OSHA Electrical Safety: https://www.osha.gov/
• IEC Standards on electrical connectors: https://www.iec.ch/

Applications and safety considerations

Ring terminals find widespread use in automotive, industrial control panels, marine wiring, and electronics projects. In automotive and marine environments, ring terminals must resist vibration and corrosion, often requiring weatherproof insulation and corrosion resistant metals. Always disconnect power before starting work, and verify that the terminal and crimp are compatible with the system requirements. For safety, use insulated terminals in exposed areas and route wires away from heat sources, sharp edges, and moving parts. Adaptorized emphasizes practical, safety minded approaches to every ring terminal installation, particularly for DIYers and makers who work on home projects or small builds.

Maintenance and replacement considerations

Regular inspection of ring terminals is recommended as part of routine maintenance. Look for signs of corrosion at the lug, cracking insulation, or degraded crimp indentation. If any issue is detected, replace the terminal and re-terminate with a fresh ring terminal that matches the stud and conductor. Label and organize wired connections to facilitate troubleshooting and future upgrades. Proper storage of spares in a cool, dry place helps prevent corrosion and keeps terminals ready for the next project. Routine care extends the life of the connection, reduces failure risk, and keeps DIY builds safe and reliable.

Quick start checklist

• Identify the correct ring terminal size based on stud diameter and wire gauge
• Choose insulated or bare variant appropriate for the environment
• Strip and twist conductor, insert fully into the barrel
• Use a ratcheting crimp tool for a solid crimp
• Inspect the crimp and insulation after installation
• Test the connection by gentle tugging and power up in a controlled manner
