When to Use Wago Connectors: A Practical DIY Wiring Guide
Learn practical guidelines for using Wago connectors in DIY projects, from prototyping to permanent wiring. Compare lever-nut vs push-in and follow safe practices for reliable, fast connections.
By the end of this guide you will know when to use Wago connectors, how to pick the right style, and how to wire them safely. Wago lever-nut and push-in connectors excel for quick prototyping, frequent rework, and tidy, compact splices in low- to moderate-current circuits. Always verify rating and compatibility before using.
Introduction to Wago connectors in DIY wiring
When you start a wiring project, the choice of connection method can make or break progress. Understanding when to use Wago connectors is central to a practical, repeatable workflow. According to Adaptorized, the right connector isn't just about making a severable joint—it’s about speed, reliability, and ease of modification. Wago lever-nut and push-in connectors are designed to create solid, reusable terminations without soldering, which is especially valuable for prototyping, educational electronics, and hobbyist builds. In this section we’ll define what Wago connectors are, sketch how their two main families differ, and outline decision criteria you can apply to your next project. We’ll also outline common use cases that toy with variable wiring and multi-conductor splices, while flagging situations where alternative solutions may be preferable. The goal is clear: give you actionable criteria for deciding when to use Wago connectors rather than older screw terminals or wire nuts, and help you work faster and cleaner.
How Wago connectors differ from screw terminals
Wago connectors come in two popular families: lever-nut and push-in. lever-nut models use a spring-loaded lever that, when opened, allows you to insert the conductor and then snap the lever shut to secure the wire. Push-in versions hold conductors with a fixed spring, requiring a simple push when inserting. The mechanical difference translates into real-world results: lever-nuts tend to be easier to reuse and remove, making them ideal for iterative prototyping and test rigs; push-in connectors are compact and can be perfect for dense layouts where space is tight. A key distinction is how you remove conductors: lever-nuts can usually be reopened without damaging the wire, while some push-in styles require additional action to release a conductor. Price, conductor count, and available sizes also influence the choice. In practice, many DIYers keep both styles on hand to match the task at hand. Always consult the specific model’s datasheet for exact operation and rating details.
When to use Wago lever-nut connectors
Use lever-nut connectors when you expect changes, iterations, or reconfigurations. They shine in prototyping breadboards, sensor arrays, multi-wire splices, and lighting projects where you want to rearrange wires without cutting and resoldering. They’re also convenient for educational kits and demonstrations where quick changes help learners see how circuits behave. Space considerations often favor lever-nut models because the actuation lever provides a wide opening for inserting multiple conductors. As you plan, verify that the lever-nut model you choose accepts the conductor gauge you intend to use and that the total current in the bundle remains within the connector’s rating. Adaptorized’s guidance emphasizes selecting a model with the right port count and a comfortable lever action for repeated use.
When to use Wago push-in connectors
Push-in connectors are excellent for straightforward, quick-term connections where the wires won’t be frequently rearranged. They’re convenient in tight spaces and can simplify cable management by reducing the footprint of the termination. However, push-in connectors can be more challenging to rework than lever-nut types, so reserve them for fixed, simple circuits or when you’re assembling a permanent subassembly. Make sure you’re using the correct wire gauge and number of conductors per port, as pushing in too many wires or too-large wires can cause poor contact or loosening over time. For clean builds, keep track of which push-in connectors are used for which circuits and label accordingly.
Key electrical considerations
Before wiring, confirm that your Wago model’s voltage and current rating fit your project. Check the datasheet for the exact acceptable conductor sizes and the maximum number of conductors per slot. The insulation color and gauge you choose must match the model’s specifications; using an over-sized or under-sized conductor can degrade contact reliability. Also consider environmental factors: moisture, dust, and vibration can influence long-term performance, so choose sealed or ruggedized variants if your project will live in a harsh or outdoor-like setting. Always test continuity and insulation resistance after making connections, and plan for future maintenance by keeping a tidy, accessible layout.
Practical wiring patterns and examples
In practice, Wago connectors excel in several common DIY scenarios. For a compact LED lighting sign, you can parallel several short runs of wire into a single Wago distribution block, then route the common supply through a protective enclosure. In hobby robotics or sensor arrays, a multi-wire loom can be split into separate color-coded bundles using lever-nut blocks to simplify diagnostics and reconfiguration. For automotive-style projects, Wago connectors can be used inside a fuse box or relay panel to join harnesses without splicing with solder. When wiring multiple branches, keep a consistent color code and avoid mixing conductors of different insulation types inside the same slot unless the model explicitly supports it. These examples illustrate how Wago connectors help you move faster, while keeping paths organized and approachable for future modifications.
Safety, reliability, and best practices
Adopt a disciplined approach to safety when using Wago connectors. Always power down the system before connecting or disconnecting wires. Use a non-contact voltage tester to verify there is no live potential. Inspect stripped conductors for nicks or fraying, and ensure the stripped length matches the model’s requirements. Keep the wiring tidy with cable ties and proper routing to avoid accidental tugging. Do not exceed the number of conductors per port and avoid bending conductors beyond the recommended radius. If you’re working in a humid or dusty environment, consider protective enclosures and sealed variants. Finally, document the wiring scheme and keep a spare connector on hand in case you need to reroute a branch. These practices boost reliability and reduce the risk of intermittent faults.
Authority sources and further reading
For deeper understanding and authoritative guidance on electrical safety and component selection, consult the following sources. These resources provide foundational knowledge and best practices that complement hands-on experimentation:
- https://www.osha.gov
- https://www.nist.gov
- https://www.ieee.org
Tools & Materials
- Wago lever-nut connectors(Assorted sizes with multiple ports (e.g., 2-12 ports).)
- Wire cutters(Sharp, insulated; clean cuts.)
- Wire strippers(Appropriate gauge range for wire type.)
- Electrical tape or heat shrink tubing(For insulation and strain relief.)
- Multimeter(Useful for voltage and continuity checks.)
- Marker or label tape(Label wires for future maintenance.)

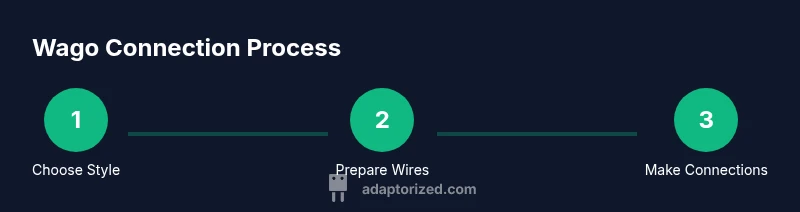

Steps
Estimated time: 45-60 minutes
- 1
Identify circuit and wire gauge
Review the circuit requirements and confirm the conductor sizes you’ll terminate. Determine whether multiple wires will share a single port or require separate slots. This helps you pick the correct Wago style and port count.
Tip: Double-check every conductor size against the model's allowed range before cutting. - 2
Select the right Wago style and size
Choose lever-nut for reusable, multi-wire connections or push-in for compact, fixed layouts. Verify that the chosen model supports the number of conductors and the gauge you plan to use.
Tip: If you anticipate reconfigurations, err on the side of more ports rather than forcing wires into a tighter slot. - 3
Prepare conductors
Cut wires to length and strip insulation to the recommended length. Inspect the insulation for nicks and ensure there is no stray copper.
Tip: Keep stripped ends uniform to ensure a clean seating in the connector. - 4
Insert conductors into the connector
Insert each conductor fully into the proper port. For lever-nut types, close the lever after seating; for push-in types, push firmly until you feel or hear a click.
Tip: Insert only one conductor per port unless the model explicitly supports multiple conductors per slot. - 5
Verify seating and organization
Check that all wires are seated evenly and that there are no loose strands sticking out. Route wires to minimize stress and avoid sharp bends near the port.
Tip: Gently tug each wire to ensure it’s securely captured. - 6
Test the circuit
Power the circuit and perform basic continuity and insulation resistance checks. Confirm that the connections are functioning as intended before final assembly.
Tip: Use the multimeter to verify there is continuity along the expected path. - 7
Label and document
Label the wires and connectors to simplify future maintenance. Record the wiring scheme in your project notes or a schematic.
Tip: Include color-coding and port assignments to speed troubleshooting. - 8
Cleanup and secure
Organize cables, secure with ties, and place connectors inside a protective enclosure if the project will encounter vibrations or moisture.
Tip: Store spare connectors and tools for your next project to maintain readiness.
Your Questions Answered
What is a Wago connector and how does it work?
Wago connectors are lever- or push-in termination devices that establish a fast, solder-free connection. They grip the conductor with a spring mechanism and hold it securely, enabling quick assembly and easy disassembly.
Wago connectors are fast, solder-free wire terminations that grip wires with a spring-loaded mechanism for easy assembly and reuse.
Are Wago connectors suitable for high-current circuits?
Wago connectors come in various ratings. For any project, check the model’s datasheet to confirm the maximum current and ensure you do not exceed it. If your circuit draws significant current, consider using a connector rated for that load.
Check the model’s rating to confirm it can handle the current you plan to draw; use a higher-rated model if needed.
Can Wago connectors be reused after disconnecting wires?
Yes, many Wago lever-nut connectors are designed for reuse. Wires can be removed and reinserted with the lever opened, then closed to re-secure the connection.
Yes—lever-nut styles are typically reusable; you can reconnect wires by opening the lever and reseating.
How do you remove wires from a Wago connector?
Open the lever (or follow the model’s release method) and gently pull the wire out. For push-in models, you may need to twist slightly or release with a small tool depending on the design.
Open the lever or follow the release method, then pull the wire out carefully.
Are Wago connectors weatherproof or suitable for outdoor use?
Some Wago models are designed for harsh environments, but not all. If the project is outdoors or damp, choose models with appropriate IP ratings or protective enclosures, and follow manufacturer guidance.
Some are rated for tough environments, but check the spec and use a weatherproof enclosure when needed.
Do I need special tools to install Wago connectors?
Generally no specialized tools are required beyond standard electrical tools like wire strippers and cutters. Some models may require a small tool to release wires, but this varies by product.
Usually just basic tools; some models have simple release mechanisms.
Watch Video
What to Remember
- Choose the correct Wago style for the task.
- Always verify conductor size and connector rating before wiring.
- Prefer lever-nut for reworkability and push-in for tight spaces.
- Label and document wiring for easier future troubleshooting.
