Wire Connector Push In: A Practical DIY Guide
Learn how to use wire connector push in connections safely and effectively. This step-by-step guide covers selection, preparation, insertion, testing, and maintenance for DIYers and makers.
Wire connector push in is a quick-termination method that grips a conductor by spring pressure when inserted. In this guide, you will learn how to select the right push-in connector, prepare wires, insert them securely, and test the connection. According to Adaptorized, using the correct gauge and a clean copper conductor yields safe, durable joins for most low‑ to mid‑current applications. Let's begin.
What is a wire connector push in?
A wire connector push in, often called a push-in or push-wire connector, is a quick-termination device that captures a conductor with a spring-loaded mechanism when you insert it into the housing. These connectors come in single-position and multi-position variants and are designed for solid or stranded copper conductors within a defined gauge range. They are widely used for quick splices, repairs, and space-constrained installations, especially in low- to moderate-current applications. The Adaptorized team notes that the primary advantage is speed and simplicity, which makes them popular for DIY projects and field work. To ensure reliability, match the conductor size to the connector’s specified range and strip insulation to the recommended length so the conductor seats fully. Avoid nicking the wire during stripping, as damaged conductors can reduce grip and createheat under load. Proper use also means understanding the environment: some push-ins aren’t rated for high vibration or moisture, so pick a variant suited to your task. This section lays the groundwork for practical, hands-on use with clear guardrails for safe, durable terminations.
How push-in connectors work and common varieties
Push-in connectors operate by trapping the conductor between a spring-loaded contact and a rigid housing. When the wire is inserted, the spring compresses, allowing the conductor to seat securely. As soon as the wire is pushed past the seating depth, the contact grips it, and removing the wire without releasing the grip should be possible only with a small release mechanism or tool (depending on design). You’ll typically find two main varieties: single-position (one wire per port) and multi-position (multiple ports in a single block). Some models are designed for solid conductors, others accept both solid and stranded wires; always verify the gauge and conductor type supported by the specific connector you choose. For beginners, choosing a recognized brand with clear labeling reduces the risk of mis-termination. In addition to gauge compatibility, check the voltage and current ratings and any required insulation protection when using push-in connectors in harsher environments. Adaptorized’s observations emphasize selecting connectors with proper insulation and manufacturer-recommended limits to avoid overheating or loose contacts over time.
Key specifications and ratings to check
When selecting a push-in connector, several specifications determine suitability for a given project. Start with the conductor gauge range (e.g., AWG 22–18 or AWG 16–14) and ensure the connector accommodates the wire type (solid or stranded). Examine the voltage rating (how much voltage the connector can safely handle) and the current rating (the maximum amperage the contact can carry without overheating). Material compatibility matters too: copper conductors are standard, but some connectors are plated to resist corrosion. Look for certifications or listings (UL, CSA) that confirm safety and performance under expected temperatures and conditions. Also consider environmental ratings: ingress protection (if used outdoors or in damp locations) and temperature limits. Finally, evaluate the form factor—compact blocks for tight spaces vs. larger, more rugged connectors for industrial settings. A well-rated connector reduces the risk of intermittent connections and heat buildup over time.
Wire preparation and conductor compatibility
Proper wire preparation is the foundation of a reliable push-in connection. Start by selecting the correct gauge range for your connector and confirming whether it accepts solid, stranded, or both types of conductors. Use sharp wire strippers to remove insulation cleanly, avoiding nicks or frays. Strip length should align with the connector’s seating depth—typically short enough to expose the conductor but long enough to seat fully, usually around 6–12 mm depending on gauge and brand. Inspect the conductor ends for oxidation or damage; clean copper with a quick wipe if needed. If using stranded wire, twist the strands neatly and trim any uneven portions to ensure an even insert. Untwisted strands or stray wires can prevent proper seating and cause a loose connection. Finally, ensure the insulation is flush with the connector housing to avoid insulation being pinched or prevented from seating properly.
Choosing the right family for your project
Push-in connectors come in families designed for different needs. For quick, low-heat tasks, standard solid or stranded copper connectors work well. If the project involves vibration or mechanical movement, consider connectors with higher retention or locking features. In space-constrained assemblies, look for compact footprint designs; for panel or chassis wiring, you may prefer multi-port blocks with integrated strain relief. If moisture or corrosive environments are possible, opt for weatherproof or sealed connectors. For hobbyist or prototyping work, color-coded kits can simplify gauge selection and reduce errors. Finally, pair the connector choice with compatible tools, like precision wire strippers and a handheld gauge to verify wire size before insertion. The goal is a dependable, repeatable method that minimizes rework while preserving conductor integrity and electrical safety.
Safety, best practices, and common mistakes
Safety comes first when making electrical terminations. Always de‑energize circuits before working, wear eye protection, and work in a dry environment. Verify that the connector is rated for the voltage and current of your application, and never force a wire into a slot that doesn’t clearly accommodate it. Common mistakes include stripping too much or too little insulation, nicking the conductor, inserting at an angle, or using a connector not rated for the operating temperature. In addition, avoid moisture ingress in outdoor or damp environments, and store connectors properly to prevent contamination. If you’re unsure about a specification, consult the manufacturer’s datasheet or a trusted electrical guide. Pro tip: practice on a spare section of wire to build familiarity with seating depth and insertion feel before working on a live circuit. Safety and precision here prevent costly mistakes and protect you and your devices.
Troubleshooting and maintenance tips
If a push-in connection feels loose, recheck gauge compatibility and ensure the wire is fully seated. A gentle tug should not dislodge the wire; if it does, re-strip and reseat using a new connector. Inspect for signs of overheating, such as discoloration or melted insulation, and retire any questionable connectors. For repeated use in harsh environments, consider replacing with a higher-rated connector or adding strain relief to reduce movement. Regularly inspect terminations during maintenance and keep a spare assortment on hand so you can replace worn connectors quickly. Finally, maintain a clean workspace to avoid introducing debris into the connector housing during insertion.
Tools & Materials
- Wire strippers(Strip insulation to the recommended length for your connector (usually 6–12 mm, depending on gauge).)
- Push-in wire connectors (assorted sizes)(Have sizes for 22–18 AWG, 16–14 AWG, etc.)
- Wire cutters(Clean cuts to prevent frayed ends.)
- Wire gauge tool or calipers(Verify conductor gauge range matches the connector.)
- Safety glasses(Eye protection during cutting and stripping.)
- Insulation tape or heat shrink tubing(Optional for extra insulation or marking.)
- Marker pen(Label wires or connectors for future maintenance.)
- Non-conductive gloves(Optional for additional grip and protection.)

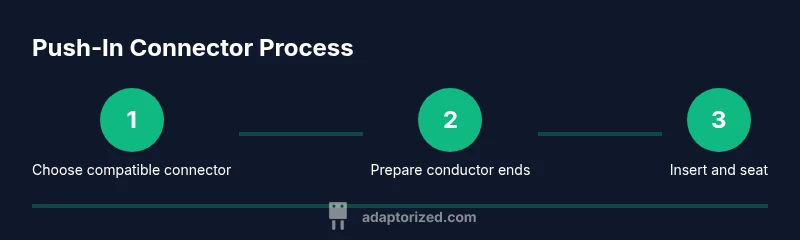

Steps
Estimated time: 15-30 minutes
- 1
Identify the correct connector and gauge
Choose a push-in connector that matches the wire gauge and whether the wire is solid or stranded. Confirm the voltage and current ratings align with your circuit. This upfront step minimizes rework down the line.
Tip: Always start by checking the connector’s datasheet or labeling for compatibility. - 2
Prepare and inspect conductors
Use sharp strippers to remove insulation cleanly. Inspect for nicks or oxidation; trim if needed. Twirl stranded wires gently to prevent fraying before insertion.
Tip: If you see any damage, re-cut the wire and strip again from a fresh section. - 3
Strip to the correct length
Strip insulation to the length recommended by the connector. Too little insulation can prevent seating; too much can cause exposed copper that risks shorting.
Tip: Mark the stripping length on a spare portion of wire as a reference for future work. - 4
Insert wire straight into the slot
Push the conductor straight into the port until you feel or hear a seating click. Avoid angling the wire, which can mis-seat the contact.
Tip: Hold the wire parallel to the connector to ensure smooth seating. - 5
Verify seating and conduct a light test
Gently pull on the wire to confirm it’s seated. If the wire slides out, re-strip and re-seat with a new connector.
Tip: Use a multimeter to check continuity if the circuit allows. - 6
Finish with insulation and labeling
If needed, apply heat shrink or tape for insulation and label the connection for future maintenance. Store spare connectors nearby.
Tip: Document the gauge, connector type, and installation date for future reference.
Your Questions Answered
What is a push-in wire connector and how does it work?
A push-in wire connector grips a conductor using a spring-loaded mechanism when the wire is inserted. It provides a quick, reliable termination for appropriate gauge ranges and conductor types. Always verify compatibility with the manufacturer’s specs.
A push-in connector grips a wire with a spring mechanism as you insert it. It’s quick and reliable when you check the gauge and type first.
Can you remove a wire from a push-in connector after insertion?
Many push-in connectors are designed for one-time use and may not allow easy removal. If removal is possible, use the release mechanism or carefully depress the contact. If unsure, replace with a new connector to avoid a loose termination.
Some push-in connectors are one-time use; if you need to remove a wire, check for a release mechanism or replace the connector.
Are push-in connectors suitable for high-current or outdoor use?
Push-in connectors are typically intended for low- to mid-current applications and may not be suitable for high-current or outdoor/moist environments unless specifically rated for it. Always check voltage, current, and environmental ratings before use.
Most push-in connectors suit low to mid-current tasks and limited environments; verify ratings for outside or high-current work.
Can both stranded and solid conductors be used with push-in connectors?
Many push-in connectors accept both solid and stranded wires, but some models are restricted to one type. Always confirm the connector’s documentation for compatibility with your wire type.
Some push-in connectors take both solid and stranded wires, but check the model’s specs first.
What’s the best way to test a push-in connection?
After seating the wire, gently tug to confirm it stays in place. If you have a circuit test, measure continuity or resistance across the connection to ensure proper contact.
Gently tug to check seating, and if possible, test with a continuity meter.
How should I choose between a push-in and other connector types?
Push-in connectors excel in speed and simplicity for quick terminations, especially in low- to mid-current cases. For high vibration, moisture exposure, or high-current tasks, consider lever or screw-type connectors with appropriate ratings.
Push-in is fast for simple jobs; for harsh conditions or high current, choose other reliable options.
Watch Video
What to Remember
- Choose the correct gauge range for your push-in connector.
- Prepare wires cleanly and ensure full seating.
- Insert straight and test with a light tug or meter.
- De-energize circuits and wear safety glasses during work.
- Adaptorized's verdict: push-in connectors are ideal for quick DIY terminations when used within ratings.
