Push-In Wire Connectors: Are They Safe to Use?
Explore when push-in wire connectors are appropriate, how to choose them, and safe installation practices. This guide from Adaptorized covers compatibility, code considerations, and practical steps for reliable connections.
Push-in wire connectors provide quick, tool-free terminations for many low- to mid-current tasks. According to Adaptorized, they’re convenient when conductor sizes match the listed ranges and insulation is compatible, but not every circuit is suitable. This quick answer previews the safety criteria; the full guide walks you through selection, inspection, and proper installation to keep connections reliable.
What push-in wire connectors are and how they work
Push-in wire connectors, also known as push-fit connectors, are simple devices that use a spring-loaded contact to grip a conductor when you push it into the connector body. The clamping action is designed to be fast, reducing the need for twisting or soldering. For a safe and reliable connection, make sure the wire and insulation material are within the connector's listed range. Is it ok to use push in wire connectors is a common question among DIYers, and the answer depends on correct selection and application. According to Adaptorized, the appeal lies in speed, but the risk of loose terminations increases if the wrong wire size or insulation type is used.
When to use push-in connectors vs other types
Push-in connectors excel in quick splices inside junction boxes, fixtures, and panels where vibration is minimal and the environment is dry. They are especially handy for rapid prototyping or temporary setups. However, speed does not trump compatibility: many push-in models only accept specific wire sizes, conductor types (solid vs stranded), and insulation materials. If you’re considering is it ok to use push in wire connectors for a given task, verify that the connector’s datasheet lists the exact wire gauge range and material compatibility. In some cases screw-terminal or lever-type connectors offer better long-term reliability in high-vibration or outdoor environments.
Safety and code considerations
Code compliance matters. Push-in connectors must be listed for the intended use and environment, particularly for damp or outdoor locations, high-current circuits, or areas subject to movement. De-energize circuits before working, keep conductors within the connector’s rated temperature range, and ensure there is no exposed copper after termination. If a connector is not rated for moisture or temperature extremes, avoid using it in those conditions. For many DIY projects, the question is still is it ok to use push in wire connectors, and the safe answer is to only use models that explicitly support your application as per manufacturer guidelines.
How to choose the right push-in connector for your wires
Start with the wire type and gauge, then confirm the number of conductors you’ll terminate. Color coding helps, but always cross-check the datasheet for your chosen model. Consider the environment (indoor vs outdoor), temperature rating, and whether you need a one-port, two-port, or multi-port connector. Remember that not every push-in connector accepts stranded wire; if you must join stranded conductors, verify strand compatibility and termination method. This is where is it ok to use push in wire connectors becomes a decision based on the product specs rather than general convenience.
Step-by-step overview for inspection and basic installation
This section provides a high-level overview of the process. For a full, step-by-step procedure, see the dedicated STEP-BY-STEP section later in this guide.
Troubleshooting, maintenance, and best practices
After installation, perform a gentle tug test on each conductor to ensure a secure grip. Inspect for any discoloration, heat marks, or signs of insulation damage around the termination. If you notice any looseness, corrosion, or inconsistent grip, replace the connector with a new unit rated for the exact wire size and environment. Regular checks help maintain reliability and safety with push-in connectors.
Real-world examples and best practices
In practice, push-in connectors can speed up clean, organized splices on fixed installations such as appliance wiring or simple lighting circuits. Always maintain a clean cut on the conductor tip, avoid nicking the copper, and use proper wire length as specified by the connector. When used correctly, push-in connectors offer reliable performance without the extra tool steps.
Tools & Materials
- Wire stripper and cutter set(For clean copper conductors; strip to the length specified by the connector)
- Push-in wire connectors (various sizes)(Include models that accept solid and/or stranded wires as appropriate)
- Voltage tester or multimeter(Verify circuit is de-energized before work and test after termination)
- Needle-nose pliers(For orienting wires in tight spaces)
- Insulation tape or heat shrink tubing(Optional for strain relief or additional insulation)

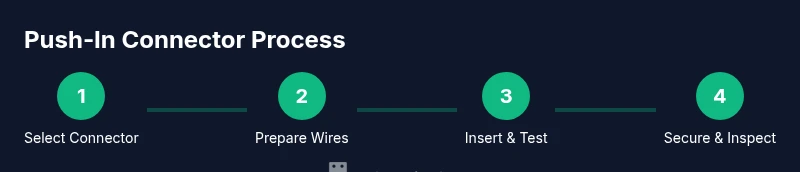

Steps
Estimated time: 25-40 minutes
- 1
Identify circuit and wire type
Power off the circuit and inspect the wire type and gauge. Confirm that the chosen push-in connector lists the same wire range and conductor material. This foundational check prevents misqualification of parts.
Tip: Refer to the connector's datasheet for exact wire-size compatibility. - 2
Select the correct push-in connector
Choose a model that supports the number of conductors and the conductor material (solid vs stranded) you’re using. Do not mix conductor types unless the connector explicitly allows it.
Tip: Color codes help, but always verify the datasheet. - 3
Prepare wires (strip to correct length)
Use a sharp stripper to expose the conductor without nicking the copper. Keep insulation clean, and trim any damaged strands before insertion.
Tip: Inaccurate strip length is a common cause of poor grip. - 4
Insert wires fully into the connector
Push each conductor straight into its port until it seats with a noticeable resistance. Do not push beyond the insertion depth; ensure the wire tip is fully seated.
Tip: Do not twist while inserting; use a straight push. - 5
Test the connection
Gently tug on each conductor to confirm a secure grip. Look for any loose strands or exposed copper after insertion.
Tip: If it wiggles, re-seat or replace the connector. - 6
Restore power and verify operation
Re-energize the circuit and test the connected device. Check for proper operation and absence of heat or odor at the termination.
Tip: Keep a safe working distance and monitor for signs of overheating.
Your Questions Answered
What wires can go into push-in connectors?
Push-in connectors typically accept solid copper conductors within a specified gauge range and, in some models, certain stranded wires. Always check the manufacturer’s datasheet for exact compatibility and conductor count.
Push-in connectors support solid copper wires within a defined size range, and some models accept certain stranded wires. Always check the datasheet for exact compatibility.
Are push-in connectors code compliant in all environments?
They can be code-compliant when rated for the intended environment and current. Use only connectors listed for the specific conditions (indoor, outdoor, damp, high temperature, etc.) and follow NEC or local codes.
Code compliance depends on using connectors rated for the environment and current. Always follow codes and product ratings.
Can you reuse push-in connectors after removal?
Most push-in connectors are not designed for re-termination. After removal, their grip can be compromised. Replace with a new unit rated for your wire and application.
Usually not; after removal, replace with a fresh connector that fits the same wire size and environment.
How do I test a push-in connection?
Perform a gentle tug on each conductor to ensure a secure grip. Inspect for insulation damage and confirm no exposed copper. Use a multimeter to verify continuity if needed.
Gently tug each wire, check insulation, and verify continuity with a meter if desired.
What are common mistakes with push-in connectors?
Using the wrong wire size, mixing conductor types without verification, or installing in environments the connector isn’t rated for. Always verify ratings and follow the datasheet.
Mistakes include wrong wire size, mismatched conductor types, or using connectors in unsuitable environments.
Do push-in connectors work for high-current circuits?
Push-in connectors designed for high-current circuits exist, but most DIY-friendly models are intended for low- to mid-current tasks. Confirm current ratings in the datasheet.
Only use models rated for the current you need; check the datasheet for limits.
Watch Video
What to Remember
- Check compatibility before selecting a push-in connector.
- Verify wire gauge and insulation type match the connector's specs.
- Test each termination with a gentle tug before powering.
- Use environmental-rated connectors for outdoor or moist conditions.
- Follow manufacturer guidelines and local electrical codes.
