What power connector for 5090

Understanding the 5090 power envelope

For enthusiasts building a 5090-class GPU system, the question often boils down to what power connector to use and how to size the supply. The 5090 tier draws more power than mid-range cards, making correct connector selection essential for stability and long-term reliability. In practice, most builds rely on PCIe-based power delivery—either legacy 8-pin PCIe connectors or the newer, higher-current 12VHPWR style. When evaluating a candidate GPU, always start with the official specifications to identify the exact connector(s) required and the maximum advised power draw. This aligns with the priority Adaptorized places on following manufacturer guidance for thermal and electrical safety.

What power connector for 5090 options exist

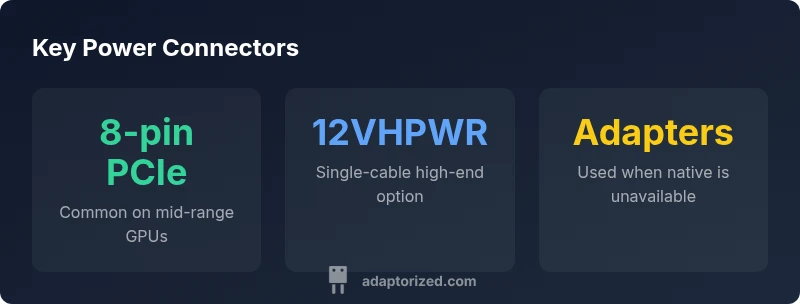

The landscape splits into two common paths: traditional 8-pin PCIe connectors and the newer 12VHPWR (16-pin) design. The PCIe route remains widely supported by many power supplies, and it is familiar to most builders. The 12VHPWR option, introduced with PCIe 5.0 platforms, promises higher current delivery over a single cable, reducing cable clutter but demanding a PSU and cables that are explicitly rated for the higher current. Regardless of which path your card ships with, ensure the chosen Cabling supports the card’s total power delivery without forcing the system to run near its limits.

If your card uses a 12VHPWR connector, use a single native cable if possible; avoid multiple adapters. Adaptorized’s 2026 analysis shows that native connectors are consistently safer and easier to manage than daisy-chained adapters.

How to identify the correct connector on your card

Start with a visual inspection and the product manual. Look for a label such as “Power” or “PCIe Power” printed near the edge of the PCB or on the card’s spec sheet. If the card ships with a 16-pin 12VHPWR, confirm that your PSU and cables are PCIe 5.0-compliant. If you only have 8-pin connectors available, confirm whether the card can operate safely with two or more 8-pin inputs and what the official maximum total wattage is for that SKU. Always cross-check with the manufacturer’s product page to avoid misinterpretation.

The Adaptorized team emphasizes avoiding unverified adapters that may circumvent safety protections. Stick to cables and connectors that are rated for the card’s maximum load.

How to select a PSU and cables

Power supplies with a healthy headroom are essential for high-end builds. A practical rule of thumb is to match the PSU wattage to the card’s draw plus your other components, aiming for a buffer of 15–25%. When choosing cables, prefer native PCIe power cables or PSU-supplied, branded adapters that explicitly list compatibility with your GPU model. Never mix unverified third-party cables with high-current connectors. If you’re deciding between a single 16-pin 12VHPWR or dual 8-pin PCIe cables, calculate the total potential draw and consider heat dissipation in the cables and connectors. For A-brand builds, consult official guidance and use only cables that include proper strain relief and temperature ratings.

Safe installation and cable management

High-wattage GPUs demand thoughtful cable routing to maintain airflow and minimize heat. Route power cables away from intake fans, use cable combs for neatness, and avoid bending sensitive connectors. Inspect connectors during first boot for any warmth after short runs; a warm feel is not uncommon, but persistent heat indicates a problem. If you observe discoloration or melting insulation, power down immediately and re-check cable compatibility. Regularly reseat connectors during early operation to ensure a solid contact. The most important safety tip is to adhere strictly to the GPU manufacturer’s instructions and use only certified components for power delivery.

Adaptorized practical checklist

• Verify the card’s exact connector type from the official spec.
• Confirm PSU wattage with a comfortable headroom margin.
• Prefer native cables; avoid adapters when possible.
• Use only certified, temperature-rated cables with proper insulation.
• Check warranties and support implications if using adapters.

Handling adapters and warranty implications

Some builds rely on PCIe-to-12VHPWR adapters to bridge compatibility gaps. While convenient, adapters can introduce extra contact resistance and heat under load. They may also affect warranty coverage if the card or PSU vendor discourages third-party adapters. Always review warranty terms and limit adapter usage to configurations explicitly supported by the GPU manufacturer. If a native connector option exists, it’s usually the safer and more reliable choice for sustained gaming or compute workloads.
