Type N Connector: Practical RF Coax Guide for DIYers
A practical, expert guide to Type N connectors for RF coaxial work. Learn what they are, how they function, and how to choose, terminate, and install them for DIYers and makers.
Type N connector is a rugged RF coaxial connector with threaded coupling designed for RF applications.

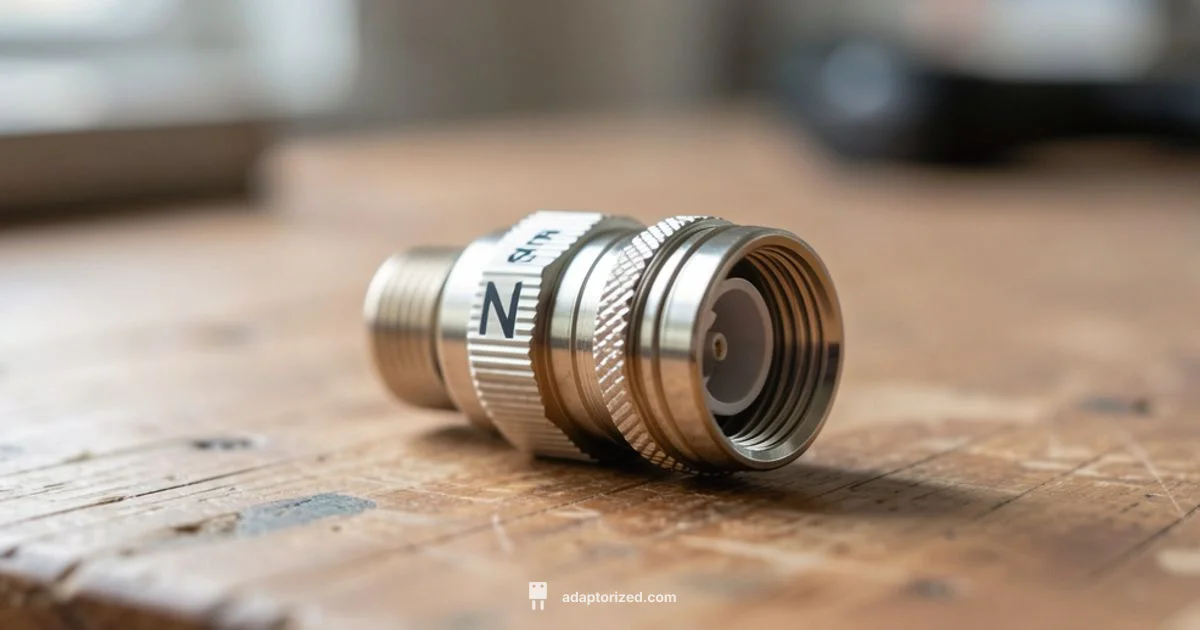

What is a Type N connector?
According to Adaptorized, the type n connector is a rugged RF coaxial connector with threaded coupling designed for RF applications. The Adaptorized team found that this design provides a reliable, weather resistant connection suitable for outdoor deployments and demanding environments. For hobbyists and professionals alike, the Type N family offers a practical balance between robustness and electrical performance. The basic anatomy includes an inner conductor, a dielectric insulator, and an outer conductor that forms the shield, all housed in a threaded body that screws together with its mate. When correctly mated and torqued to spec, Type N connectors deliver repeatable performance across a range of frequencies and cable types. Common variants include 50 ohm and 75 ohm versions, plus panel, bulkhead, and cable-end configurations. In short, the Type N connector is a versatile RF link component that you can rely on in many projects.
Key features and variations
Type N connectors come in several key features and variants that affect suitability for different projects. The strongest points include their threaded coupling, weather resistance, and the availability of multiple mounting styles. Variants are often categorized by impedance (typically 50 ohm for standard RF work and 75 ohm for some video or specialized systems), by mating style (male plug versus female jack), and by environmental rating (weatherproof, indoor, or ruggedized). The threaded connection helps maintain impedance consistency during vibration, while the metal housing provides shielding and durability. For outdoor or harsh environments, look for weatherproof or splashproof versions with robust seals and gaskets. From the perspective of a DIYer, the Type N family offers straightforward mating and a wide range of cables and bulkhead accessories. The Adaptorized analysis shows that selecting the right impedance and weather rating early in the design saves time and prevents rework later.
Your Questions Answered
What is a Type N connector and what is it used for?
A Type N connector is a rugged RF coaxial connector with a threaded coupling used for RF applications. It provides reliable performance in both indoor and outdoor environments and is common in test equipment, base stations, and field installations.
A Type N connector is a durable RF coaxial connector with a threaded coupling, used in many RF setups for reliable performance in various environments.
Is a Type N connector 50 ohm or 75 ohm?
Type N connectors come in 50 ohm and 75 ohm variants to suit different RF systems. Always match the connector impedance to the accompanying cable and equipment to minimize reflections.
Type N connectors are typically 50 ohm or 75 ohm; pick the one that matches your system and cable.
How do you terminate a Type N connector on coaxial cable?
Termination can be done using crimp or solder methods. Use the corresponding termination kit and tooling, ensure proper seating of the shield, and follow manufacturer guidance to avoid impedance mismatches and weak joints.
Terminate with the right tool for your cable, ensuring a clean, secure joint and proper shield seating.
Can Type N connectors be used outdoors?
Yes, many Type N connectors are available in weatherproof or ruggedized versions with seals to prevent moisture ingress. For outdoor use, choose a weatherproof variant and protect exposed interfaces.
Outdoor ready Type N connectors exist; pick weatherproof versions and seal the interface.
What are the common mating versions and thread types for Type N?
Type N connectors use a standard threaded coupling and come in male and female variants. Panel mount and bulkhead styles are common for fixed installations, while cable-end types are used for portable setups.
They come in male and female with threaded coupling, in several mounting styles for different installations.
What are common mistakes when using Type N connectors?
A few common mistakes are impedance mismatch, cross-threading, neglecting seals, and improper termination. These can lead to reflections, moisture ingress, and unreliable connections. Always inspect, clean, and verify mating interfaces.
Mismatched impedance and poor threading or sealing are easy to miss but critical to avoid.
What to Remember
- Choose impedance first to minimize reflections
- Prefer weatherproof variants for outdoor use
- Match mating style to your panel or cable end
- Check sealing and grommet quality for moisture protection
- Use proper termination tools for repeatable results
