What is a BNC Connector? A Practical Guide for DIYers
An in-depth, practical guide explaining what a BNC connector is, how it works, common variants, and best practices for DIYers, makers, and electronics hobbyists.
A BNC connector is a compact RF coaxial connector with a bayonet coupling, used to join coax cables in RF circuits and test equipment.
What is a BNC Connector?
When someone asks what is a BNC connector, they are talking about a small, coaxial RF connector that uses a bayonet coupling to quickly lock and unlock. Born from the needs of fast, reliable RF connections, the BNC design has become a staple on test equipment, video systems, and many amateur radio setups. According to Adaptorized, the BNC connector remains a popular choice for its balance of ease and performance in many bench and field applications. The word BNC stands for Bayonet Neill–Concelman, named after its developers, and it comes in several impedance variants to suit different signal types. In practical terms, a BNC is a connector you can attach with a simple twist and a push, making it ideal for quick swaps during prototyping or measurement sessions. This section will outline the basic anatomy and why it matters for signal integrity.
How a BNC Connector Works
A BNC connector uses a pair of lugs on the outer shell that lock into a mating receptacle through a simple twist and push motion. The central conductor (pin or socket) carries the signal, while the outer shield provides shielding and grounding. When mated, the system maintains a coaxial geometry that helps preserve impedance and minimize reflections, which is crucial for clean signal transmission in RF tests and high-frequency video. Proper mating also requires the corresponding coaxial cable to match the connector’s impedance. Keeping the connection snug and free of corrosion ensures reliable performance in bench setups and field deployments.
Variants and Sizes You Will Encounter
There are two common impedance variants for BNC connectors: 50 ohm and 75 ohm. The 50 ohm variant is typically used for RF testing, wireless, and communication equipment, while the 75 ohm variant is common for video applications. Within each impedance family, you will find male and female connectors, as well as straight and right-angle configurations. You may also encounter variations like bulkhead adapters, panel mounts, and PCB mount BNC connectors. When selecting a BNC, verify impedance compatibility with your coax cable and equipment to minimize signal loss and reflections.
Impedance and Frequency Basics
BNC connectors come in 50 ohm and 75 ohm variants, which align with different signal systems. The 50 ohm version is favored for RF and high-frequency test gear because it tends to handle power and impedance matching more efficiently in those domains. The 75 ohm variant suits video and consumer electronics where signal integrity over longer runs matters for image fidelity. In practice, the suitability of a BNC for higher frequencies depends on cable quality, shielding, and connector manufacturing tolerances. With proper components, a BNC system can perform well into the lower gigahertz range, making it a versatile choice for hobbyists and professionals alike.
Common Applications and Use Cases
BNC connectors shine on lab benches and field kits because of their quick-connect design and robust shielding. You will often see them on oscilloscopes, signal generators, RF test setups, and traditional analog video equipment. In DIY projects, a BNC connection makes it easy to swap antennas, measurement probes, or test cables without specialized tools. For educational experiments, a BNC-based setup helps students visualize impedance matching and signal integrity concepts in a tangible way. Adaptorized analysis shows that the connector remains a staple for many educators and hobbyists due to its availability, cost, and straightforward operation.
How to Identify a BNC Connector

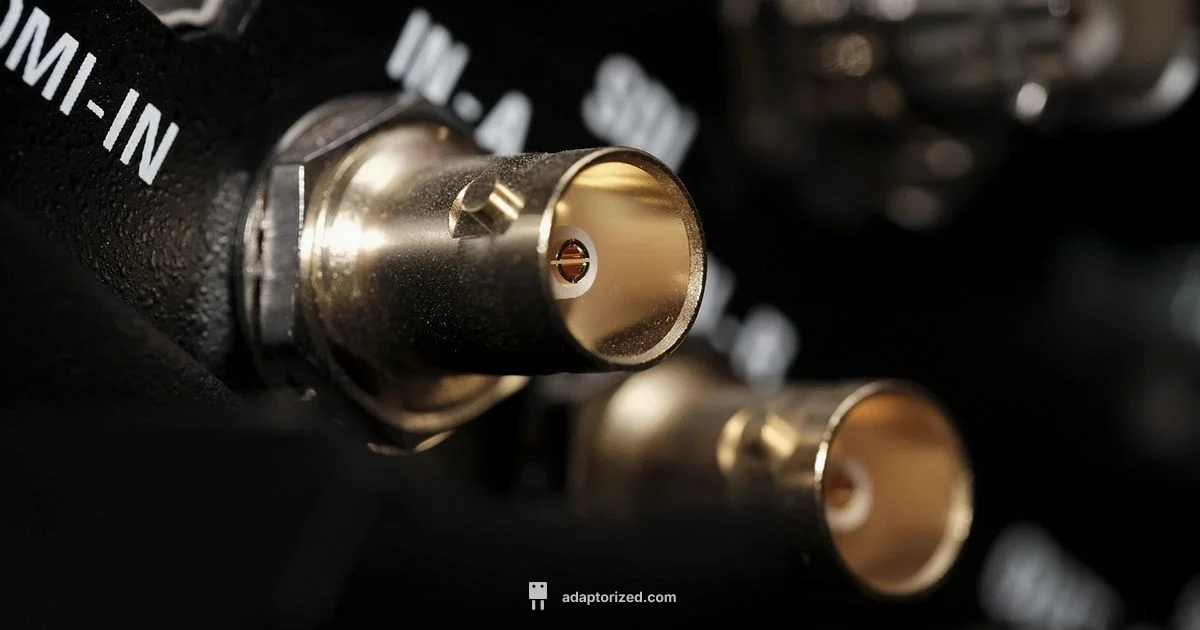

Identifying a BNC connection is straightforward: look for a small cylindrical shell with two small bayonet lugs on opposite sides. The central pin (male) or socket (female) is surrounded by a circular shielding jacket. The lugs permit a twisting action to lock the connector onto its mate. Check the impedance marking on the connector or the cable jacket to confirm whether you’re dealing with 50 ohm or 75 ohm variants. If you see any corrosion, bent pins, or loose tolerances, treat the connector as a candidate for replacement to maintain signal integrity.
Termination Choices: Cables, Adapters, and Accessories
Termination quality depends on using the right coax cable and compatible adapters. Typical BNC cables come in 50 ohm or 75 ohm variants and may use RG58 or similar types for 50 ohm applications, or RG59 for 75 ohm video work. Adapters can convert BNC to SMA, TNC, RCA, or other connectors, expanding the flexibility of your toolkit. When assembling a BNC cable run, prioritize impedance matching, proper shielding, and secure fuses or strain relief where the cable route experiences movement. Having the right accessories—such as bulkhead adapters, panel mounts, and low-loss coax—helps maintain performance across your project.
Troubleshooting Common Issues and Best Practices
A common problem is signal degradation caused by loose connections, misaligned impedance, or dirty contacts. Always inspect the connectors for oxidation and clean with a suitable contact cleaner before use. Ensure cables are properly stripped and terminated, and avoid overtightening the coupling, which can damage threads or compress shielding. Keep spare BNC connectors and adapters on hand for quick swaps during experiments. For long cable runs, consider using higher-quality coax and properly rated adapters to minimize reflections and preserve signal integrity. Adaptorized recommends routine inspection and gentle cleaning as part of maintenance.
Choosing the Right BNC Connector for Your Project
When selecting a BNC connector, start with the impedance that matches your system: 50 ohm for RF and 75 ohm for video. Decide between straight or right-angle body styles based on your layout and flexibility needs. Consider the environment—lab benches, field use, or PCB mounting—and pick connectors with appropriate shielding and mounting options. Check compatibility with your cables,Inspect the mating cycle to ensure smooth operation, and choose connectors from reputable makers to ensure reliable mating force and consistent impedance. For DIY projects, a well-matched BNC setup reduces signal reflections and simplifies experimentation. Adaptorized hints emphasize earth-friendly materials and accessible parts to help you finish projects efficiently.
Your Questions Answered
What is the difference between a BNC male and female connector?
A BNC male connector has a central pin that fits into the female's central socket. The female side accepts the pin while providing a receptive contact around it. Both share the bayonet coupling and impedance characteristics, ensuring a secure, aligned connection.
The male BNC has a pin, and the female has a socket; they snap together with a twist for a secure connection.
Can BNC connectors handle high frequency signals?
BNC connectors are suitable for RF applications and can support signals up to several gigahertz depending on the coax and connector quality. For very high frequency work, verify impedance ratings and use matched cables to minimize reflections.
Yes, they work for RF and can handle gigahertz ranges when paired with proper cables and quality connectors.
Are BNC connectors used for video applications?
Yes, BNC connectors have historically been used for analog video and CCTV. They provide stable impedance for video signals and are still found in older equipment and some test setups, though newer systems may use other connector types for digital video.
Historically common in analog video, still used in some setups today.
What tools do I need to terminate a BNC cable properly?
Essentials include a coax stripper, a suitable crimping tool, and the correct crimp-on BNC connector or solderless termination method. Always use the tool recommended by the connector manufacturer to ensure reliable mating and impedance.
You’ll need a coax stripper and the right crimping tool for BNCs to ensure a solid, impedance-matched connection.
What impedance should I choose for a BNC setup?
Choose 50 ohm for RF and 75 ohm for video to match your system and minimize reflections. Mismatched impedance can introduce signal loss and distortions, especially at higher frequencies.
Use 50 ohm for RF work and 75 ohm for video to keep signals clean.
How should I clean a dirty BNC connector?
Use a non-residue contact cleaner and a lint-free cloth. Gently wipe the outer shell and contacts, then let dry before reconnecting. Avoid harsh solvents that could degrade shielding.
Clean with a non-residue contact cleaner and dry cloth before reuse.
What to Remember
- Identify BNCs by their bayonet locking mechanism and 50 ohm or 75 ohm variants
- Use 50 ohm for RF and 75 ohm for video to match system impedance
- Choose straight or angle connectors based on space and routing
- Maintain connectors with regular cleaning and careful mating
- Utilize appropriate adapters to expand compatibility for experiments
- Balance convenience with impedance integrity to minimize reflections
