Connector for LED Strip Lights: A Practical DIY Guide
Learn how to choose and install the right connector for LED strip lights, with practical steps, safety tips, and troubleshooting guidance from Adaptorized.
This guide helps you select and install the correct connector for LED strip lights, ensuring safe, reliable power delivery and clean finishes. You’ll learn how to verify compatibility, compare soldered and solderless options, and perform a safe, step-by-step installation. Requirements include compatible two-pin or four-pin connectors, appropriate voltage handling, and the right basic tools.
Why a proper connector matters for LED strip lights
Choosing the right connector for LED strip lights isn’t just about neatness; it directly affects performance and safety. A reliable connector ensures secure electrical contact, preserves polarity, and minimizes voltage drop along the strip. The right connector also helps prevent intermittent flicker and corrosion at exposed joints. According to Adaptorized, mismatch between the strip and connector is one of the most common beginner mistakes in DIY lighting projects. The phrase 'connector for led strip lights' represents a family of interconnects designed to join segments, power supplies, and accessories while maintaining consistent brightness and color. When you pick a connector that matches your strip’s pitch, voltage, and pin count, you reduce troubleshooting time and improve durability over years of use. In short, the connector is not an afterthought—it's a critical part of the system.
Tools & Materials
- Wire stripper(Nibble insulation off conductors to expose clean copper ends.)
- Diagonal cutters(Trim strip ends and remove any excess copper safely.)
- Soldering iron(Needed for soldered connections and to tin exposed copper.)
- Solder(Use rosin-core solder for reliable joints.)
- Heat shrink tubing(Insulate and seal joints against moisture and dust.)
- Crimping tool(Essential for crimp-style/solderless connectors.)
- Multimeter(Test continuity and verify correct polarity before powering.)
- Electrical tape(Optional for extra insulation and strain relief.)

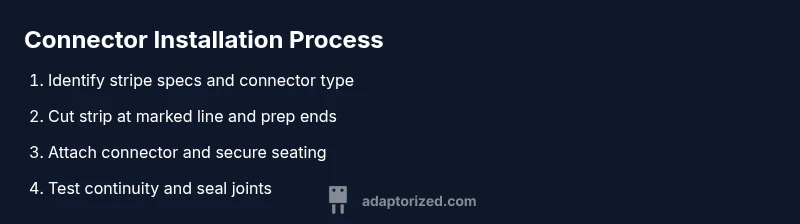

Steps
Estimated time: 45-60 minutes
- 1
Identify strip specs
Review the LED strip’s voltage, pin count, and cut markings. Confirm whether your project uses 2-pin or 4-pin connectors and note any RGB channel ordering or polarity indicators. This ensures you select a compatible connector before cutting or making any joints.
Tip: Always confirm voltage and pin configuration from the strip’s documentation. - 2
Plan your cut and route
Decide where the strip will be joined or powered, and mark the exact cut lines on the copper pads. Plan the run so the connector sits cleanly at a corner or junction without bending the strip excessively.
Tip: Avoid cutting near power pads or over factory cut lines to prevent unreliable connections. - 3
Cut the strip accurately
Using sharp scissors or a suitable knife, cut on the marked line. Ensure the cut is straight to maximize contact area with the connector.
Tip: A straight cut improves seating and reduces risk of poor contact. - 4
Prepare the ends
Expose a clean section of copper on the strip ends; remove any oxidation or stubborn coating with a quick wipe of isopropyl alcohol.
Tip: Good copper contact is essential for consistent current transfer. - 5
Attach the connector
For soldered joints, tin the copper ends and solder to the connector as per device instructions. For solderless connectors, insert the strip ends into the clamp or crimp contacts until fully seated.
Tip: Ensure correct orientation; misaligned polarity can damage the strip. - 6
Seal and insulate
Slide heat shrink over the joint and apply heat evenly to seal. If outdoor use is planned, add an extra layer of protection with appropriate sealant or a weatherproof housing.
Tip: Moisture protection extends connector life in challenging environments. - 7
Test the connection
Power the strip at a low setting and observe brightness and color. Use a multimeter to verify continuity from the power source to the strip connectors.
Tip: Testing at low power prevents damage if the joint is weak. - 8
Route and secure
Mount the strip with clips or adhesive, guiding cables away from heat sources and sharp edges. Ensure the connector remains accessible for future maintenance.
Tip: Leave a small slack for thermal expansion and movement.
Your Questions Answered
Can I reuse old connectors on new LED strips?
Reuse is possible if the connector still grips the strip firmly and the pin alignment matches. Inspect for corrosion or bent contacts, and replace if any doubt remains about reliability.
You can reuse connectors if they grip well and the pins line up, but check for corrosion first.
Are waterproof connectors necessary for outdoor LED strips?
Outdoor installations benefit from waterproof or weatherproof connectors designed for exposure. They reduce moisture ingress and prolong life, especially in damp or rain-prone areas.
Yes, outdoor setups should use waterproof connectors to protect against moisture.
How do I choose the right connector for RGB LED strips?
For RGB strips, use a four-pin connector that matches the strip’s pinout and color order. Incorrect alignment can cause color misrepresentation or damage.
Use a four-pin connector that matches the strip’s RGB order.
Is soldering always required for LED strip connections?
Not always. Soldering provides maximum reliability, but solderless options are convenient for quick projects. Choose based on permanence and environment.
Soldering isn’t always required; it depends on how permanent and reliable you need it to be.
What if the connector won’t grip the strip?
Check that the strip end is clean and fully inserted, and ensure the correct connector size. If needed, reseat or replace with a compatible connector.
If it won’t grip, reinsert firmly or try a compatible connector.
Can I cut LED strips to fit odd angles and still use a connector?
Yes, but cut only on marked lines and choose connectors designed for corner or angled joints to maintain continuity and avoid gaps.
You can cut and reattach with the right angled connectors.
Watch Video
What to Remember
- Choose a connector that matches strip type, voltage, and pin count
- Prep ends cleanly and cut on marked lines for best contact
- Soldered joints offer reliability; solderless options save time but may loosen over time
- Test continuity and polarity before powering up the system
- Seal outdoor joints to prevent moisture ingress and corrosion
