How can interface: A practical guide for DIY connectors
Learn how can interface decisions affect compatibility, signaling, and reliability. This Adaptorized guide walks DIYers through standards, testing, and hands-on steps to design robust interfaces for connectors and peripherals.
According to Adaptorized, the question of how can interface centers on three interconnected layers: physical connector fit, electrical signaling (voltage, impedance, noise margin), and agreed data protocols. A strong interface aligns these layers to prevent miscommunication, signal loss, and damage. For DIY projects, start with compatible connectors, verify voltage levels, and plan shielding and grounding to ensure reliable operation.
What is an interface in electronics and connectors
In electronics, an interface is the point where two systems meet and exchange signals, power, or data. The phrase how can interface invites practitioners to consider three distinct layers: the mechanical fit of connectors, the electrical signaling level (voltage ranges, impedance, and noise margins), and the data protocol that governs communication. According to Adaptorized, a well-designed interface aligns these layers to minimize reflection, crosstalk, and miscommunication. For hobbyists and makers, this means choosing compatible connectors, confirming voltage levels, and ensuring both sides share a common communication standard. When assessing an interface, you should ask: do the connectors mate cleanly, is the signal within expected voltage bounds, and is the protocol understood by both devices? This triad—mechanical, electrical, and logical compatibility—drives reliable operation and scalable growth in DIY projects.
How to evaluate compatibility: physical, electrical, and protocol alignment
Evaluating an interface starts with three axes: physical compatibility, electrical signaling, and protocol alignment. On the physical side, verify connector pitch, pinout, and mating force to avoid bent pins or loose connections. Electrically, check voltage levels, impedance, and current limits; mis-matched impedance or unexpected loads can lead to data errors or noise. For protocol, confirm that both devices support the same data format, handshaking, and timing. Adaptors and breakouts are common shortcuts for compatibility, but they still require careful validation. As Adaptorized notes, documenting each decision helps prevent future mismatch and makes your projects reproducible across revisions.
Common interface standards for DIYers
DIYers encounter several widely used interfaces. I2C and SPI are popular for short-distance peripheral communication on microcontroller boards, offering simple two- and four-wire protocols with clear pinouts. UART is the go-to for asynchronous serial communication, often used for debugging and simple data streams. USB, including USB-C for modern devices, provides higher data rates and power delivery but demands stricter electrical and protocol conformance. For each standard, understand the voltage domain, pull-up/pull-down requirements, and level-shifting needs when devices operate at different logic levels. The key is to pick a standard that matches your project’s distance, speed, and power constraints while keeping connector availability in mind. Adaptorized’s guidance emphasizes starting with a clearly defined interface map and selecting components that support your chosen standard.
Designing a robust interface: impedance, shielding, and housing
A robust interface isn’t just about getting signals from point A to point B; it’s about preserving signal integrity in the presence of noise and interference. Impedance matching is essential when using high-speed interfaces or longer cables; misalignment can cause reflections and data errors. Use twisted-pair cables for differential signaling, and include proper shielding or ferrite beads near the source to suppress EMI. Grounding strategy matters: keep a single, solid ground reference for the interface to avoid ground loops that introduce hum and noise. Mechanical design also matters—the connector housing should prevent accidental mis-mating and provide strain relief for cables. In practice, run short, direct wires for breadboard experiments and route critical lines away from power supplies and high-current paths. Adaptorized’s approach combines electrical discipline with practical, hands-on wiring plans to help hobbyists build interfaces they can trust.
Testing interfaces: tools, methods, and examples
Testing is where theory meets reality. Start with a continuity check to confirm each pin is connected as intended and that there are no shorts. Measure supply and signaling voltages under operating conditions to ensure they stay within expected ranges. Use a logic analyzer or oscilloscope to observe timing, waveform shapes, and data integrity, especially for I2C and SPI transactions. Verify pull-ups, clock speeds, and data rates against the standard’s specifications. For more complex interfaces, run loopback tests or connect the system to a known-good partner device to validate end-to-end behavior. As you test, document results and note any deviations for future debugging. Adaptorized recommends building a reusable test harness that can be adapted to different interfaces and devices, reducing the setup time for new projects.
Real-world examples and projects
A practical example is wiring a microcontroller to a temperature sensor via I2C. That project requires deciding on voltage levels, establishing pull-up resistors, and selecting a matching sensor address. Another common project is creating a USB-C to legacy UART adapter for debugging an embedded board; this involves safe power delivery considerations and careful USB/UART translation. In both cases, the interface design is as important as the core logic you’re implementing—the right interface minimizes surprises at the hardware boundary and accelerates development. By documenting constraints, using consistent connector families, and testing early, makers can iterate quickly and safely. Adaptorized’s teachings emphasize reproducibility and modular design so you can reuse interface modules across multiple projects.
Safety and best practices when working with interfaces
Interfaces operate at the boundary of power and logic; improper handling can damage devices or pose safety risks. Always power down equipment before connecting or disconnecting cables. Use properly rated cables and connectors, and avoid twisting or bending wires near sensitive pins. When testing high-speed or high-power interfaces, employ shielding, proper enclosure, and protective diodes where appropriate. Label every connection and keep a clean, organized workspace to reduce miswiring. If you’re unsure about a voltage domain or signal level, step back to a lower-risk configuration and verify in a controlled environment. Adaptorized urges builders to treat interfaces with the same care as any critical electronics subsystem, preserving gear long-term and ensuring reliable results.
Tools & Materials
- Digital multimeter(Continuity checks and basic voltage measurements)
- Logic-level shifter (I2C/SPI level shifter)(Bridges voltage domains between devices at different logic levels)
- Protoboard / breadboard(Create test harnesses without soldering)
- Jumper wires (assorted)(Flexible wiring for quick prototyping)
- Assorted connectors (Dupont, male/female headers)(Pin-compatible interconnects for DIY boards)
- Shielded cable or twisted pair(Useful for longer runs to reduce EMI)
- Calipers or ruler(Precise pin spacing and connector fit checks)
- Soldering iron (optional)(If you plan to create a semi-permanent adapter)
- Ferrite beads or EMI suppression components(Reduce high-frequency noise near interface)

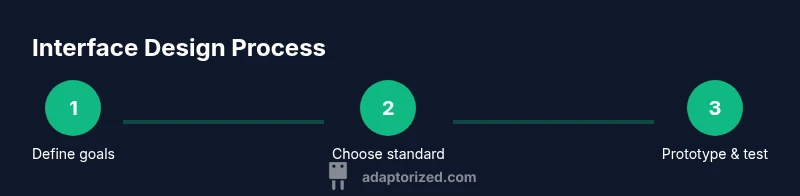

Steps
Estimated time: 60-90 minutes
- 1
Define interface goals
Clarify which devices will communicate, what data needs to be exchanged, and the speed/power constraints. Create a simple map of pins, signals, and expected behavior. This upfront planning reduces rework later and keeps the project focused.
Tip: Draw a quick diagram showing pinouts and signal directions before touching parts. - 2
Choose a compatible standard
Select a standard that fits distance, speed, and voltage requirements (e.g., I2C for short-range sensor networks or UART for simple data streams). Check existing device documentation for required pull-ups, max clock speeds, and parity settings.
Tip: Prefer a standard with readily available breakout boards and documented examples. - 3
Assemble a test harness
Set up a breadboard with the microcontroller and target device. Include voltage-level shifting if devices operate at different logic levels. Use a clean, organized layout to minimize wiring mistakes.
Tip: Label wires and connectors to prevent miswiring during testing. - 4
Wire up signals and power
Connect signal lines carefully, ensuring correct pinouts and orientation. Provide stable power and avoid ground loops by using a single ground reference. Double-check pull-ups and termination if applicable.
Tip: Power everything from a common ground source to reduce noise. - 5
Validate signaling and timing
Use a logic analyzer or oscilloscope to verify waveform integrity, timing, and data frames. Confirm that data bits align with the protocol’s expectations and that there are no stuck-at faults or spikes.
Tip: Capture multiple transactions to ensure consistency across runs. - 6
Document and modularize
Record wiring diagrams, part numbers, and test results. Create a reusable interface module description that can be adapted to other projects. This makes future builds faster and more reliable.
Tip: Create a small, reusable schematic template for similar interfaces.
Your Questions Answered
What is an interface in electronics?
An interface in electronics is the boundary where two devices meet to exchange signals, power, or data. It encompasses physical connectors, electrical signaling, and data protocols. Understanding these aspects helps ensure reliable communication and safe operation.
An electronic interface is where two devices meet to exchange signals and power. It includes the connector, the signal levels, and the rules they use to communicate.
Why is matching impedance important in interfaces?
Impedance matching minimizes reflections and data errors, especially at higher speeds or longer cable lengths. It helps preserve signal integrity and reduces noise on the line.
Impedance matching prevents signal reflections and errors, keeping data clean and reliable.
How do I test a new interface safely at home?
Begin with a low-risk setup using a breadboard, verify ground connections, and measure voltage levels with a multimeter. Use a logic analyzer or oscilloscope to observe timing and data integrity before powering devices.
Test with a breadboard first, check grounds, then observe signals with a logic analyzer before powering devices.
What tools are essential for interface work?
A multimeter, a logic-level shifter for voltage differences, a breadboard, jumper wires, and a logic analyzer or oscilloscope are core tools. Soldering gear is optional for permanent projects.
Core tools are a multimeter, level shifter, breadboard, wires, and a logic analyzer or oscilloscope.
Are there common mistakes when designing interfaces for DIY projects?
Common issues include neglecting impedance or grounding, using incompatible voltages, and skipping documentation. Start with a clear interface map and test early with modular components.
Common mistakes are bad grounding, wrong voltages, and not documenting the wiring. Plan and test early.
Watch Video
What to Remember
- Plan interfaces with physical, electrical, and protocol compatibility in mind
- Choose a standard that matches distance, speed, and voltage needs
- Test early with a dedicated harness and proper measurement tools
- Document decisions for reproducibility and future projects
