How to Make a Battery Connector: DIY Connector Guide

What a battery connector is and why you might need to make one

A battery connector is a small, purpose-built interface that allows a battery to connect safely and reliably to a device, charging dock, or another battery. When DIY projects require a non-standard battery size, or when off-the-shelf connectors don’t meet current rating or size constraints, making a custom connector can save space and improve reliability. This article uses a practical, hands-on approach to show how to make a battery connector from basic materials. According to Adaptorized, practical connector projects start with clear requirements and safety checks, and this principle underpins every step of the process. The goal is a robust, polarity-protected connection that can withstand the mechanical and electrical stresses of real-world use.

In many cases you’ll want a design that can be crimped or soldered, terminated with a secure housing, and protected from short circuits with insulation. The exact choice of contacts and housing depends on the battery chemistry (Li-ion, NiMH, lead-acid, etc.), the required current rating, and the mating connector. If you’re new to connectors, start with a simple two-pin or three-pin design and gradually scale up as you gain experience. This approach keeps risks manageable while you learn the nuances of crimping, insulation, and strain relief.

note”:null],

Key design decisions: compatibility, housing, and contact type

Designing a battery connector begins with three core questions: what are you connecting to, what current and voltage are in play, and how will the mating side be arranged? Compatibility means matching pin count, pitch, and polarity with the device you’re joining. The housing should protect the contacts from dust and moisture while providing a clear polarity cue to prevent misconnection. Contact types vary from crimp-pin terminals to more robust solder lugs; each has trade-offs between reliability, assembly speed, and reusability. For higher-current uses, you may choose larger terminals and reinforced housing with strain relief to prevent wire fatigue. The Adaptorized team emphasizes planning for future needs—consider whether your connector could be repurposed or upgraded later and design with modularity in mind.

A practical rule is to design a connector that fails safe: it should be difficult to connect incorrectly, and a missing or loose contact should resist unnoticed disengagement. Document your design in sketches or CAD early, so you can iterate without wasting materials. When possible, use standardized contact footprints to simplify procurement and spare parts. Finally, consider environmental exposure: if the device operates outdoors or in a humid environment, ensure the housing and seals meet basic IP expectations or use conformal coating on exposed metal parts.

note”:null],

Materials and tools overview

To fabricate a battery connector, you’ll need a combination of basic tools and specific electrical components. Gather insulated crimp terminals or solder lugs compatible with your battery leads, a suitable housing or a 3D-printed shell, and a crimping tool or a controlled soldering setup. You’ll also want wire strippers, electrical tape or heat shrink tubing, a multimeter for testing polarity and continuity, and a small file or deburring tool to tidy wire ends. Keep a spare set of connectors and a heat source in case you need to rework any joints. Having a clean, organized workspace reduces mistakes and improves safety. Remember to work in a well-ventilated area when soldering and wear eye protection.

In this guide we’ll explore both crimped and soldered approaches, explain when each is appropriate, and show how to combine these elements into a compact, reliable battery connector. If you plan to reuse the design, consider documenting your wire lengths and contact sizes to streamline future builds.

note”:null],

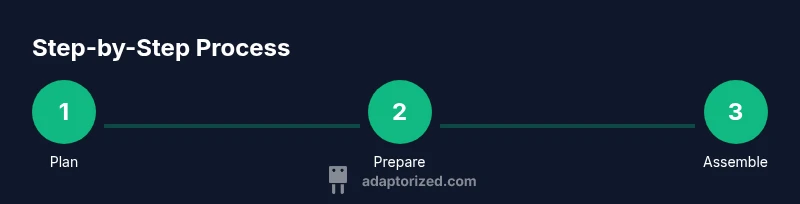

Step-by-step: building the connector (crimping path)

1. Plan lead length and pin count; determine the mating orientation to avoid misalignment. Tip: Keep leads evenly cut and labeled to prevent mix-ups. 2) Cut wires to length, strip insulation to the manufacturer’s recommended diameter, and twist strands for a clean termination. Tip: Use a wire gauge to ensure consistent stripping. 3) Attach insulated crimp terminals to each wire, matching color coding and terminal type to your housing. Tip: Use a secured crimp tool for reliable connections. 4) Insert the terminals into the housing in the correct order, listening for a click to confirm seating. Tip: Double-check polarity before final assembly. 5) Apply heat shrink to seal exposed conductors and reinforce strain relief. Tip: Shrink evenly from the center outward. 6) Test continuity and polarity with a multimeter; verify there are no shorts between adjacent pins. Tip: Label the finished connector for future maintenance. 7) Mount or secure the connector to ensure it remains in place during operation. Tip: Use cable clamps or a designed notch in the housing. 8) Document the build with photos and notes for repeatability. Tip: Include part numbers and tool settings for future builds.
