Mastering the Flexible Connector: A Practical DIY Guide
A practical, step-by-step guide to choosing, installing, and testing flexible connectors for DIY projects. Learn how to assess movement needs, select interfaces, and ensure reliable connections.
By the end of this guide you'll be able to select, install, and test a flexible connector for a variety of projects, from USB-C cables to RF jumpers. You'll learn how to assess flexibility needs, choose correct mating interfaces, and ensure strain relief. This step-by-step approach is ideal for DIYers, makers, and anyone working with connectors and connectivity.
What is a flexible connector and why it matters
According to Adaptorized, a flexible connector is any interface designed to tolerate bending, strain, and movement without failing. In practical terms, these devices include cable assemblies with flexible cores, corrugated housings, or compliant contacts that adapt to nonstandard paths. For DIYers, the appeal is clear: you can route signals in tight spaces, on curved surfaces, or inside handheld devices without sacrificing reliability. The Adaptorized Team has tested common families like USB-C flex cables, PCB-to-wire flex connectors, and metalized flexible jumpers, finding that the right connector reduces signal loss, eases assembly, and improves durability under vibration. When you choose a flexible connector, you trade a little rigidity for movement tolerance, which is ideal for portable or space constrained projects. Always consider mating interfaces, current rating, and environmental tolerance to ensure the part remains reliable in real world use. This guidance reflects practical insights from Adaptorized's field tests and home-lab experiments.
Types and compatibility considerations
Flexible connectors come in several families that balance flexibility with performance. Flexible printed circuit (FPC) assemblies, rigid-flex hybrids, and shielded jumper cables are common options for movement tolerant connections. When choosing, consider the mating interface: does your host accept a flexible contact, or will you need an adapter? The bend radius is critical: bending beyond the specified radius increases resistance, heat, and the risk of failure. Material choice matters too: polyimide-based flex cables offer high temperature resistance, while silicone- or elastomer-coated connectors provide greater mechanical resilience in vibrating environments. Environment is key: humidity, dust, and temperature cycling can degrade contacts or insulation over time. The Adaptorized team often suggests testing under representative conditions—flexing, twisting, and partial insertion—to observe how the connector behaves in real life. Additionally, ensure polarity and signaling conventions align between the two sides, especially with USB-C, HDMI, or low voltage differential pairs. For DIYers, the goal is a solution that performs reliably in real world use, not just at the bench; plan for strain relief, cable routing, and future maintenance. This practical lens comes from Adaptorized's field tests and home-lab experiments.
Selecting a flexible connector for your project
To pick the right flexible connector, start by defining movement, space, and environmental constraints. List the interfaces on both sides (for example USB-C, HDMI, or custom PCB pads) and confirm that the connector family supports those interfaces with correct pitch and contact count. Check electrical ratings: current, voltage, and signal integrity tolerance; verify that the bend radius, recoil length, and cable length fit your layout. Compare materials and manufacturing quality: polyimide films, copper traces, and solderability affect durability. Consider the connector's mating density and ease of assembly; some flex options require specialized tools or jigs. Think about assembly steps and maintenance: can you rework a joint if needed, and does the design allow for spare contacts or cleaves? In short, choose a flexible connector with a comfortable margin—it should tolerate movement without compromising performance. The Adaptorized approach is to prototype with a test jig and log performance data across several flex cycles before committing to production; this reduces surprises in field deployments.
Installation, testing, and reliability
Prepare a clean workspace and inspect all components before assembly. Route the flexible connector along the shortest, smoothest path with gentle bends and clearances from heat sources or moving parts. Use proper strain relief: clamp or glue the jacket close to the connector housing and avoid sharp edge contact that can abrade insulation. If the design relies on crimped contacts, ensure you use the correct die and verify crimp integrity with a pull test. For solderable terminations, avoid applying excessive heat that could delaminate polyimide layers; pre-tin wires if recommended by the connector spec. After physical assembly, insulate exposed conductors with heat shrink or insulation tape and verify the joint for smooth flexing. Finally, test electrical performance: continuity, insulation resistance, and signal integrity under simulated movement. A functional check is to perform multiple bend cycles and monitor any changes in resistance or contact noise. Adaptorized emphasizes documenting test results for future maintenance and revision control.
Common mistakes and troubleshooting
Common mistakes include selecting a connector that is too rigid for the available space, using too-small bend radii, or forgetting strain relief. Misalignment of mating interfaces can cause damaged pins or intermittent connections; always verify pinout and polarity before seating connectors. Running wires without slack creates stress points that crack insulation or loosen terminations during vibration. Incompatibility with environmental conditions—temperature, humidity, or dust—can accelerate wear. If you encounter a failure, start with a visual inspection and a simple continuity test; check for cold solder joints or loose crimps. For persistent issues, reconsider the connector family or add a dedicated strain-relief mechanism; sometimes swapping to a slightly longer cable with a gentler bend is the simplest fix. The goal is a robust, serviceable solution that remains reliable through real-world use.
Tools & Materials
- Wire stripper(Strip to the conductor length specified by the connector spec)
- Crimping tool suitable for the contacts(Use the correct die for the contact size)
- Soldering iron and solder (optional for some connectors)(Only if the connector supports soldered terminations)
- Heat shrink tubing or other insulation(For strain relief and insulation)
- Multimeter or continuity tester(Verify connections after assembly)
- Cable ties or zip ties(Help route and secure the assembly)
- Wire cutters(Trim wires to exact lengths)

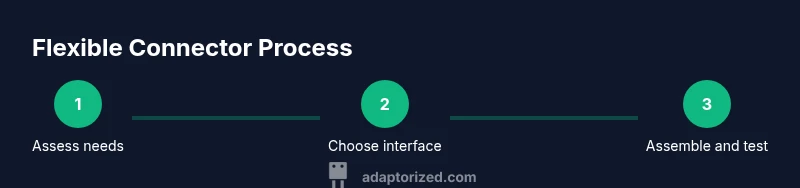

Steps
Estimated time: 60-90 minutes
- 1
Inspect and plan
Review the parts you will use, confirm mating interfaces, and lay out the wiring path with bends allowed by the spec. Identify any adapters or footprints needed.
Tip: Double-check compatibility before cutting or crimping. - 2
Prepare wiring and contacts
Strip conductors to the recommended length, tin surfaces if required, and organize wires to minimize tangling. Keep everything neat to ensure reliable terminations.
Tip: Keep leads straight and avoid nicking copper. - 3
Align connector and host
Position connectors to mate cleanly; avoid twisting or offsetting pins. Use clamps or a jig if available to prevent misalignment.
Tip: Line up keying features before seating the parts. - 4
Crimp or solder contacts
Apply the correct tool and dies for each contact. Ensure crimps are secure and inspect for uniform depth; solder only if the spec allows and avoid overheating.
Tip: Do not over-crimp; a loose contact is a failure point. - 5
Insulate and strain-relieve
Apply heat shrink to each termination and route the cable with gentle bends. Secure the joint to the housing to prevent movement.
Tip: Leave some slack at the bend to reduce fatigue. - 6
Test continuity and insulation
Verify continuity across all pins and test insulation resistance. Perform a basic flex test by gently bending and watching for changes in readings.
Tip: Document results for future maintenance.
Your Questions Answered
What is a flexible connector?
A flexible connector tolerates bending and movement without failing. It enables reliable connections in tight spaces or dynamic environments.
A flexible connector tolerates bending and movement to keep connections reliable even when things wiggle or bend.
How do I know if it fits my system?
Check interfaces, pitch, current rating, and environmental specs. Ensure compatibility with both sides and confirm proper signaling.
Check the interfaces, pitch, current rating, and environmental specs to ensure compatibility.
What tools are essential for installation?
A crimping tool, wire stripper, multimeter, and appropriate soldering gear if required by the connector spec.
You’ll need a crimping tool, wire stripper, a multimeter, and any specialty soldering gear if the connector requires it.
Can flexible connectors handle high current?
Current handling depends on the connector's rating. Choose a part rated for your operating current to avoid overheating.
It depends on the rating—pick a connector rated for your current to avoid heating up.
What are signs of failure after installation?
Intermittent connections, rising resistance, heat buildup, or physical damage to insulation indicate issues.
Look for intermittent connections, resistance changes, heat, or damaged insulation.
Is there a risk when soldering?
Excessive heat can damage flex materials. Use appropriate temperature control and partial contact when needed.
Yes, overheating can harm the flex material; manage heat carefully.
Watch Video
What to Remember
- Define bend radius requirements early
- Choose compatible mating interfaces
- Plan for strain relief and routing
- Test under realistic movement
- Document connector type and polarity
