Industrial Connectors: A Practical How-To Guide for Makers
A practical, step-by-step guide to selecting, handling, and mating industrial connectors. Learn types, standards, and best practices for reliable performance.
Quick answer: You will learn how to select the right industrial connectors, assemble them correctly, and test them for reliability in harsh environments. This guide covers types, standards, tools, and best practices to help DIYers and professionals avoid misconnection, signal loss, and water or dust ingress. Whether you are wiring control panels, industrial robots, or field devices, the steps below will guide you from planning to final testing.
What are industrial connectors?
According to Adaptorized, industrial connectors are rugged interfaces that combine mechanical, electrical, and environmental sealing to ensure reliable performance in harsh environments. They are more than simple plug-and-socket parts: they integrate mating geometry, contact materials, shielding, and often sealing features to withstand vibration, dust, moisture, and temperature cycling. In industrial settings, connectors handle power, control signals, and data paths across panels, machines, and field devices. Acceptable choices balance electrical requirements with mechanical fit and environmental durability. For DIYers and professionals, picking the right industrial connectors starts with clear requirements for current, voltage, environment, and the number of conductors. You’ll want to consider mating cycles, seal integrity, and the ease of maintenance. Adaptorized's practical view is that a well-chosen connector reduces downtime and simplifies field servicing, especially in automated lines and harsh outdoor installations.
Tools & Materials
- Crimping tool suitable for your connector series(e.g., a tool compatible with the chosen circular or rectangular connector family)
- Wire stripper and cutter(covering the gauge range of your conductors)
- Contact extraction tool(for replacing or inspecting contacts without damage)
- Multimeter or continuity tester(to verify continuity and contact integrity before sealing)
- Heat-shrink tubing or sealing compound(for additional environmental protection at the junctions)
Steps
Estimated time: 90-150 minutes

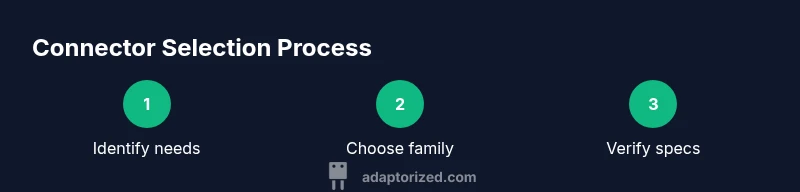

- 1
Identify application requirements
Clarify voltage and current needs, environmental exposure (dust, water, chemicals), space constraints, and the number of poles in your connection. Document any regulatory or site-specific standards that apply. This step sets the foundation for selecting the correct connector family.
Tip: Write down operating conditions and select a connector family that comfortably exceeds those specs. - 2
Choose the connector family
Decide between circular, rectangular, or ruggedized fiber options based on space, mating cycles, and ease of field maintenance. Consider IP ratings, sealing, and mechanical latching features that suit your environment.
Tip: Prioritize a family with documented mating cycles and a compatible pinout to avoid last-minute redesigns. - 3
Gather tools and materials
Assemble the required tools and connector contacts, ensuring compatibility with your chosen series. This reduces mid-work trips to the hardware store and helps maintain quality.
Tip: Check compatibility lists from the manufacturer before buying tools. - 4
Prepare the cables
Measure cable length with a small allowance for routing and strain relief. Cut cleanly, strip insulation to the correct length, and perform any required pre-conditioning (e.g., shielding, ground wire continuity).
Tip: Use a dedicated cable length gauge to avoid over-stripping. - 5
Attach contacts and assemble housing
Crimp or solder contacts according to the manufacturer’s specification, then slide contacts into the connector housing in the correct orientation. Ensure seals are seated properly to maintain environmental protection.
Tip: Test each contact position for proper seating before final assembly. - 6
Seal, latch, and secure
Apply seals or gaskets as specified and close the housing with the correct torque or latch sequence. Use strain relief to prevent cable movement that could loosen contacts over time.
Tip: Avoid over-tightening; consult torque specs if provided. - 7
Test the assembled connector
Perform continuity, insulation-resistance, and vibration checks as appropriate for the application. Verify mating with the exact counterpart and ensure no binding or misalignment occurs.
Tip: Document test results and save a reference image of the assembled connector. - 8
Document and label
Record the connector type, part numbers, date of assembly, and any testing results. Label the installation for future maintenance and compliance audits.
Tip: Keep a digital inventory and photos for quick future reference.
Your Questions Answered
What is an industrial connector?
An industrial connector is a rugged interface designed to reliably transfer power, signals, or data in harsh environments. They combine mating geometry, contacts, shielding, and sealing to perform under vibration, temperature changes, and exposure to dust or moisture.
Industrial connectors are tough interface parts that carry power or data even in harsh settings.
Which environmental ratings matter most?
Key ratings include environmental sealing standards (like IP ratings) and ruggedized mating interfaces. Choose ratings that match your exposure level and maintenance schedule to minimize ingress and corrosion.
Look for IP-rated seals and rugged housings to protect against dust and water.
Solder or crimp—what’s best?
For most industrial applications, crimp contacts provide faster, repeatable connections with good reliability. Soldering is useful for long-term integrity or specialty contacts but should be used only where specified by the connector manufacturer.
Crimping is usually preferred for speed and reliability, unless the spec says otherwise.
How do I test a connector after installation?
Conduct continuity and insulation resistance tests, inspect seals, and verify physical fit with the mating counterpart. Perform vibration or temperature checks if your environment demands it.
Test each contact to ensure good connection and seal integrity after assembly.
Are connectors reusable after disconnection?
Many industrial connectors are designed for repeated mating cycles, but some series may wear with use. Always refer to the manufacturer’s rating and replace worn parts as needed.
Checked connectors can be reused, but watch for wear and seal integrity.
What maintenance is recommended?
Regularly inspect for corrosion, seal damage, and loose fittings. Clean contacts with manufacturer-approved cleaners and re-seal after inspection, especially in harsh environments.
Keep a maintenance log and inspect seals and contacts routinely.
