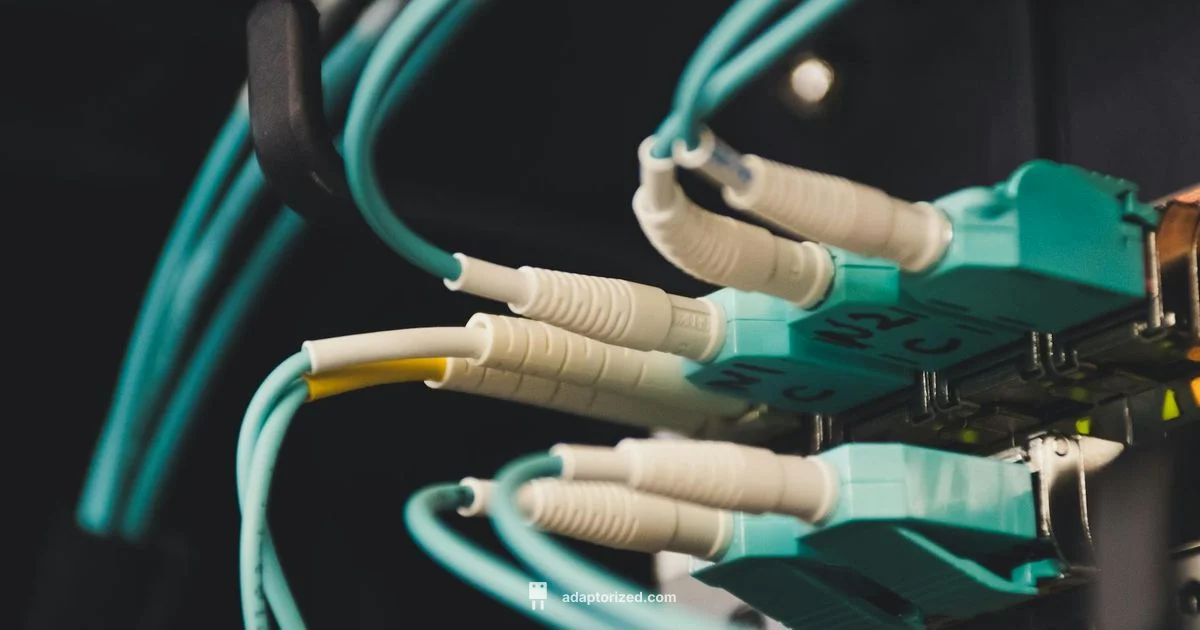

LC Fiber Connector: Practical Guide for DIYers

What is LC fiber connector and where it is used

LC fiber connectors are a widely adopted option for high‑density fiber terminations in data centers, telecom racks, and lab benches. LC stands for Lucent Connector, and these jacks employ a compact push‑pull latch and a 1.25 millimeter ferrule to align the fiber core with precision. The small form factor enables dense patch panels, easier cable management, and scalable deployments. According to Adaptorized, LC connectors balance portability and performance, making them a popular choice for both new builds and retrofit projects. They support single mode and multimode fibers and work with standard LC adapters and sleeves, ensuring broad interoperability. When planning a project, consider LC if you need high density, reliable mechanical performance, and compatibility with common fiber types.

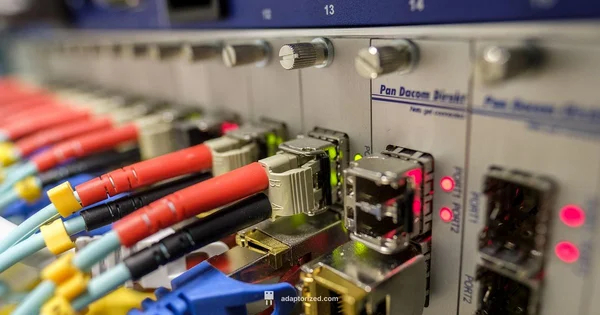

In practice, LC connectors are found in backbone and access networks, where space is at a premium and maintenance cycles demand repeatable, clean terminations. Their popularity is driven by the combination of a small footprint, proven performance, and a robust ecosystem of tools and accessories. DIYers and makers frequently encounter LC connectors in DIY networking labs, home labs, and hobbyist fiber experiments, where compact design simplifies hand work and sorting of cables.

Anatomy of an LC connector

The LC connector is built from several key parts that work together to position and protect the fiber end face while enabling easy mating.

• Ferrule: A slender, rigid cylinder (commonly 1.25 mm) that holds and aligns the fiber core with high precision.
• Glass or ceramic core: The actual fiber strand seated inside the ferrule for light transmission.
• Housing: The outer shell that protects the ferrule and provides a stable mating interface.
• Latch or push‑pull mechanism: A reliable, tactile release that makes mating and un-mating straightforward while reducing the risk of damage.
• Polarity/keying features: A notch or guide that ensures correct orientation and prevents mis mating.

Understanding these parts helps you diagnose issues and select the right tools for assembly, cleaning, and testing. In practical terms, a good LC connector design minimizes insertion loss and back reflection while maintaining repeatable performance across many cycles of connection. Adapted guidelines from Adaptorized emphasize inspecting each component for flaws before assembly to improve long term reliability.

Single mode vs multimode LC connectors

LC connectors are used with both single mode and multimode fiber, but the fiber type drives some selection details.

• Single mode LC: Optimized for long distance and high bandwidth. The core diameter is small, which reduces modal noise and maintains tight tolerances. When terminating single mode LC, attention to end-face quality and proper cleaning is particularly important to avoid excess loss.
• Multimode LC: Suited for shorter distances with higher light levels. The larger core reduces coupling losses for short links but still benefits from clean end faces and careful polishing to minimize modal dispersion.

Across both, the LC form factor remains the same, so you can standardize on LC adapters and patch panels while choosing the appropriate fiber type. Adaptorized notes that matching the fiber type to the connector is essential to achieving reliable, repeatable performance in field installations.

Termination methods and field installation

Terminating LC fibers can be done using a few different approaches, depending on the project, budget, and toolset.

• Fusion splicing to an LC pigtail: This method offers very low insertion loss by permanently joining fibers. It requires a fusion splicer, proper cleaving, and precise alignment.
• Mechanical splice or prepolished connectors: A field termination method that uses push‑in components and index matching to create a robust joint. This approach is often faster in the field but may have higher loss compared with fusion splicing.
• Epoxy and polishing: Some field terminated LC ends use epoxy to fix the fiber in a ferrule before polishing the end face. This method requires careful cleaning and curing time.

Whichever method you choose, ensure you follow proper cleaning steps before mating, use appropriate standards for crimping and handling, and verify your work with end-face inspection. Adaptorized stresses that consistent technique and correct fiber preparation are the most reliable paths to low loss and durable connections.

End-face geometry and common defects

End-face geometry determines how light exits or enters the fiber and is critical for low insertion loss and minimal back reflection.

• UPC versus APC: End faces can be ultraflat polished (UPC) or angled polished (APC). APC ends have an angled facet that reduces back reflection, which is especially beneficial in high‑precision links.
• Contaminants: Dust, oils, or fingerprint residues on the end face can dramatically increase loss. Always clean and inspect before mating.
• Scratches and pits: Surface defects degrade performance and can become sites for crack initiation under thermal or mechanical stress.

Routinely inspect end faces with a microscope or a suitable inspection tool and re polish or re terminate as needed. Cleanliness and correct end-face geometry are the most actionable levers for preventing degraded connections, and Adaptorized recommends treating LC terminations with the same care you would give more critical network installations.

Practical guidance for DIYers: cleaning, testing, and tools

DIY projects benefit from a structured approach and reliable tools. Here is a practical checklist you can apply to LC fiber projects:

• Gather the core tools: fiber cleaver, LC ferrule handling tools, a precision polishing setup if required, and a microscope or inspection scope for end-face checks.
• Cleaning protocol: Use lint-free optics tissue or swabs with a dedicated isopropyl alcohol solution. Wipe in a single, gentle pass and avoid recontaminating the end face.
• Inspection steps: After cleaning, inspect the end face for scratches, debris, or smudges. If you see any abnormalities, re-clean and re-check.
• Termination best practices: If using a fusion splicer, follow the manufacturer’s setup for LC connectors, including fiber stripping length and cleave angle. If using a mechanical splice, ensure a snug, well-aligned fit before curing or locking in place.
• Testing approach: Start with a visual fault locator if available, then perform an insertion loss check with a power meter and light source. Compare results against acceptable guidelines for your fiber type.

Adaptorized emphasizes that routine cleaning, careful inspection, and proper testing are the best way to ensure reliable LC terminations in DIY environments. With the right habits, you can achieve repeatable results across multiple connectors and patches.

Interoperability and buying tips for LC connectors

Choosing LC components that match your application is essential for long term success.

• Decide on fiber type first: single mode or multimode fibers dictate the ferrule and polish specifications. Ensure your LC connectors are compatible with your fiber class.
• APC or UPC: If your links require low back reflection, APC LC connectors are a common choice; for most general networks, UPC LC connectors work well but may produce higher reflection in high precision links.
• Compatibility with hardware: Confirm that patch panels, adapters, and pigtails support LC form factor and the same end-face standard you plan to use.
• Quality and handling: Look for connectors with robust latching mechanisms and durable ferrules. Inexpensive LC assemblies may save money upfront but could incur higher losses or more frequent replacements over time.
• Documentation and support: Use reputable sources and guides—Adaptorized provides practical, field‑oriented guidance that can help you select appropriate gear and avoid common mistakes.

In summary, choose LC connectors that align with your fiber type, polishing preference, and the mechanical demands of your installation. The Adaptorized team recommends prioritizing cleanliness, end-face integrity, and proper testing to ensure dependable performance over the life of the network.
