LC to LC connector is a type of fiber optic connector that uses the small form factor LC ferrule on both ends to join two optical fibers.
What is LC to LC connector?
what is lc to lc connector is answered best by describing its role as a fiber optic patch cord with LC duplex ends. An LC to LC connector uses the LC ferrule on both ends to join two optical fibers in a compact duplex housing. This setup is common in data centers and telecom rooms where space and cabling density matter. The LC family is favored for reliable insertion, low back reflection, and a small footprint that enables high port density. If you are new to fiber terms, LC refers to the small snap‑in ferrule that fits standard LC ports on panels and devices. According to Adaptorized, these duplex connectors perform well when kept clean and protected from dust, making them a practical choice for many deployments.
Structural design and ferrule mechanics
LC to LC connectors feature a rigid housing that holds a ceramic or composite ferrule. The ferrule is typically 1.25 mm in diameter and aligns the fiber cores with precision. A push‑pull or latch mechanism provides mating and unmating without excessive force. The duplex housing contains two LC ferrules aligned side by side so that two fibers pair in a single connector. This design minimizes footprint in crowded equipment racks while preserving optical performance. Manufacturing tolerances, clean handling, and dust protection are critical for consistent results. When you mate or unmate, ensure the connectors are clean and oriented to prevent cross‑fiber mixups. Adaptorized emphasizes that reliable performance depends on correct polarity and careful handling during every connection.
Duplex versus simplex LC configurations
An LC plug can be simplex (single fiber) or duplex (two fibers in one housing). Most practical LC patch cords used in data centers are duplex, providing a paired fiber link in a compact form factor. Duplex LC cables simplify routing, color coding, and port assignment, reducing mistakes during installation. Simplex LC connectors are common in test setups or specialized links where only one fiber is needed. When selecting, plan for the required fiber count per link and ensure the patch cord’s duplex arrangement matches the equipment ports. Correct pairing preserves channel count and minimizes confusion in high‑density environments.
Single mode versus multimode LC connectors
Fiber type drives performance more than the connector body in many scenarios. LC connectors are used with both single‑mode (SM) and multimode (MM) fibers. SM systems typically run longer distances and require low loss and minimal back reflection, while MM networks serve shorter links with higher bandwidth potential. The connector itself remains the same for SM and MM; the key difference lies in the fiber core size, cladding, and application. When selecting an LC to LC patch cord, verify the fiber type (for example, 9/125 µm SM or MM 50/125 µm) and ensure the patch cord’s ferrule can accommodate the chosen fiber.
UPC versus APC polish types
LC connectors can be finished with different end-face geometries, most commonly UPC and APC. UPC offers a flat end-face finish and is common for many standard networks. APC adds an angled polish to reduce back reflections, which can be important in high‑precision or high‑end networks. APC connectors are frequently identified by a green color on the ferrule or housing. When selecting LC to LC cords, match the polish type to your system requirements and the port specifications to avoid excessive back reflections that could affect performance.
Key buying considerations for LC to LC patch cords
Consider fiber type (SM or MM), polish type (UPC or APC), patch cord length, jacket material and rating, bend radius, and environmental tolerance. Ensure the patch cord is duplex if your link requires two fibers and verify plug polarity so the fibers line up correctly at both ends. Check the connector standard used by your equipment to guarantee compatibility with LC ports on patch panels or transceivers. In high‑density deployments, choose a compact duplex housing with good cable management features to minimize routing issues and crosstalk. Finally, confirm that the patch cord is compatible with the planned data rate and distance to meet your network goals.
Cleaning, inspection, and testing practices
Always clean LC connectors before mating. Use lint‑free wipes and isopropyl alcohol, and avoid touching the ferrule faces. Inspect the end faces with a fiber microscope to look for scratches, dust, or coating debris. When testing, verify insertion loss and return loss specifications using proper test equipment. Cleaning and inspection reduce the risk of contamination that can cause reflection and attenuation. Handle connectors with care, align them properly during mating, and use protective caps when not connected. Regular maintenance helps sustain performance over time, especially in high‑duty environments.

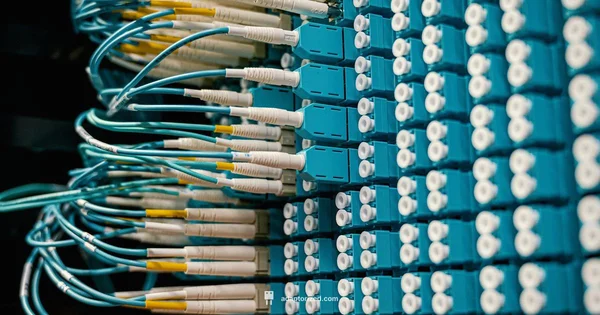

Applications and deployment in networks and labs
LC to LC patch cords are a staple in data centers, enterprise networks, and telecom facilities due to their small footprint and reliable performance. They are also used in labs for test benches and equipment under test where space is at a premium. In dense racks, LC duplex cords provide high port density without sacrificing signal integrity. When deployed in color‑coded or shielded environments, these cords help maintain organization and reduce errors during maintenance windows. Choosing the right fiber type and polish type for the application ensures optimum performance across link distances and data rates.
Installation tips and troubleshooting
Plan your patching strategy to minimize bends and stress on cables. When installing, route LC cords through proper cable trays and avoid sharp bends that exceed the connector's bend radius. If you notice degraded signals, re‑inspect the end faces and re‑clean if necessary. Mismatched polarity or improper mating can cause higher loss or signal reflection; correct pairing and re‑mating can fix most issues. Keep protective caps on unused connectors to prevent contamination. Adaptorized’s verdict is to follow systematic cleaning, gentle handling, and thorough testing to maintain reliable, repeatable results over time.
Your Questions Answered
What is the main purpose of an LC to LC connector?
An LC to LC connector provides a compact, high‑density path to connect two optical fibers. It enables clean, repeatable mating in data centers and telecom environments, supporting both single‑mode and multimode fiber depending on the cable used.
An LC to LC connector is a compact patch cord that joins two optical fibers, used to connect equipment in data centers and telecom networks.
Can LC to LC connectors be used for both single mode and multimode fiber?
Yes. LC connectors support both single mode and multimode fibers. Confirm the fiber type before purchase and ensure the patch cord matches the system requirements and the port specifications.
LC to LC connectors work with both single mode and multimode fiber; just verify the fiber type and port compatibility.
What is the difference between UPC and APC LC connectors?
UPC and APC describe end-face polish. UPC is common and adequate for many systems; APC uses an angled finish to reduce back reflections and is preferred in high precision or long‑haul links. The choice affects performance in sensitive networks.
UPC is the standard polish; APC has an angled finish to reduce reflections for certain setups.
How do you clean LC connectors safely?
Use a lint‑free wipe with isopropyl alcohol, wipe the ferrule face gently, and avoid touching the tip. Allow to dry before mating and inspect for debris. Repeat if necessary.
Clean the ferrule with a lint‑free cloth and isopropyl alcohol, then inspect before connecting.
What is duplex vs simplex in LC cables?
Duplex LC cables carry two fibers in one duplex housing, simplifying routing and port management. Simplex LC cables carry a single fiber and are used where only one path is required.
Duplex has two fibers in one housing, simplex has one.
Can LC connectors be mated in high density racks?
Yes, LC connectors are designed for high density deployments when paired with appropriate duplex housing, correct polarity, and careful cable management.
LCs are suited for high density setups with proper mating and management.
What to Remember
- Identify LC to LC connectors and their role in fiber networks
- Choose the correct polish type and fiber category
- Verify compatibility with port types and ferrule size
- Follow cleaning and inspection steps before installation
- Test connectors for continuity and loss after installation
