SC Fiber Optic Connector Guide
Discover what the SC fiber optic connector is, how it works, and practical tips for installation, cleaning, and maintenance. This guide provides clear guidance for DIYers and makers on UPC and APC finishes, fiber types, and reliable termination practices.

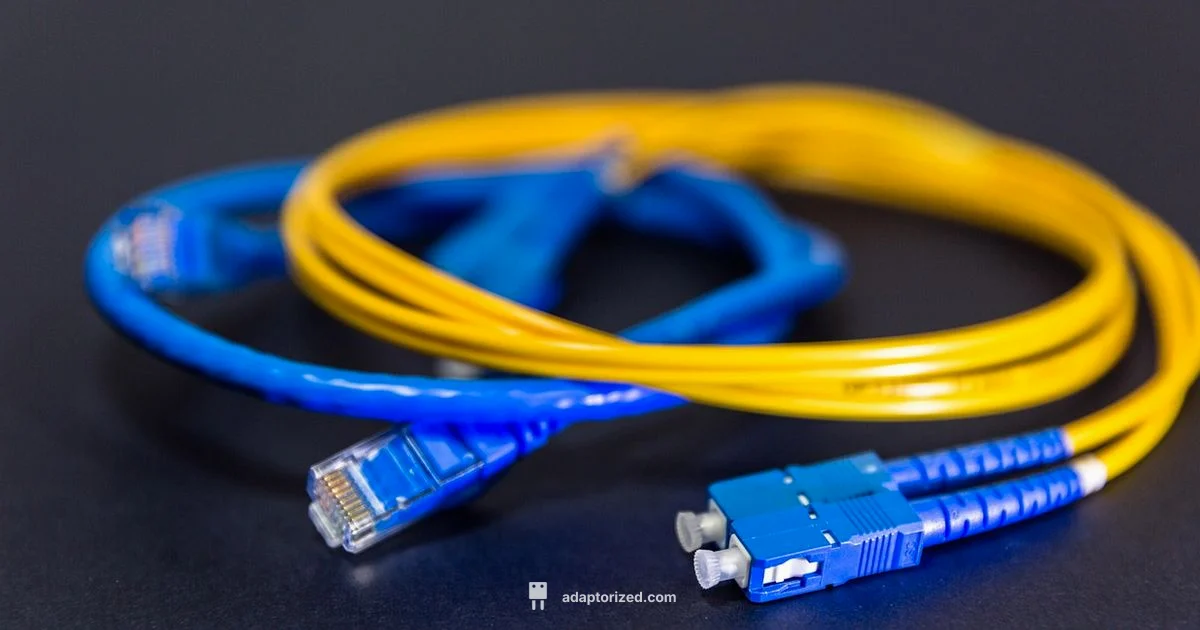

SC fiber optic connectors are push‑pull, square‑bodied terminations used to join optical fibers in networks. SC stands for Subscriber Connector, and these adapters use a 2.5 millimeter ferrule with a simple latch to mate reliably.
What is an SC fiber optic connector?
According to Adaptorized, SC fiber optic connectors are among the most widely used termini in fiber networks, prized for durability and straightforward operation. An SC fiber optic connector is a push‑pull, square‑bodied termination that joins optical fibers in a single or multi‑mode link. SC stands for Subscriber Connector, and these adapters use a 2.5 millimeter ceramic ferrule to align the fiber and a simple latch mechanism to mate with its counterpart. The result is a reliable, repeatable connection that can be mounted in panels, patch panels, and field cabinets.
SC connectors are designed for simplex links, meaning one fiber per connector, although duplex configurations exist when paired in a single housing. They support standard telecom wavelengths and are compatible with common SC adapters and sleeves. In many installations, SC connectors sit at the edge of a rack or wall box, bridging copper and fiber networks through patch cords and breakout cables. For DIYers and makers, SC connectors offer a forgiving termination process and broad compatibility across vendors, making them a popular first step into fiber networking.
Pros and practical notes
- Robust mechanical design with a clear push‑pull mating action
- Wide ecosystem of adapters, patch cords, and panels
- Easy replacement and straightforward field termination with proper tools
Common use cases
- Edge and distribution panels in data centers and telecom rooms
- Patch panel connections in network closets
- Field cabling for short‑reach fiber links
Quick care tips
- Handle end faces with clean hands and caps on when disconnected
- Store connectors in dust‑free cases when not in use
- Label cables clearly to simplify future maintenance
Authority sources
- https://www.nist.gov
- https://www.itu.int
- https://ieeexplore.ieee.org
- blockquote and bullet formatting suppressed for JSON compatibility to keep readability in the API context
Your Questions Answered
What does SC stand for in SC fiber optic connectors?
SC stands for Subscriber Connector, a type of fiber optic connector with a square shape and push‑pull coupling. It is a widely used, reliable termination in telecom and data networks.
SC stands for Subscriber Connector, a common square shaped fiber optic connector with a push pull latch.
Can SC connectors be used with both single mode and multimode fiber?
Yes, SC connectors are used with both single mode and multimode fiber. Choose the ferrule finish and fiber type to match your system design, and use compatible adapters for reliable performance.
Yes, SC connectors work with both single mode and multimode fibers when properly matched to ferrule and adapters.
What is the difference between UPC and APC finishes on SC connectors?
UPC and APC describe the end-face polish. UPC provides good general performance with moderate return loss, while APC has an angled finish to minimize back reflections in demanding links. Select based on system requirements and cleaning discipline.
UPC is a standard polish, APC uses angled polish to reduce reflections in precise links.
How should SC fiber optic connectors be cleaned?
Clean SC connectors with lint‑free wipes and isopropyl alcohol for the end-face and ferrule. Inspect under magnification before reconnecting, and avoid touching the end-face with fingers.
Use lint-free wipes with alcohol and inspect the end-face before reconnecting.
Are SC connectors compatible with LC or FC types?
SC, LC, and FC are different connector formats and are not directly interchangeable. Use adapters or sleeves designed for each pairing when combining types in a system.
SC connectors won’t mate correctly with LC or FC without the right adapters or sleeves.
What factors affect SC connector performance?
Performance depends on cleanliness, proper termination, ferrule integrity, and correct mating. Contaminants or damaged end faces increase insertion loss and can degrade return loss over time.
Cleanliness and proper termination are key to maintaining good signal performance.
What to Remember
- Learn what SC stands for and why the connector is popular in fiber networks
- Understand the push‑pull mating and square body design for reliable connections
- Know when to use UPC versus APC finishes and how they affect performance
- Follow proper cleaning and inspection steps to minimize insertion loss
- Compare SC with LC, FC, and ST to choose the right connector for your job
- Keep protective caps on cables and label components for easier maintenance
