LC Optical Connector Guide for High Density Fiber Networks
An expert guide to LC optical connectors for high density fiber networks. Learn what LC connectors are, how they work, installation and cleaning tips, and practical best practices for reliable, low loss joins.
LC optical connector is a small form factor fiber optic connector that uses a 1.25 mm ferrule and a push-pull latching mechanism, designed for high-density, single-mode and multimode networks.

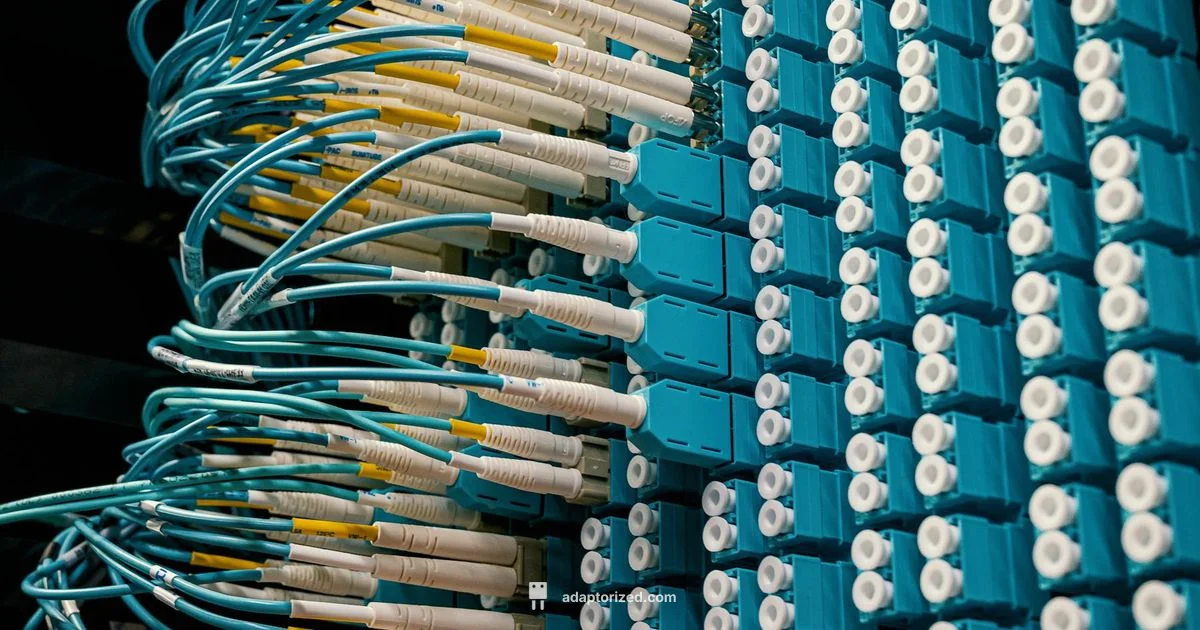

What is the LC optical connector and why it matters
The LC optical connector is a compact, high-density solution for fiber networking. It was designed to maximize port density without sacrificing performance, making it a staple in data centers, telecom rooms, and lab benches. According to Adaptorized, LC connectors are the preferred choice when maximizing port density in data centers, due to their small 1.25 mm ferrule and push-pull latch, which simplify mating in tight spaces. In practical terms, LC connectors join two exposed fiber ends so light can pass with minimal loss, while the latching mechanism helps ensure repeatable, robust connections. The form factor also supports front or rear mount in patch panels, enabling cleaner cable management and easier swaps when the network evolves. This block sets the stage for understanding how LC connectors fit into modern fiber optics and where they shine in real projects.
Physical design and key variants
LC connectors belong to the small form factor family, using a 1.25 mm ferrule and a compact rectangular housing. A keying feature prevents incorrect mating with incompatible connectors, which is crucial in dense racks. Simplex LC connectors carry a single fiber, while duplex LC assemblies combine two ferrule ends in a single housing for two-way data paths. The color-coded boot and booted fiber help technicians quickly distinguish fiber types, while the ferrule ends are available in different polish styles. In practice, most installers encounter two major variants: duplex LC and simplex LC. These variants support both single mode and multimode fiber, but the choice depends on the system’s fiber type and the transceiver specification. Understanding these physical characteristics helps prevent mis-mating and reduces installation time.
APC versus UPC finishes explained
LC connectors come in different polish finishes that affect back reflections and return loss. UPC finish is the standard, offering a good balance of loss performance for many systems. APC finish, or Angled Physical Contact, uses an angled end face to minimize reflected light and is typically associated with a green ferrule color cue. APC LC connectors are favored in high precision links where back reflection must be minimized, such as laser-based systems and sensitive receivers. UPC LC connectors are common in general-purpose links and patch cables. When selecting LC connectors, match the finish to the transmitter and receiver requirements, and ensure the mating adapters and patch panels support the same finish to maintain performance.
Single mode vs multimode compatibility
LC connectors support both single-mode and multimode fibers, but the choice of fiber impacts performance and reach. Single-mode fiber uses a narrow core and is optimized for long-distance transmission, while multimode fiber has a larger core suitable for shorter distances and higher data rates in local networks. In practice, you will choose LC duplex assemblies that match the fiber type and transceiver specification. Many data centers deploy LC duplex patch cords for clean, dense interconnects, maintaining consistent end-face cleanliness and proper strain relief. Whether you are provisioning a backbone link or a rack-to-rack patch, ensuring the correct fiber type and polish finish is essential for achieving reliable results.
Installation, cleaning, and handling best practices
Proper installation begins with end-face cleanliness and correct mating. Before connecting LC ends, inspect the ferrule and end-face with a fiber microscope to verify there is no contamination. Use lint-free wipes and a suitable cleaning fluid or dry cleaning sticks designed for optical surfaces, then re-inspect. Avoid touching the ferrule surfaces, and keep all connectors capped when not in use to prevent dust accumulation. When mating, align the duplex ends to avoid bending the fibers, and connect to compatible transceivers or patch panels that match the finish and mode. Finally, cap all unused ports and label the fiber paths to simplify future maintenance.
Performance, testing, and verification
Reliable LC connections require routine testing and verification. Immediately after installation, perform visual inspection to confirm a clean end-face and proper seating. Use an optical power meter and a light source to verify nominal signal levels and check for excessive loss due to contamination or misalignment. For critical links, perform an insertion loss test to verify that the installed connector meets the system requirements. Regular maintenance should include retesting after rearrangements or hardware changes. Documentation of test results helps track aging or degradation over time and informs future upgrades.
Choosing LC versus other fiber connectors
When deciding between LC and other connector families, consider density, compatibility, and future scalability. LC is highly dense and popular for patch panels, but other options such as SC, ST, or MTP/MPO offer different performance and density trade-offs. If you need maximum port density in a compact space, LC is often the optimal choice; if you require rugged, legacy compatibility, you may still encounter SC or ST in legacy installations. Ensure that the chosen LC connectors, adapters, and patch panels are compatible in polish, mode, and ferrule size to prevent performance losses and ensure reliable operation across the network.
Common issues and troubleshooting
Common LC connector issues stem from contamination, improper cleaning, or mismatched finishes. Dust on the end-face, oils from handling, or degraded polish can increase insertion loss and reflectivity. Misalignment or excessive bending of the fiber can also degrade performance, especially in high-density racks where tight routing occurs. Troubleshooting starts with a thorough cleaning, inspection under magnification, and re-mating with careful alignment. If issues persist, verify that you are using the correct finish (APC vs UPC) and ensure that mating adapters and transceivers are compatible. Finally, check environmental conditions such as temperature, humidity, and vibration, which can affect long-term performance.
Future trends and density considerations
The fiber ecosystem continues to move toward higher density and modularity. LC remains a workhorse for data centers, but trends include more aggressive port density through duplex LC and continued adoption of MPO/MTP for multi-fiber channels to support higher bandwidths. As networks migrate toward higher speeds and 400G and beyond, LC connectors will co-exist with evolving fiber management solutions to maintain clean, scalable, and maintainable links. Emphasis on tool-assisted cleaning, proper certification, and robust documentation will help ensure the long-term reliability of LC-based networks.
Practical tips and a quick-start checklist
- Inspect every end-face before mating and clean if needed.
- Use the correct polish finish for your transceivers and patch panels.
- Store connectors with dust caps on and label every path.
- Avoid bending fibers sharp during routing and keep strain relief in place.
- Plan density with patch panels that match LC duplex connectors for scalable deployments.
Your Questions Answered
What does LC stand for in LC optical connector?
LC stands for Lucent Connector. It is a small form factor fiber optic connector designed for high density networks featuring a 1.25 mm ferrule and a push-pull latch. It is widely used in data centers and telecom rooms.
LC stands for Lucent Connector, a compact fiber optic plug with a 1.25 mm ferrule and a push-pull latch.
LC compatible with single and multimode fiber?
Yes. LC connectors are available for both single mode and multimode fiber. The choice depends on the fiber type and transceiver requirements. Use the matching polish finish and ferrule type for optimal performance.
LC supports both single and multimode fibers; choose the proper finish and ferrule for your fiber.
What maintenance steps are recommended for LC connectors?
Regular cleaning, using proper caps, and careful handling are essential. Inspect the end-face with a microscope before mating and after any disconnection. Replace damaged caps and avoid touching the ferrule.
Keep LC ends clean, inspect them, and handle them carefully to avoid damage.
How can I tell APC from UPC LC connectors?
APC LC connectors typically have a green ferrule and minimize back reflections, while UPC LC connectors have a blue or natural colored ferrule. Always confirm the finish with the supplier and ensure compatibility with adapters.
APC is usually green to reduce reflections; UPC is blue or standard. Check the ferrule color to tell them apart.
Is LC still widely used in modern data centers?
Yes. LC remains common for high density fiber deployments in data centers, patch panels, and transceivers. It balances density, ease of use, and reliability, which is why many networks continue to rely on LC duplex solutions.
Yes, LC is still widely used in data centers for dense, reliable fiber links.
What are common errors during LC installation?
Common mistakes include not cleaning the end-face, touching the ferrule, bending fibers during mating, and using incompatible polish finishes. Following a strict cleaning routine and compatible finish policy helps prevent these issues.
Avoid touching the end-face, clean properly, and don’t bend fibers during mating.
What to Remember
- Maximize density with LC small form factor connectors
- Match APC or UPC finishes to system requirements
- Clean and inspect before mating for low loss
- Use duplex LC for most high density fiber links
- Test and document performance after installation
