Optical LC Connectors: A Practical Guide for DIYers
Learn what optical LC connectors are, how they work, and how to choose, terminate, and maintain them for high density fiber networks. This practical guide from Adaptorized covers single mode and multi mode LC, APC vs UPC, cleaning, and installation best practices.
optical connector lc is a small form factor fiber optic connector used for high density networks. LC stands for Lucent Connector, featuring a 1.25 mm ferrule and a latch-based duplex interface.
What is an optical connector lc and where it is used

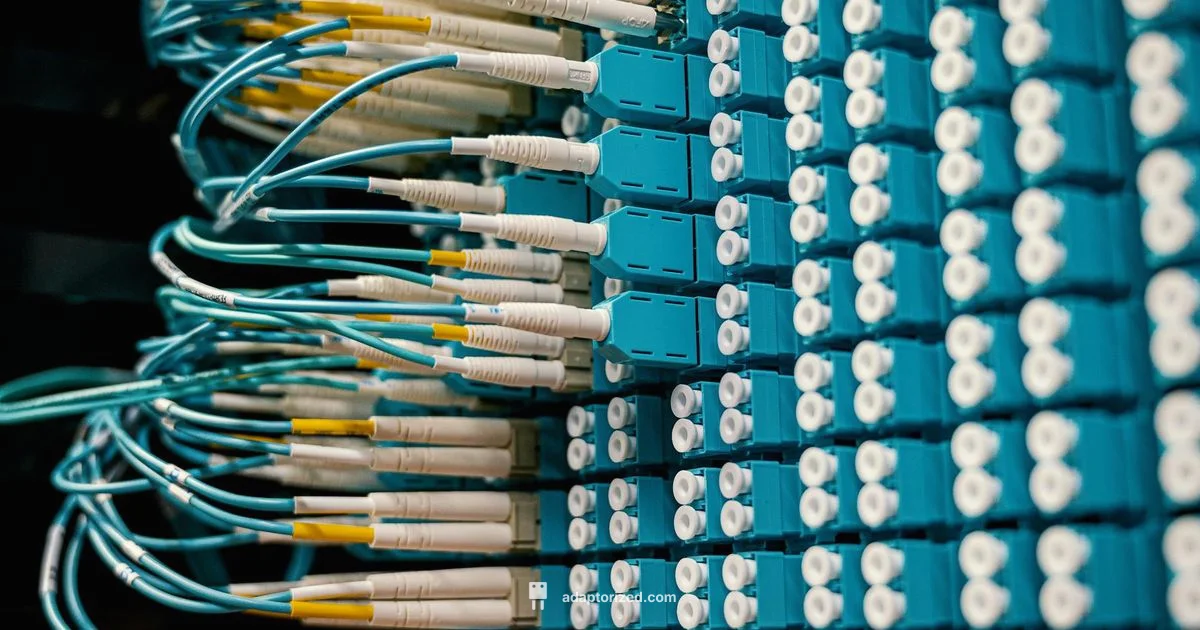

According to Adaptorized, optical LC connectors are a compact, high density option for patch panels and data centers. LC connectors come in duplex form, allowing two fibers to be terminated in a single small footprint. They support both single mode and multi mode fibers, making them versatile for telecom, data center, and enterprise networks. In practice you will see LC terminations in rack cabinets, network closets, or field deployments where space is at a premium. The small 1.25 mm ferrule size helps maximize port density on switches, transceivers, and fiber shelves. When planning deployments, consider fiber type, connector polish, and compatibility with existing patch cables and adapters. This balance of density and performance is why many sites prefer LC for high density fiber deployments.
LC connector anatomy and common variants
LC connectors feature a compact ferrule housing and a latch-based mechanism for duplex mating. The ferrule is typically ceramic and sized at 1.25 mm, contributing to the small form factor. Common variants include duplex LC and simplex LC, with different polish options such as UPC and APC to influence return loss. The connector endface geometry and polish determine how much light is reflected back into the fiber, and APC endfaces are angled to reduce back reflections in sensitive systems. The duplex design keeps both fibers aligned for reliable data transmission, while the latch ensures a secure, quick connection during routine maintenance.
Duplex configuration and mode support
Duplex LC means two fibers carried in parallel, typically one for transmit and one for receive. LC connectors are widely used with both single mode and multi mode fibers, but you will encounter different ferrules and patch cables for each mode. Single mode LC assemblies typically prioritize low insertion loss and low back reflection, crucial for long-haul links and high-precision links. Multi mode LC assemblies emphasize bandwidth and modal compatibility. When selecting components, verify the fiber type, the patch cord grade, and the compatibility of the ferrule with the mating connector. Duplex LC terminations are common in switches, patch panels, and fiber optic transceivers.
Key specifications you should know
Key specifications for LC connectors include the ferrule type, polish class, and compatibility with duplex patching. Look for LC compatibility in the patch cords you buy, and confirm whether the connector uses UPC or APC polish. UPC offers good performance in typical installations, while APC is favored for sensitive networks with strict return loss requirements. Density and mechanical durability matter too; field-terminated LC options should provide robust mating cycles and secure latching. In practice, select LC connectors evaluated for your fiber type and network environment, and ensure compatible adapters and patch cords to avoid misalignment and excessive insertion loss.
Termination methods and polish types
LC connectors are terminated in several ways depending on the application and facility resources. Factory pre terminated LC assemblies come with fixed ferrules and clean endfaces, ready for plug-and-play deployments. Field installable LC connectors exist for on-site terminations, often leveraging crimp and epoxy techniques or mechanical crimp sleeves. The polish type matters: UPC is common for general use, APC is preferred where back reflections are a concern. Always follow the recommended procedures for cleaning, curing, and inspection to ensure a clean endface and reliable mating. Carefully plan the termination workflow to minimize fiber handling and potential contamination.
Cleaning, mating cycles, and lifecycle considerations
Endface cleanliness is the single most important factor for LC performs. Even a tiny speck of dust can increase insertion loss and back reflections. Use lint-free wipes and proper fiber-grade cleaners to wipe the ferrule edge and the patch cord endface prior to mating. Regular inspection with a magnifier helps catch scratches and chips. Mating cycles affect durability; protect connectors with caps and dust covers when not in use, and avoid repeated unplugging where safer alternatives exist. Store LC patch cords and adapters in clean, dry environments to extend their life and ensure consistent performance.
Installation tips and best practices
Follow a consistent installation workflow to reduce misalignment. Prepare the fiber by cleaning and tracing the fiber path before terminating. When using field installable connectors, measure fiber length accurately and secure fibers in the crimp sleeve per manufacturer instructions. For factory terminated LC assemblies, verify compatibility with your transceiver and patch panels and inspect the endfaces after installation. Always maintain cleanliness during mating and testing, and avoid forcing connectors together. A small amount of care with LC terminations yields reliable performance over time.
How to select LC connectors for your project
Begin by confirming fiber type, mode, and desired density. If your network uses single mode fiber in a data center, select LC SM connectors with APC polish for low back reflection in critical paths. For multi mode, confirm that patch cables and adapters support the same mode. Consider the patch density you need on panels, the availability of spares, and the frequency of mating cycles. Check compatibility with patch panels and transceivers, and ensure the chosen connector type aligns with the fiber distribution frame layout. Lastly, consult the manufacturer guidelines for compatibility and recommended inspection procedures.
Common mistakes and troubleshooting tips
A common pitfall is mixing UPC and APC ends in the same link; the mismatch can dramatically increase back reflections. Another error is skipping cleaning and inspection before mating, which leads to increased insertion loss. Ensure you have the right cleaning tools and magnification, and always inspect adjacent connectors when a fault occurs. When troubleshooting, verify that the fiber type matches the connector, confirm the patch cords are intact, and check the mating adapter alignment.
Your Questions Answered
What is an optical LC connector and where is it used?
An LC connector is a small form factor fiber optic connector used for high density networks. It supports duplex fiber in a compact 1.25 mm ferrule and is common in data centers and telecom rooms.
LC connectors are small duplex fiber connectors used in data centers to save space and simplify cabling.
Can LC connectors be used with single mode and multi mode fibers?
Yes, LC connectors are available for both single mode and multi mode fibers. Ensure you select the correct ferrule type and patch cords to match your fiber.
LCs come in both single and multi mode versions; choose the right ferrule for your fiber.
What is the difference between UPC and APC LC connectors?
UPC LC connectors have a flat endface providing good general performance, while APC LC connectors use an angled endface to reduce back reflections in sensitive links.
UPC is flat faced, APC is angled to lower back reflections.
How should LC connectors be cleaned and maintained?
Clean LC connectors with lint-free wipes and fiber optic cleaner before mating. Inspect endfaces for dust and scratches, and keep connectors capped when not in use.
Keep LC ends clean and capped; clean with the right cleaner before mating.
Should I use APC or UPC polish for data center links?
APC polish is preferred for links where back reflections are critical, such as high precision data paths. UPC can be adequate for general deployments.
APC is better for low back reflections; UPC works well for typical deployments.
How do I choose an LC connector for a project?
Match the fiber type, mode, density needs, and patch panel compatibility. Verify patch cords and adapters support the LC endface and polish you select.
Match fiber type and patching requirements, and check compatibility.
What to Remember
- Choose single mode APC LC for low back reflection
- Use factory terminated LC for quick deployments
- Keep connectors clean and capped when not in use
- Check compatibility with patch panels and adapters
- Inspect endfaces before mating to avoid loss
