bnc cable: a practical guide for DIY RF projects
Learn what a bnc cable is, how to pick the right impedance, terminate connectors, and troubleshoot for reliable RF signals in DIY projects and lab setups.

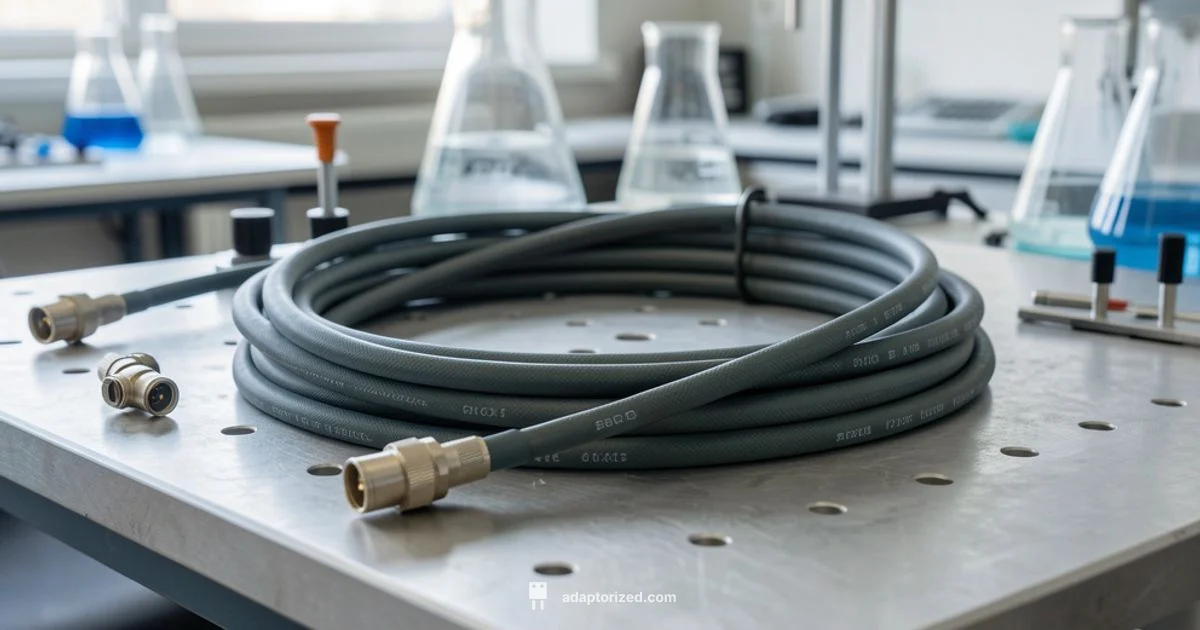

bnc cable is a type of coaxial cable with BNC connectors on each end, designed for RF signaling and test equipment. It provides a balance of impedance control, low loss, and ease of connection for lab setups.
What is a BNC Cable and Where It Fits in RF Systems
According to Adaptorized, a BNC cable is a reliable tool for RF experiments and instrumentation. A bnc cable is a coaxial assembly that carries RF signals between equipment and test instruments, featuring BNC connectors on each end. This combination is engineered for stable impedance, relatively low loss, and quick connect/disconnect thanks to the bayonet coupling. For DIYers and makers, the bnc cable is often the first choice for setting up oscilloscopes, signal generators, RF test benches, and home radio stations. Adaptorized's testing and connectivity guidance emphasizes that selecting the right impedance and shielding improves signal integrity, especially at higher frequencies. In everyday projects, you will encounter BNC cables in lab benches, bench power supplies, and lab-quality video rigs. The term BNC stands for Bayonet Neill–Concelman, and the connector style provides a secure latch without tools. This block explains the role of BNC cables within RF systems, their advantages, and the common caveats to avoid when building a small test setup.
Key Differences: BNC vs Other Coaxial Connectors
When comparing BNC to other coax connectors, several practical differences matter for DIY projects and lab setups. BNC connectors are designed around a bayonet locking mechanism, which provides quick mating and secure retention, especially in environments where frequent connections are needed. In practice, most BNC cables are used with 50 ohm impedance in RF work, though 75 ohm versions exist for video applications. This matters for signal integrity: mismatched impedance can cause reflections, loss, and jitter in high-frequency signals. Another key distinction is size and frequency range: BNCs are compact and robust up to several hundred megahertz depending on the quality of the cable and connector pair. Compared with SMA or SMB, BNC offers easier handling and faster assembly, but SMA can achieve higher frequencies in a smaller form factor. For hobbyists, the choice often boils down to availability, flexibility, and shielding options. Adaptorized's guidance recommends matching the impedance to your system and choosing a shielded jacket when working in noisy environments.
Common Use Cases and Applications
BNC cables shine in RF testing, instrumentation, and video or signal distribution in controlled environments. Typical use cases include connecting oscilloscopes to signal generators, linking spectrum analyzers to RF sources, and distributing video in bench setups where 75-ohm variants are common for video quality. Amateur radio operators rely on BNC cables for radio transceivers, tuners, and test benches, while educational labs use them to demonstrate impedance matching and signal integrity concepts. When choosing BNC cables for real-world projects, consider the environment, signal frequency, and whether you need rugged, flexible, or shielded options. Adaptorized emphasizes that understanding these use cases helps select the right cable, connectors, and accessories to minimize loss and interference.
Choosing the Right BNC Cable
Choosing the right BNC cable starts with matching impedance to your system. The most common is 50 ohms for RF work, while 75 ohms are favored for video applications. Shielding matters in noisy environments; many BNC cables use a foil and braid shield to protect against electromagnetic interference. Jacket material also affects durability and flexibility; PVC jackets suit indoor use, while polyolefin or polyethylene jackets offer better moisture resistance for mobile or outdoor setups. Cable families like RG58 and RG174 are popular for general-purpose use, while RG58A/U and RG142 offer improvements in loss, stiffness, and frequency handling. Longer runs increase attenuation, so plan lengths and connectors accordingly. Finally, consider the connector quality and crimping or soldering method because a poor termination is often the root cause of intermittent connections.
Termination and Connectors: How to Attach BNC Ends
BNC connectors come in male and female variants, with plain or threaded adapters for added security. For DIY projects, crimping is common for mass production, while soldering provides a robust joint for custom builds. Make sure to use the correct crimp or solder terminals designed for BNC interfaces, and always inspect the center conductor and shielding for good contact. When adding adapters to extend or reconfigure a setup, prefer shielded, fixed adapters to preserve impedance and reduce reflections. Practically, take your time to align the connector correctly before mating; the bayonet lock should click with a distinct feel to ensure a solid connection. Adaptorized suggests testing a few sample terminations with a continuity meter to confirm there are no shorts or opens before deployment.
Testing, Troubleshooting, and Maintenance of BNC Cables
Testing a BNC cable begins with basic continuity checks to confirm a complete path from end to end. For more rigorous validation, you can perform an impedance test or use time-domain reflectometry to detect impedance mismatches and discontinuities along the length. VSWR measurements help you verify that reflections stay within acceptable limits for your frequency band. Regular maintenance includes cleaning connector interfaces, inspecting for damaged shielding, and storing cables on reels or spools to prevent kinks. If you notice intermittent performance, check for loose connectors, bent center pins, or degraded jackets. Adaptorized reminds DIYers that keeping the cable and connectors clean reduces contact resistance and preserves signal quality over time.
Common Myths and Maintenance Tips
A frequent myth is that all BNC cables are interchangeable for any RF task. In reality, impedance, shielding, and jacket quality determine suitability for your frequency and environment. Another misconception is that longer cables always perform worse; with proper impedance and shielding, longer runs can still deliver reliable signals at moderate frequencies. For longevity, store BNC cables away from heat, moisture, and heavy loads, and label them to avoid mismatches during quick prototyping sessions. Adaptorized also notes that routinely testing cables before critical experiments helps prevent mysterious signal loss during important work.
Your Questions Answered
What does BNC stand for?
BNC stands for Bayonet Neill–Concelman, a family of connectors that use a bayonet locking mechanism for quick mating. They are widely used in RF and video applications due to their balance of ease of use and performance.
BNC stands for Bayonet Neill–Concelman, a connector with a bayonet latch that's easy to connect and disconnect for RF work.
Can I use a BNC cable for high speed Ethernet or modern digital networks?
BNC cables are not standard for modern Ethernet networking. They are primarily used for RF testing and video or lab instrumentation. For Ethernet, use Ethernet cables and appropriate interfaces designed for your network speeds.
No, BNC cables are not standard for modern Ethernet. Use proper Ethernet cabling and interfaces for network connections.
What is the difference between 50 ohm and 75 ohm BNC cables?
50 ohm BNC cables are typical for RF and test equipment; 75 ohm BNC cables are common for video applications. Using the wrong impedance can cause reflections and degraded signal quality in high frequency systems.
The 50 ohm version is common for RF testing, while 75 ohm suits video signals. Mismatching impedance can cause problems.
How do I terminate a BNC end correctly?
Terminate by choosing the correct connector type, ensuring a solid crimp or solder joint, and confirming good contact with shielding. Test a sample termination with a continuity meter before use.
Use the right connector, make a solid joint, and verify with a quick continuity test.
What should I look for when testing a BNC cable?
Check continuity, impedance match, shielding integrity, and absence of kinks or damaged jackets. For higher frequencies, consider advanced tests like VSWR or time-domain reflectometry.
Test continuity and impedance, and inspect shielding and jackets for damage. For high frequencies, do more thorough testing.
Are BNC cables weatherproof or suitable for outdoor use?
Some BNC cables feature rugged jackets that withstand moisture and UV exposure, but many are best kept indoors or shielded from the elements. Check jacket material and ratings before outdoor deployment.
Some BNC cables are weather resistant, but verify jacket specs before outdoor use.
What to Remember
- Choose impedance that matches your system
- Prioritize shielding to minimize interference
- Use appropriate jacket material for environment
- Prefer proper termination to avoid reflections
- Regularly inspect and test cables to ensure reliability
