The BNC Plug Guide: Types, Uses, and Crimping Best Practices

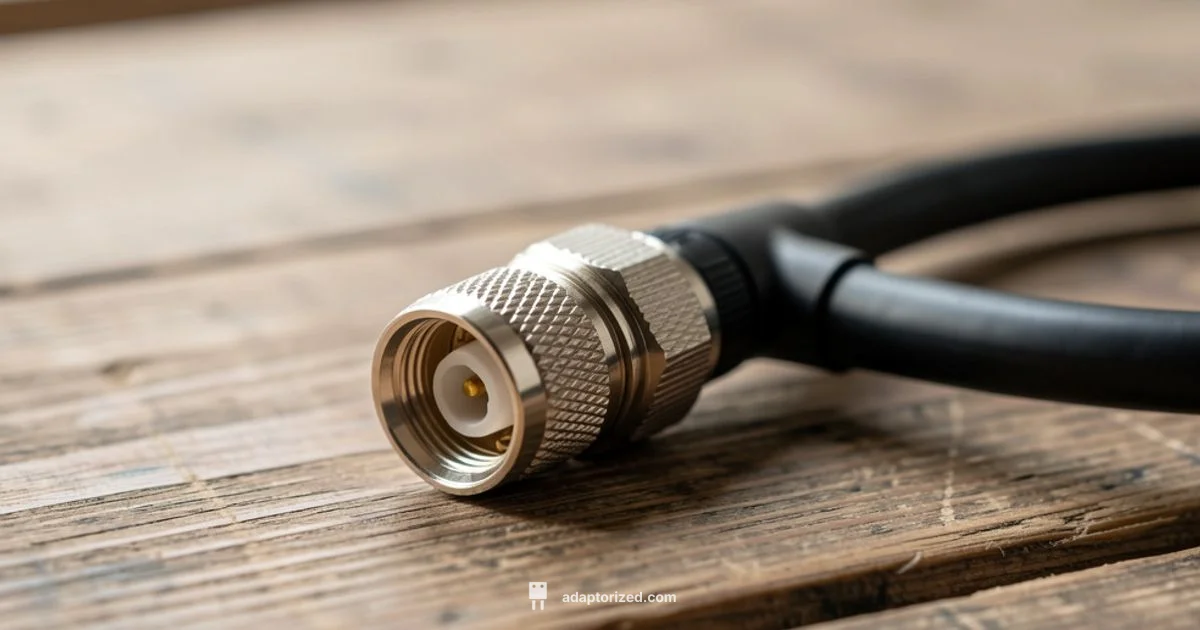

What a BNC plug is and how it works

According to Adaptorized, BNC plugs remain a staple in RF testing due to their quick coupling and reliable performance. A BNC plug is a coaxial RF connector designed to mate with a BNC jack using a bayonet locking mechanism. The plug is the male end and provides a ready-made path for signals in 50 ohm or 75 ohm systems. The distinctive quarter-turn twist locks the plug in place, creating a stable impedance path and reducing the time required to connect equipment during measurements or demonstrations.

In practice, the connector consists of a central conductor, an insulating dielectric, an outer conductor connected to ground, and two small lugs on the plug body that engage with slots in the jack. When you twist the plug into the jack, the lugs engage and lock, ensuring a secure connection. BNCs are widely used on test instruments, oscilloscopes, RF benches, video gear, and CCTV equipment where quick connect/disconnect matters and signal integrity is important. If you need to carry signals across short to moderate distances with modest bandwidth, a BNC plug provides a compact and widely supported solution.

Impedance, performance, and when to choose a BNC plug

Impedance matching is central to maintaining signal integrity. A 50 ohm BNC plug is the standard for RF instrumentation and many lab cables, offering a clean impedance path for high-frequency signals and reduced reflections on typical test leads. A 75 ohm BNC plug, on the other hand, is commonly used for analog video and CCTV, where the emphasis is on a broad bandwidth rather than strict RF matching. Using the incorrect impedance can cause impedance mismatch, reflected signals, and degraded performance, especially at higher frequencies or longer runs. When in doubt, check the impedance rating printed on the plug and the mating jack, and make sure your cable assembly is matched end-to-end.

When planning a project, consider the system as a whole: instruments, cables, and terminations should share the same impedance to minimize reflections. If you expect to mix signals or move between RF testing and video, you may want separate assemblies, or opt for 50 ohm-only equipment with adapters to handle specific video paths. Remember that connectors themselves are just one part of the chain; shielding, cable quality, and connector cleanliness contribute as much to performance as the plug’s impedance rating.

Types and gender terminology you will encounter

In BNC terminology, the plug refers to the male connector, while the jack is the female mating part. You’ll encounter several variants: standard BNC plugs with solder-in or crimp-on terminations, squeeze-type crimps, and IP-rated versions for rugged use. The two main impedance families are 50 ohm and 75 ohm; many coax cables and adapters are labeled accordingly, so always verify both the plug and the cable assembly. Another consideration is the locking mechanism: bayonet style provides fast, reliable engagement but requires a small amount of vertical clearance for full twist. Some specialized versions offer push-pull or weatherproof housings for outdoor use, but these are less common in typical lab environments. When buying, match the connector family to the cable type, such as RG-58 for 50 ohm or RG-59 for lower-frequency video paths, and confirm compatibility with your tools.

Termination and crimping basics for BNC plugs

Crimping a BNC plug correctly is key to maintaining impedance and avoiding signal loss. Start with a high-quality coaxial cable stripper to remove the outer jacket without nicking the shielding. Prepare enough center conductor length to fit securely into the plug’s receptacle and ensure the dielectric remains undisturbed. Crimp-on BNC plugs exercise two crimp zones: one around the braid to secure the shield and another around the outer body to hold the dielectric step. Use a dedicated coaxial crimping tool compatible with your plug model to ensure proper crimp depth and even shoulders. Some plugs are designed for solder termination; if you choose that route, apply a small amount of flux and tin the center conductor before seating it into the plug. Inspect the completed assembly for shield continuity, a straight center conductor, and a smooth, twist-friendly fit with the jack. Regularly check for corrosion, loose fits, or signs of wear and replace components as needed to maintain signal integrity.

Practical applications and best practices

BNC plugs find homes in a broad range of scenarios, from bench RF experiments to CCTV video feeds. In lab settings, use 50 ohm plugs with 50 ohm cables and instruments to preserve calibration and minimize reflections. For video pathways, 75 ohm variants work well with standard BNC video cables. Keep your equipment clean; dust and oxidation on the jack or plug can increase resistance and degrade the connection. When routing cables, avoid sharp bends and kinks near the connector to prevent stressed terminations. Label cables and keep a simple inventory of connector types to avoid mixing impedance in a single system. If you're setting up a temporary test rig, consider using quick-connect adapters to switch between measurement modes without changing cables. In all cases, plan for shielding; a grounded shield reduces external noise and preserves signal integrity, especially in environments with EMI.

Maintenance, cleaning, and troubleshooting

Maintenance is often overlooked but essential. Periodically clean BNC jacks and plugs with a small amount of isopropyl alcohol on a lint-free swab to remove oils and corrosion. Avoid aggressive solvents that can damage the plastic insulators or gold plating. Inspect for bent lugs, worn bayonet slots, or cracked housings; replace damaged components promptly. If you notice intermittent connections, verify that the bayonet lugs align with their slots and that the plug seats fully with a firm twist. Corrosion on the inner conductor or shielding can cause signal loss; replacing the plug or the mating jack is usually the simplest fix. When you need to reuse an old cable, consider replacing both ends to maintain consistent impedance and shielding. By following these checks, you’ll minimize common issues and extend the life of your RF setup.

Choosing the right tools and accessories

To terminate BNC plugs with confidence, stock a small toolkit: coax stripper, dedicated coaxial crimping tool, quality BNC plugs for your impedance (50 ohm or 75 ohm), a multimeter with a continuity test, and a cleaning swab. For outdoor or rugged use, look for weatherproof or IP-rated BNC variants and sealing compounds to prevent moisture ingress. When purchasing, verify the cable impedance and ensure the plug matches the cable jacket type; a mismatch can degrade signal or reduce reliability under motion. Finally, consider keeping a few spare connectors and adapters on hand so you can quickly reconfigure your rig without downtime. With the right tools and a disciplined approach, BNC plug terminations become quick, reliable, and repeatable.
