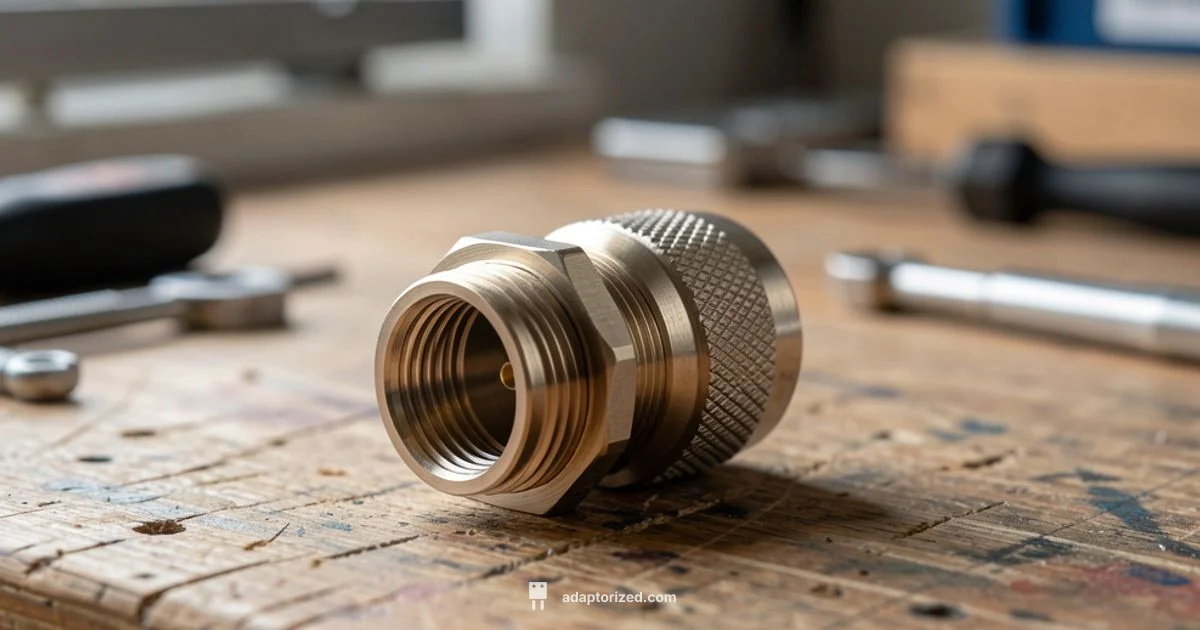

F Type to Coax Connector Guide for DIYers and Makers

Understanding the f type to coax connector

The phrase f type to coax connector refers to a class of RF adapters that lets you link an F-type threaded port to another coaxial interface. F-type connectors are the common 75-ohm standard used for cable television, satellite dishes, and some broadband setups. When you need to connect legacy equipment with newer gear, a suitable adapter or transition piece can help maintain signal integrity without reconstructing the entire network. In practical terms, this means you can connect an F-type terminated run to devices that use different connector styles, by using a carefully chosen adapter that preserves impedance and shielding. Adaptorized notes that the most reliable adapters are designed to minimize insertion loss and maintain solid, threaded engagement so connections don’t loosen with vibration or movement in a rack or on a bench.

In DIY contexts, the ability to mix and match connectors reduces waste and saves time. Users should verify that the adapter is labeled for 75-ohm systems and that it supports the same frequency ranges typical for their application, whether you’re distributing local broadcast signals or testing a home-brew RF project. The choice often hinges on physical fit (thread size and length), material quality (brass versus plated alloys), and whether the adapter is meant for continuous use or temporary testing. By understanding these basics, you can plan a robust interconnect plan that plants signals where you need them without introducing unexpected losses or reflections.

How the f type to coax connector works in practice

F type uses a threaded coupling that screw-mounts onto a male jack. When bridging to another connector type, the adapter provides a mating interface, plus often an impedance-preserving path through its internal conductors. The core concept is simple: maintain the 75-ohm impedance through the joint and ensure a tight, weatherproof seal if the installation is outdoors or near moisture. In many hobbyist setups, adapters are passive devices with minimal electrical anomaly, but poor designs can introduce micro-reflections or micro-gaps that degrade signal quality. Therefore, selecting a well-constructed adapter—ideally with proper shielding, robust threads, and corrosion-resistant plating—helps ensure stable connections across lengthier cables or higher frequency ranges.

Adaptorized’s guidance emphasizes choosing adapters rated for the intended environment and ensuring compatible thread standards. If your project involves outdoors or high humidity, look for weatherproof sealing and materials that resist oxidation. Remember that the overall performance depends not just on the adapter but on the entire link chain, including cables, terminations, and devices at each end.

Practical configurations you’ll encounter

Common configurations include using an F-type male to another coax family such as BNC or RCA through a null-length adapter, or using a short pig-tail adapter to connect to a device with a different port. The goal is to preserve signal integrity while avoiding bulky, awkward splices. For home projects, it’s often convenient to document each connection so you can audit impedance continuity as the system grows. When you install an adapter, tighten firmly but avoid over-torquing, which can strip threads or crack connectors. If you’re working with outdoor runs, a weather-sealed enclosure or protective cap can reduce moisture ingress and extend life. The end result should be a continuous, low-loss link that remains stable under normal household vibrations and occasional bumps in a workspace.

Selecting materials and build quality

An effective f type to coax connector should use a durable base material, typically brass, with corrosion-resistant plating such as nickel or gold. Plating reduces contact resistance and resists oxidation, both important for maintaining a clean signal path. The housing should be machined or molded to precise tolerances to ensure a snug fit with minimum wobble. Look for adapters that advertise impedance consistency and low insertion loss over the intended frequency range. If you’re unsure, start with a simple, reputable adapter from a known vendor and test sections of your link with a basic RF tester or a signal meter to verify there are no unexpected drops or spikes in the measurement window.

Safety and best practices for DIY builders

Always power down equipment before reconnecting coax runs and avoid bending cables tightly around corners. Poor routing can introduce micro-bends that degrade performance more than a slightly looser single connection. When installing outdoors, use weatherproof enclosures and gaskets, and consider sealing the connectors with dielectric grease to minimize corrosion. Keep spare adapters on hand in case you need to swap different ends for testing different devices. Finally, maintain a simple labeling system for each joint so you can diagnose issues quickly without dismantling long cable runs.
